DTech DB9 Breakout Connector RS232 Serial Adapter Solderless Module Board with Screw Terminals Block, Case, Long Bolts and Tail Pipes (DB9 Male + Long Bolts)

• Soldering-free DB9 connector serial adapter is a great little affordable solution for custom-wired DB-9 RS232 connection (wire range : 12 AWG - 24 AWG)
• DB9 male breakout connector’s signal pins are Clearly Labeled on Both Sides of PCB board for quick connection and easy troubleshooting

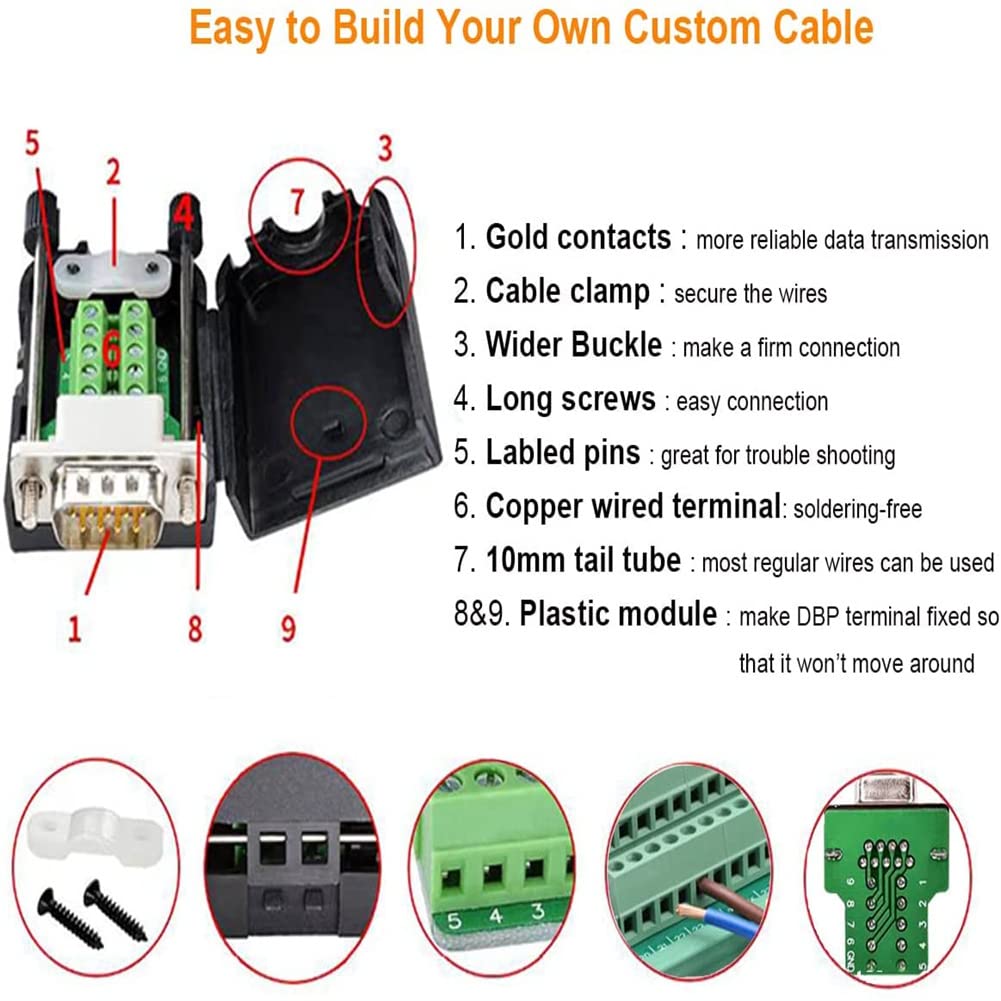

• Simple D-sub 9 pin serial connector is well built with pure copper plated joints and gold plated contacts for reliable data communication

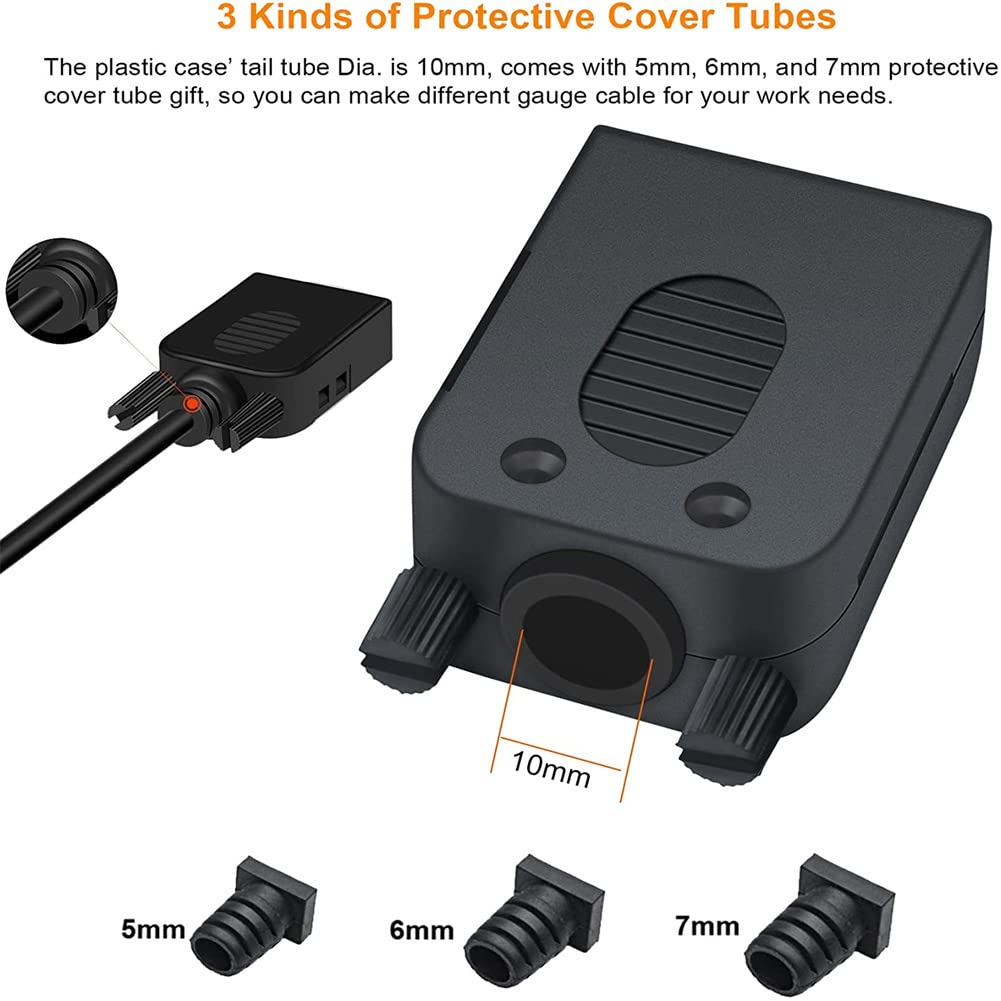

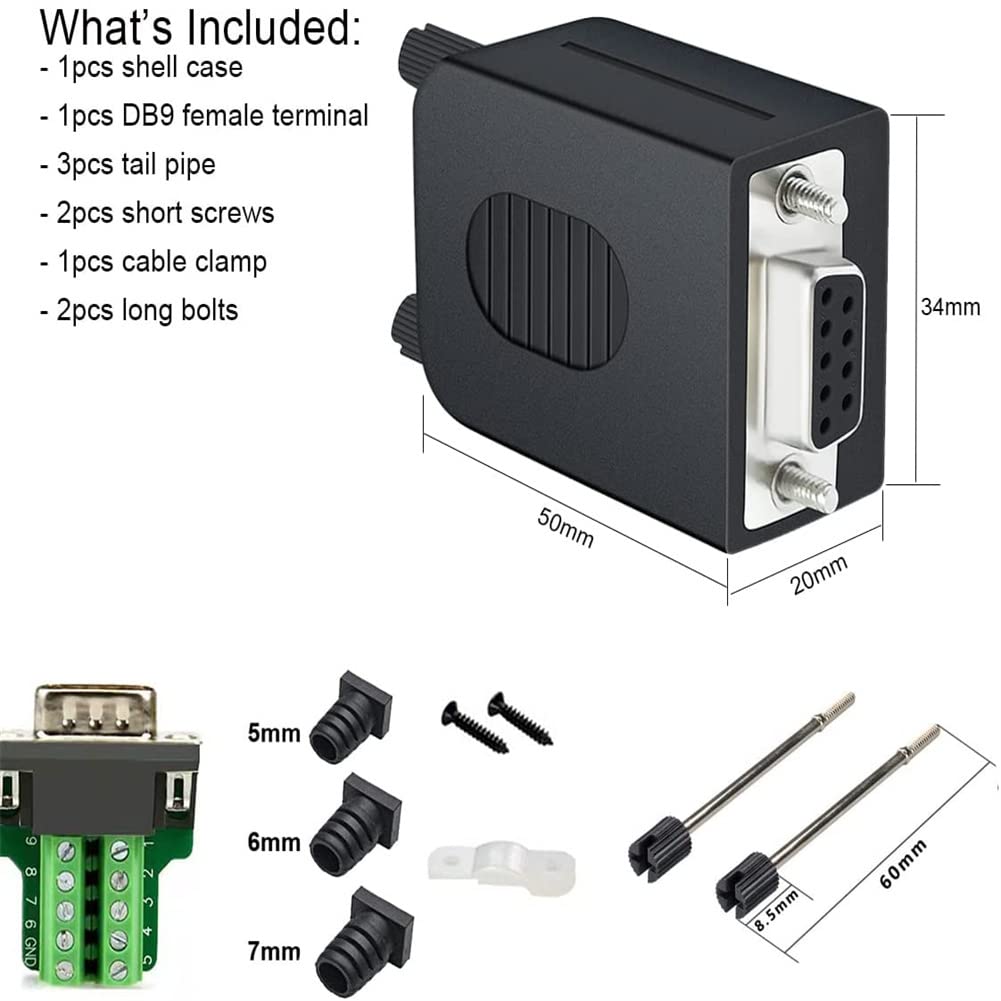

• Case size : 50 x 34 x 20mm (L*W*H); cable hole dia.: 10mm/0.39''; 3pcs tail tubes (5mm/0.2'', 6mm/0.23'', 7mm/0.27'')

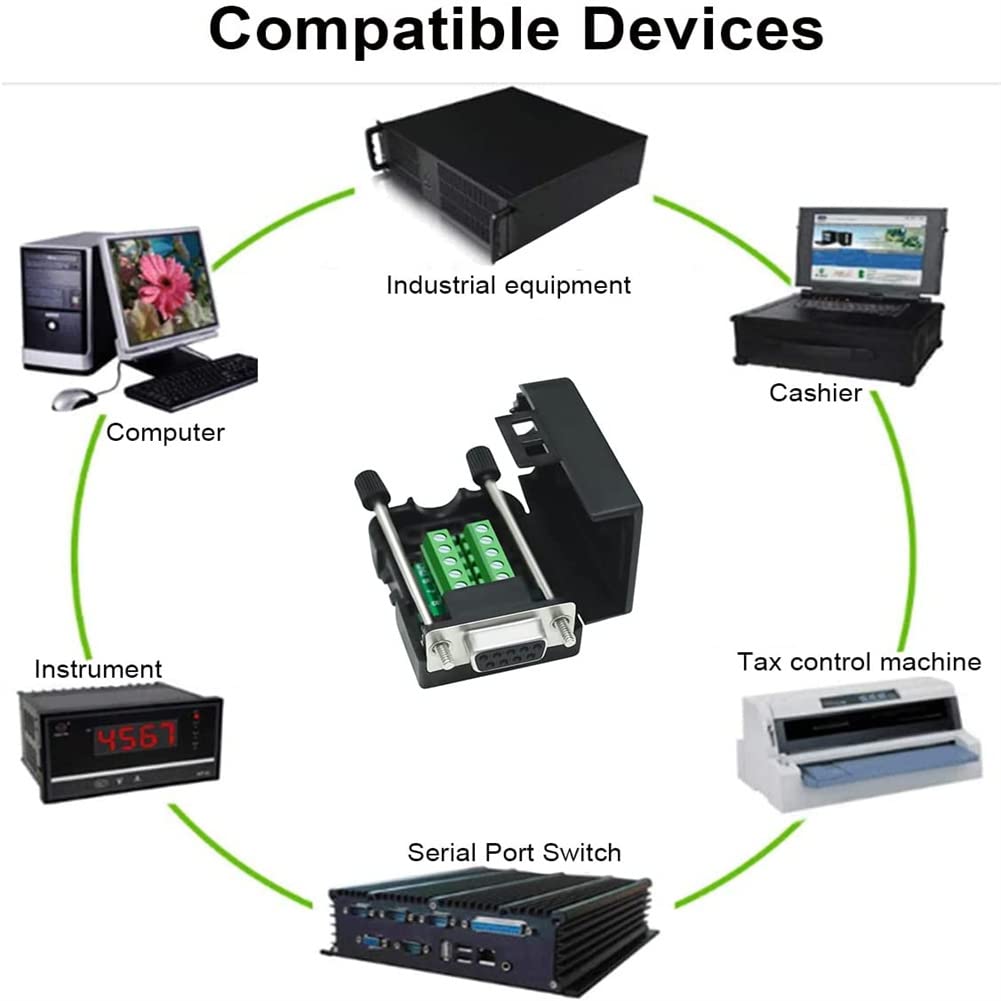

• DB9 solderless connector screw terminal block is compatible with CNC Controller, motor, radio, digital security camera, laptop, set-top box, barcode machine, PLC, PDA, POS, Modem, tax control panel, network serial device, industrial instrument, etc

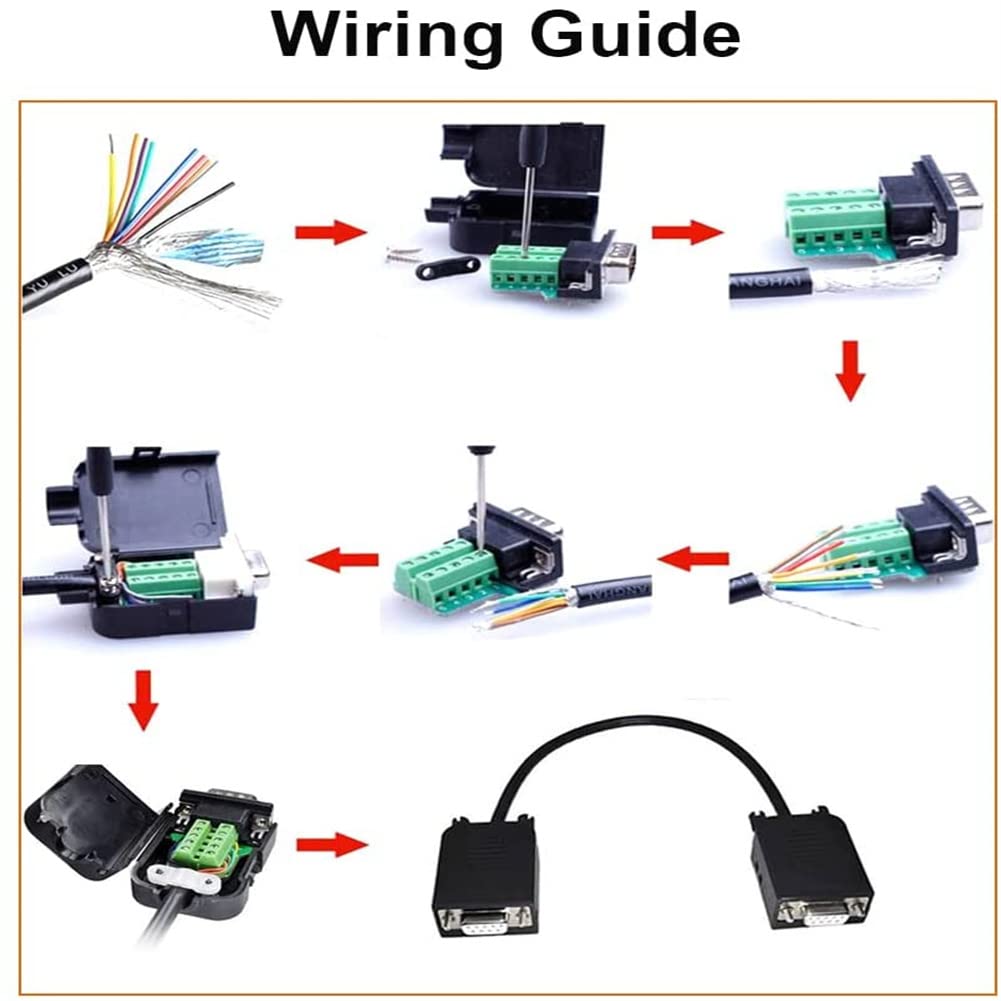

Build Your Own Custom Cable without the Hassle of the Welding If you don't like soldering when make the RS232 connection, this simple DB9 solerless connector is a quick way for you to insert the wire, so much easier than melting the pins and soldering them in place. PCB board's solder joints are named pin 1 to pin 9 (DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI), enables you to make quick connections, and to color code per terminals. Pure copper plated joints on the PCB board and DB9 connector's gold plated contacts for you to make a reliable signal connection. The case housing is designed with folding buckle, which enables you to make a easy assembly and disassembly without tool. The DB-9 connector are well made and have enough space inside to make it easy to connect,and then route the wire fairly easily. Suitable for variety of pin connections required to use serial communications industrial control products, such as: CNC Controller, motor, radio, digital camera, laptop, set-top box, barcode machine, PLC equipment , PDA, POS, MODEM, tax control panel, network serial devices, scientific instrument , etc Use in connecting to control panels for laptops; Connects serial devices that need conductors broken out; Provide power and triggering to a scientific instrument ; re-pin an Ethernet patch cable to use for a console cable; ... Specific DB9 solderless module (male plug) pure copper plated joint Pin headers: Gold plated contacts Cable hole Dia.: 10mm/0.39″ Thickness: 20mm (Case size: 50 x 34 x 20mm) What's Included - 1pcs shell case - 1pcs DB9 male terminal - 3pcs tail pipe (protective covers) - 2pcs short screws - 1pcs cable clamp - 2pcs long bolts
