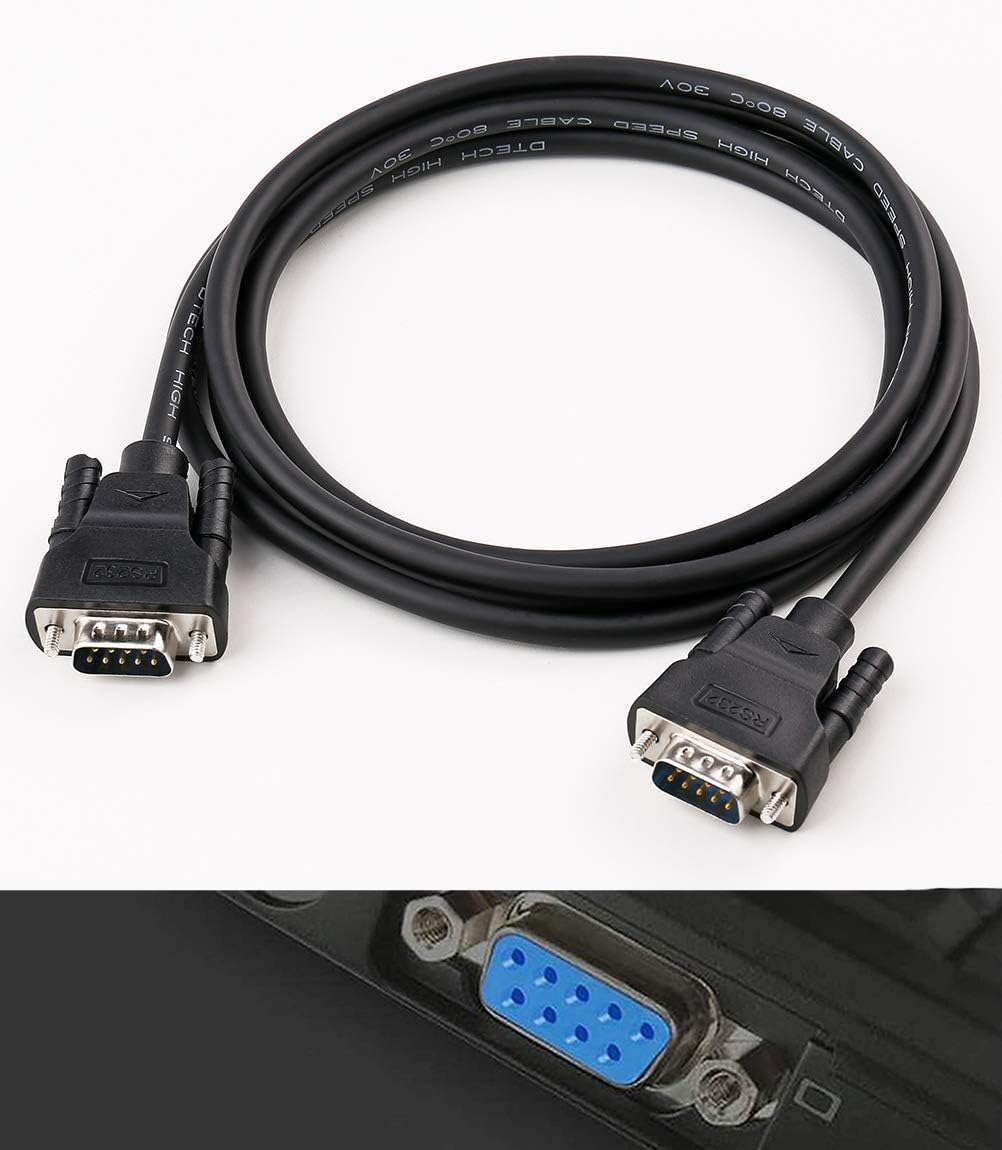

DTECH DB9 9 Pin Serial Cable 5ft Male to Male RS232 Straight Through（1.5m, Black）

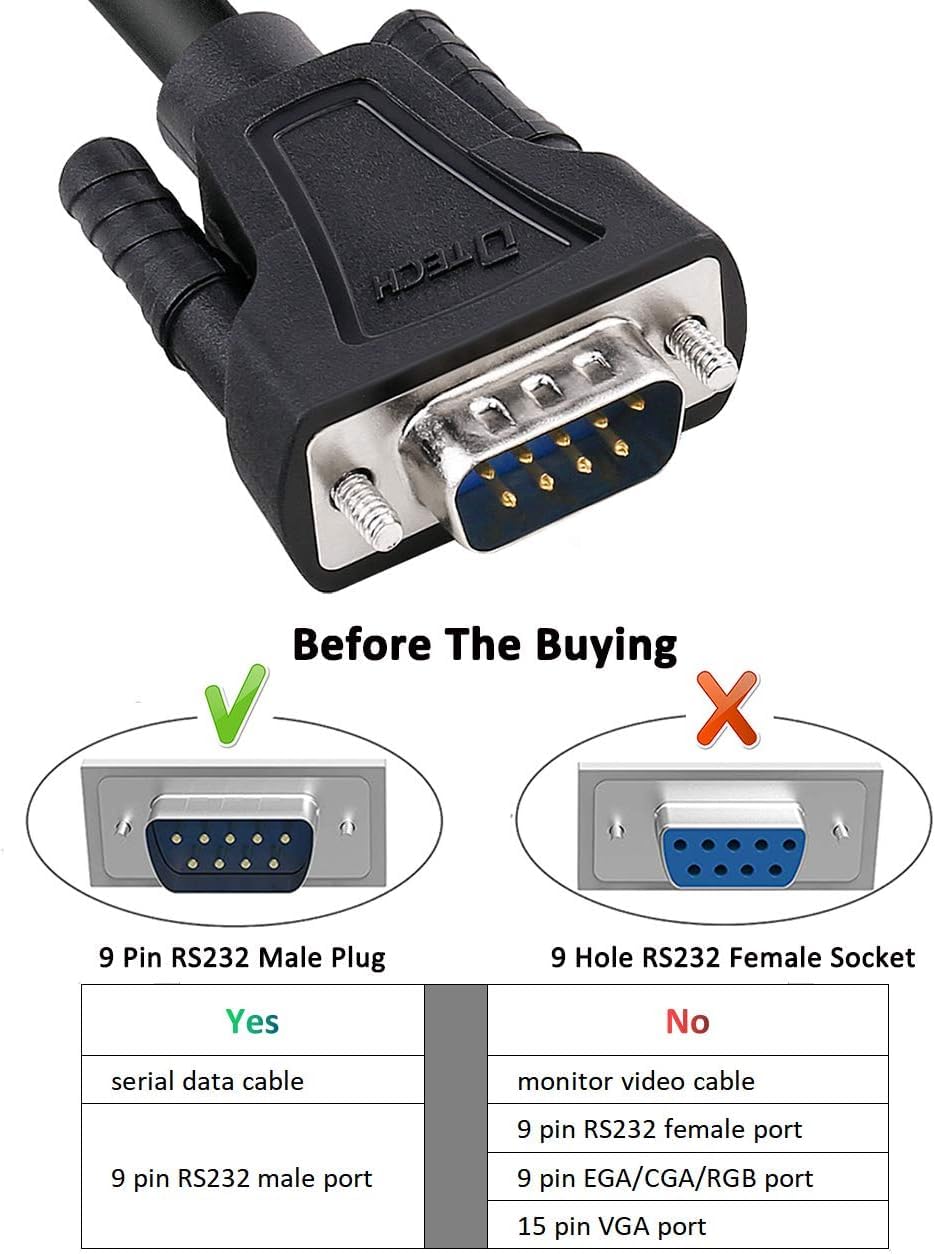

• 9 pin serial port adapter cable connects your computer to device with RS-232 compatible (COM) interface (NOT VGA cable for computer to monitor)

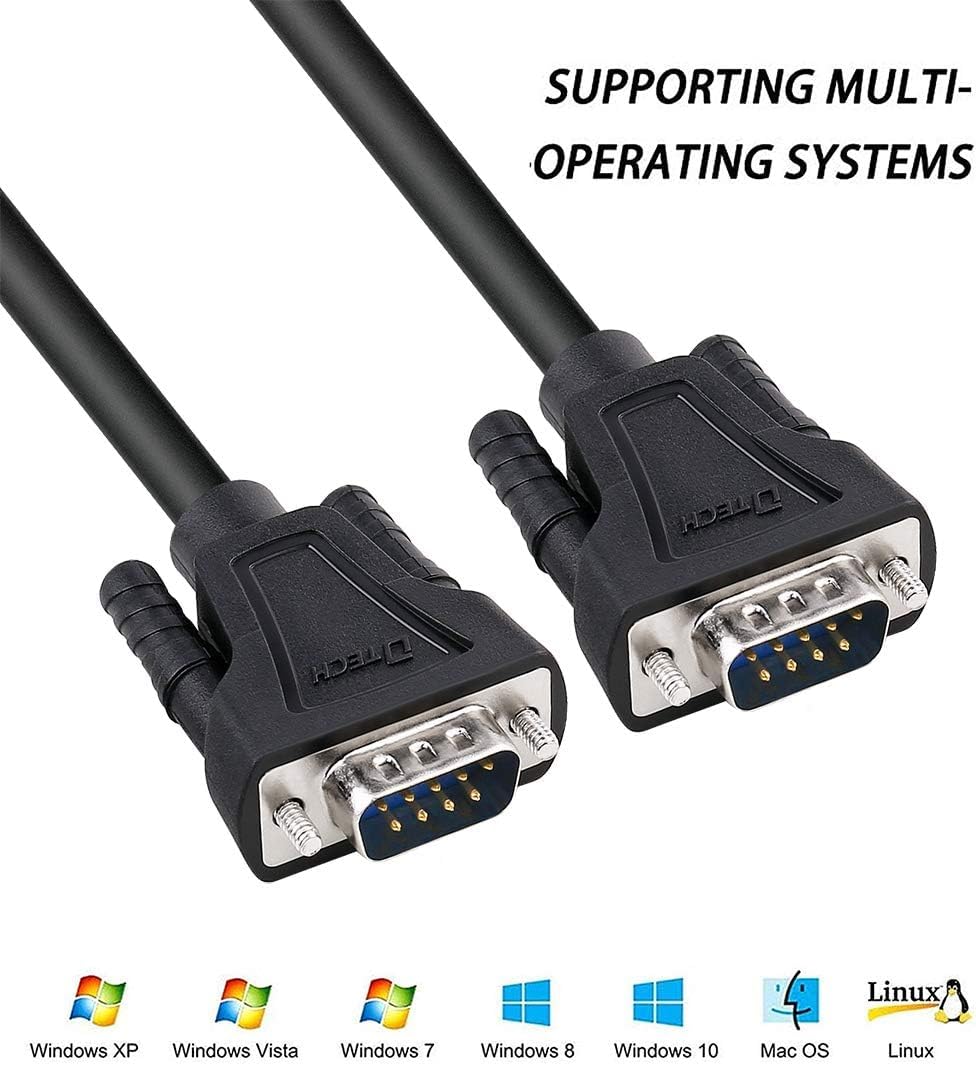

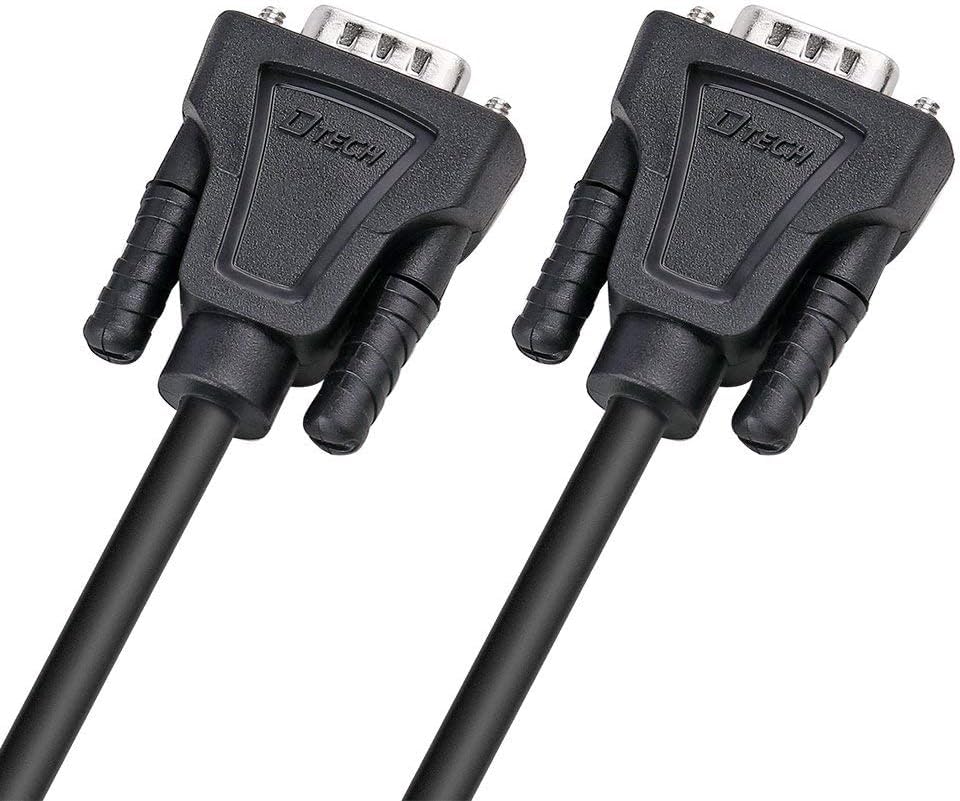

• DB9 male to male connector on each end equipped with screws to ensure an easy and solid connection for stable data communication
• The wires inside are of 30AWG gauge and easy to solder to, and they connect to the pins in the order of the standard wire color code

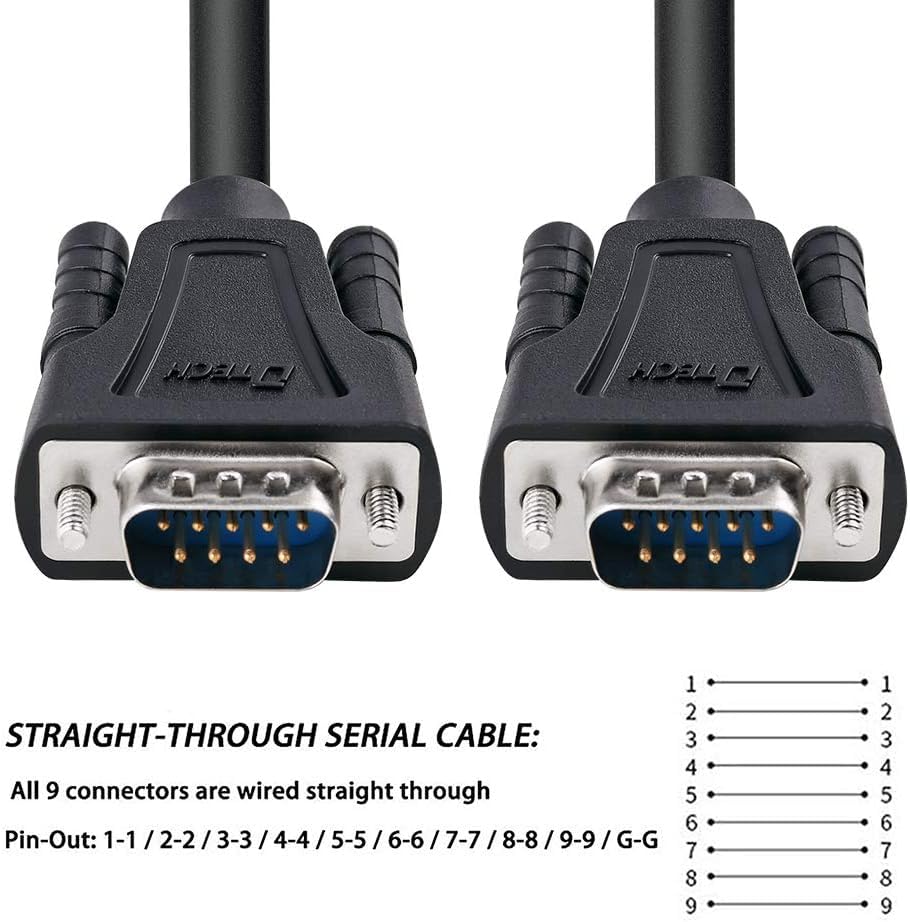

• It is pin to pin wired as a serial Straight Through cord (pinout :1-1, 2-2, 3-3, 4-4,......, 8-8, 9-9, G-G); standard shielded with AL foil
• 5 feet short serial adapter for hooking up PC laptop to some old RS232C equipment like scanner, Modem, printer, plotter, camera, barcode / embroidery machine, touchscreen, microcontroller, factory test equipment

Transfer data between two devices using a serial communication protocol If your equipment require all 9 pins straight through, take this 5-foot 9 pin serial cable adapter wherever you need it, it allows you to add your peripherals to an application or replace the cables. This 9 pin serial cable male to male is with gold plated pins for superior corrosion resistance ensuring a solid connection. The wires inside the cable are connected to the pins in the order of the standard wire color code (black brown red orange etc.), which makes hook-up a breeze when you need to cut the RS232 cable and make some other wires to the pins. The connectors are equipped with a pair of thumbscrews for securing the plug to the female socket. For Connecting RS232 devices below (partial): Touchscreen Telescope vinyl cutting machine Modem GPS network equipment radio transceiver stereo system subwoofer/speaker set sewing machine weather station Or controller to a remote control camera ... Important Note: 1)this is a straight thru cable, DO NOT perform crossover (Null Modem) function. 2)It is shielded with standard Foil-Al layer shielding as most cables do, it fits for most of jobs. But if there are big mess of interference at your work area, you may need a special heavy duty shielding cable (copper braided + AL-foil). Item Specifications: Connectors: DB9 to DB9 (Male-Male) Interface Surface: Nickel-plated Pins Surface: Gold-plated Wire Gauge: 30 AWG Cord Diameter: 6mm Cord Length: 5 ft (1.5 meter) Color: Black What’s Included: 1 x Serial to Serial Cable 5’ Male to Male 1 x User Manual
