DTech 9 Pin Serial Cable COM Port Male to Male RS232 Straight Through DB9 Data Cord (0.5 Meter, Black)

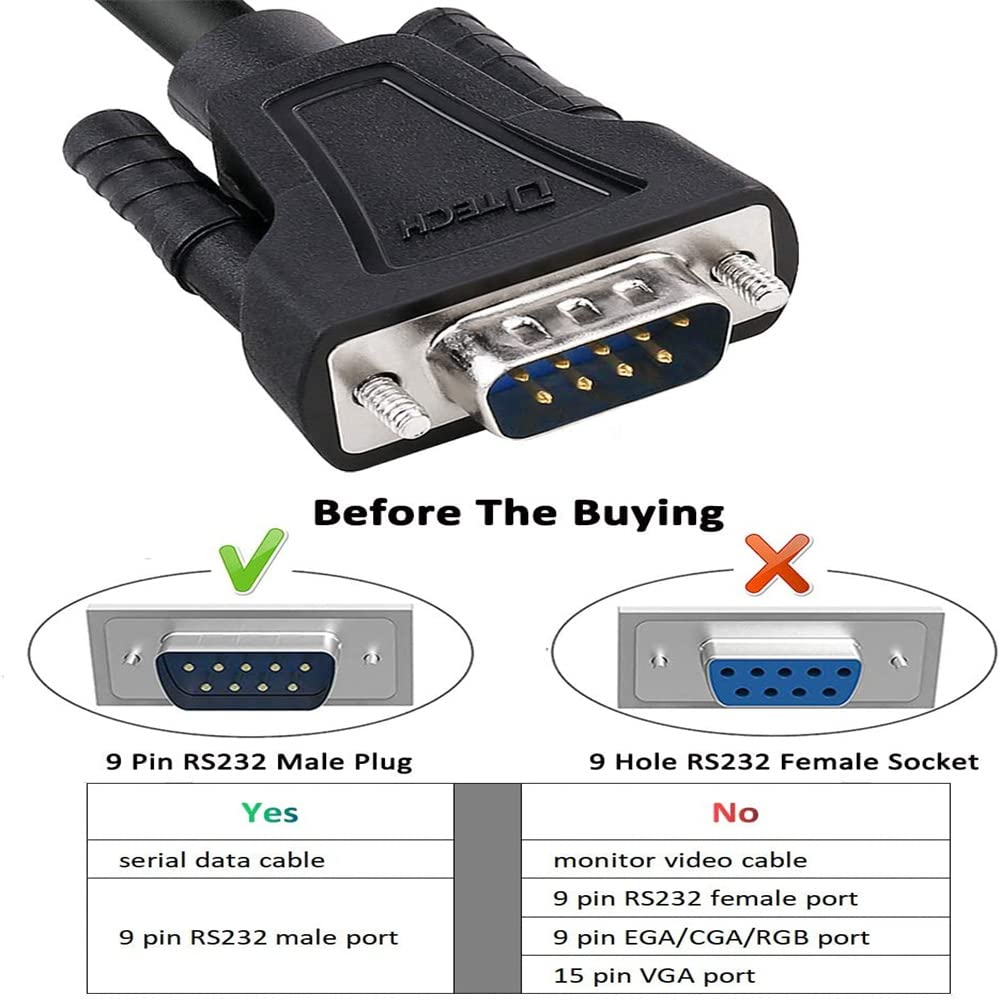

• (NOT VGA-cable for computer to monitor) 9 pin serial port adapter cable connects your computer to device with RS-232 compatible (COM) interface

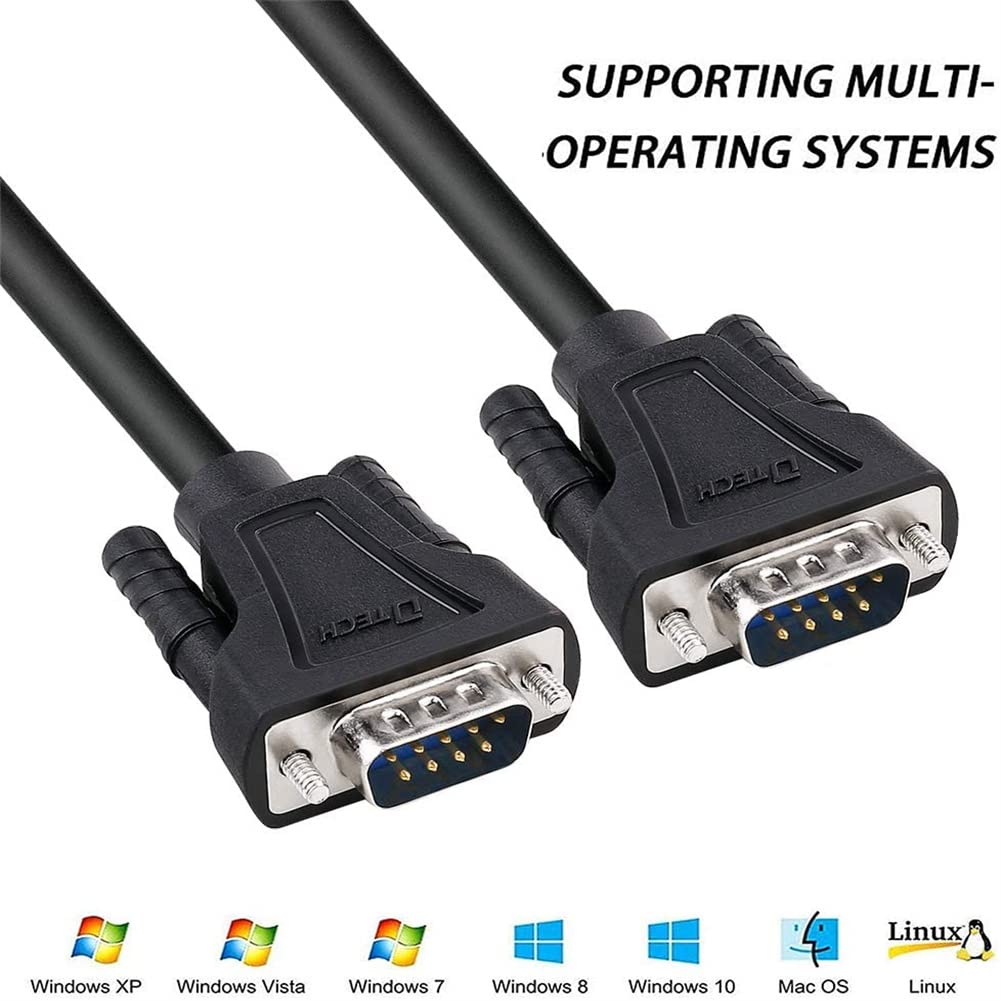

• Black male to male serial cable DB9 connector on each end equipped with screws to ensure an easy and solid connection for stable data communication
• The wires inside are of 30AWG gauge and easy to solder to, and they connect to the pins in the order of the standard wire color code

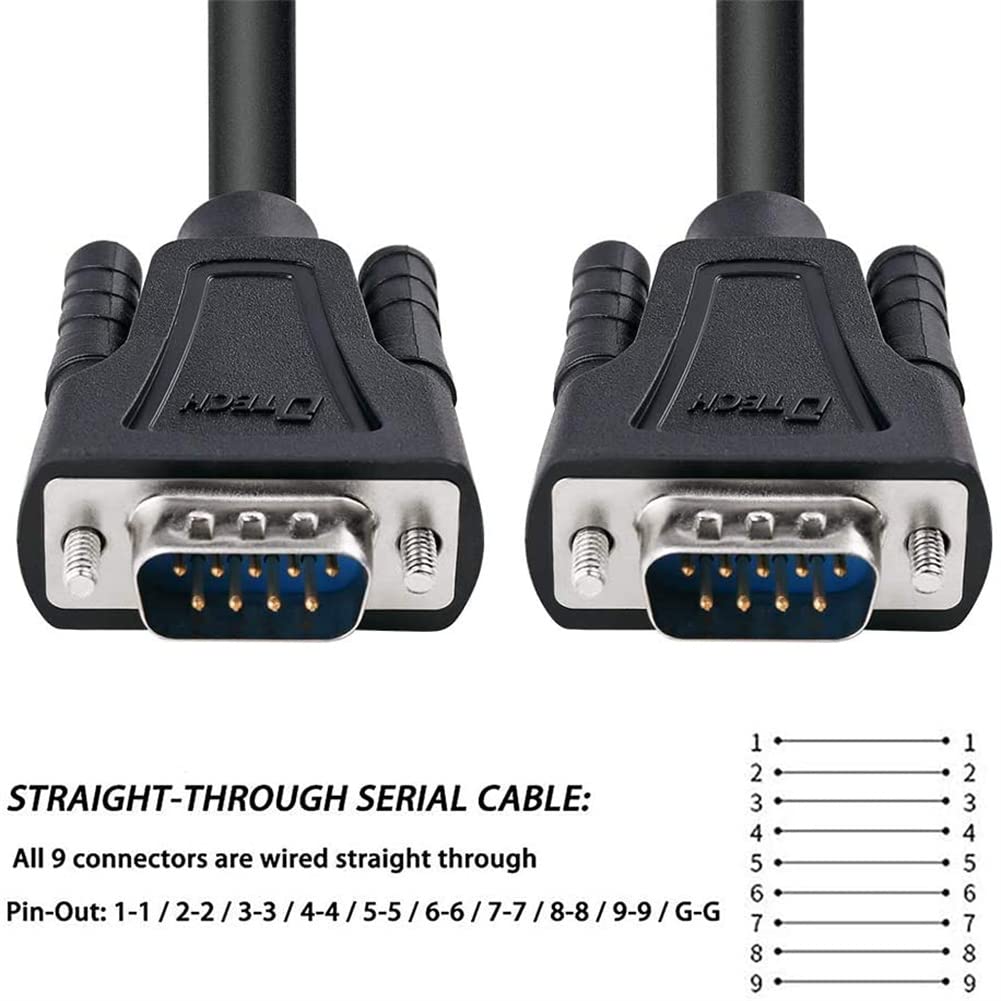

• It is pin to pin wired as a DE9 serial Straight Through COM cord (pinout :1-1, 2-2, 3-3, 4-4,......, 8-8, 9-9, G-G); standard shielded with AL foil

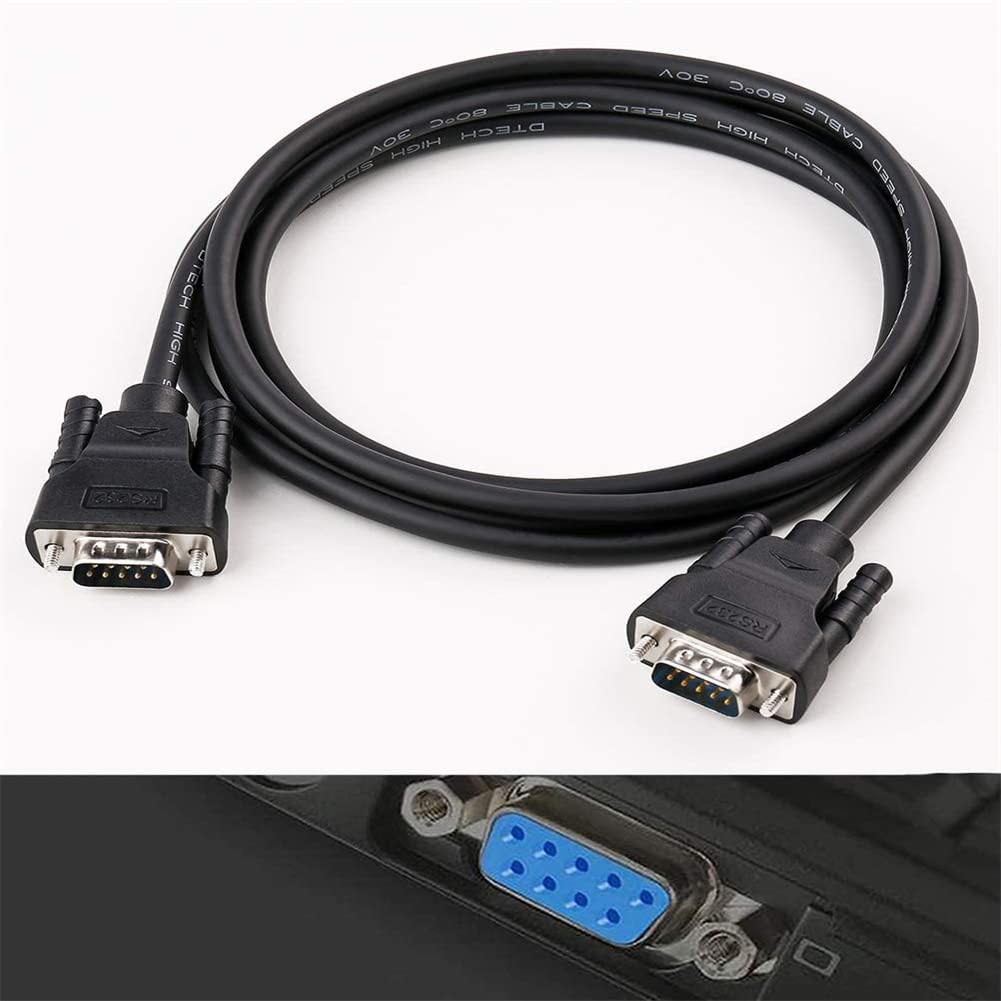

• 1.5 feet short serial adapter for hooking up PC laptop to some old RS232C equipment like scanner, Modem, printer, plotter, camera, barcode / embroidery machine, touchscreen, microcontroller, factory test equipment

Important Note: This is a straight thru cable, DO NOT perform crossover Null Modem function. It is shielded with standard Foil-Al layer shielding as most cables do, it fits for most of jobs. But if there are big mess of interference at your work area, you may need a special heavy duty shielding cable (copper braided + AL-foil). it’s serial cable for RS232 level data communication, don’t use it as a VGA-cable to connect a computer to your monitor Transfer data between two devices using a serial communication protocol If your equipment require all 9 pins straight through, take this 1.5-foot 9 pin serial cable adapter wherever you need it, it allows you to add your peripherals to an application or replace the cables. This 9 pin serial cord male to male is with gold plated pins for superior corrosion resistance ensuring a solid connection. The wires inside the cable are connected to the pins in the order of the standard wire color code (black brown red orange etc.), which makes hook-up a breeze when you need to cut the RS232 cable and make some other wires to the pins. The connectors are equipped with a pair of thumbscrews for securing the plug to the female socket. For Connecting RS232 devices below (partial): Touchscreen Telescope vinyl cutting machine Modem GPS network equipment radio transceiver stereo system subwoofer/speaker set sewing machine weather station Or controller to a remote control camera ... Item Specifications: Connectors: DB9 to DB9 (Male-Male) Interface Surface: Nickel-plated Pins Surface: Gold-plated Wire Gauge: 30 AWG Cord Diameter: 6mm Cord Length: 1.5 ft (0.5 meter) Color: Black What’s Included: 1 x Serial to Serial Cable Male to Male 1.5ft
