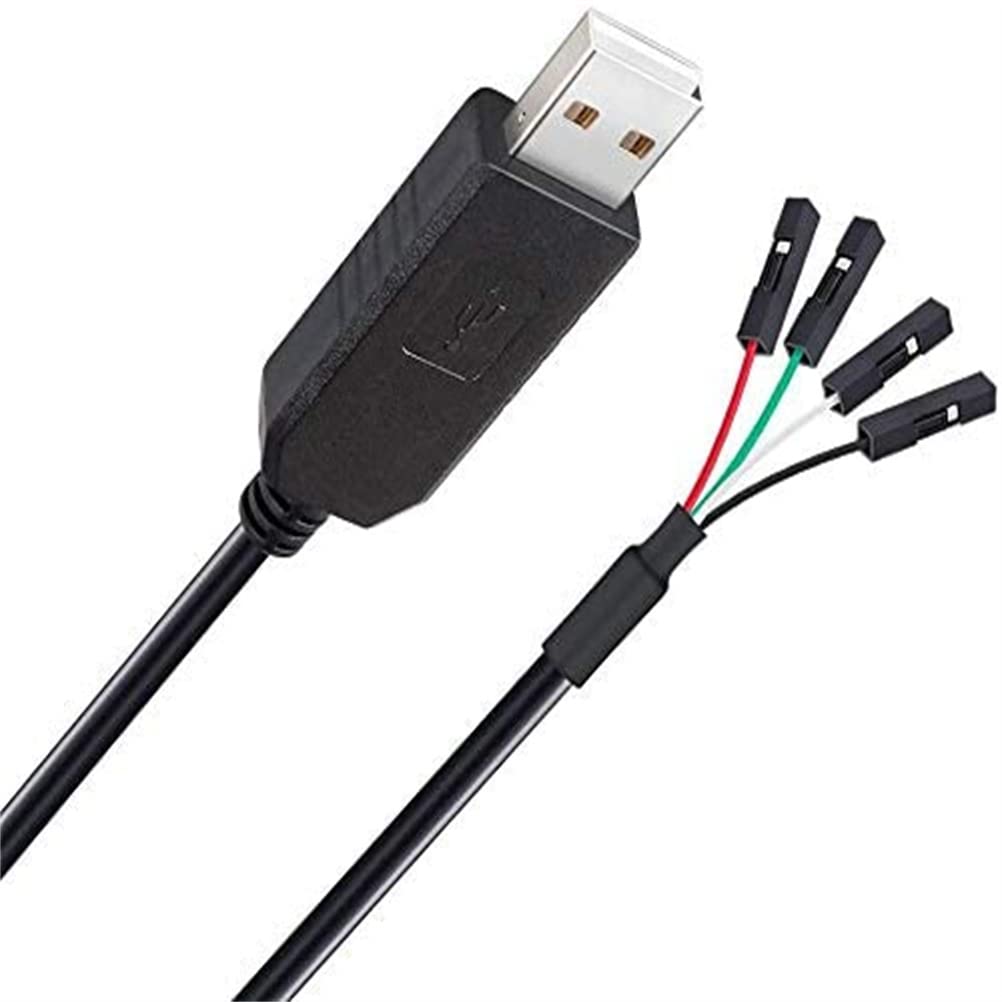

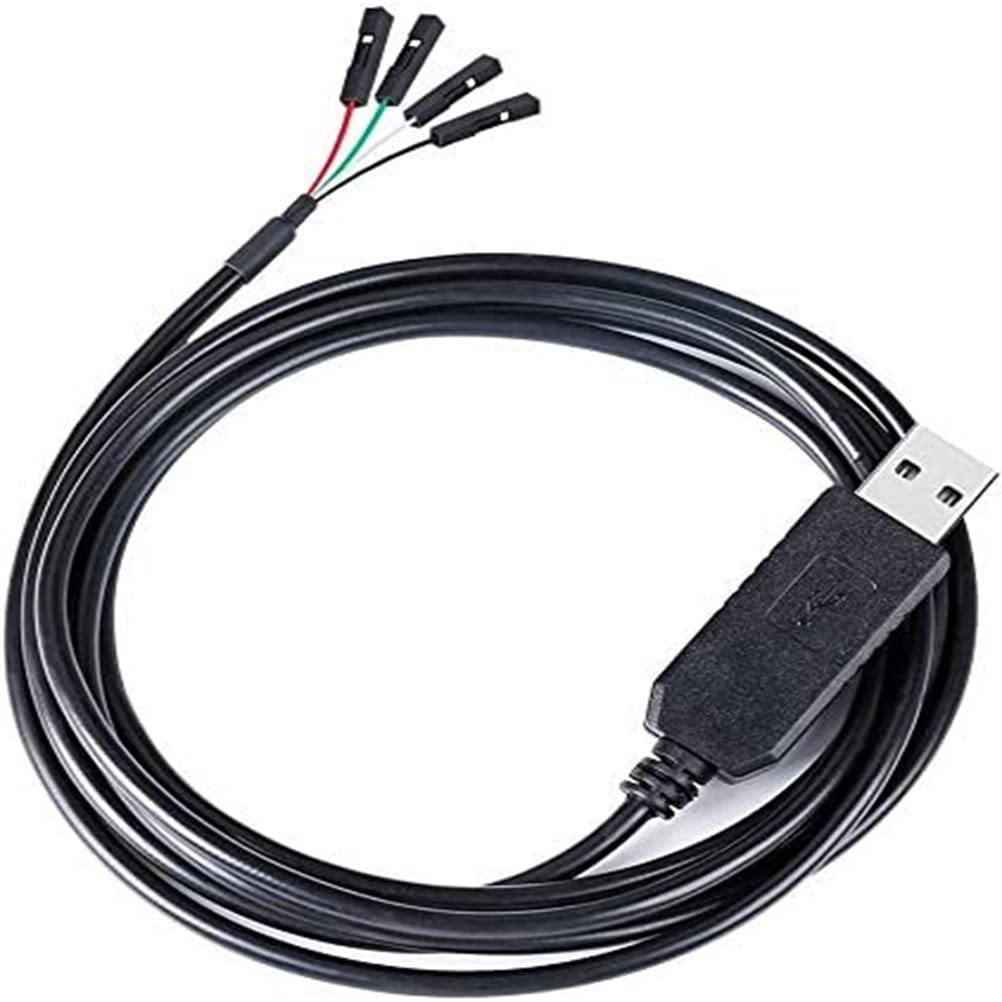

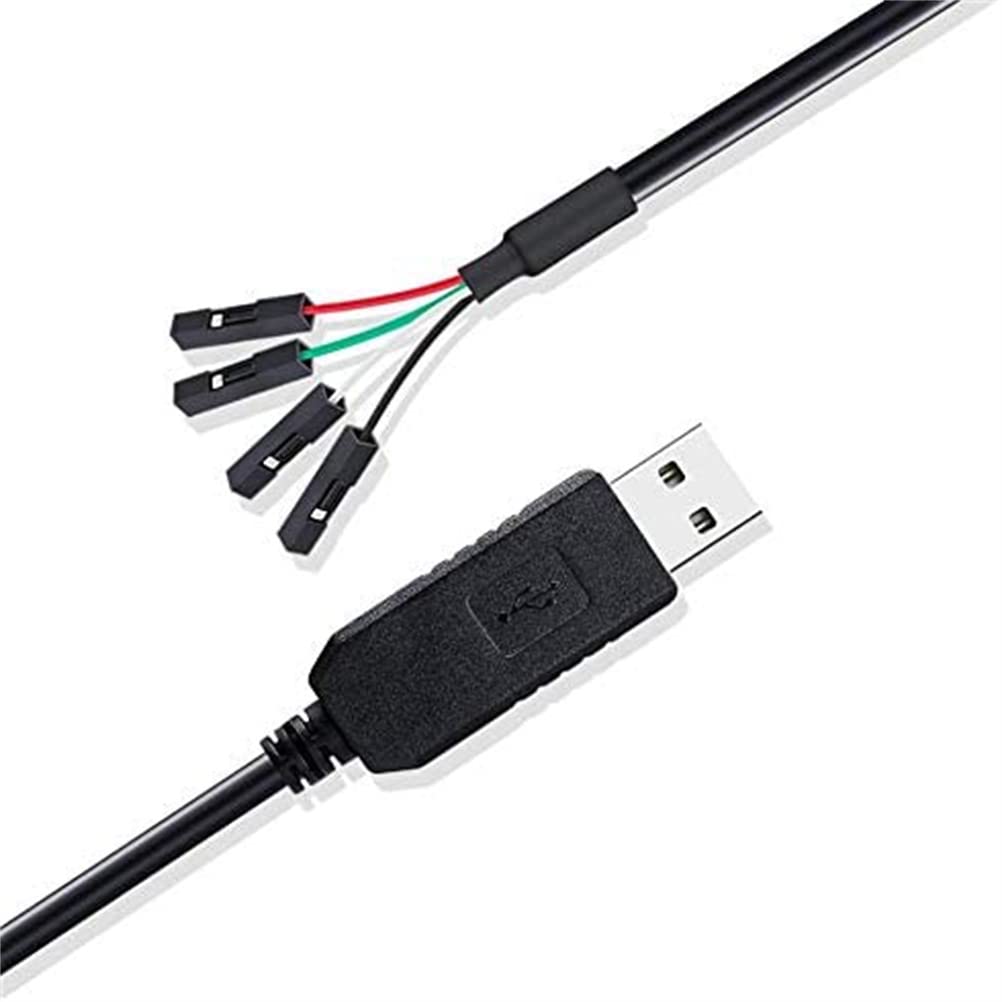

DTECH 4 Pin USB to TTL Serial 3.3V Converter Adapter Cable TX RX Signal 0.1 inch Pitch Female Socket PL2303 Prolific Chip Windows 10 8 7 XP Vista (1.8m, Black)

• USB to TTL serial adapter (with 4 pin 0.1” pitch female header socket) connects devices with 3.3 V logic level UART signals interface to a laptop via USB port
• A genuine PL2303TA chip module is housed in USB 2.0 type A male terminal for wider compatibility and supports reliable data transfer rates
• 6 feet USB to serial cable (4 way output flying leads ) provides access to UART (transmit) Tx, (receive) Rx, VCC (5V) and GND
• Prolific chipset on the PCB board has configurable internal EEPROM and UART signals can be individually inverted by configuring the EEPROM
• Compatible with Windows 11 10, 8, 8.1, 7 (32, 64-bit), 2008/XP/Vista/CE; ideal USB 2.0 debug cord for Vendor ID re-write, router, GPS, set top box, transmitter, flash firmware on hard drive, etc.

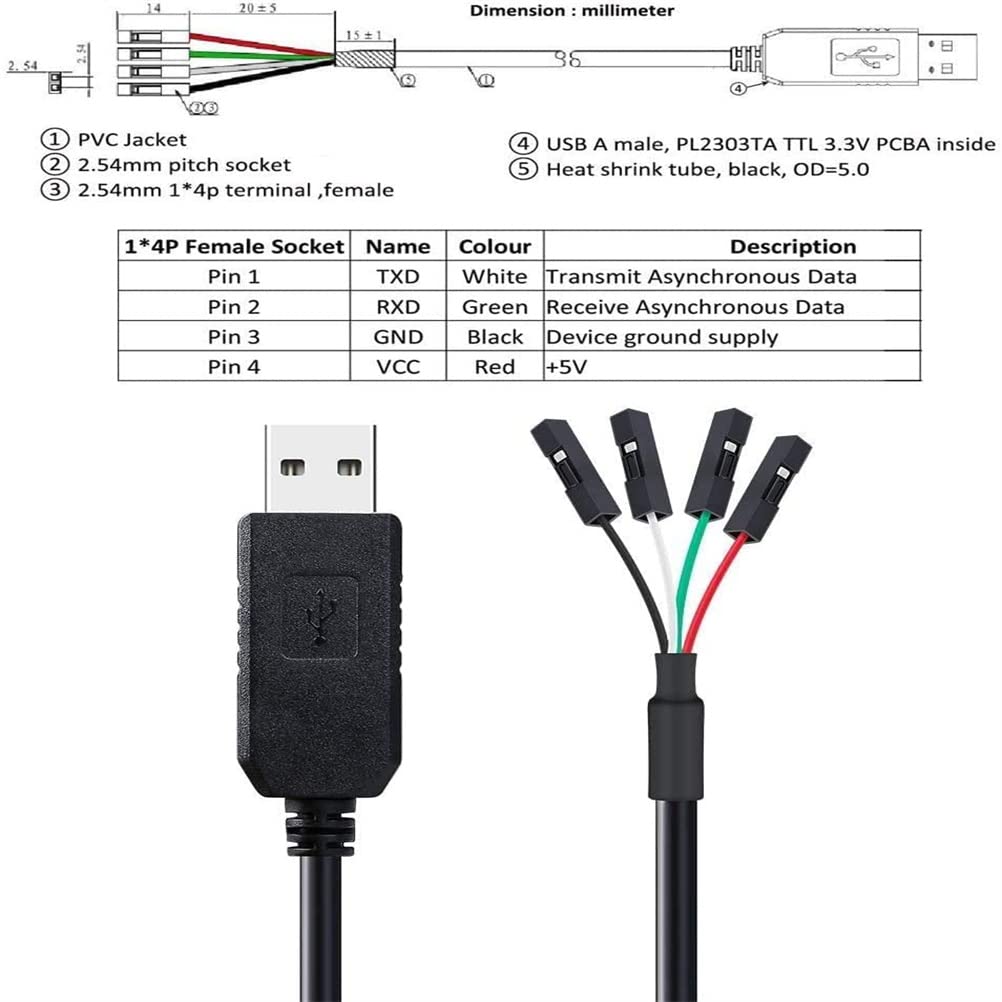

6-Foot PL2303TA chip USB to TTL serial adapter cable for 3.3 V logic level serial communication (rx, tx, vcc and GND) This USB TLL serial converter is built with Prolific PL2303 chip, FTDI’s royalty-free VCP allow for communication as a standard COM port; a great conversion data cord to meet with your needs of debugging, boot-loading, programming, etc. NOTE: If any installation or usage issues, please email us or you may download a driver and usage guide on Prolific official website The original PL2303 chip is embedded in the USB-A end; 4 way 0.1” header connector with GND (ground), VCC (5V), RX and TX at 3V3 logic level. Applications: Upgrading Legacy Peripherals to USB Interface Microcontroller UART or I/O, FPGA / PLD to USB Industrial Control USB Software / Hardware Encryption Dongles ... Features - The I/O pins of the wire are configured to operate at 3.3V logic level - Entire USB protocol handled by the electronics in the cable; - UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity; - Data transfer rates from 300 to 3M baud rate at TTL levels; - Internal EEPROM with users writable area; - Supply voltage comes from USB bus, no external supply required; - UHCI / OHCI / EHCI host controller compatible Specific Interface A: USB 2.0 type A Male Port Interface B: 4 pin Female Socket flying leads Chip: Prolific PL2303TA Supports Windows 2008, XP and XP 64-bit, Vista and XP 64-bit, CE 4.2, 5.0 and 6.0; Windows 7, 8, 8.1, 10 (32 and 64-bit); Cable Colour: Black Wire Length: 1.8 Meter What’s Included 1 x USB to Serial TTL Level Converter Cable 6ft 1 X User Manual
