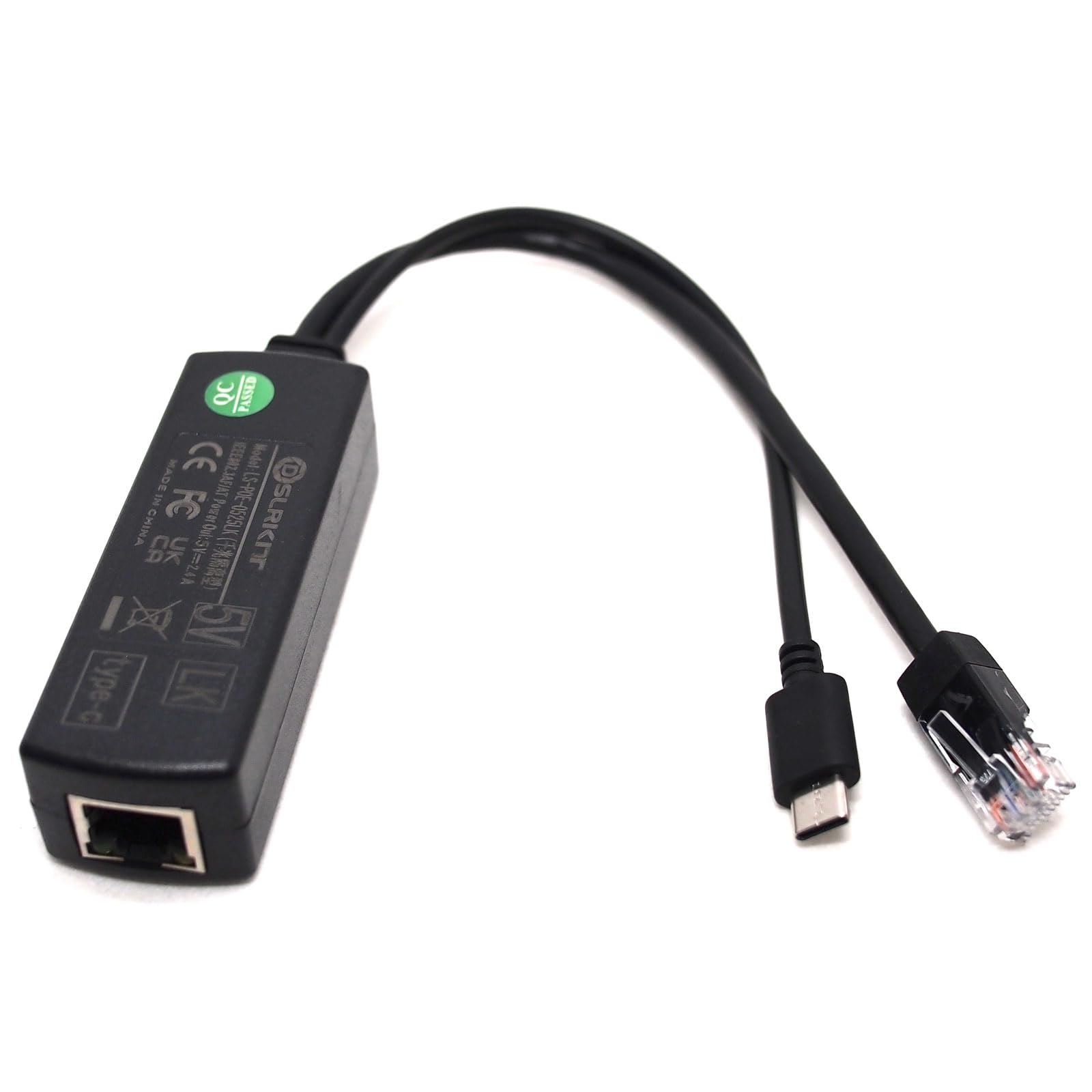

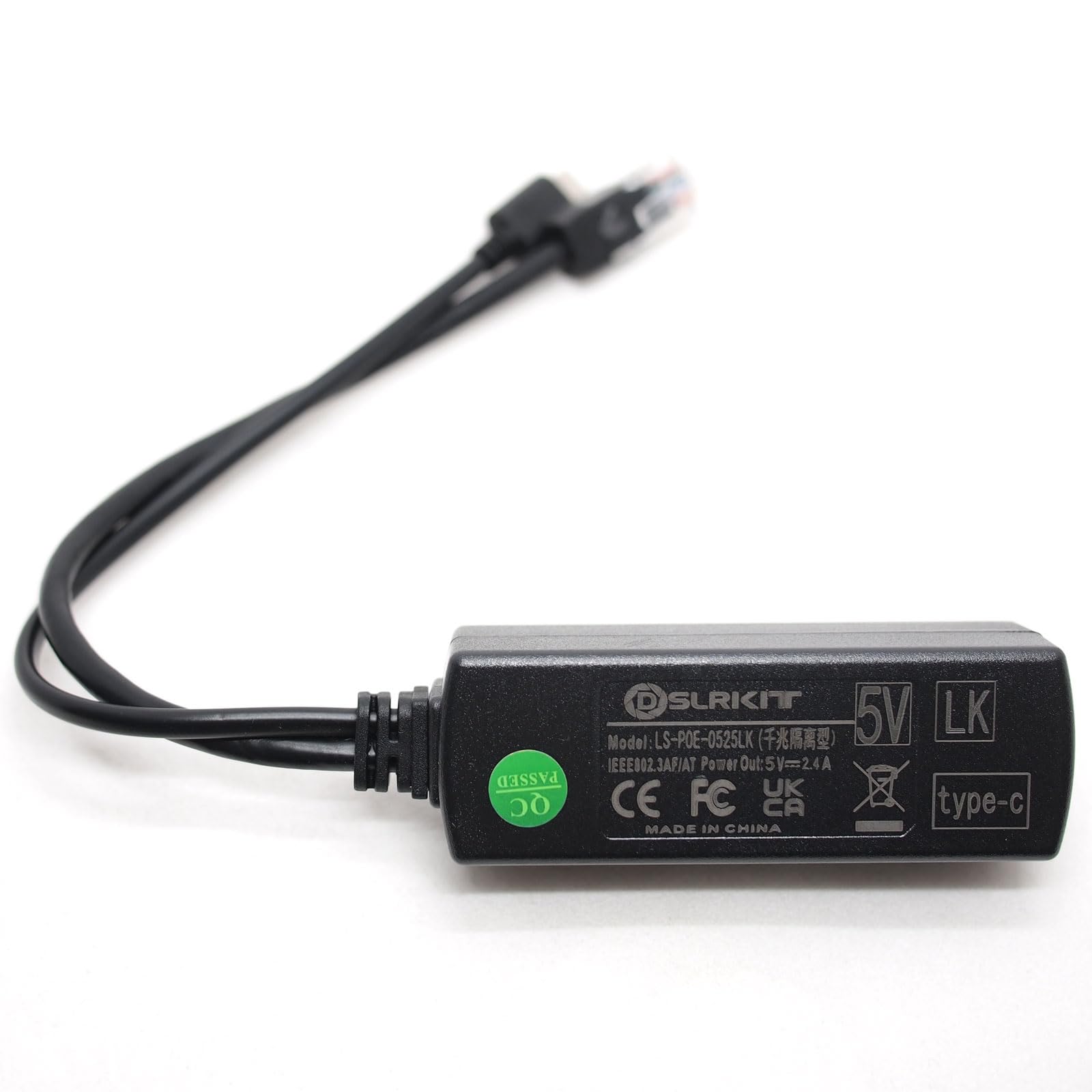

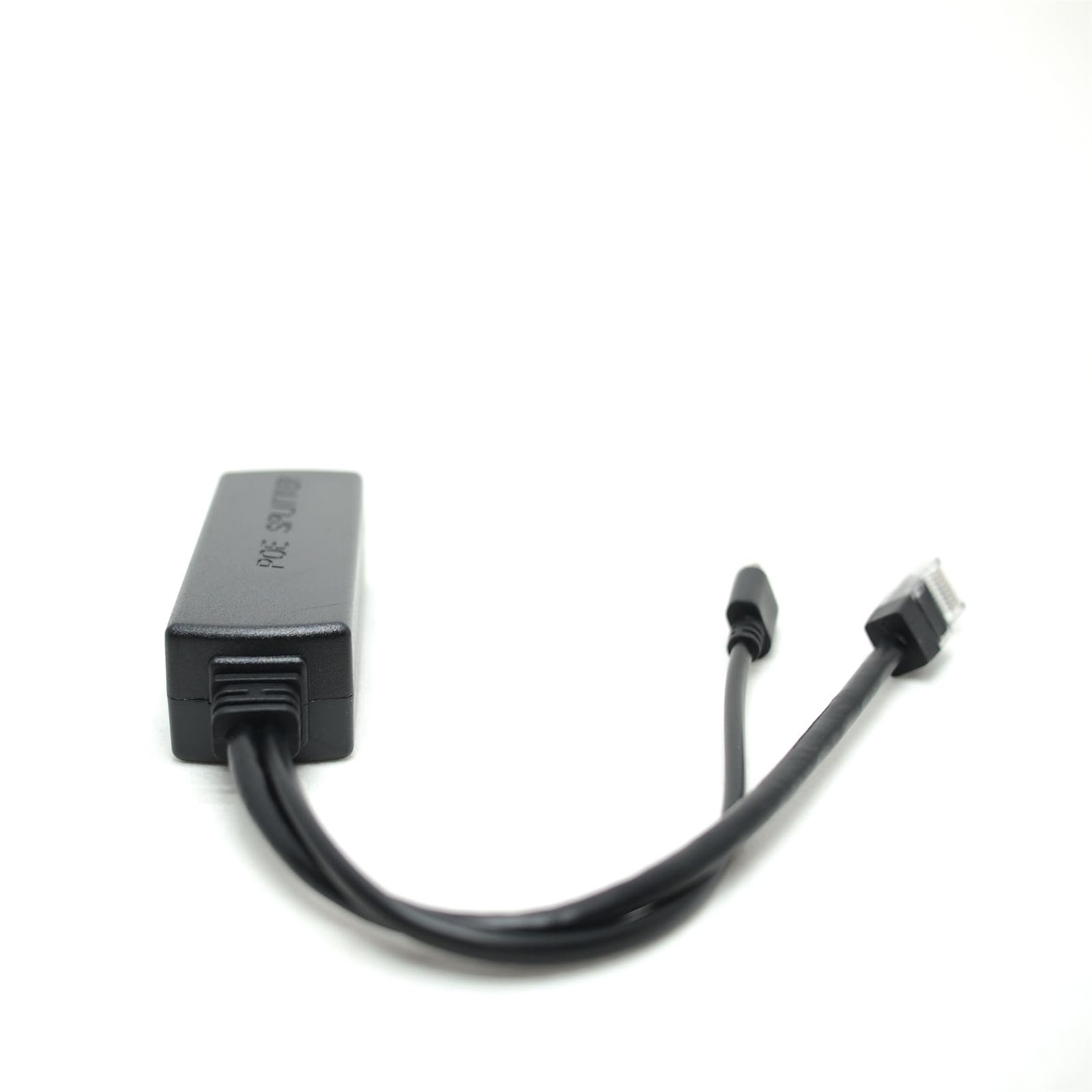

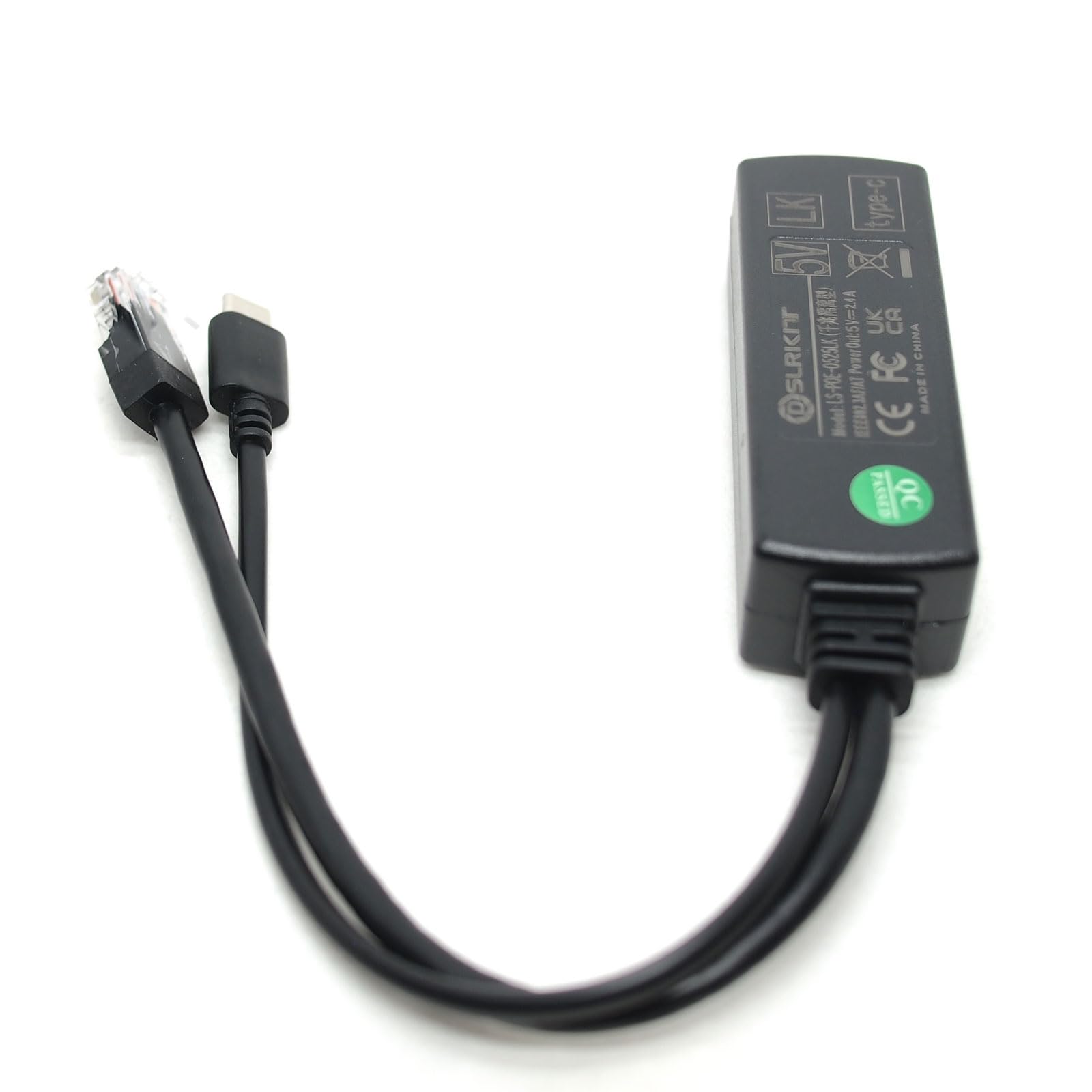

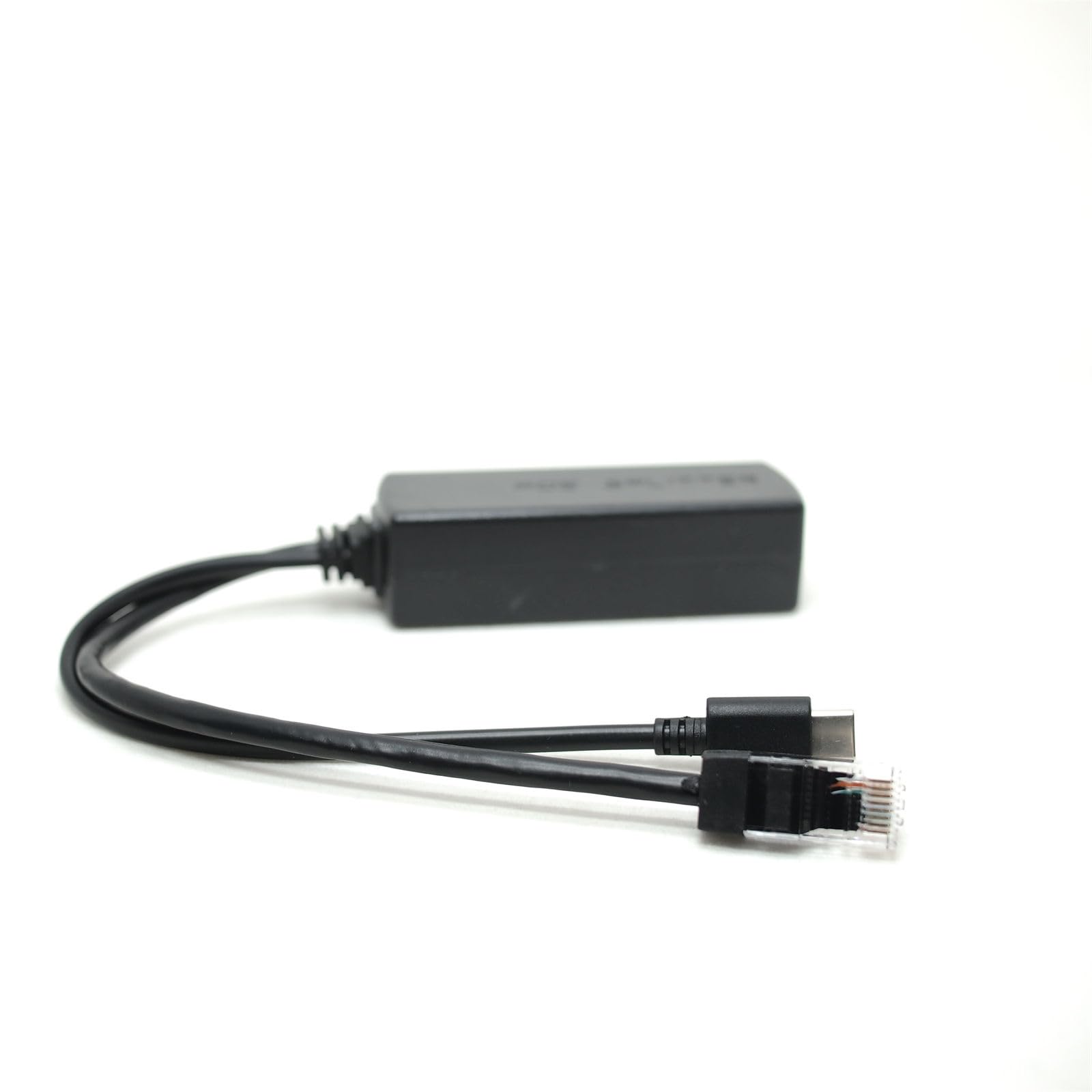

DSLRKIT Gigabit USB Type C Active PoE Splitter 48V to 5V IEEE802.3af Power Over Ethernet for Raspberry Pi 4B

• The POE splitter must be connected to the POE switch, POE midspan or 48V~52V POE injector for proper operation
• If your POE switch has a separate port setting, please don't set it at 'manually' on 100Mb/s.

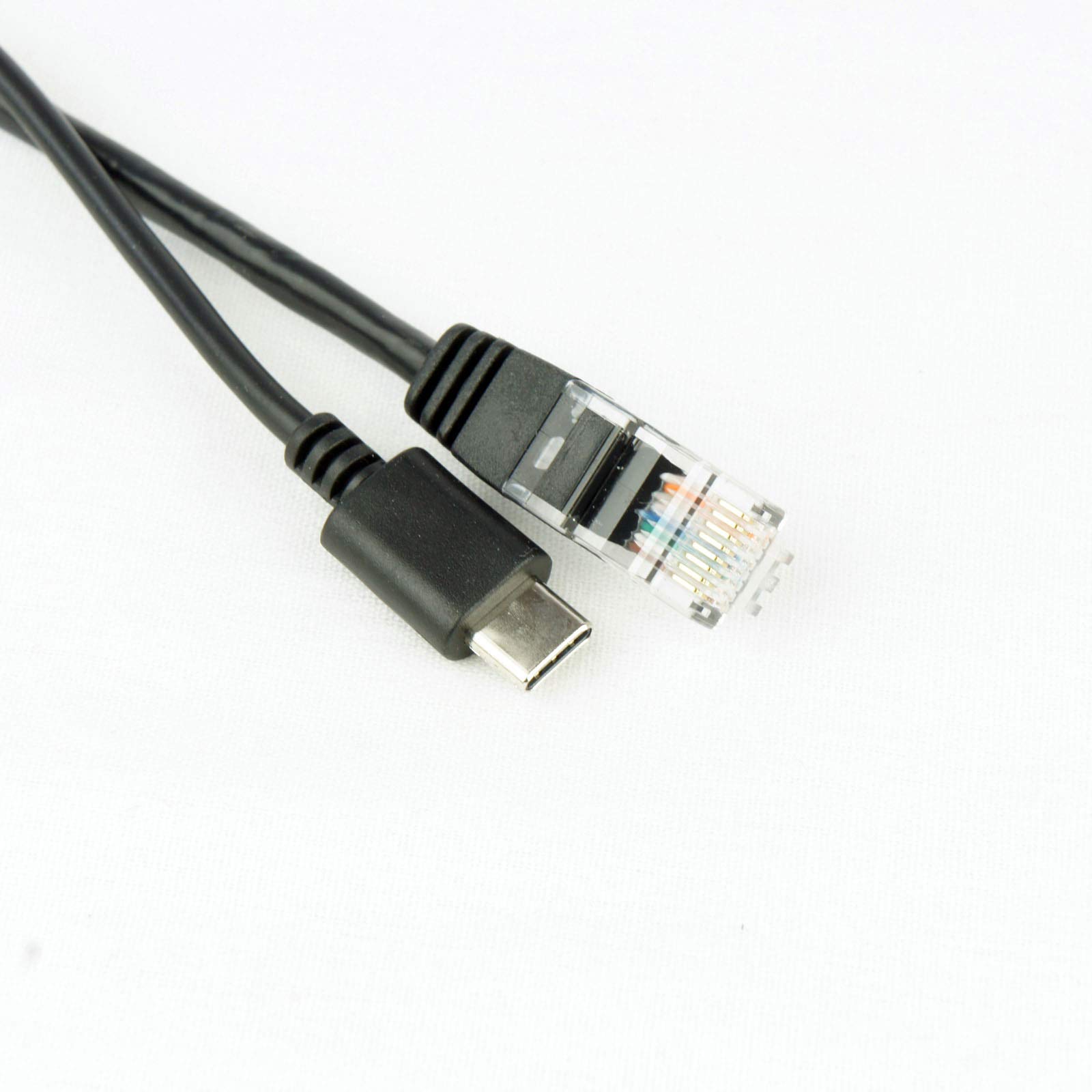

Note: The POE splitter must be connected to the POE switch, POE midspan or 48V~52V POE injector for proper operation. RJ45 female INPUT Port: Support the IEEE 802.3af/at the Power over Ethernet PoE Switch Support 48V Unsolicited Power Over Ethernet PoE Switch Support 48V Unsolicited Power Over Ethernet PoE Adapter If your POE switch has a separate port setting, please don't set it at 'manually' on 100Mb/s. Specification: Compliant with IEEE802.3af/at Isolation: 2.5kV Power Input: DC44~57V Power Output: DC5V 2.4A Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE) Data Output Port: RJ45 Male Power Output Port: USB Type-C Power Plug Data Transfer Rate: 10/100/1000 Mbps Data Pin: RJ45 pin 12345678 Devices will be detected before poe input Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-) Body size: 80 x 27x 22 mm DC cable length:165mm RJ45 Modular Plug cable length:155mm Weight : 55g Operation Temperatue:-20℃ ~ 45℃ Storage Temperature:-30℃ ~ 70℃ Item Included: 10/100/1000Mbps Active PoE Splitter(USB type-C Power Plug) x1
