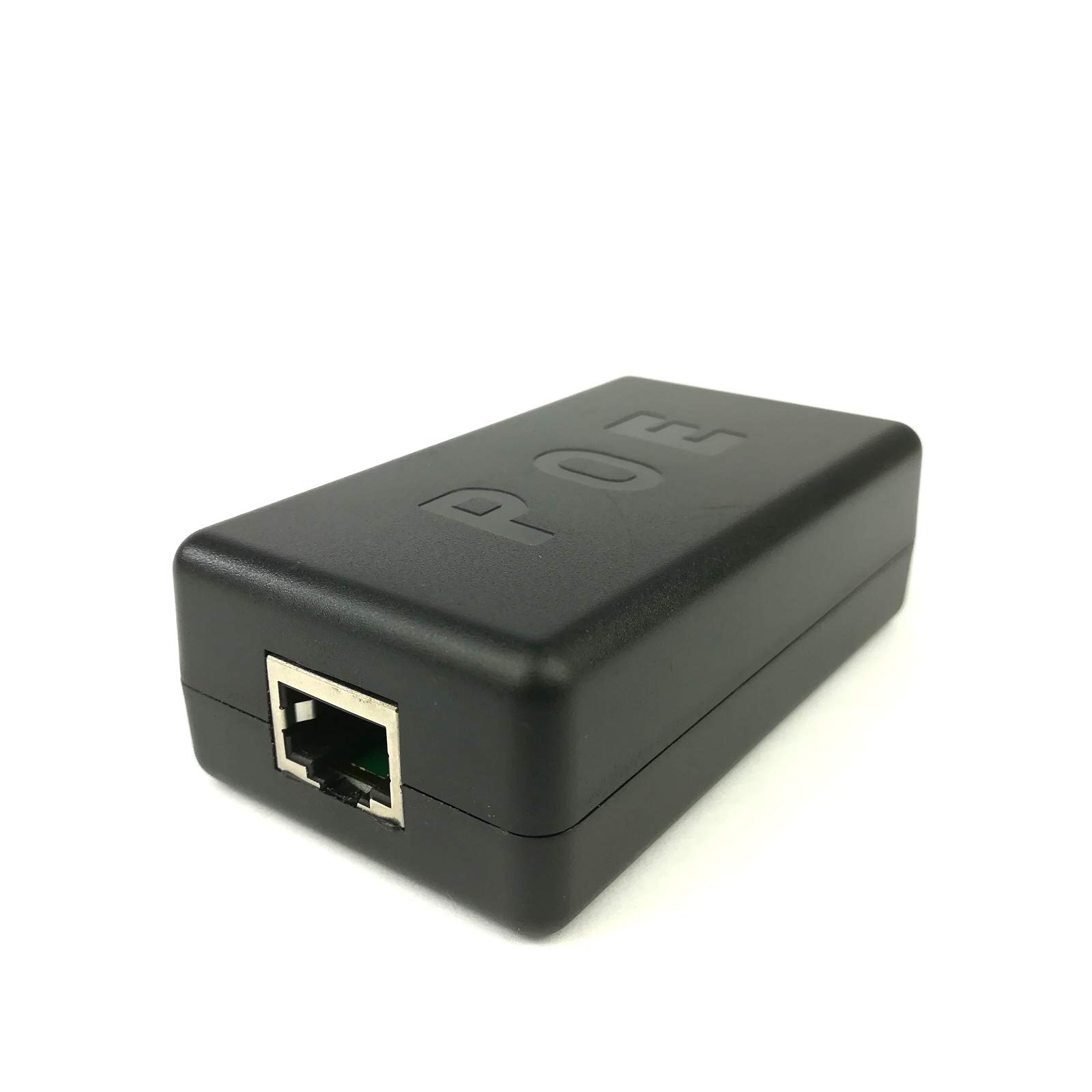

DSLRKIT Gigabit 802.3at 24Watt Active PoE Splitter 48V to 12V 2A Power Over Ethernet

• Compliant with IEEE802.3at
• Compliant With 2.5KV isolation

RJ45 female INPUT Port: Support the IEEE 802.3AT the Power over Ethernet PoE Switch(Output 12V2A, max.24Watt) Support the IEEE 802.3af the Power over Ethernet PoE Switch(Output 12V1.3A, max.15.4Watt) Support 48V-52V Unsolicited Power Over Ethernet PoE Switch (Output 12V2A, max.24Watt) Support 48V-52V Unsolicited Power Over Ethernet PoE Adapter(Output 12V2A, max.24Watt) Specification: Compliant with IEEE802.3at 24Watt Isolation: 2.5kV Power Input: DC44~57V Power Output: DC12V 2A Data&Power INPUT Port: from RJ45 female Data Output Port: RJ45 Male Power Output Port: 5.5x2.1mm DC Power Plug(with DC5.5x2.5 Adapter) Data Transfer Rate: 10/100/1000Mbps Devices will be detected before poe input Power Pin:support both 1/2(+),3/6(-) or 4/5(+),7/8(-) Body size: 80 x 45x 25 mm DC cable length£º25cm RJ45 Modular Plug cable length£º25cm Weight : 90g DC Out Power Pin: inside positive (+) outside negative (-) Storage temperature: Operation Temperatue:-20¡æ ~ 45¡æ Storage Temperature:-30¡æ ~ 70¡æ Item Included: Ethernet Gigabit 802.3at Active PoE Splitter x1 Network Cable(25cm) x1 5.5x2.1/2.5 male to male DC cable (25cm) x1
