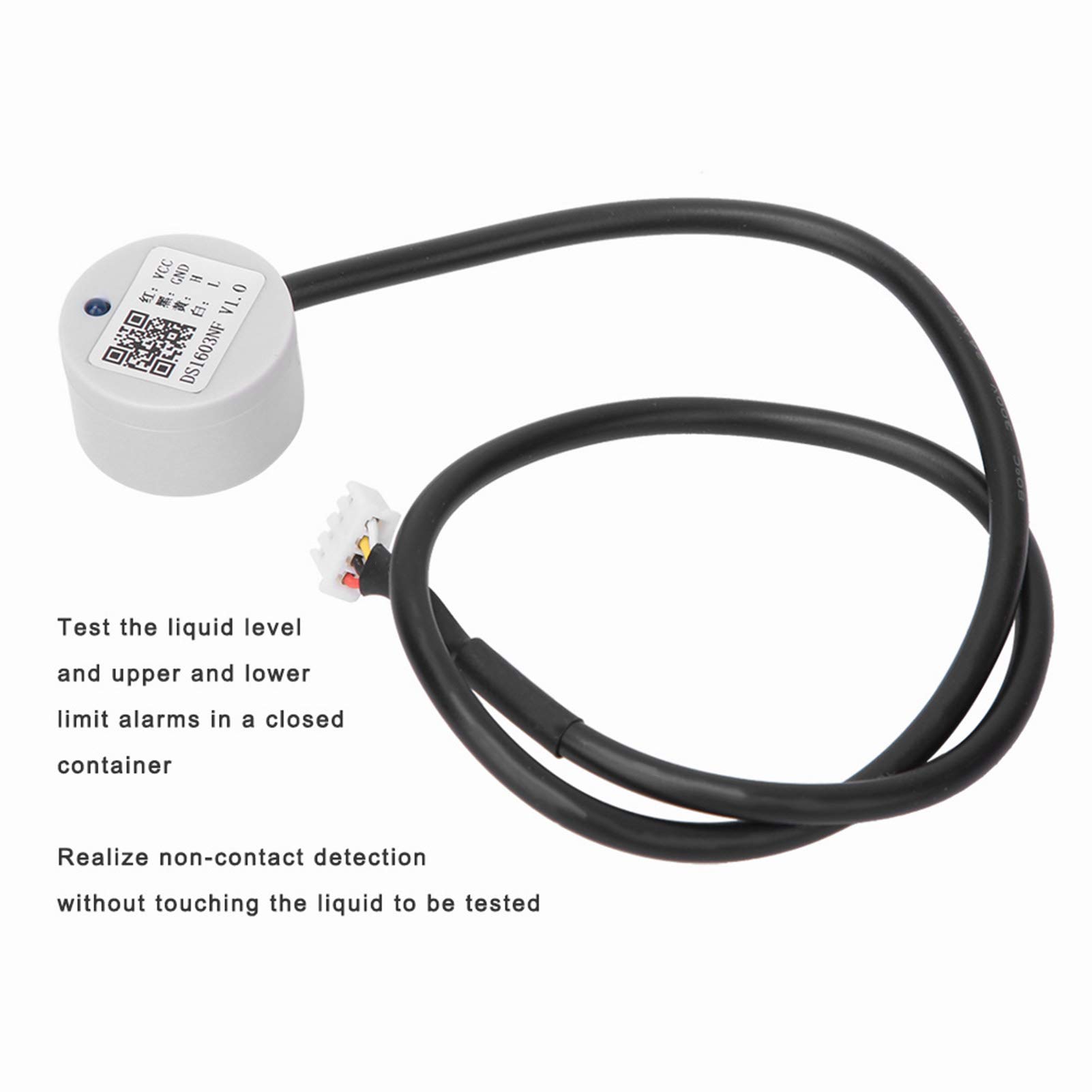

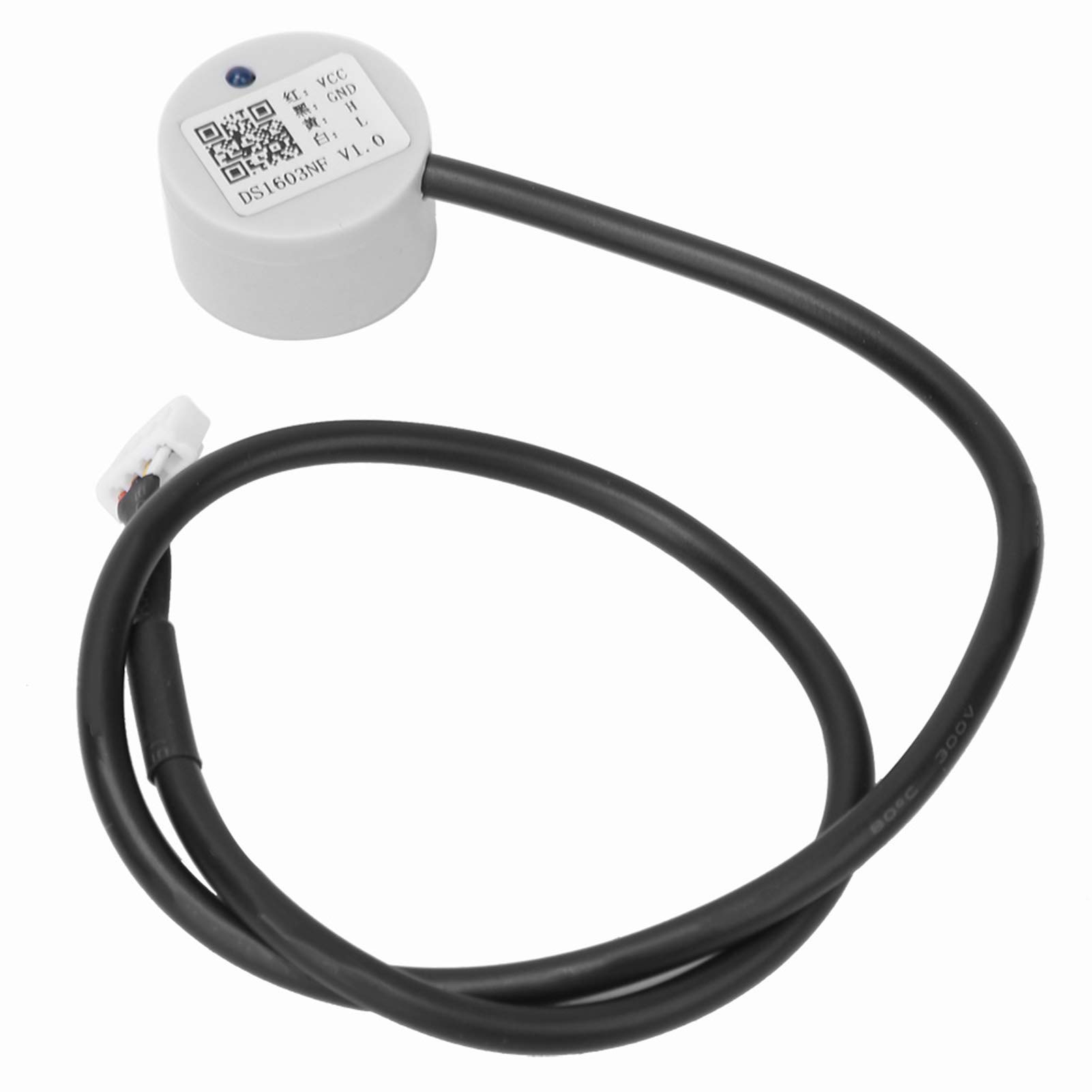

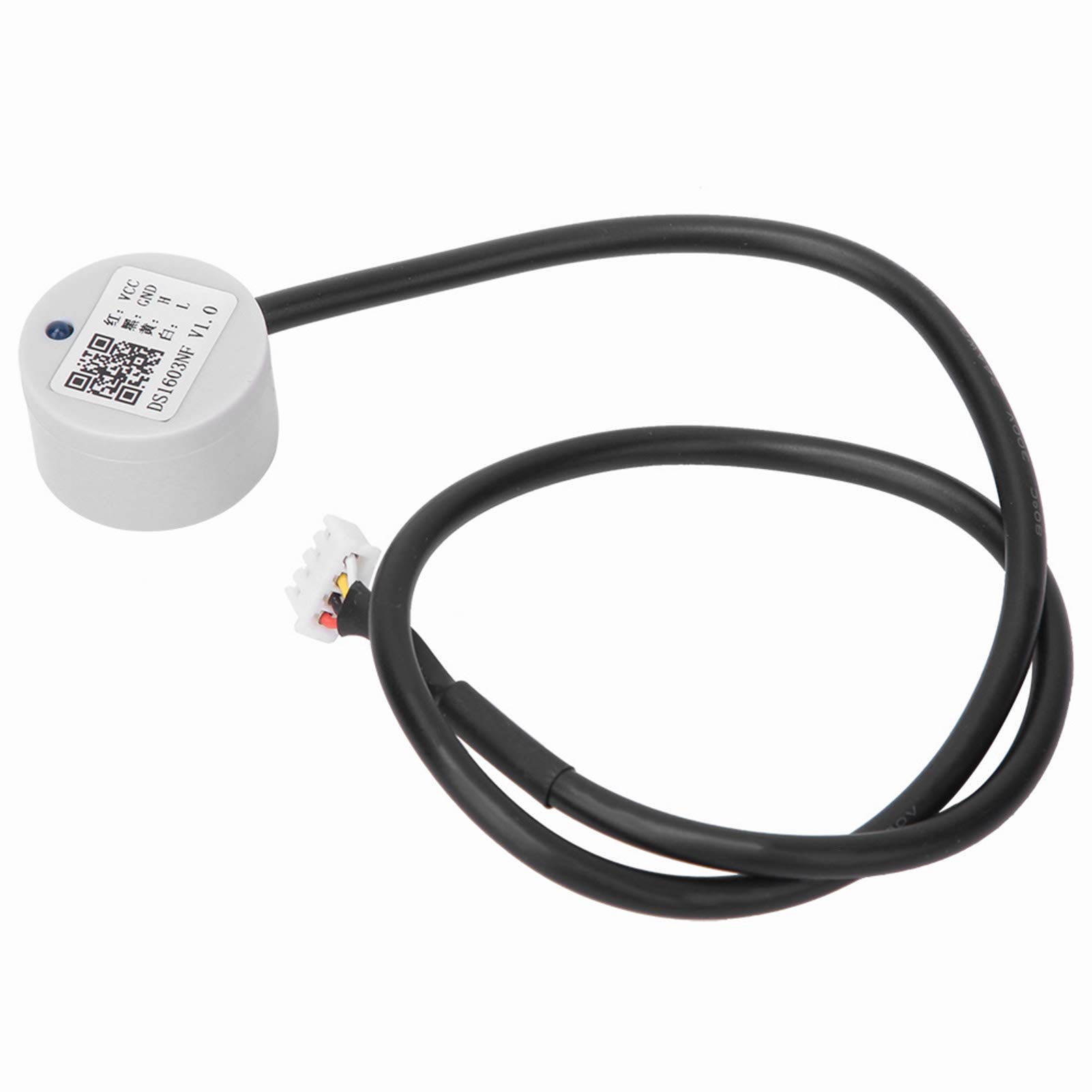

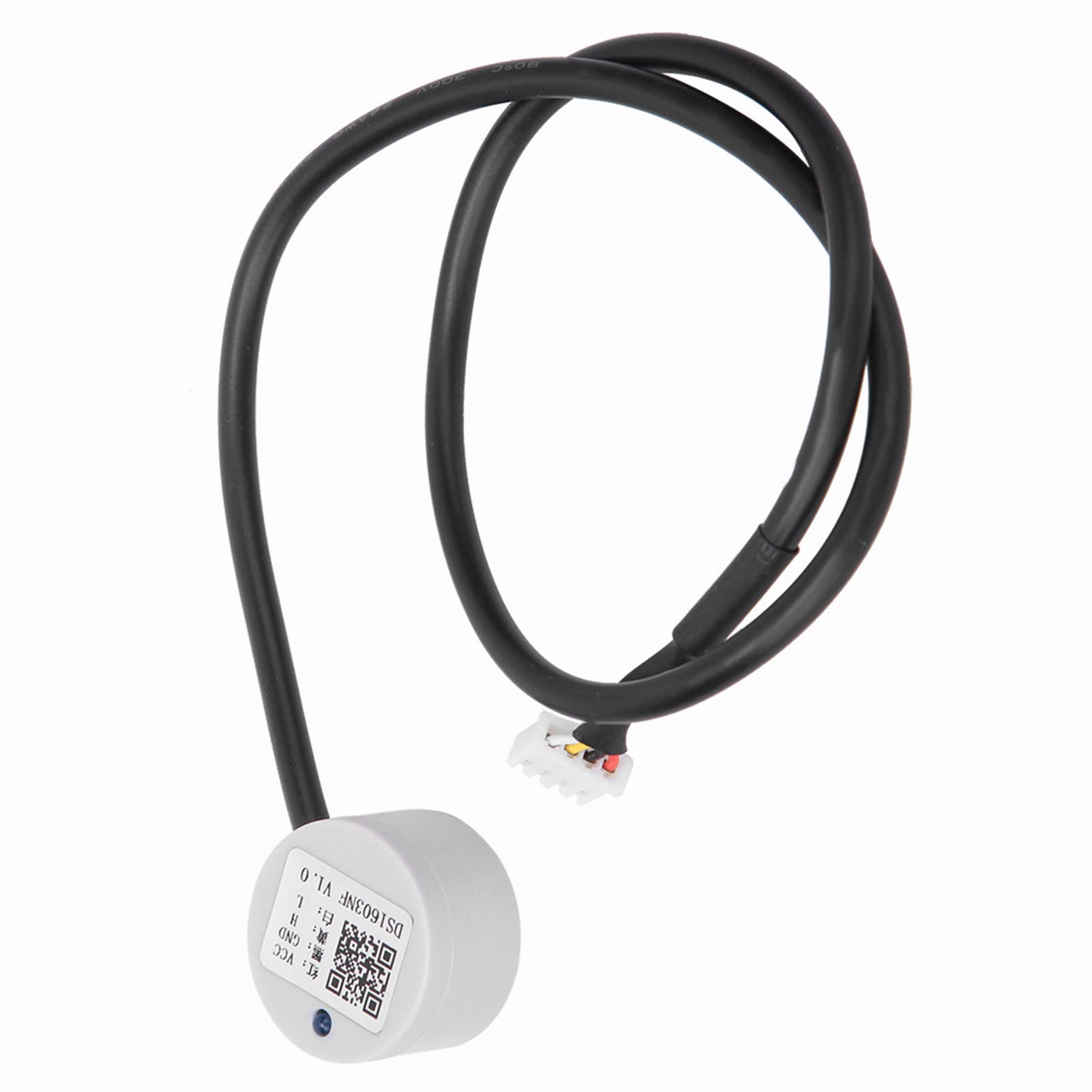

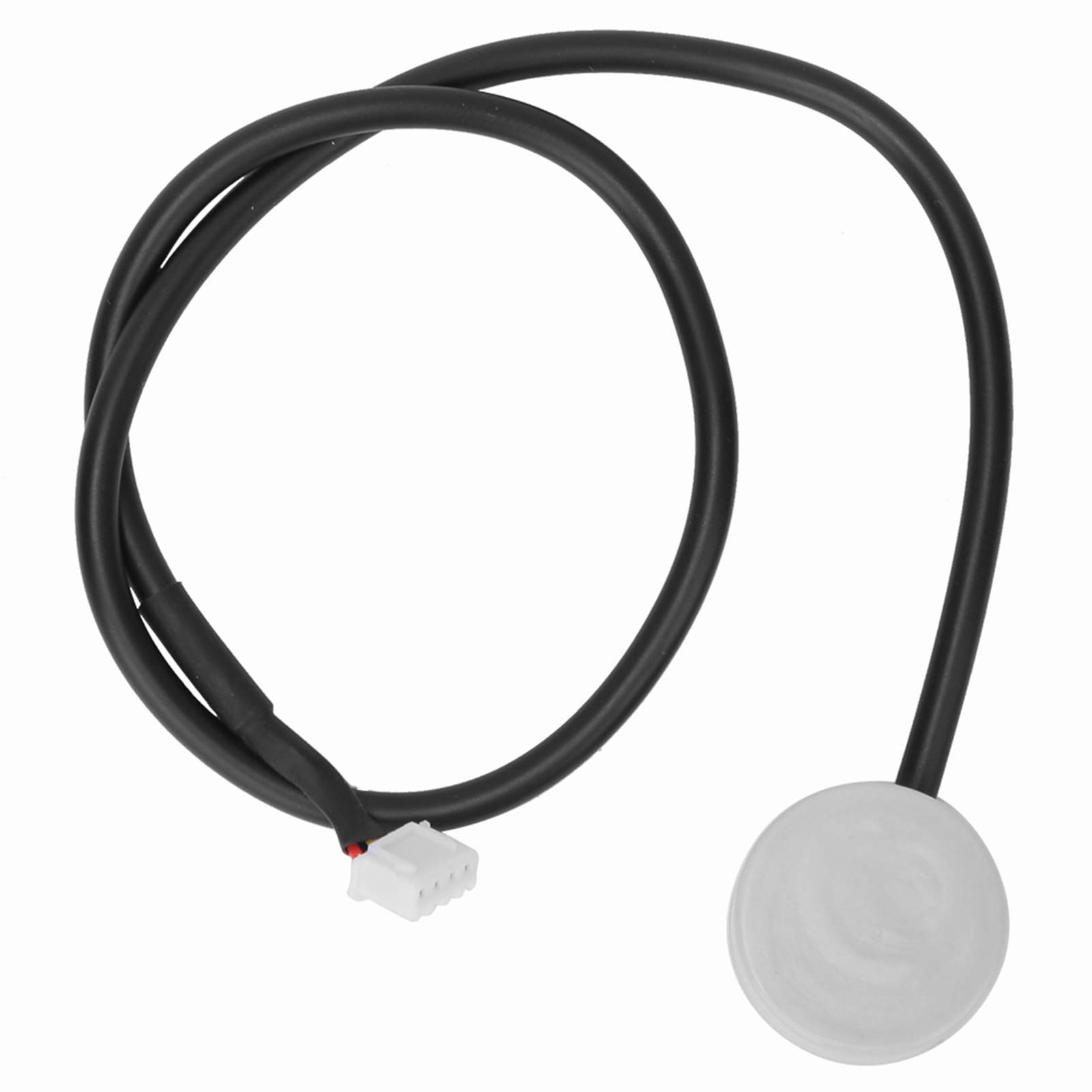

DS1603NF V1.0 Liquid Level Sensor Non-Contact Water Level Detector Npn Output and Output Interface Capacitor

• NON-CONTACT TYPE: The sensor is suitable for the outer wall of non-metallic pipes that are not in direct contact with the liquid, and will not be corroded by corrosive liquids such as strong acids, and will not be affected by scale or other debris.
• INTELLIGENT ADJUSTMENT: Intelligent liquid level reference adjustment, liquid level storage function, liquid level status display mode, can realize multi-point series connection.
• ACCURATE MEASUREMENT: The sensor is accurate and stable, and can detect boiling water level.
• STABLE PERFORMANCE: Pure electronic circuit structure, non-mechanical working mode, stable and performance.
• Strong compatibility: It can penetrate various non-metallic container tubes such as plastic, glass, ceramics, etc., and the sensing tube diameter is 3 ~ 10mm; it is suitable for the liquid level detection of various plastic tubes, rubber tubes, nylon tubes, glass tubes.

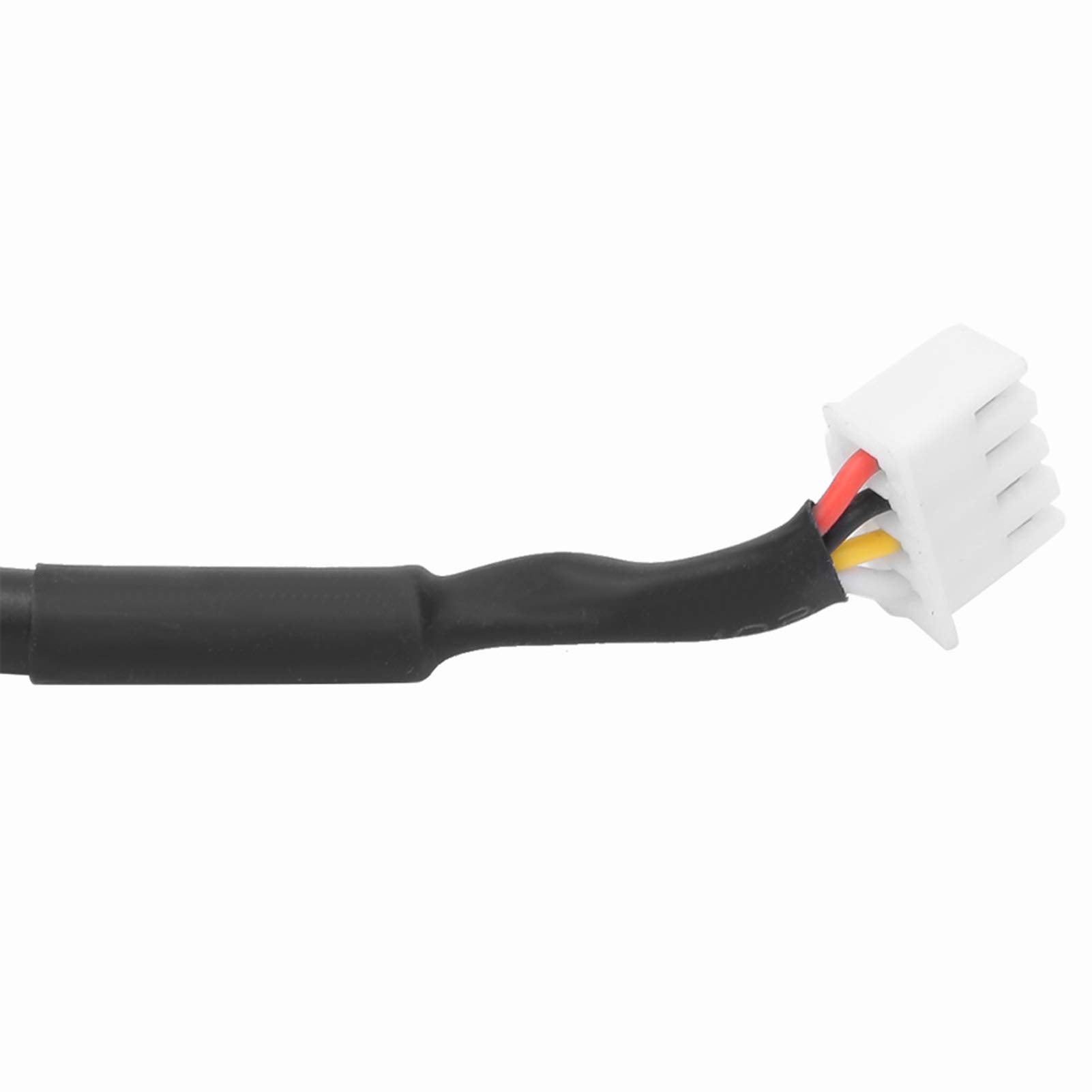

Specification: Item Type: Ultrasonic Liquid Level Sensor Model: DS1603NF V1.0 Working Voltage: DC10-36V Average Current: <25mA Blind Zone Distance: ≤50mm Detection Container Width: 50~2000mm Work Cycle: 1s Driving Current: 0.5A With Liquid Response Time: 2s No Liquid Response Time: 2s Probe Center Frequency: 2Mhz ESD: ±4/±8kv Output Type: Switching Signal Output Port Type: 2.54 Terminal Head Package List: 1 x Sensor
