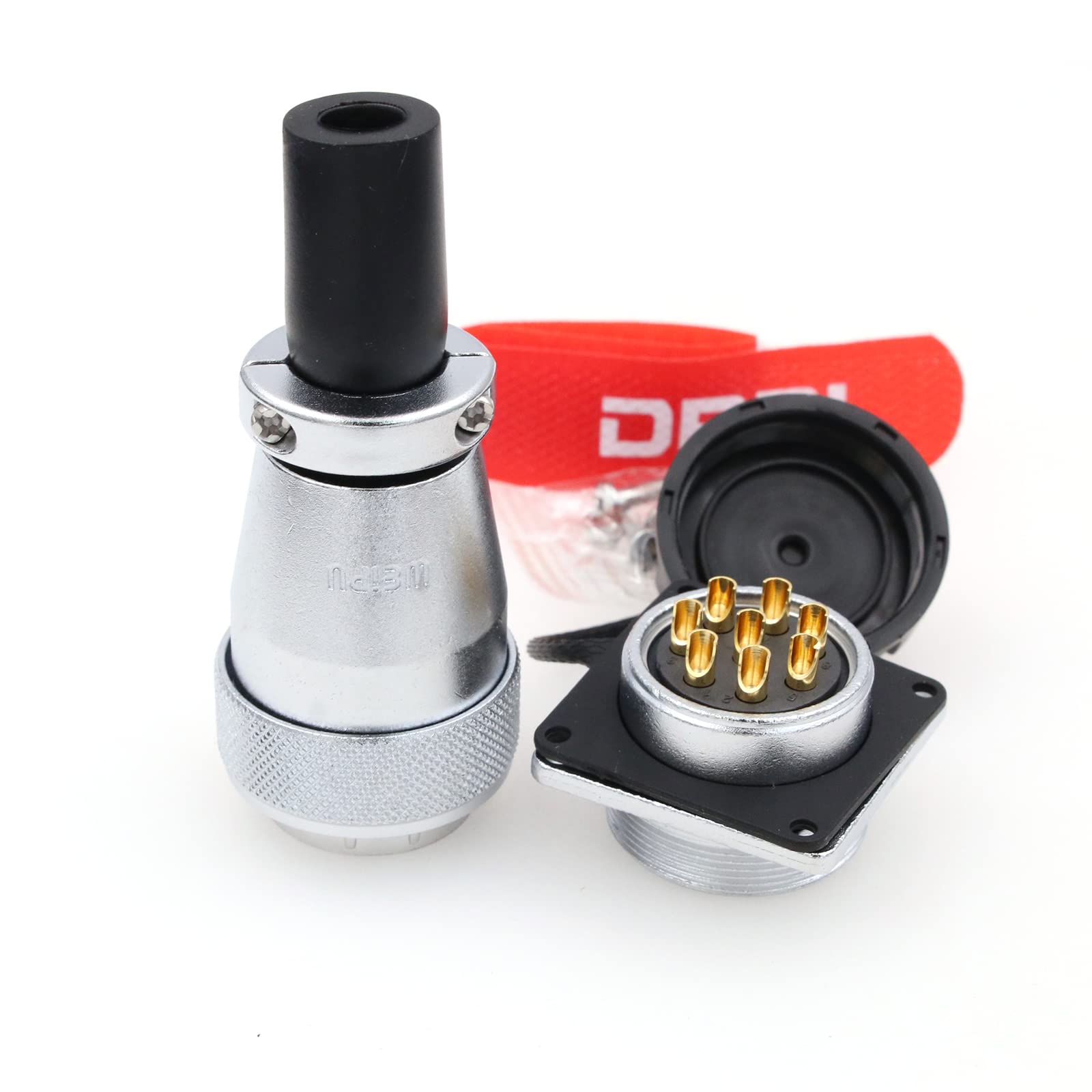

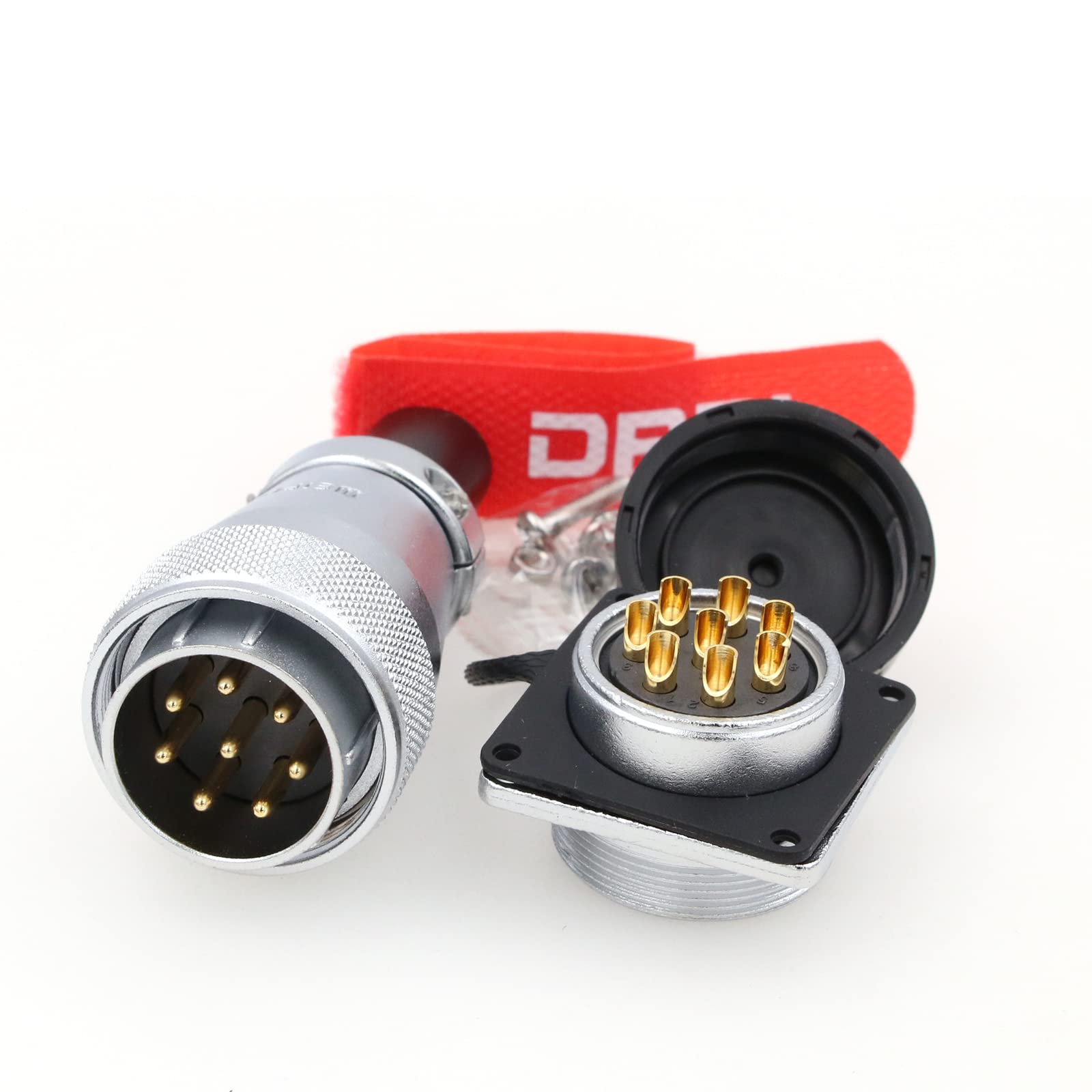

DRRI WEIPU AC DC Circuit Signal LED Heavy Duty Industrial Bulkhead Female Plug Male Socket WS28 8-Pin Metal Aviation Circular Square Flange Panel Connector

• Rated Current / Voltage : 25A / AC 500V;Withstand Voltage : AC 1500V;Pin Quantity :8Pin;Contact Diameter: Φ2.5mm,Contact resistance: 1mΩ ;Wire Size: ≤4mm² /11 AWG
• Available for panel cut-outs of 28.5mm between 2 pin up to 32 pin gold plated contacts with either solder terminations square flange style panel connectors.
• The WS28 series is perfect for indoor power or data applications including Lighting, Data Transfer and Industrial Control Systems.Stable electrical performance, high strength and resistance to pressure, high temperature resistance, anti-explosion, anti-corrosive.
• Contact material:Brass with gold plating;Shell material:Zinc alloy with chrome plating;
• Different pins please refer to the left attached Parameters drawings.if you need other model,you can contact us.

DRRI as a professional in design and manufacture all kinds of special cables,have accumulated rich experience in development and production for kinds of cables and its related connector adapter. Our products are widely used in kinds of harsh environment and applications,like industrial control devices,medical equipment,measuring and inspecting equipment,audio & visual equipment and military,etc. Furthermore,it has excellent compatibility with many leading supplier. DRRI With RED/Teradek Bond/ARRI Camera Cable,Camera Power Cable,SDI Cable,USB Cable,Video Cable,CCD Cable... We supply different OEM/ODM services serve as different application and requirement. We are able to provide high quality cables which maches different environmentally friendly standards in all countries. If you need welding cable for connector, you'd better provide paramper of the cable and the specification of the connector. Any cables can be customized according to your requirement. Please Recognize DRRI Original Cables. That means that you'll have the full force of the DRRI Manufacturer
