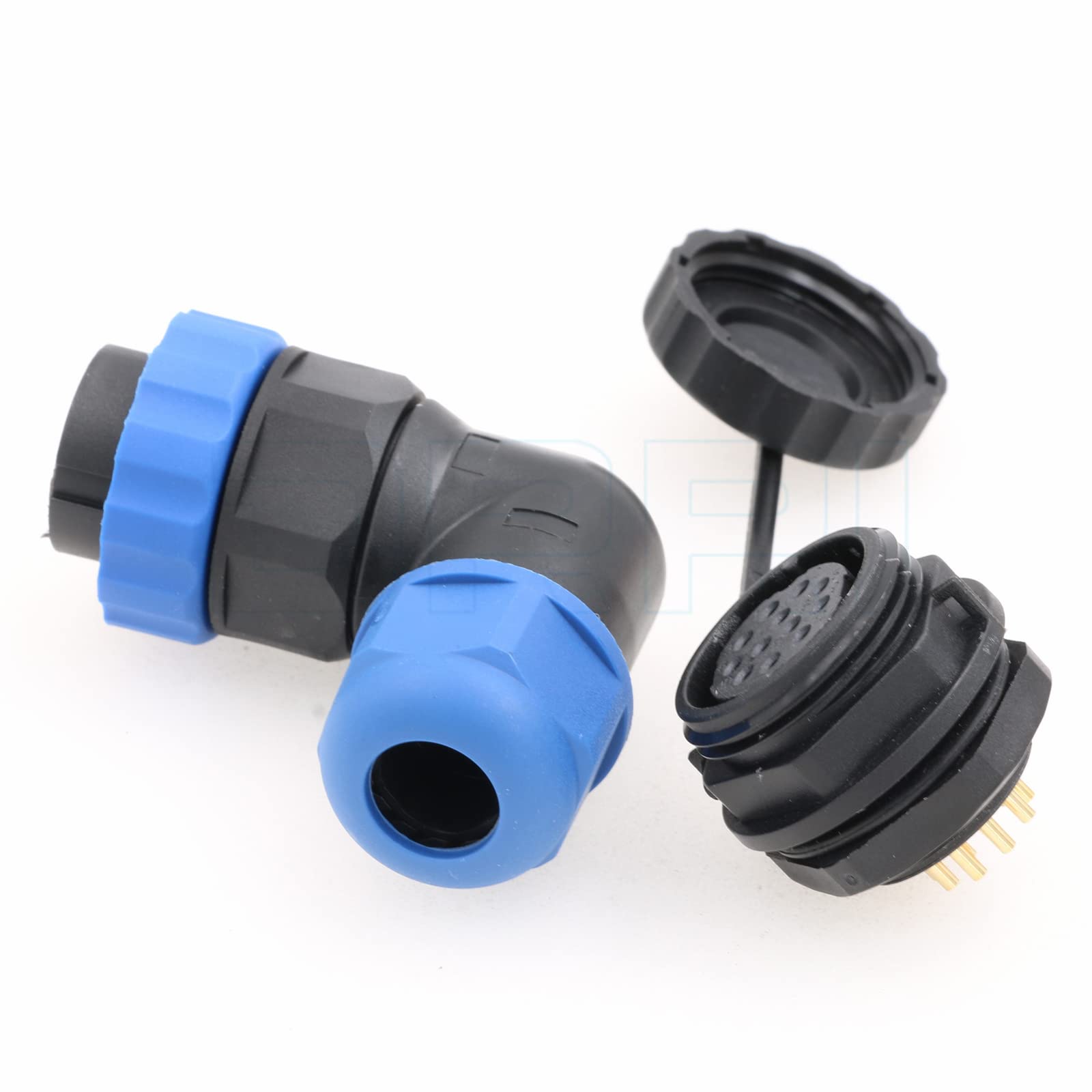

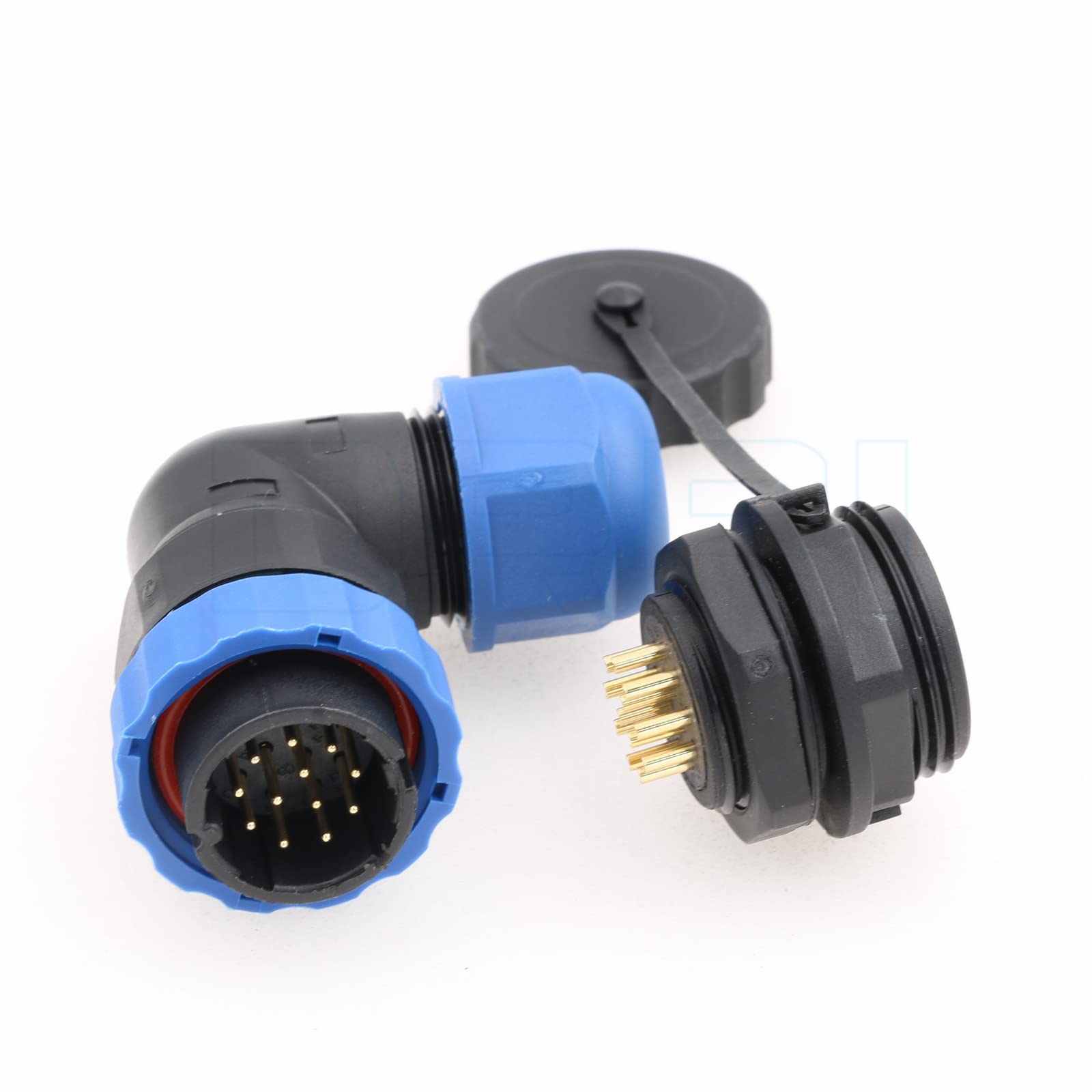

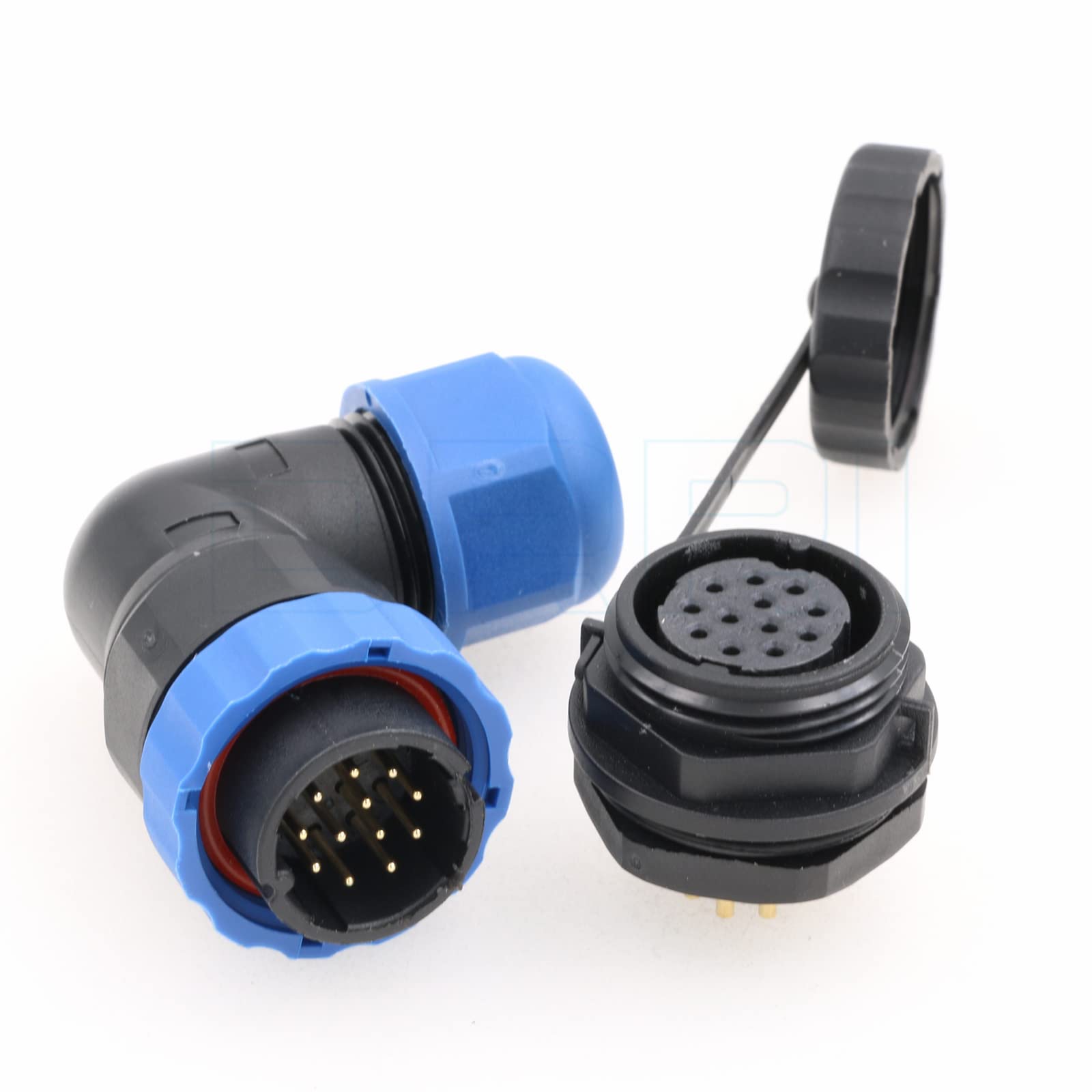

DRRI Quick Disconnect SD20 20mm Right Angle IP67 12 Pin Waterproof Aviation Connector for Solar Energy System

• Contact: φ1mm*12.Cable Range :5-12mm;Waterproof Level : IP68 ;
• Rated Current / Voltage : 5A / 250V; Test Voltage min : AC 1500V；Resistance: 5mΩ.Insulation resistance: 2000MΩ
• easy and simple to operating,small bulk,light weight complete specification.Ideal for machinery, equipment, communication, trains, etc
• The connectors can be used for cable to panel-mount connections. Each side can be male or female contact, (Plug or socket versions).

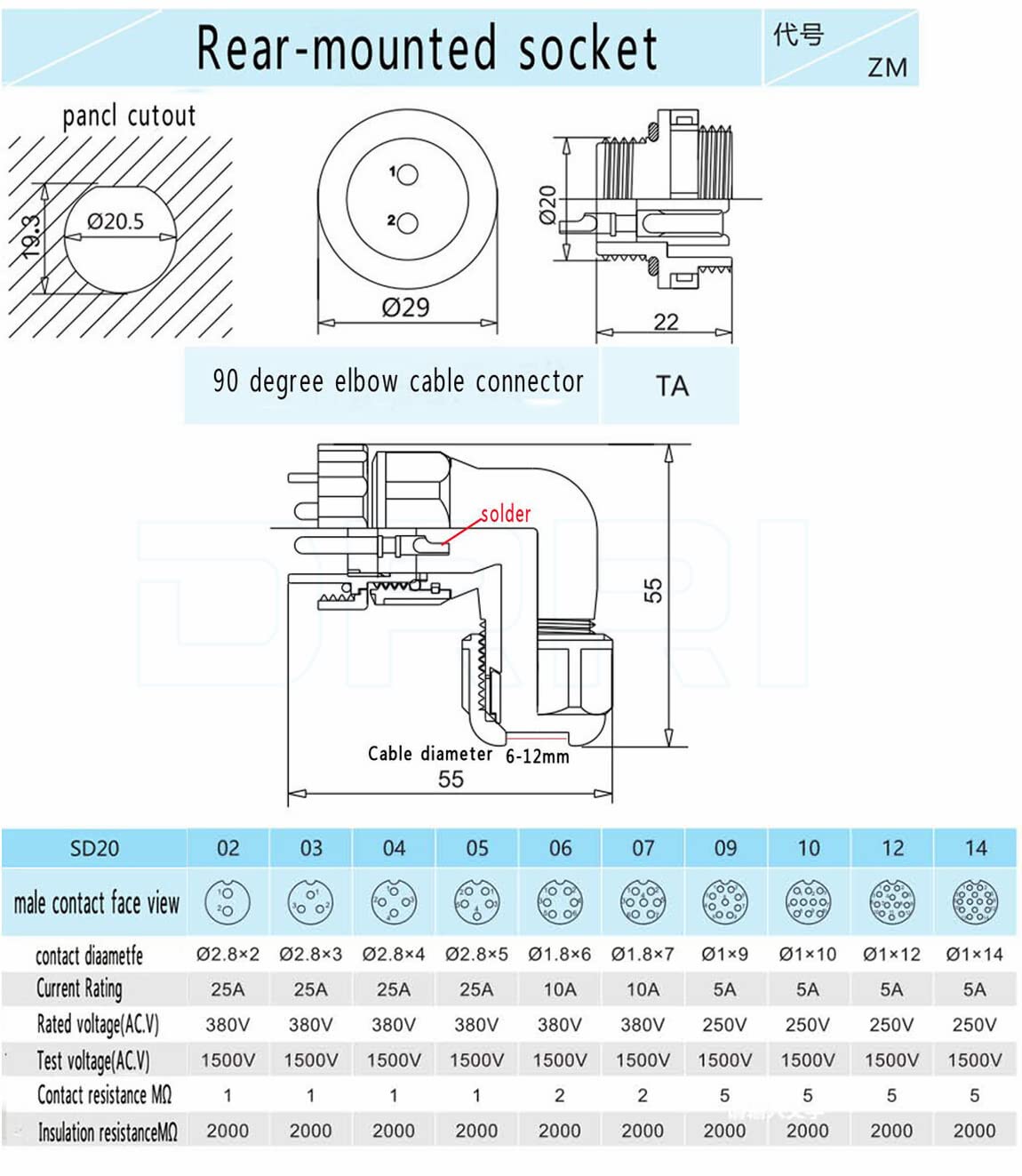

• Different pins please refer to the left attached Parameters drawings.if you need other model,you can contact us.

Description DRRI as a professional in design and manufacture all kinds of special cables,have accumulated rich experience in development and production for kinds of cables and its related connector adapter. Our products are widely used in kinds of harsh environment and applications,like industrial control devices,medical equipment,measuring and inspecting equipment,audio & visual equipment and military,etc. Furthermore,it has excellent compatibility with many leading supplier. DRRI With RED/Teradek Bond/ARRI Camera Cable,Camera Power Cable,SDI Cable,USB Cable,Video Cable,CCD Cable... We supply different OEM/ODM services serve as different application and requirement. We are able to provide high quality cables which maches different environmentally friendly standards in all countries. If you need welding cable for connector, you'd better provide paramper of the cable and the specification of the connector. Any cables can be customized according to your requirement. Please Recognize DRRI Original Cables. That means that you'll have the full force of the DRRI Manufacturer
