Drill marker for pot bands, grain gauge.

• For precise and quick graining of drill groups (pot, mounting holes and base plate) for standard punching pot straps and push-to-open fittings

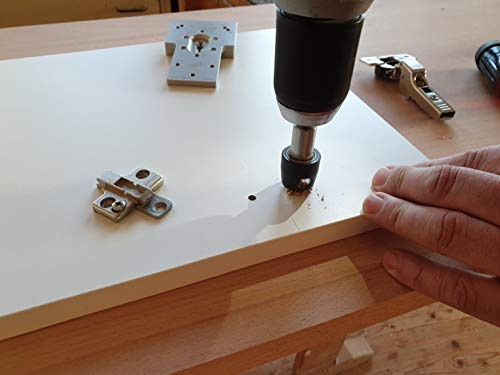

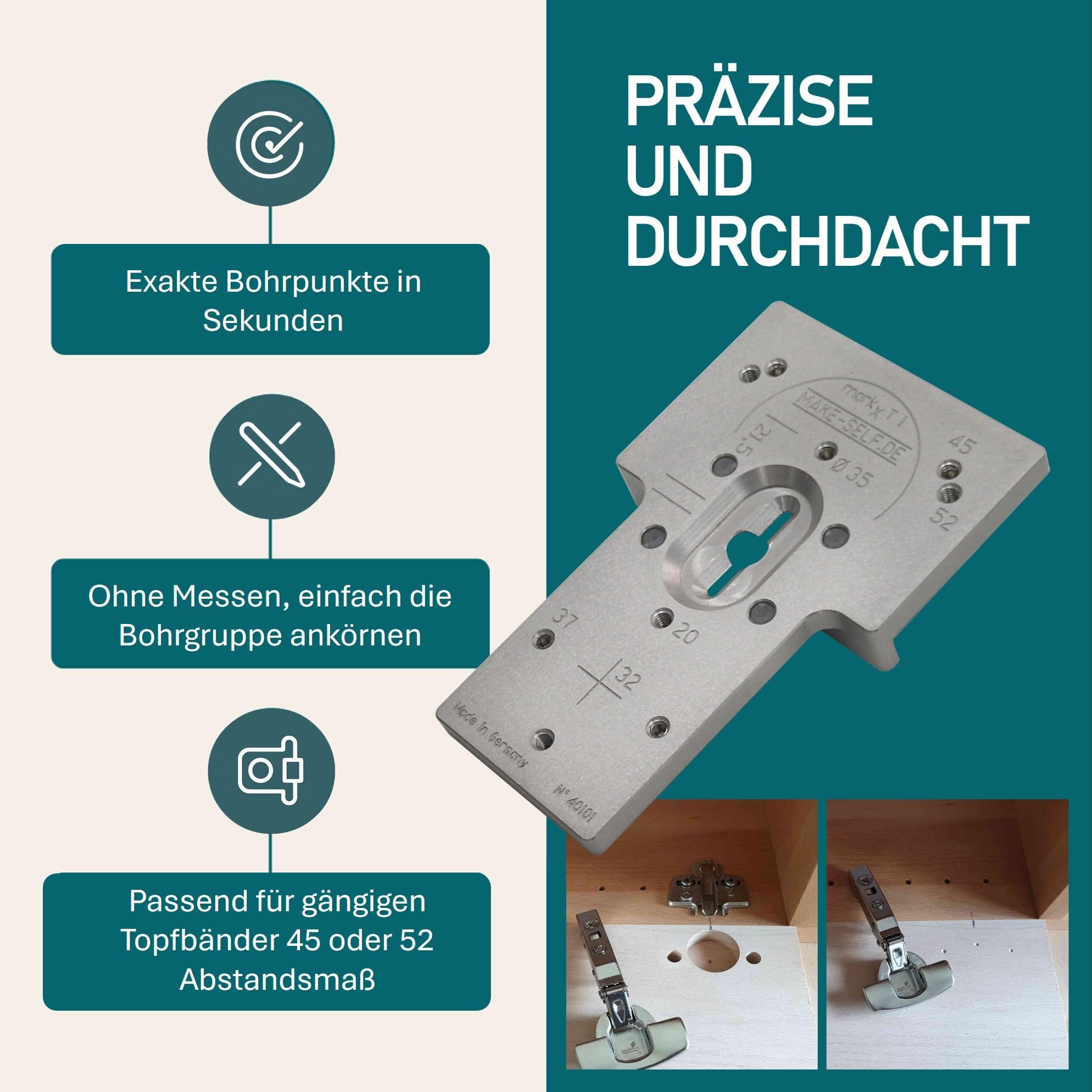

• Pot holes diameter 35 mm with C-size 4 mm and mounting holes 45 mm or 52 mm

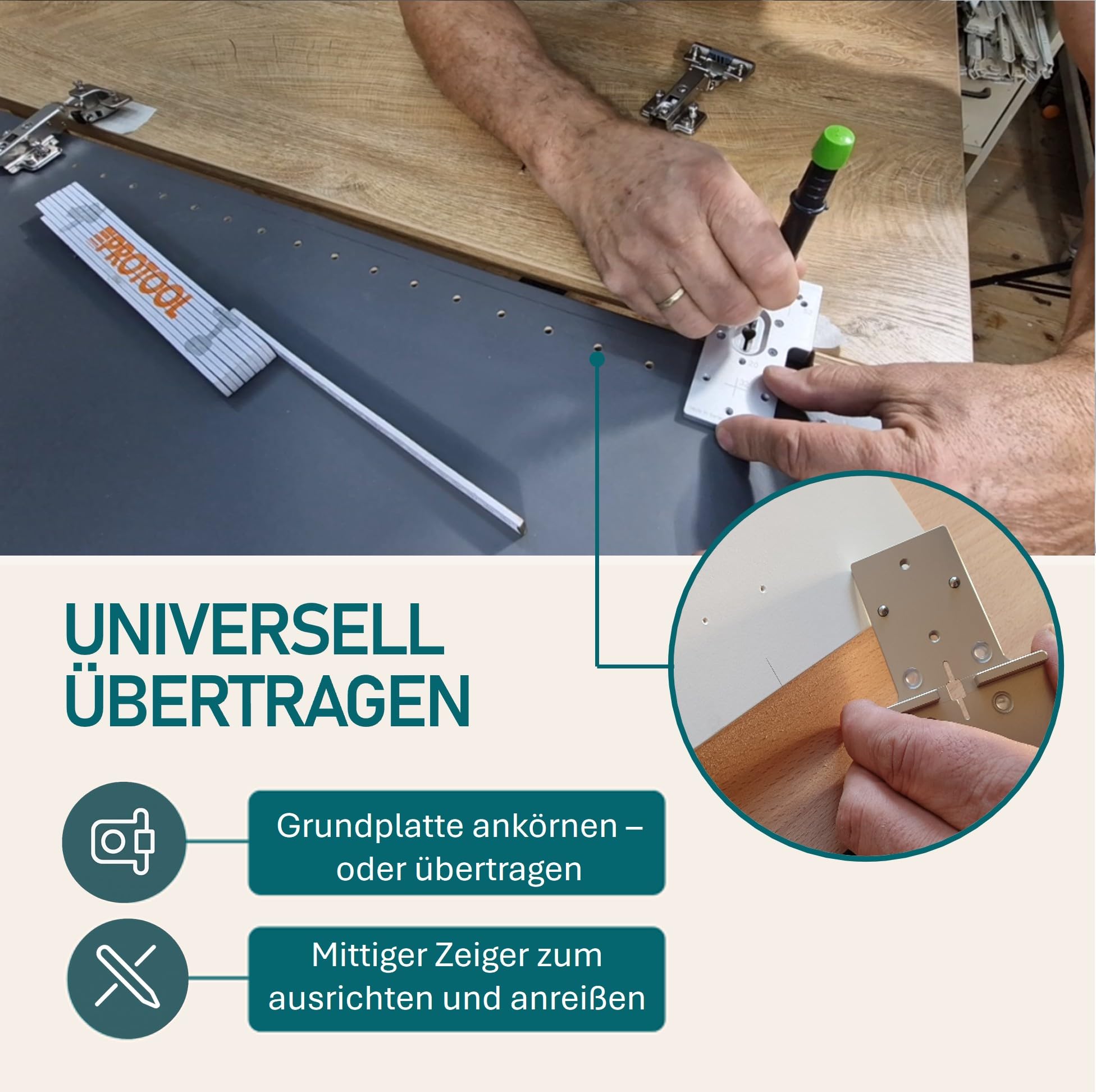

• Grain the cross mounting plate 37/32 mm or a linear mounting plate 20/32 mm, for opening doors

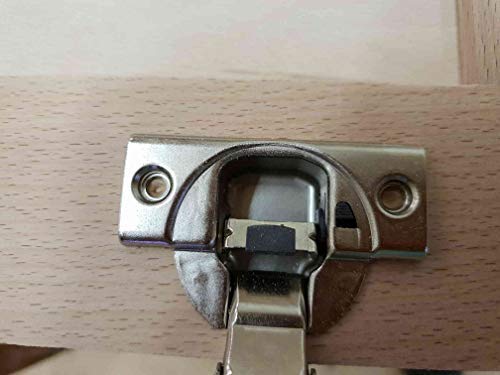

• For pot straps for screwing on, pressing or for quick installation. Link to video: https://youtu.be/rhdajxA5j1g

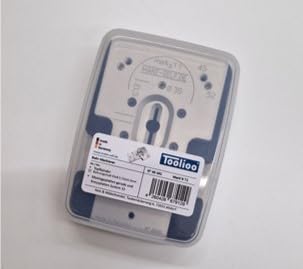

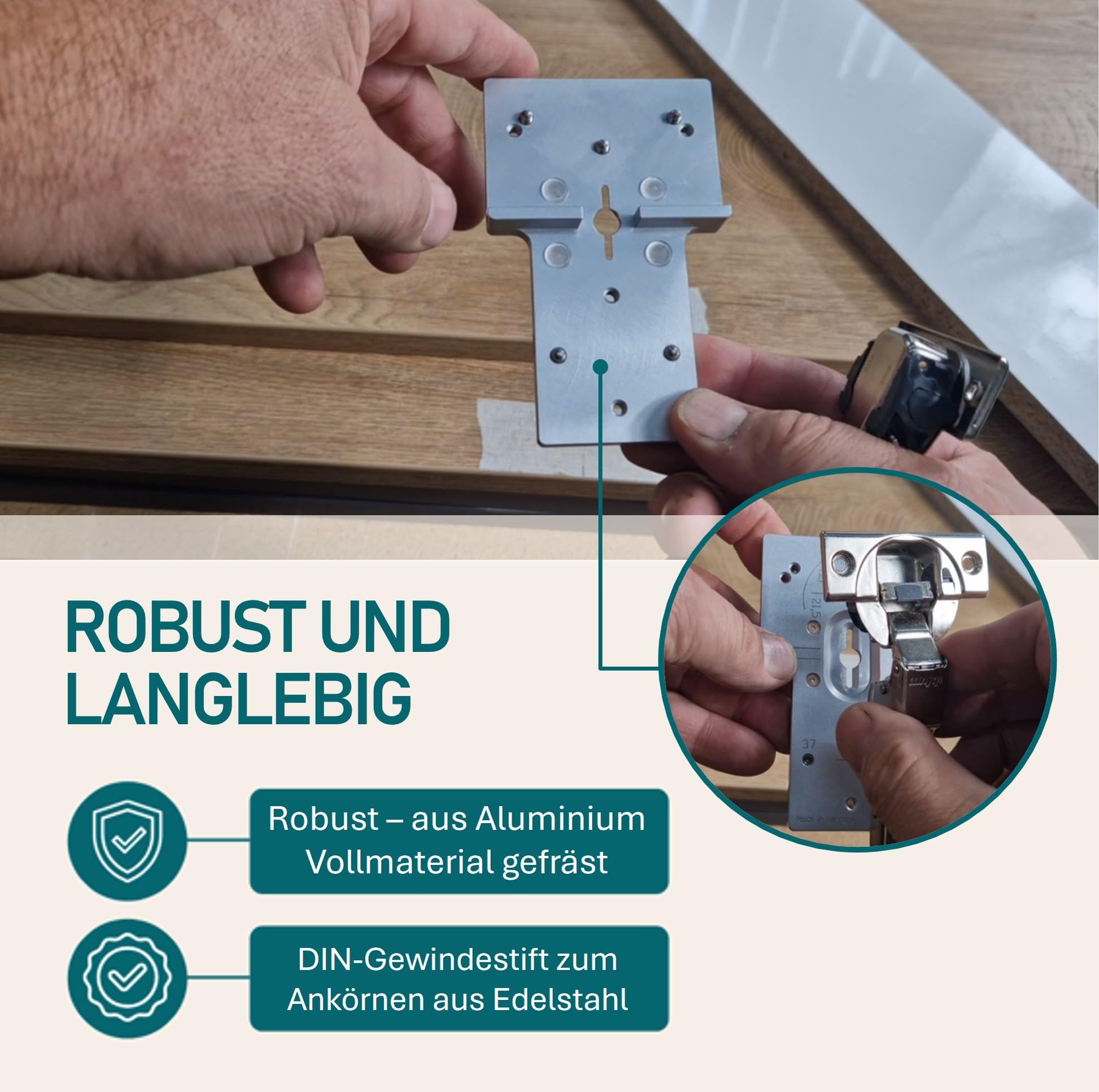

• Fits in any tool box, durable aluminium grain gauge with DIN 914 worm screws M4 x 8 mm as grain tips.

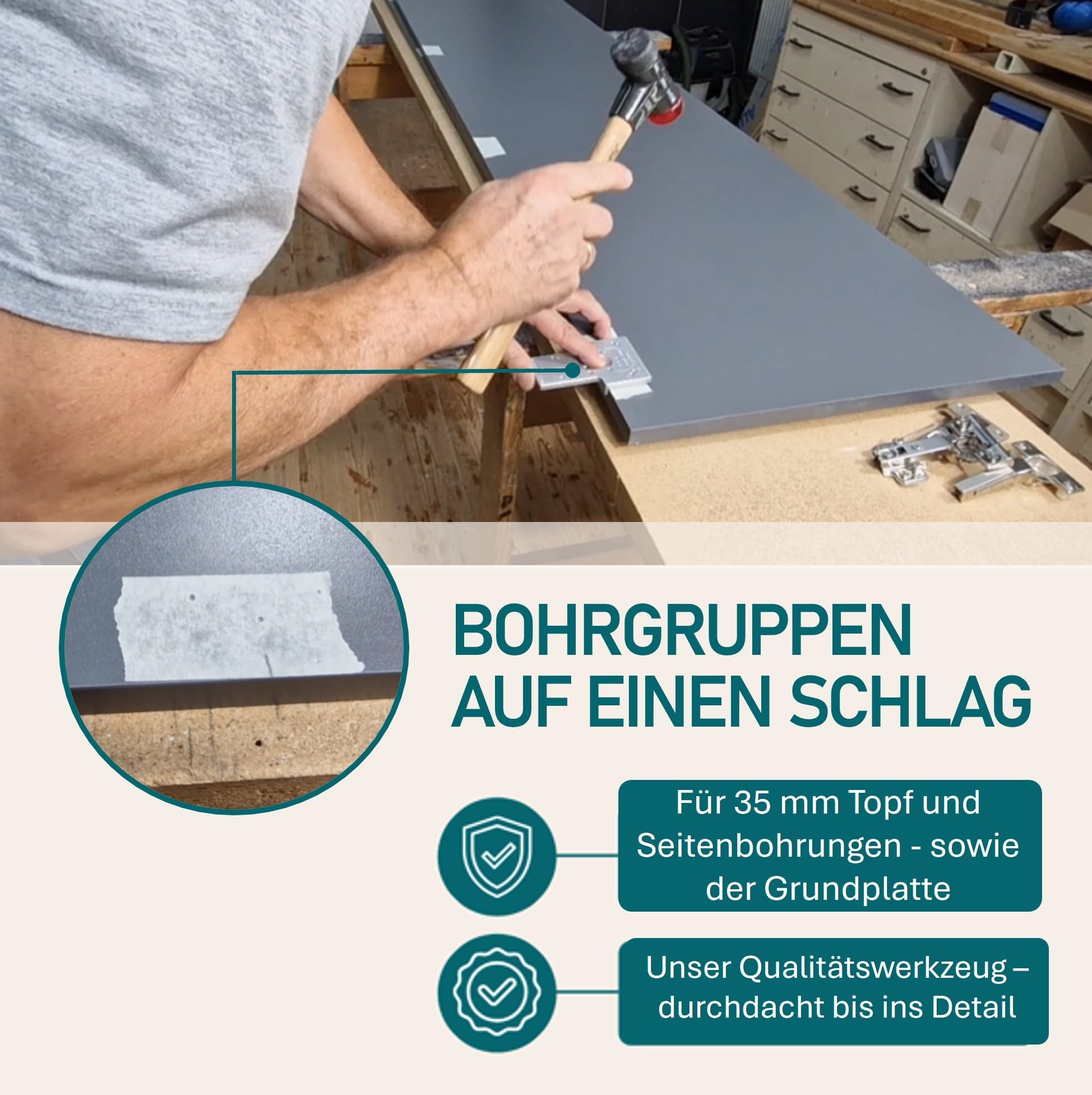

Attention errors in the description: no product outlet. Robust punch gauge made of milled aluminium, grain tips made of stainless steel. No complex measuring of the spacing is necessary, only the centre position must be marked so that the pot straps are properly seated. Ideal for graining drill groups for many standard pot tapes with 35 mm pot bore (observe drilling distances). Whether on assembly or in the workshop, the little helper is always ready for use and quickly impossible to think away. With a blow on the template, the entire drilling group of the pot or the base plate is grained in. The grain tips mark the drilling or screwing position in any surface, whether coatings or in solid wood, the pot strip sits exactly and right angle to the furniture edge. Matching brands for the side grain tips: 45/9.5 Blum Clip Top Blumotion, Neoteck kitchen cabinet concealed hinge, Mprofi MT cabinet hinges, Bachmayer pot band, Häfele, 52/5.5 Hettich Sensys, Wüth, HKB concealed hinge. The grain tips can be turned back.
