Door Hinge Jig, Aluminum Alloy Door Hinge Jig Woodworking Hole Opener Slotting Locator Wooden Door Hinge Hole Guide Door Lock Jig for Door Lock Installation 1 Slot Positioner 1 Wrench 2 Edger Bedknife

• 🌼【Woodworking Hole Opener Slotting Locator】: Wooden door hinge hole opener is designed for wooden door hinge groove, lock body guide plate groove and other slotting applications. Any lock and hinge can be fitted in a matter of a few minutes, speeding up the task immensely when compared to traditional methods, and with minimal effort for maximum productivity and efficiency. This template can be used for doors, cabinet doors and also for flat door lock mortise sleeves.

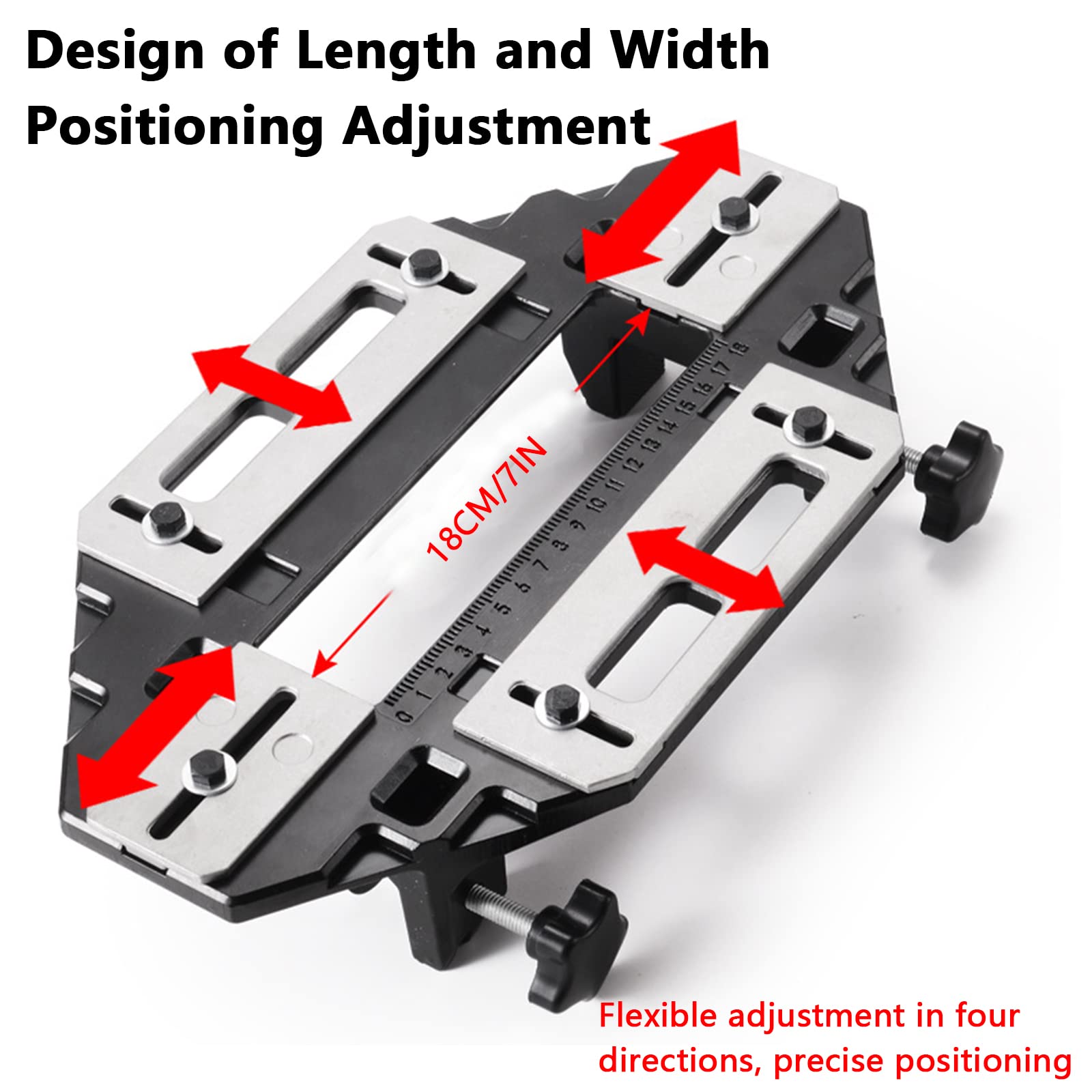

• 🌼【Easy To Use】: The length and width positioning supports flexible adjustment in four directions, accurate positioning and fast slotting rate. The puncher with its own scale, convenient and accurate. The maximum opening is 18 cm, which is easy to adjust and use. Adopting aluminum alloy material, the tool is very strong and rust-proof. Light in weight, it is suitable for opening and closing fan blade slotting, and is also suitable for slotting the guide plate of the lock body.

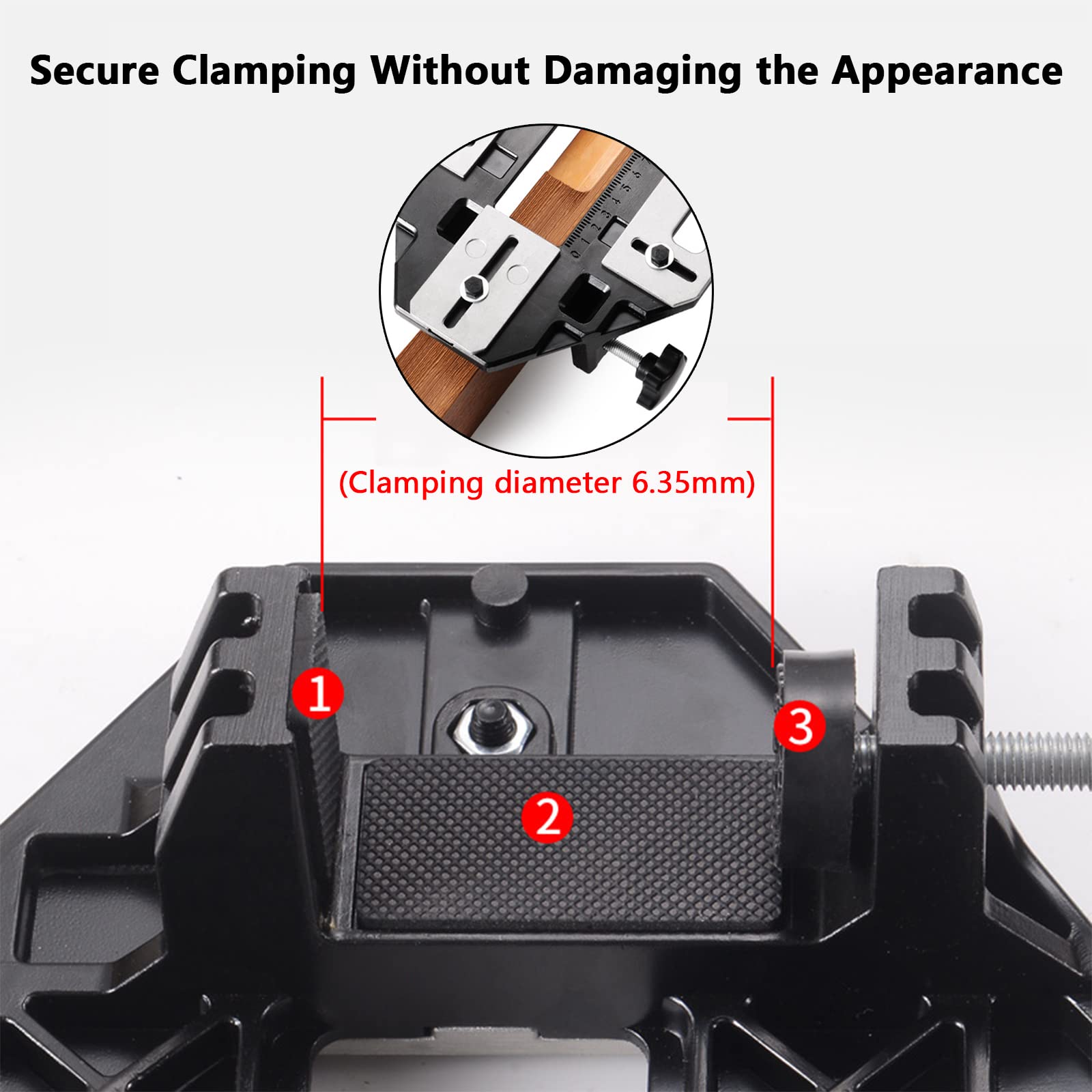

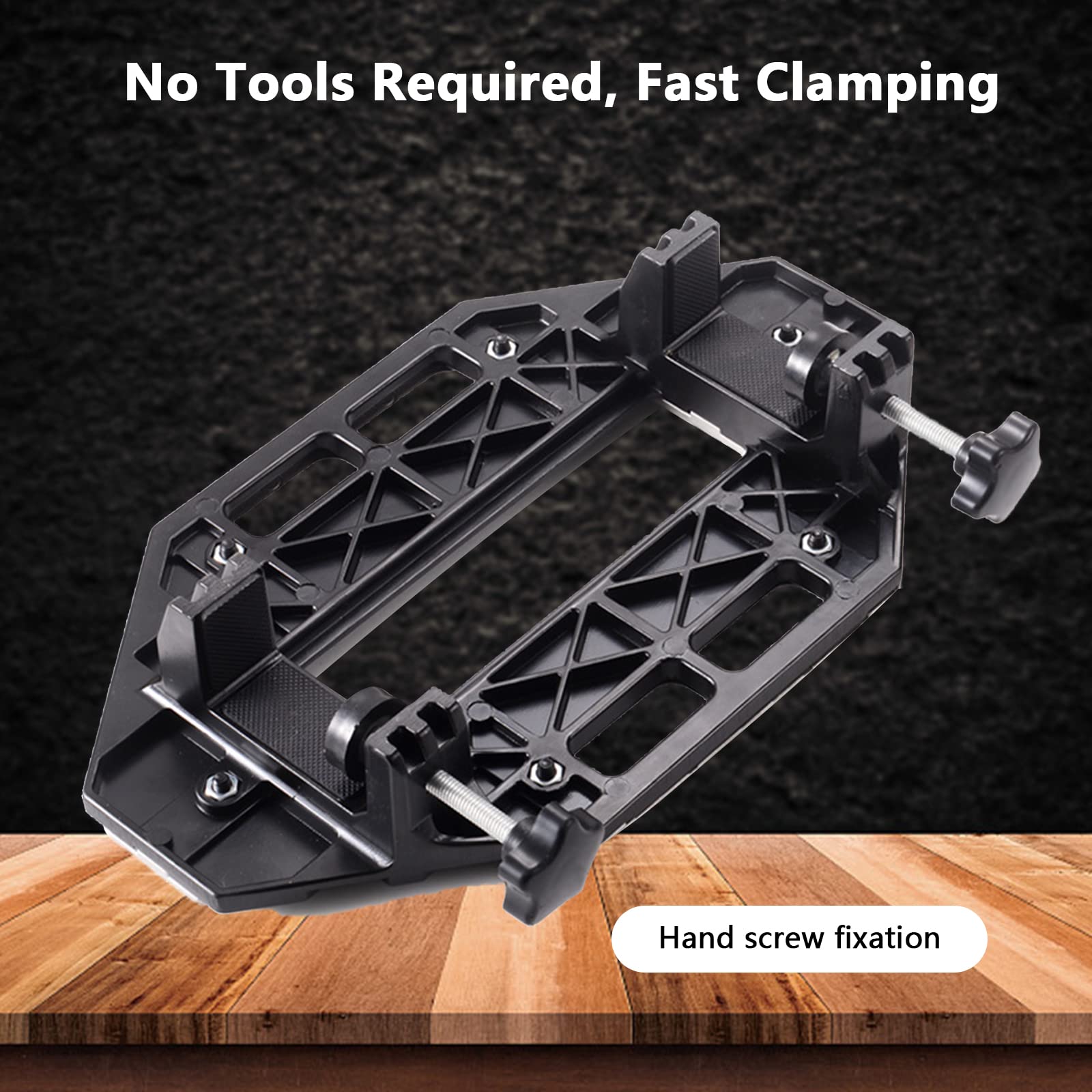

• 🌼【Fast Clamping & Safe Clamping】: No tools required, fast clamping: hand-tightened screws, fast clamping, efficient work. Safe clamping, no damage to the facade: the clamping part adopts rubber anti-skid design to ensure that the surface of the wooden door will not be damaged. It is the choice of professional woodworkers. Dimensions: 34×20 cm / 13.4 x 7.9 inches. Opening Size: Max 18 cm/7.1 inches. Maximum grip: 6 cm/2.4 inches.

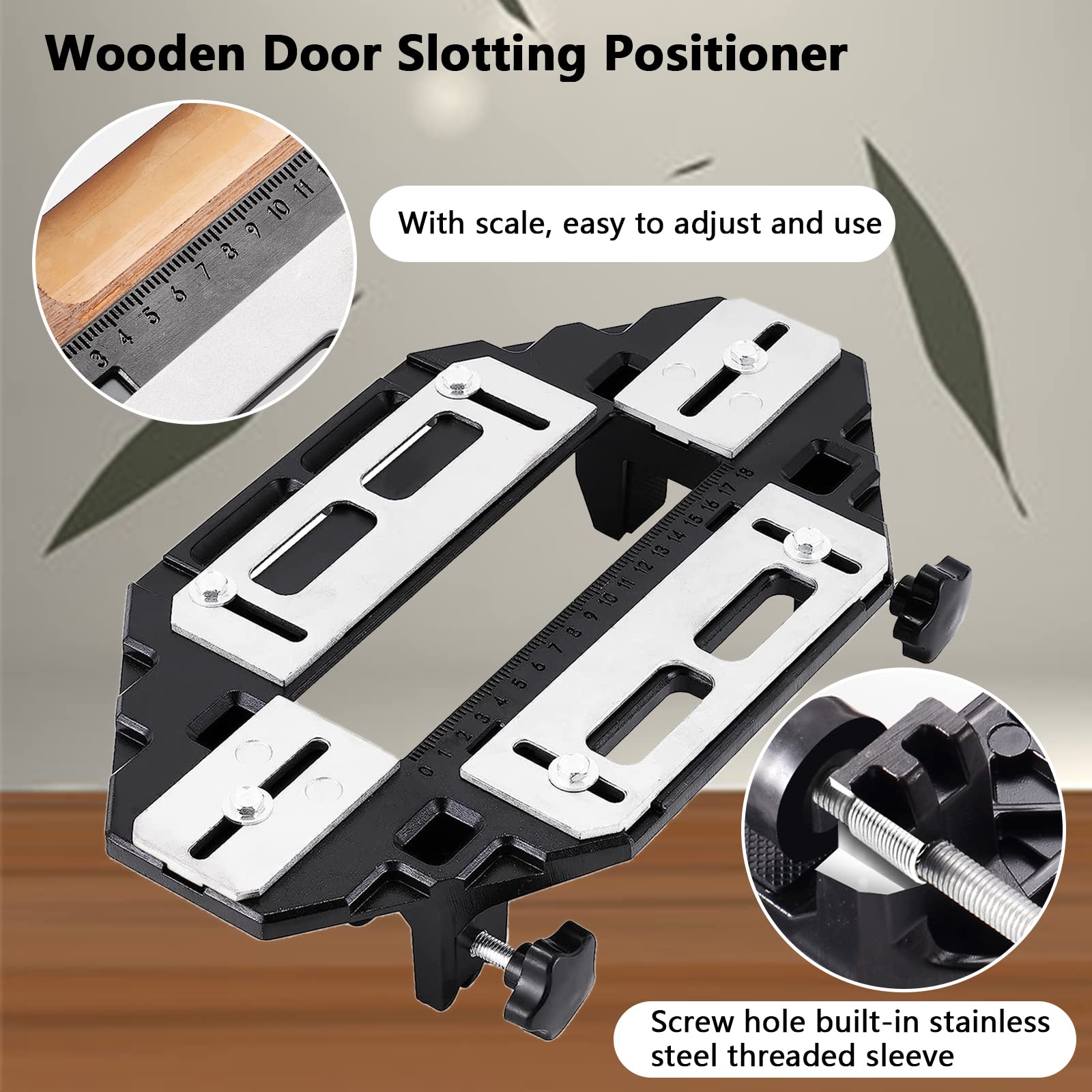

• 🌼【Protective Door】: Hinge drilling plate is equipped with a stainless steel threaded sleeve in screw hole, which effectively protects the internal thread of fixture and prolongs the service life. hinge hole guide adopts an integrated aluminum alloy one-piece molding design, lightweight, strong, sturdy and durable, has long service life.

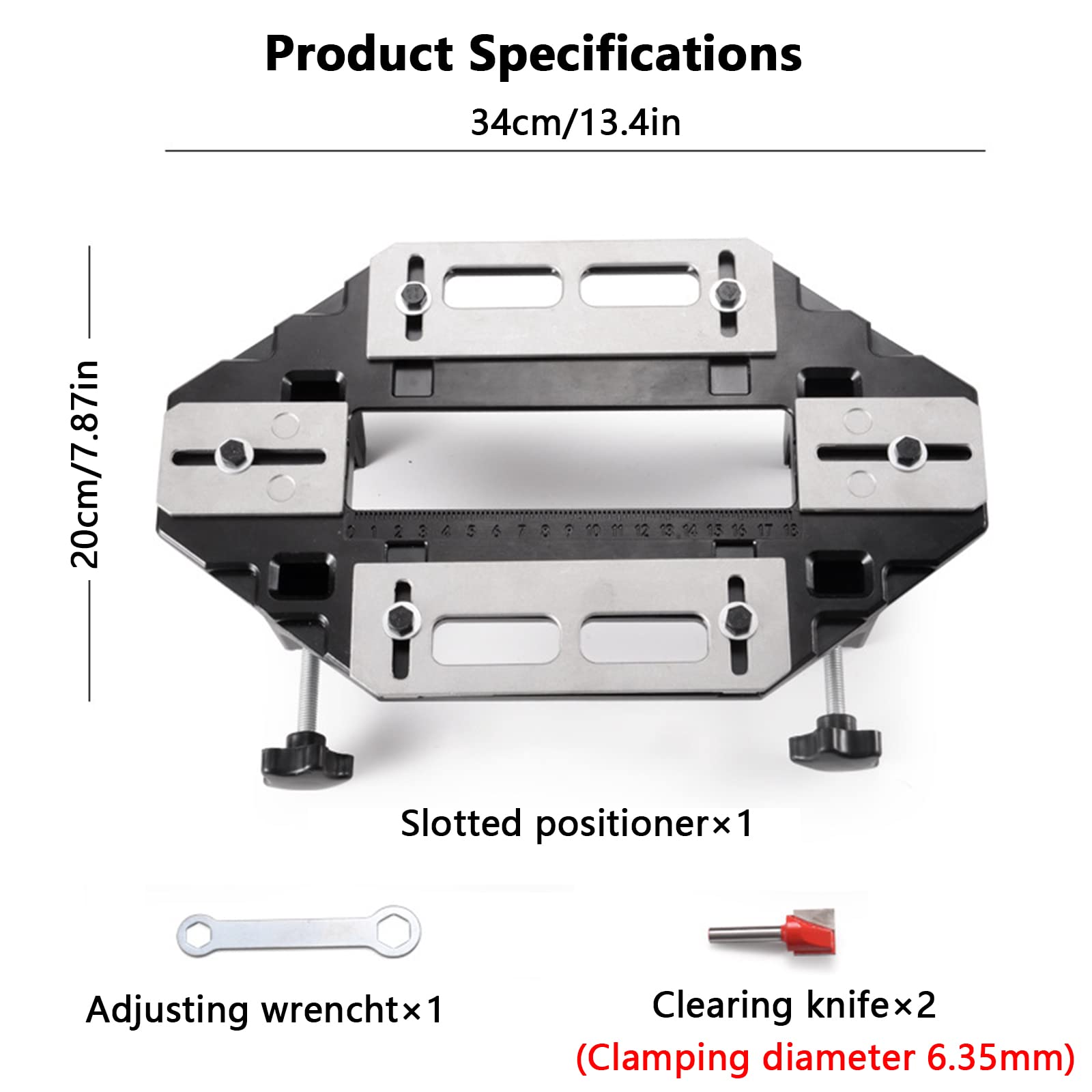

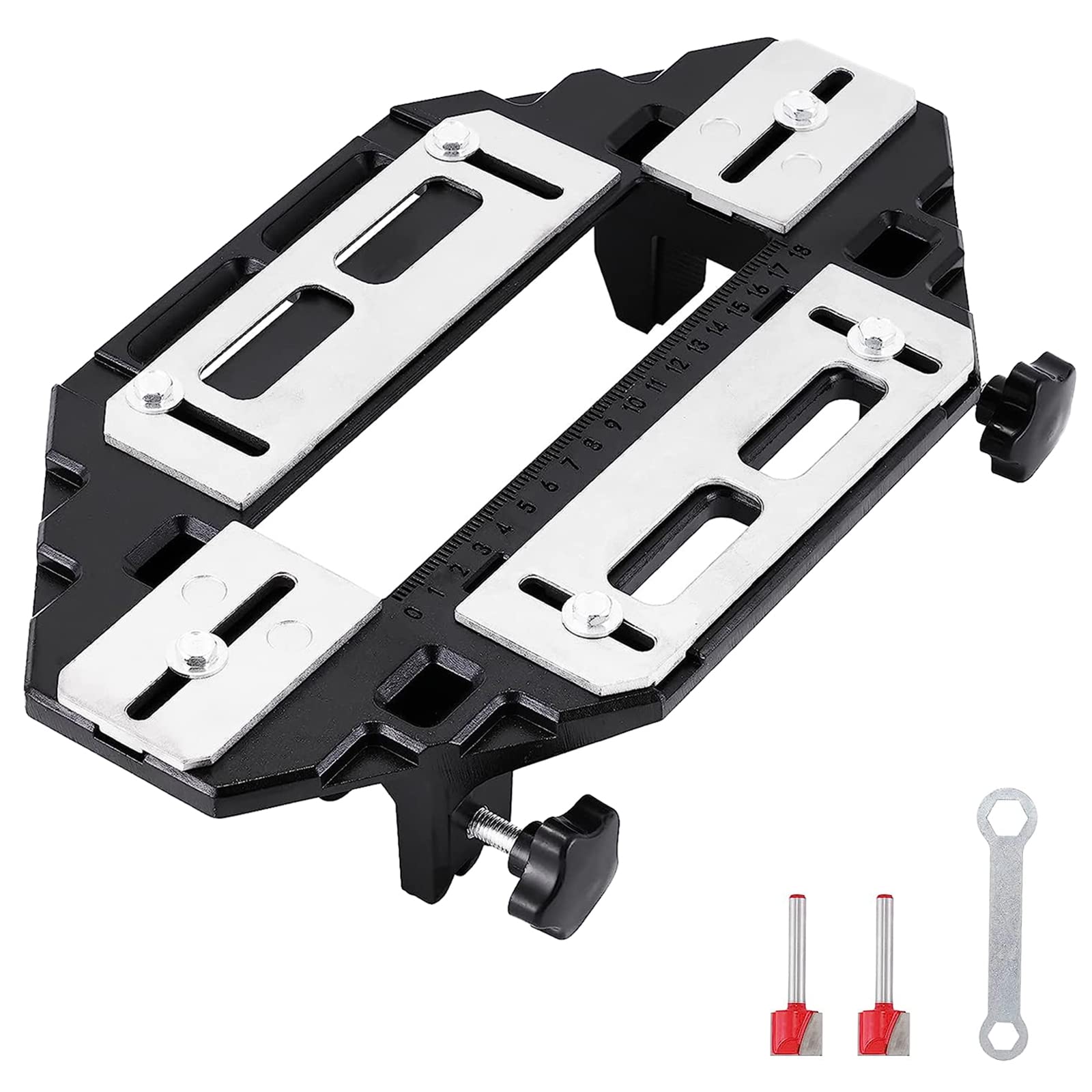

• 🌼【Tips】 : The door hinge jig set includes 1 * Slot Positioner, 1 * Mini Adjustment Wrench, 2 * Edger Bedknife. The hinge drilling plate needs to be used with the trimming machine. After grooving is completed, all corners are rounded and need to be repaired to a right angle before installation.

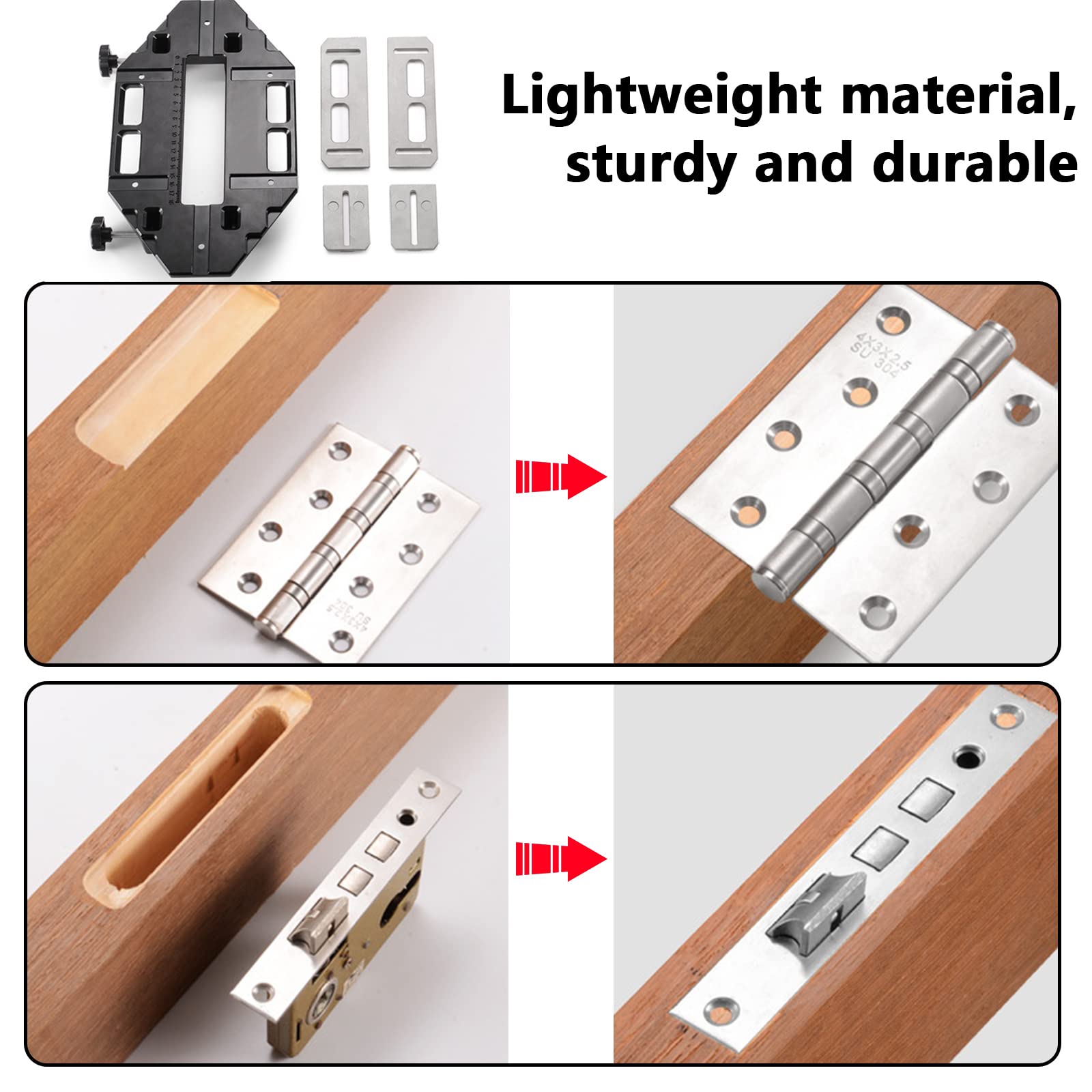

1. Wooden door hinge hole opener is designed for wooden door hinge groove, lock body guide plate groove and other slotting applications. 2. Any lock and hinge can be fitted in a matter of a few minutes, speeding up the task immensely when compared to traditional methods. 3. This template can be used for doors, cabinet doors and also for flat door lock mortise sleeves. 4. The length and width positioning supports flexible adjustment in four directions, accurate positioning and fast slotting rate. 5. Adopting aluminum alloy material, the tool is very strong and rust-proof. 6. No tools required, fast clamping: hand-tightened screws, fast clamping, efficient work. 7. Dimensions: 34×20 cm / 13.4 x 7.9 inches. Opening Size: Max 18 cm/7.1 inches. Maximum grip: 6 cm/2.4 inches. Install the lock body guide plate: 1.Mark the position of the lock body guide plate on the wooden door. 2.Put the slotted retainer on the wooden door and fix it (clamp by tightening the black nut). 3.Using the wood router to slot. 4.Use a chisel to chisel away the curved part to make the edge flat. 5.Complete the slot and install the lock body guide plate. Install the hinge: 1.Mark the position of the hinge on the wooden door. 2.Put the slotted retainer on the wooden door and fix it. 3.Adjust the screws on the four sides to determine the working range of the wood router. 4.Adjust the depth of the blade of the wood router, and set the blade to extend beyond the edge of the door. 5.Slotting with the wooden router. 6.There is a certain chance that the edge of the door will be damaged when grooving ,so don't hollow out all the wood at the edge. 7.Use a chisel to chisel off the curved and reserved sections, making sure the edges are flat. 8.Finish slotting and install hinges. Package: 1 * Slot Positioner 1 * Mini Adjustment Wrench 2 * Edger Bedknife
