Door Hinge and Latch Jig 76mm and 102mm Hinge Cut Out - 35mm Door

• Suitable for 76mm (3") and 102mm (4") hinges
• Suitable for use on doors 35mm-36mm thick
• Creates clean, precise hinge recesses every time
• Lightweight yet durable PLA construction
• Can be clamped or screwed securely in place

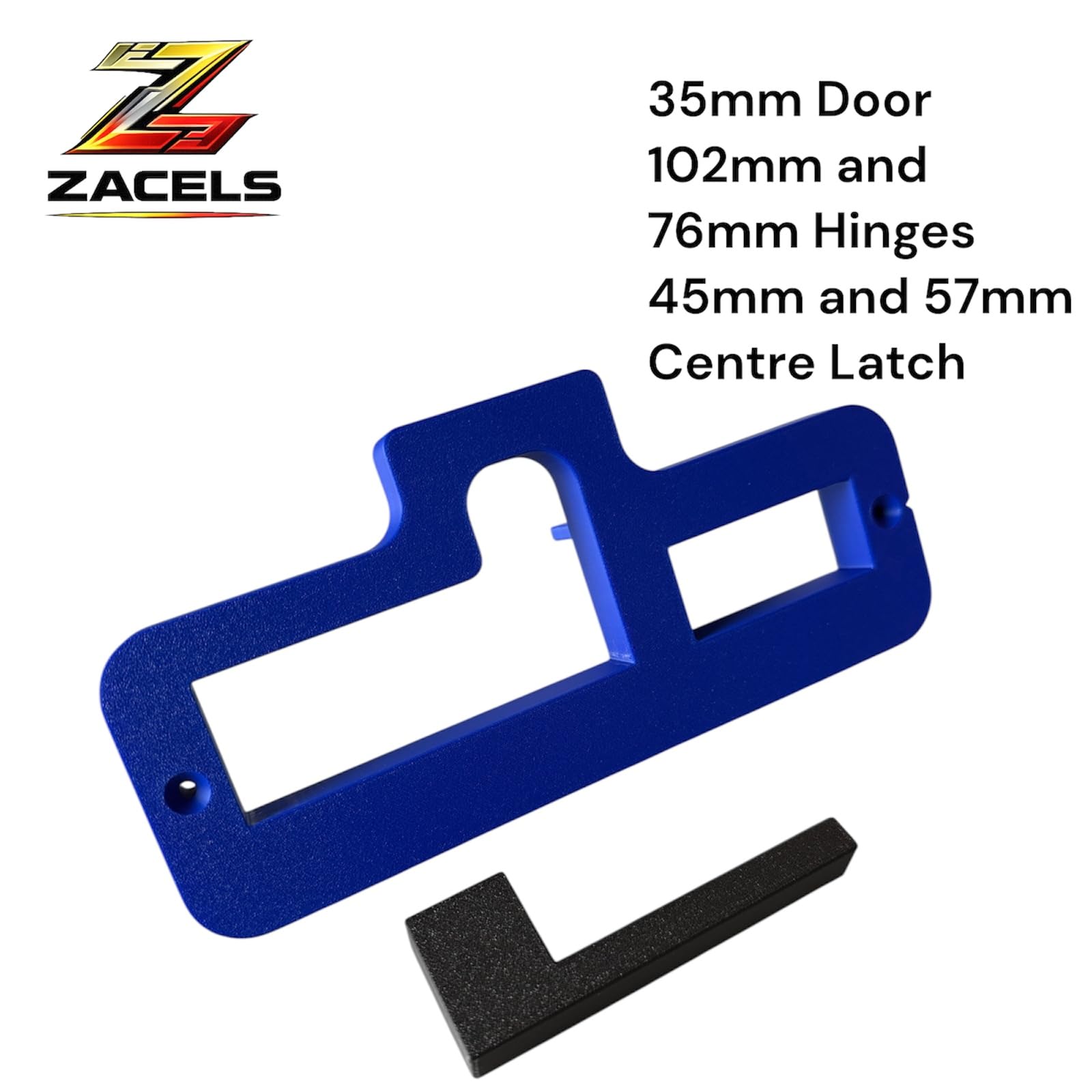

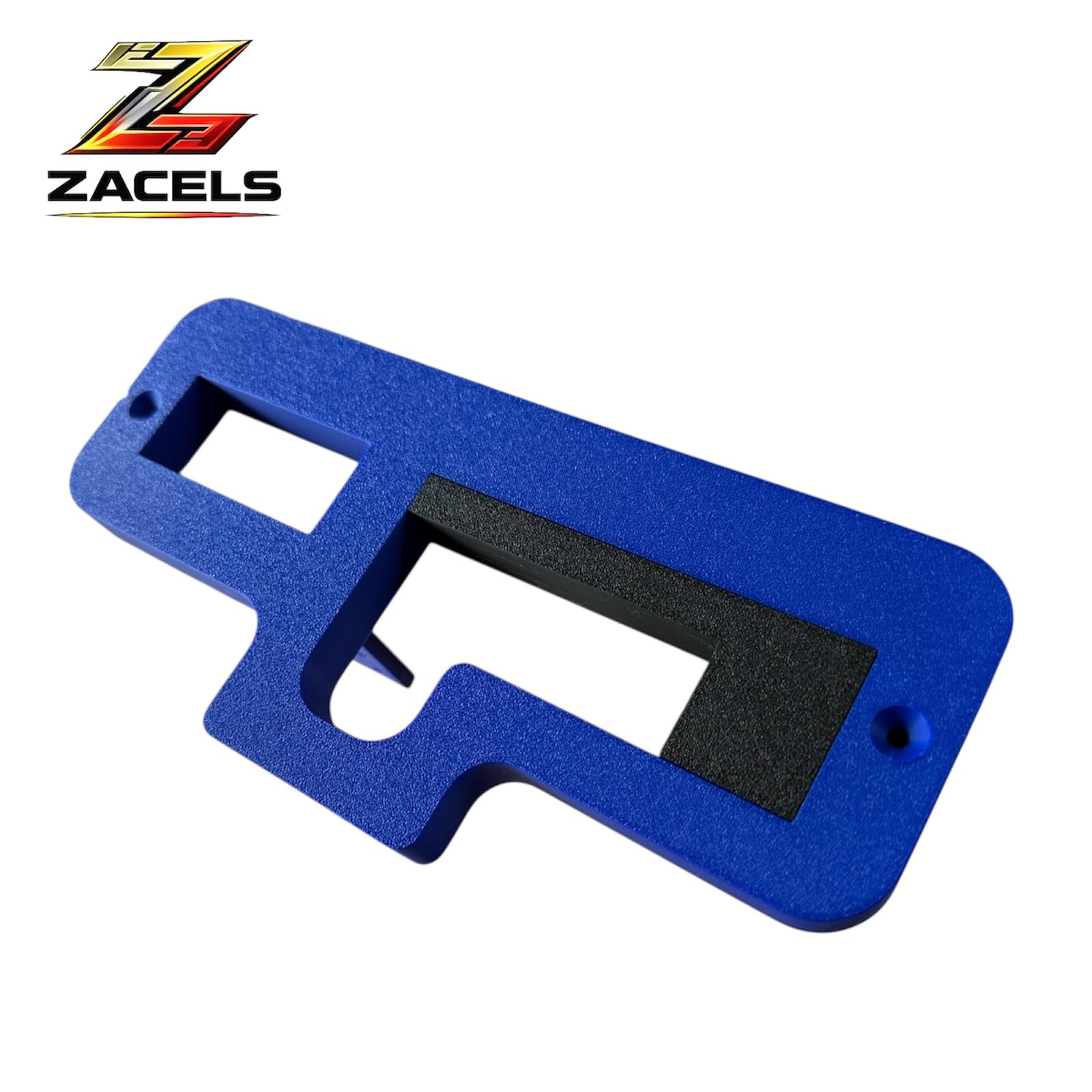

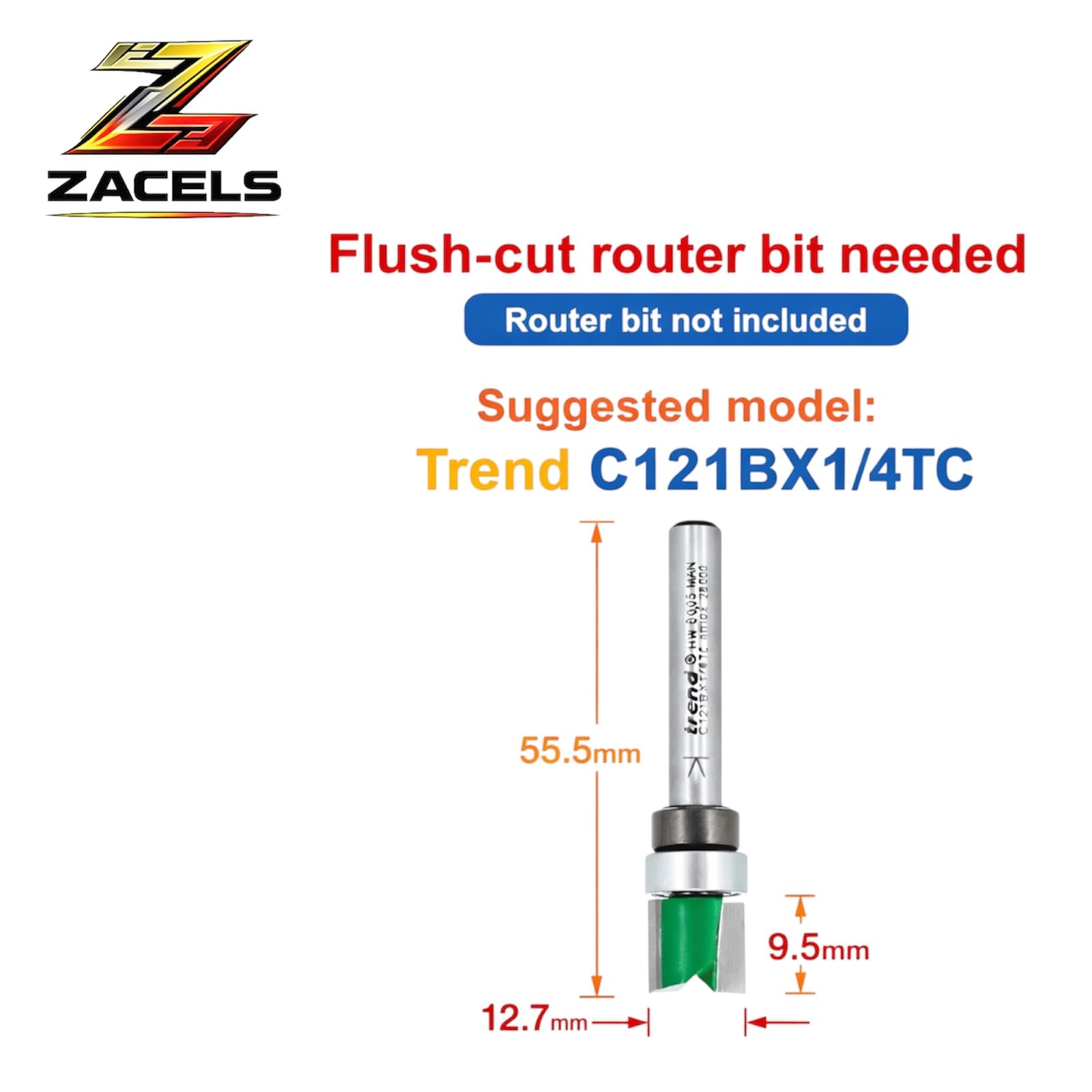

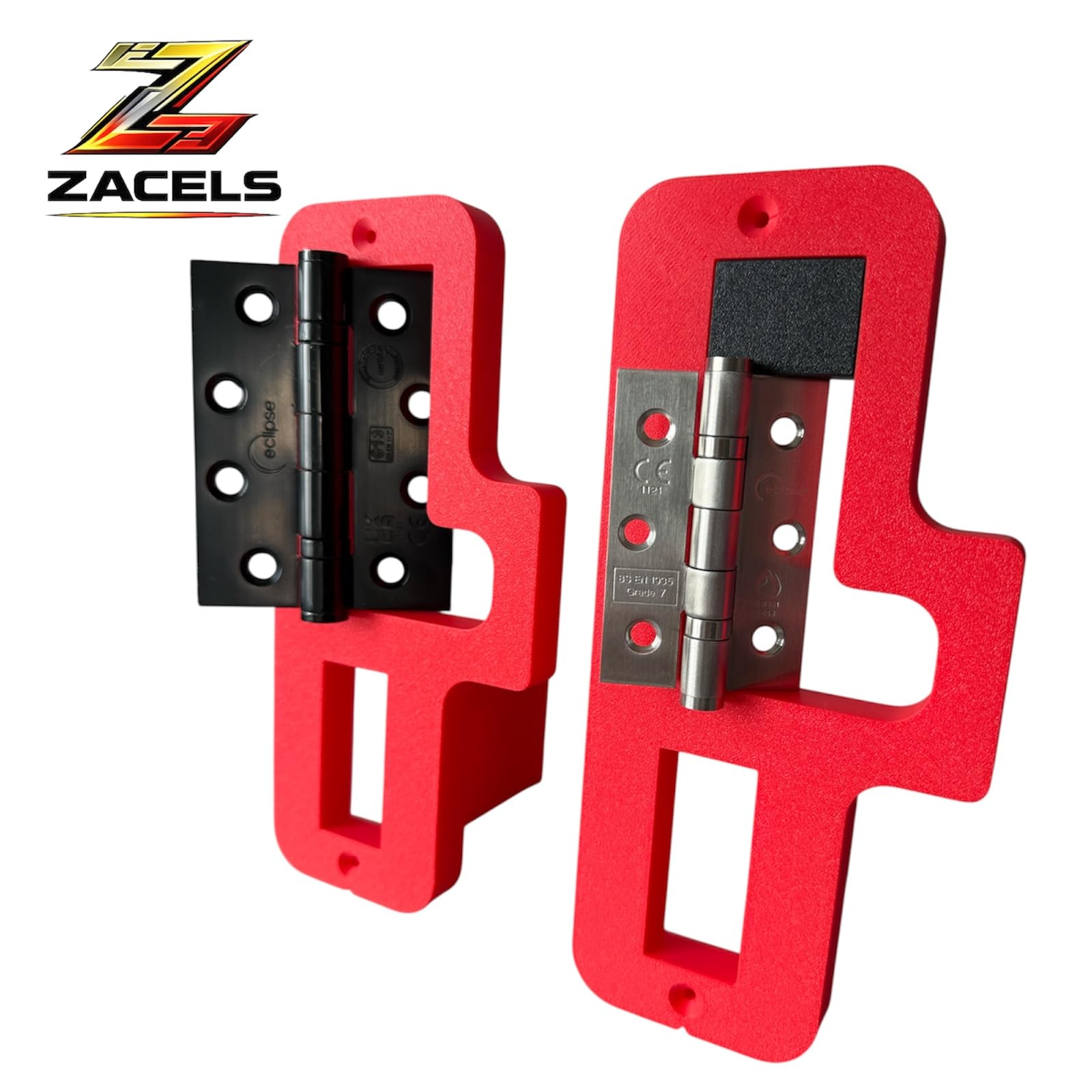

The Zacels Door Hinge and Latch Jig is for either a 35mm door with 102mm hinge cut out and also a 76mm hinge cut out (using the Black Spacer Provided) and either 45mm or 57mm Centre Latch. Designed to be used with a 12-13mm template router cutter (such as the Trend 1/4" Template Profile Router Cutter 12.7 x 9.5mm shown in the photos). The cutter is not supplied with the template. Can be used on door thickness (35mm-36mm Blue) slight tolerance as prefinished doors are slightly thicker than unfinished doors. Please make sure the larger fence with the latch holes in is clamped or screwed tight against the door. As with any template, we strongly recommend you try the template on a spare piece of wood first to ensure it's compatible with your hinge and cutter. Can be used with any type of handle that has a latch backset of either 45mm or 57mm. Latch Plate dimensions are 58mm x 26mm. Perfect for Howdens Newington Latch Packs and Handles (Pre drilled holes in jig for bolt throughs) Latch Packs Howdens LAL0758 Newington Lever on Rose Door Handle Pack Howdens LAL0770 Newington Dual-Tone Chrome Lever on Rose Privacy Door Handle Pack Howdens LAL6008 Newington Matt Black Lever on Rose Door Handle Pack Howdens LAL9909 Newington Antique Brass Lever on Rose Door Handle Pack Howdens LAL9976 Newington Polished Black Nickel Lever on Rose Door Handle Pack Process: 1.Install your cutter in your router and set the depth to match the thickness of your latch faceplate 2.Mark the centre line of your latch using the v groove at the top of jig 3.Drill 25mm Hole in door edge on the centre mark 4.Line up the centre line with the diamond shaped window and screw the jig in place (carefully choose the correct back set hole) 5.Router the faceplate recess and use a chisel to finish the corners 6.Pilot drill the door handle centre hole (carefully choose the correct back set hole) 3mm drill bit 7.Pilot drill the bolt throughs (only if using Howdens Newington Handles) if not then skip this step 8.Un-clamp or unscrew the jig Black Spacer for 76mm hinges comes FREE with your purchase of £29.99 Full video set up on our YouTube channel below (subscribe for future updates) (16) POVEY Carpentry and Kitchens - YouTube The colour of the jig template may vary depending on material availability at the time your order is placed. Design: This is a registered design protected by the UK Patent office. Please do not copy our designs or we will take legal action if necessary. Copyright: The images in this listing belong to Zacels. Please do not use our images. Recommended Router Cutter Link below. https://amzn.to/4sTgxHu
