Northern DIY Door Handle Springs Replacement, 28mm diameter, 2.5mm thick, 1.1mm gauge, 2 and 1/2 turns with Black Coating (Pack of 10)

• Pack of 10 long life door lever springs. With a black passivating coating
• Flat wire cross section 2.5mm X 1.1mm - gives handle a 'quality' feel. See photos for other dimensions
• 2mm and 3mm thick 2.5-turn coils also available - To see our full range (organised by spring type and size) please click ‘visit the Northern DIY store’ by the title above
• Suitable for both right handed and left handed handles - Please read description below
• Also available as a pack of 10 springs and 10 circlips

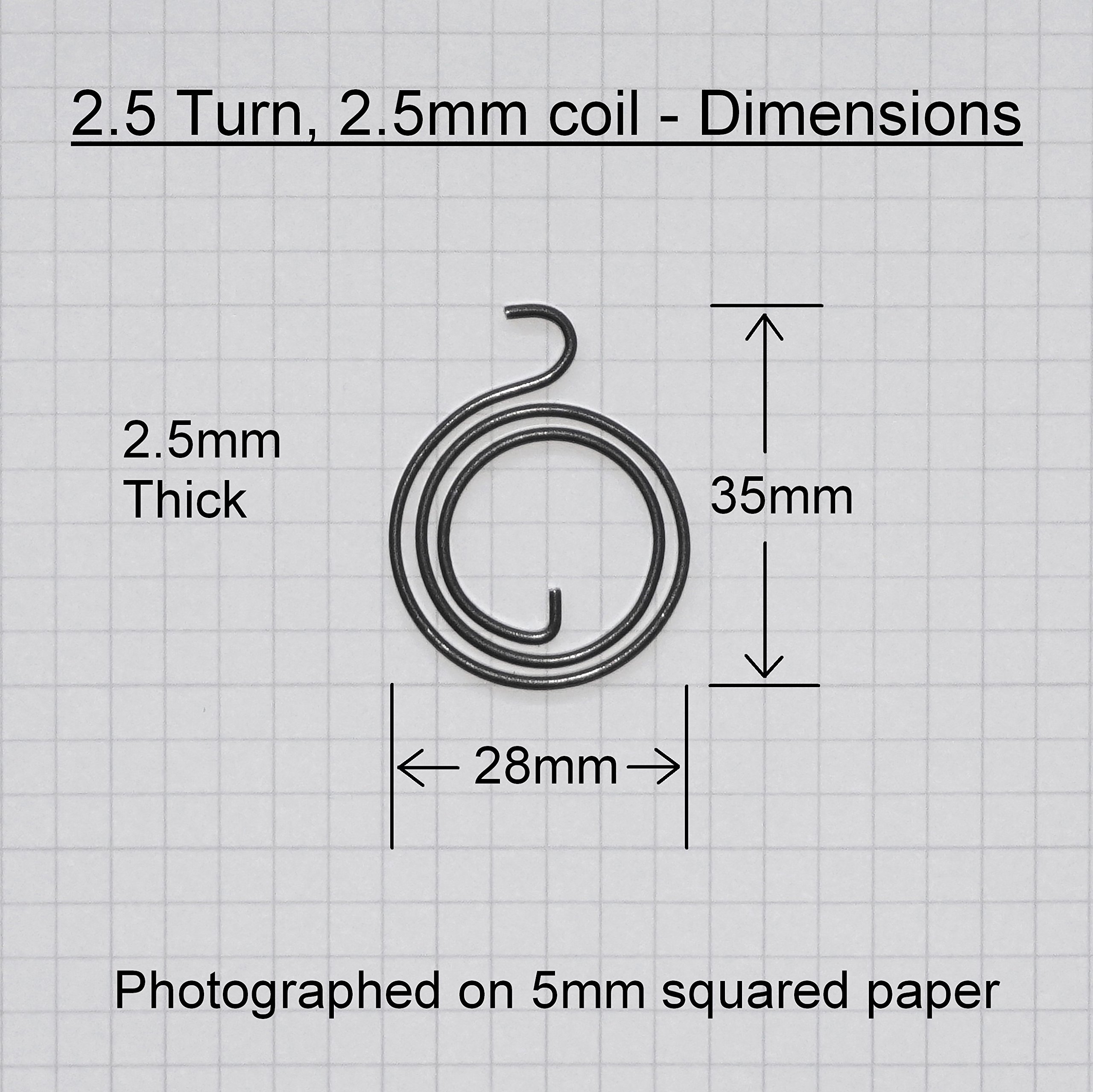

Pack of 10 coil springs for internal door handles. Can be used on both right handed and left handed handles. Spring dimensions are shown in the additional photograph. When replacing a door handle spring the two most important things to check are a) The orientation of the external hook compared to the internal hook eg. is it a 2-turn coil or a 2.5-turn coil and b) the thickness of the spring (we define thickness as the height of the spring when laid flat). Most springs are retained with a circlip, which can be removed and replaced using external circlip pliers. External circlip pliers are available quite cheaply elsewhere on Amazon. The 2.5-turn, 2.5mm thick coil shown here is the most common type of door handle spring. Please note that if you fit a thinner spring than originally fitted the handle will have some excess play. If you fit a thicker spring than originally fitted it may be difficult to replace the circlip and the handle may have a tendency to stick. To see the different types of door handle spring we sell please click the ‘by Northern DIY’ link below the title at the top of this listing. Tip: When fitting a new spring a little grease will give better wear and movement. Fitting instructions are available on the Northern DIY website.
