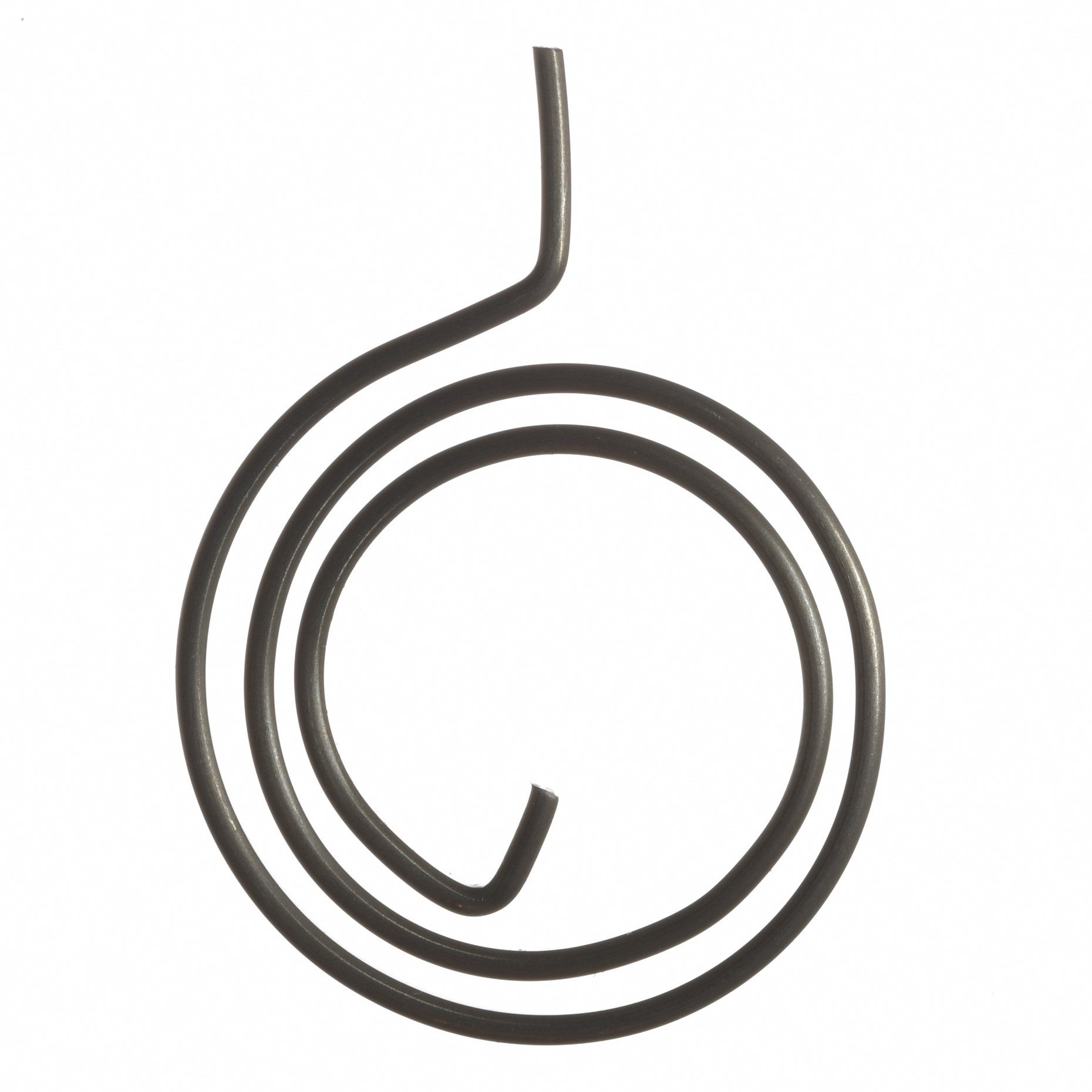

Northern DIY Door Handle Springs 2.5-turn coil, 2mm thick (Pack of 10)

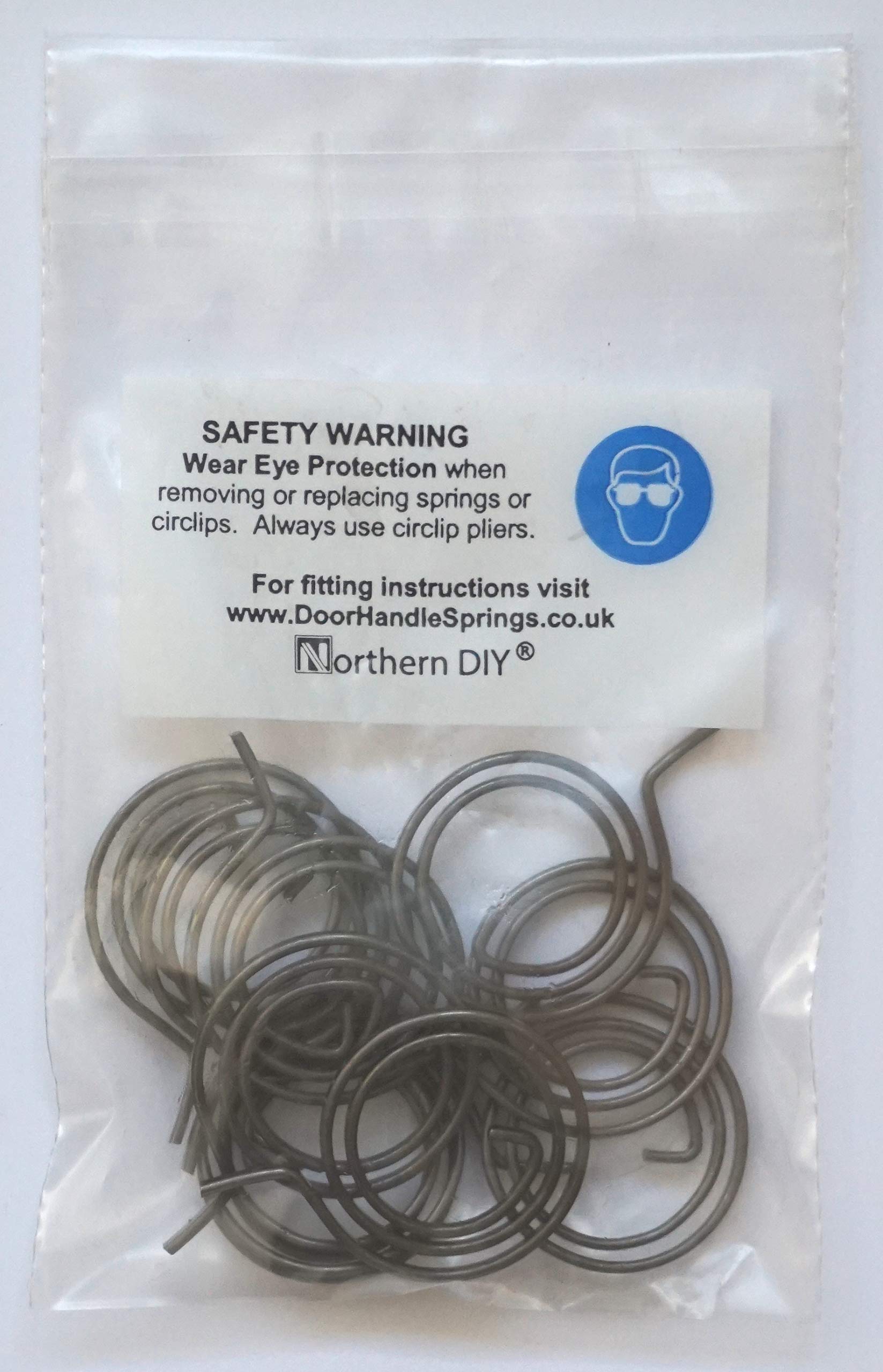

• Pack of 10 long life coil springs for internal door handles
• Can be used on both right handed and left handed handles. Please read description below

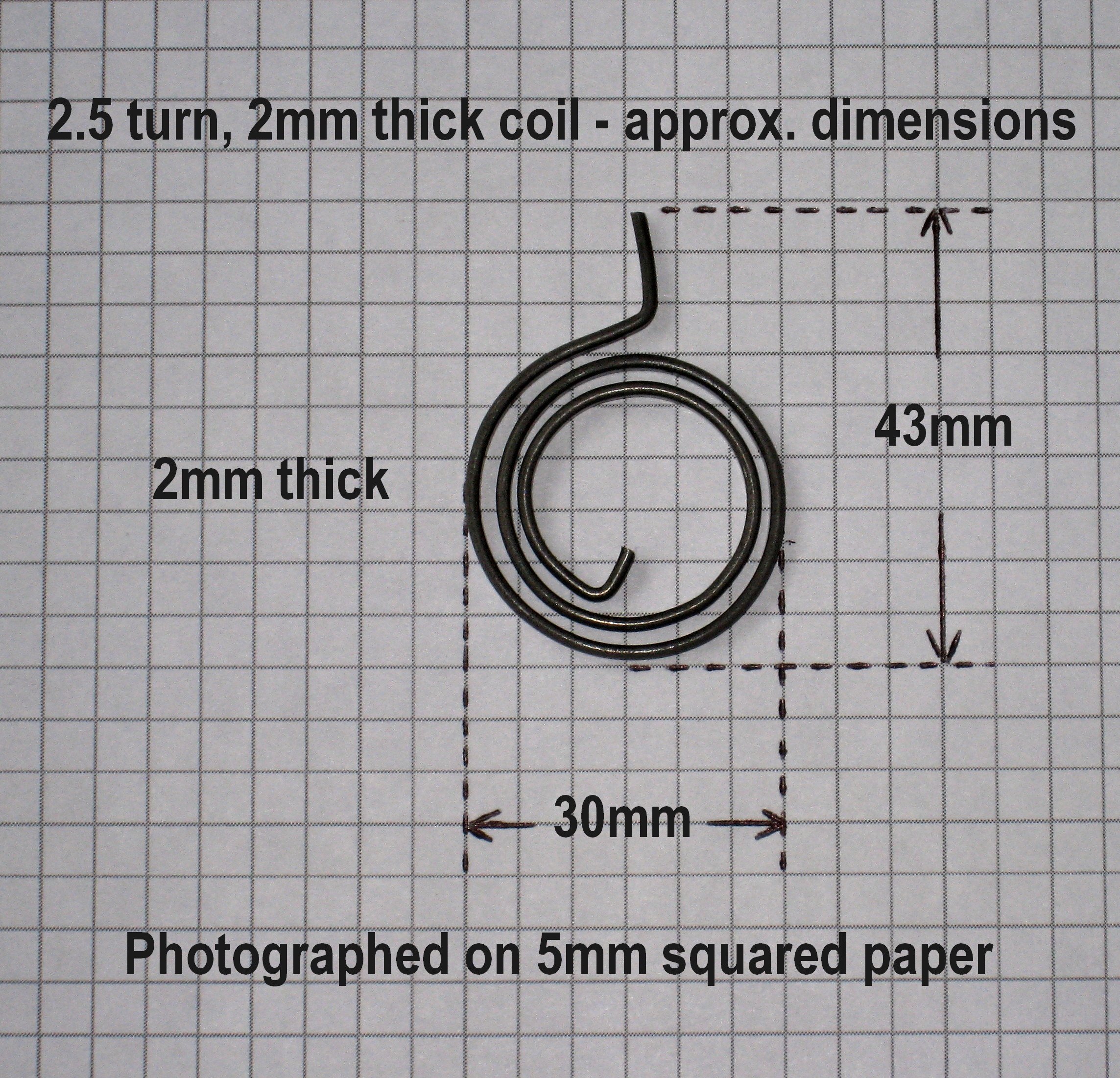

• Spring dimensions are shown in the additional photographs
• Tip: When fitting a new spring a little grease will give better wear and movement
• This spring is not intended for Levers mounted on a circular rose - See 'Lever on Rose' section in the Northern DIY Store
• To see our full range (organised by spring type and size) please click ‘visit the Northern DIY store’ by the title above

Door Handle Springs (2.5-turn coil, 2.0mm thick) for internal door handles. Can be used on both right handed and left handed handles. Spring dimensions are shown in the photograph above. When replacing a door handle spring the two most important things to check are a) the orientation of the external hook compared to the internal hook eg. is it a 2-turn coil or a 2.5-turn coil and b) the thickness of the spring (we define thickness as the height of the spring when laid flat). Most springs are retained with a circlip, which can be removed and replaced using external circlip pliers. External circlip pliers are available quite cheaply elsewhere on Amazon. This spring is 2.0mm thick. Please note that if you fit a thinner spring than originally fitted the handle will have some excess play. If you fit a thicker spring than originally fitted it may be difficult to replace the circlip and the handle may have a tendency to stick. This spring terminates at the top with a 10mm vertical section. A similar 2mm thick spring with a hook at the top is also available. To see our full range (organised by spring type and size) please click ‘visit the Northern DIY store’ by the title above. Tip: When fitting a new spring a little grease will give better wear and movement. Fitting instructions are available on the Northern DIY website.
