Door Handle Spring Repair Kit (ten 2.5-turn, 2mm thick, 30mm diameter coils plus ten circlips)

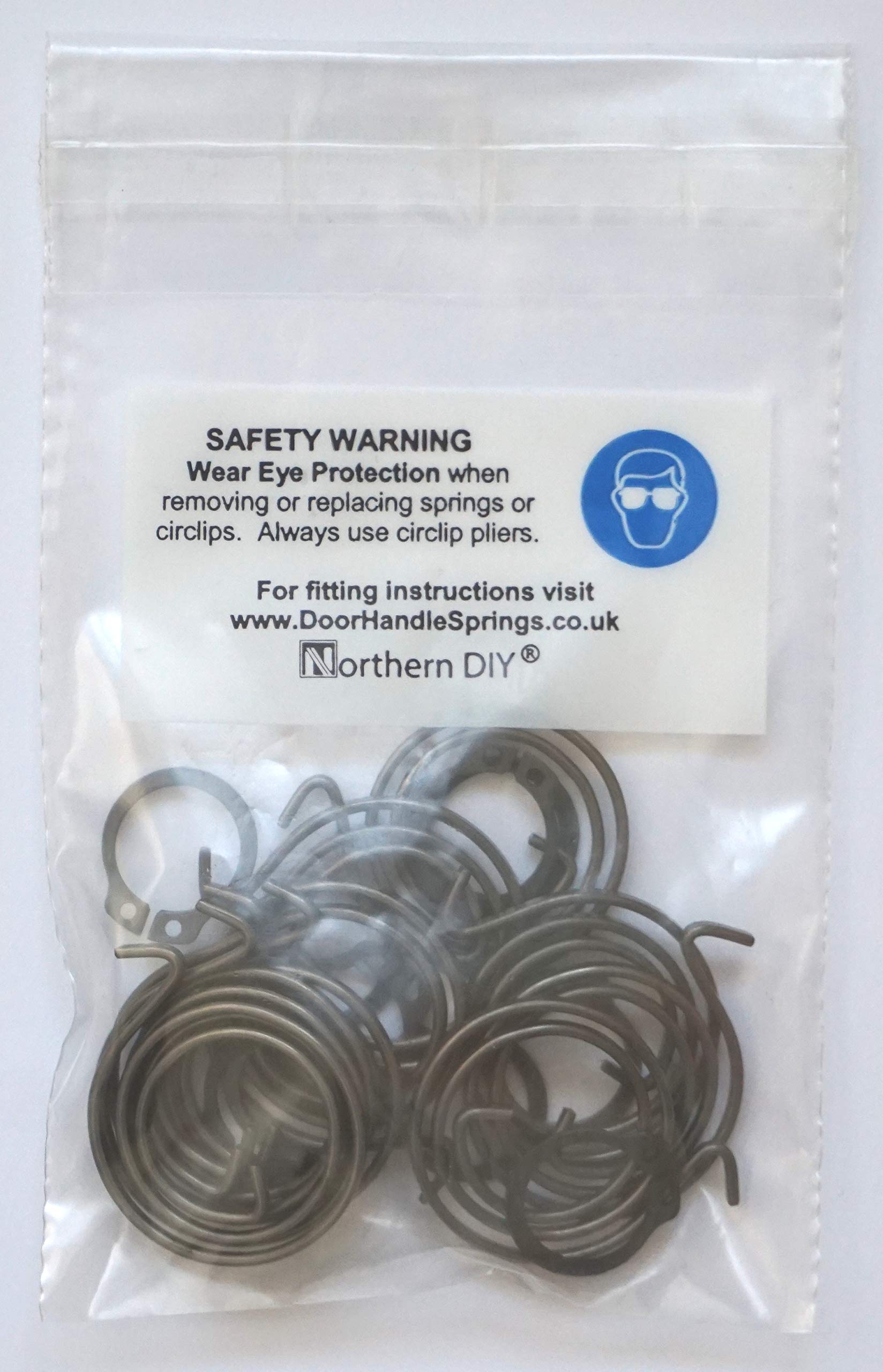

• Pack of ten 2mm thick, long life coil springs plus 10 circlips for internal door handles
• Diameter 30mm. A 2mm thick spring with a diameter of 27.5mm is also available
• To see our full range (organised by spring type and size) please click ‘visit the Northern DIY store’ by the title above
• Circlips are 13.8mm internal diameter (to fit 15mm shaft with 14.3mm groove)

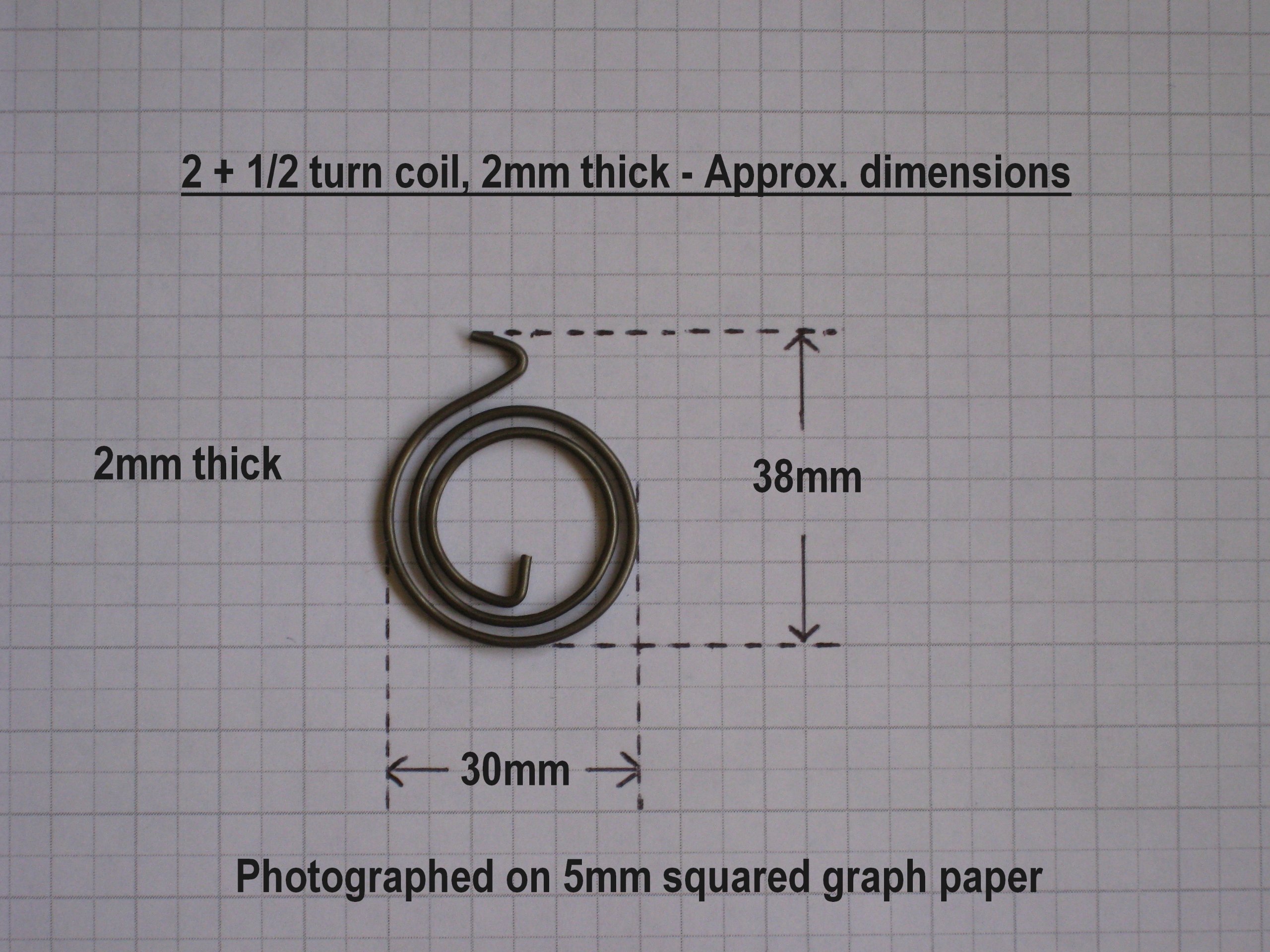

• Please see additional photograph for full dimensions

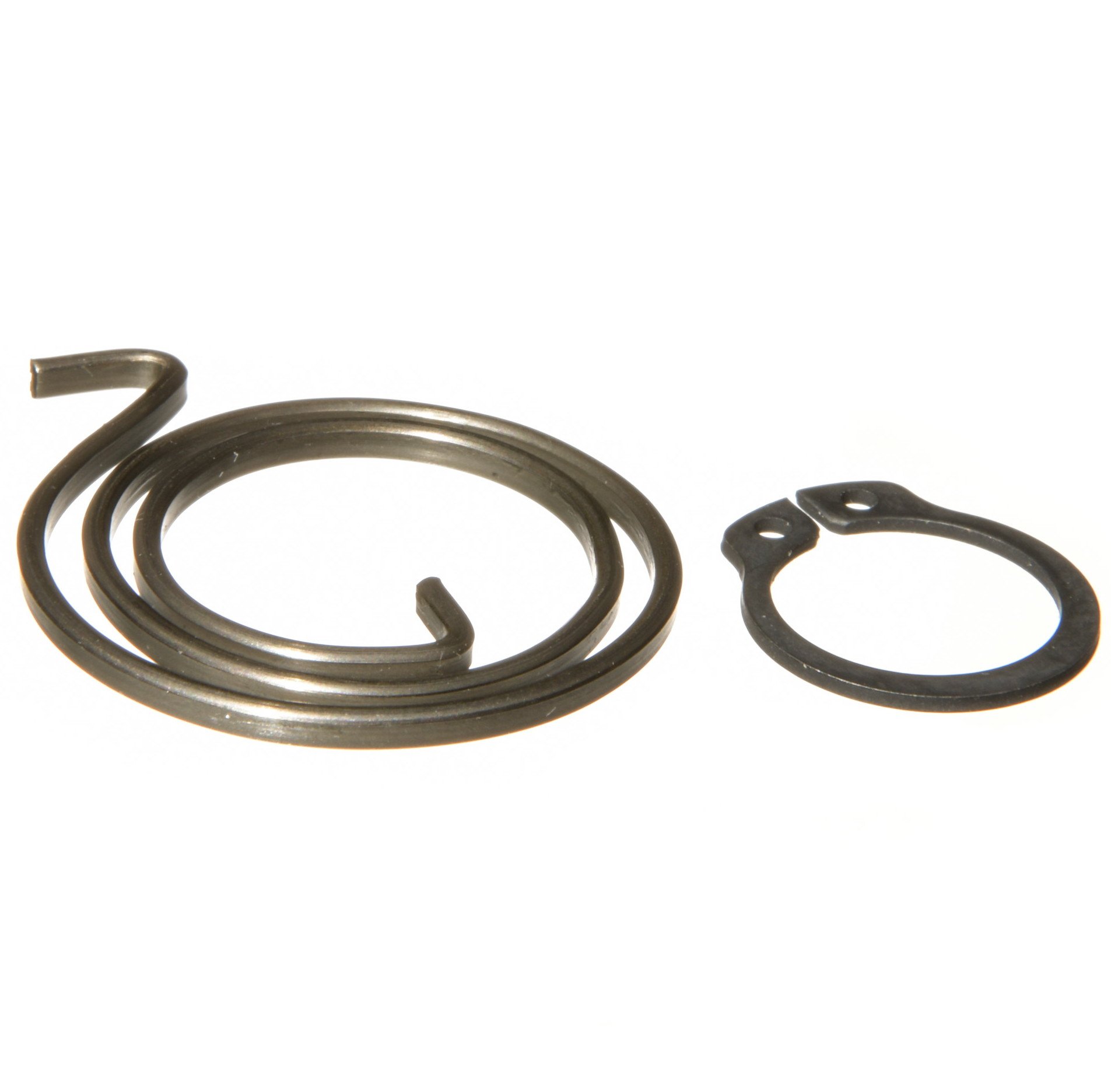

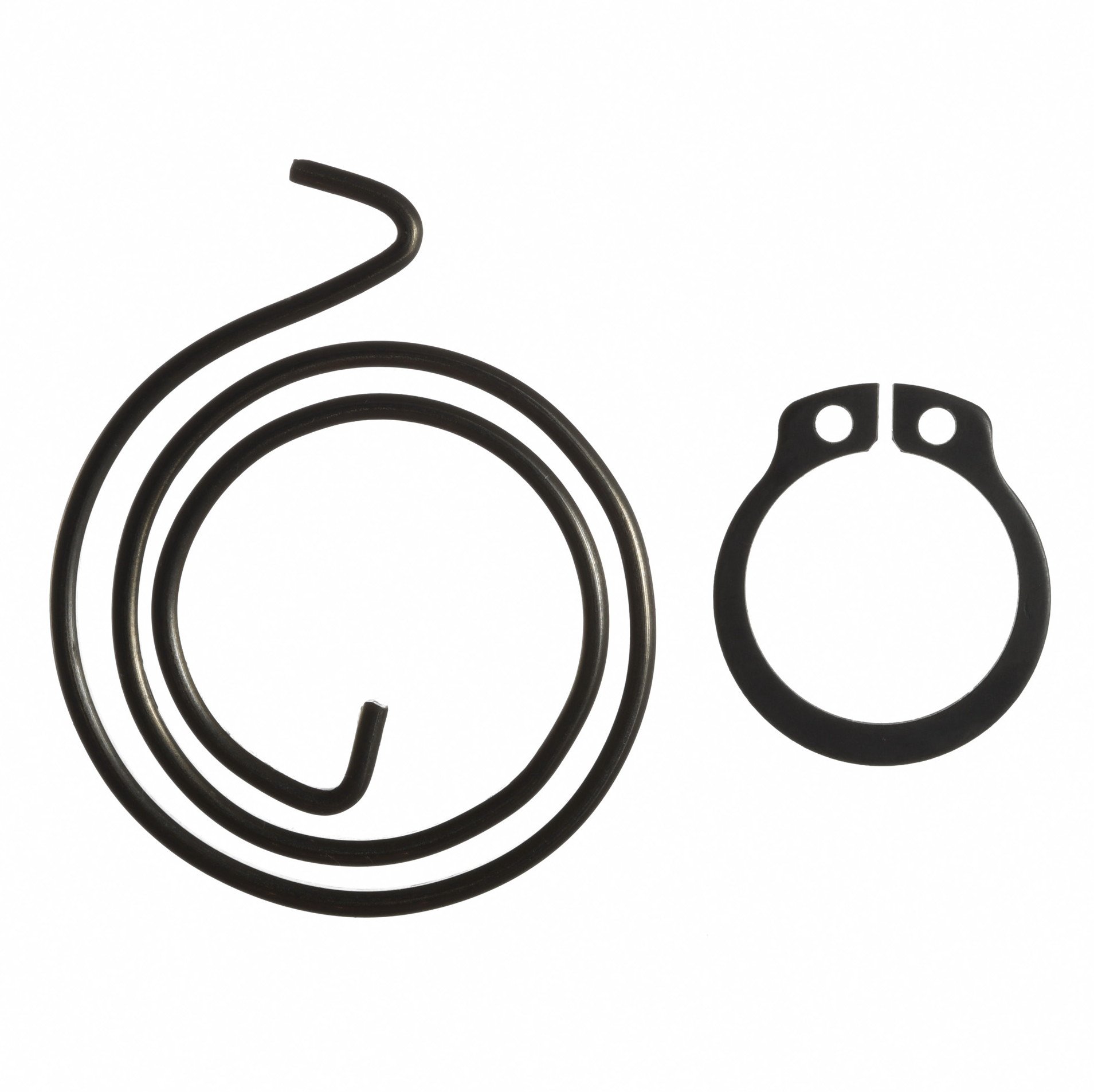

Pack of 10 coil springs plus 10 circlips for internal door handles. The diameter of this spring is 30mm. A smaller 2mm thick spring is also available with a diameter of 27.5mm (see separate listing). Can be used on both right handed and left handed handles. Spring dimensions are shown in the additional photograph. Circlips are 13.8mm internal diameter (to fit a 15mm shaft with a 14.3mm groove). When replacing a door handle spring the two most important things to check are a) The orientation of the external hook compared to the internal hook eg. is it a 2-turn coil or a 2.5-turn coil and b) the thickness of the spring (we define thickness as the height of the spring when laid flat). Most springs are retained with a circlip, which can be removed and replaced using external circlip pliers. External circlip pliers are available quite cheaply elsewhere on Amazon. These springs terminate with a hook at the top. A similar 2mm thick spring that terminates with a 10mm vertical section is also available in packs of 10. Please note that if you fit a thinner spring than originally fitted the handle will have some excess play. If you fit a thicker spring than originally fitted it may be difficult to replace the circlip and the handle may have a tendency to stick. The circlips included are the most common size, as used in the vast majority of door handles. If you wish to check the size of circlip for your handle it is better to measure the shaft rather than the old circlip as some poor quality circlips can become distorted. To see our full range (organised by spring type and size) please click ‘visit the Northern DIY store’ by the title above. Tip: When fitting a new spring a little grease will give better wear and movement. Fitting instructions are available on the Northern DIY website.
