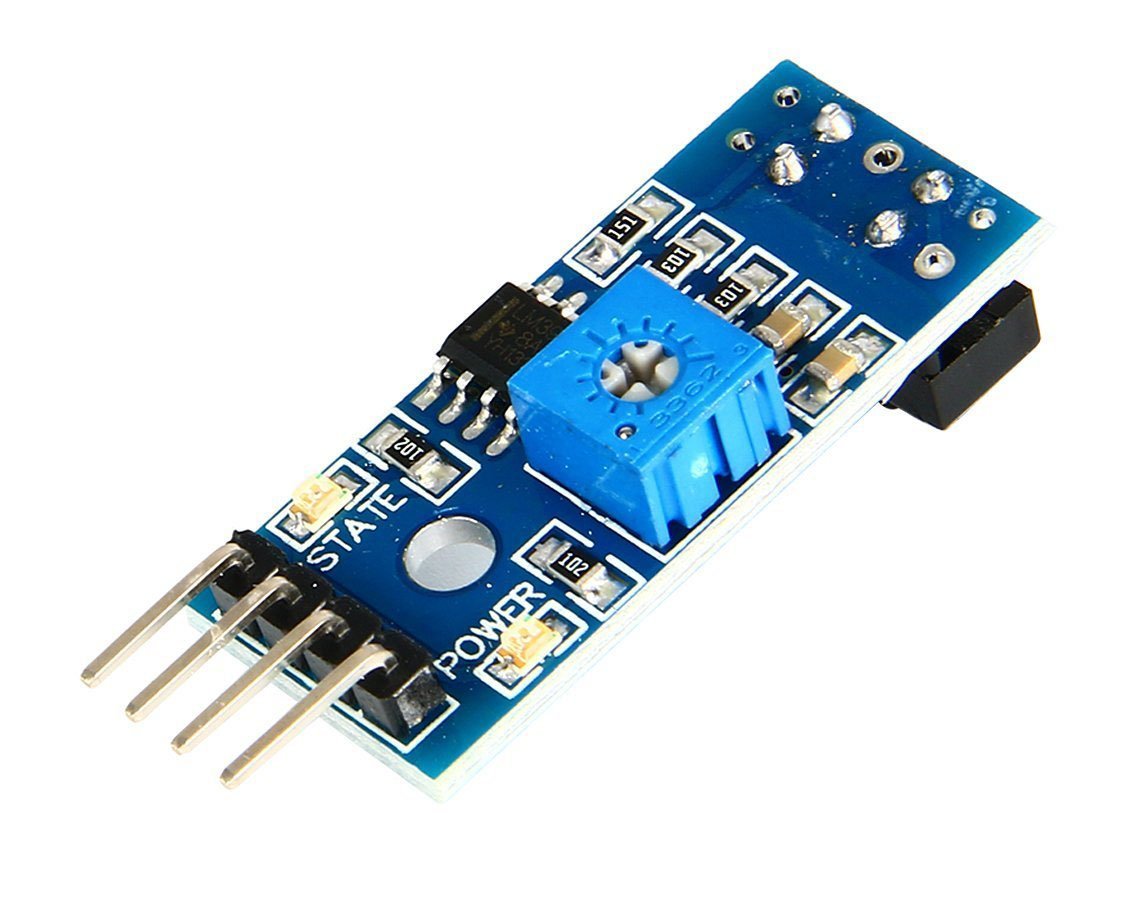

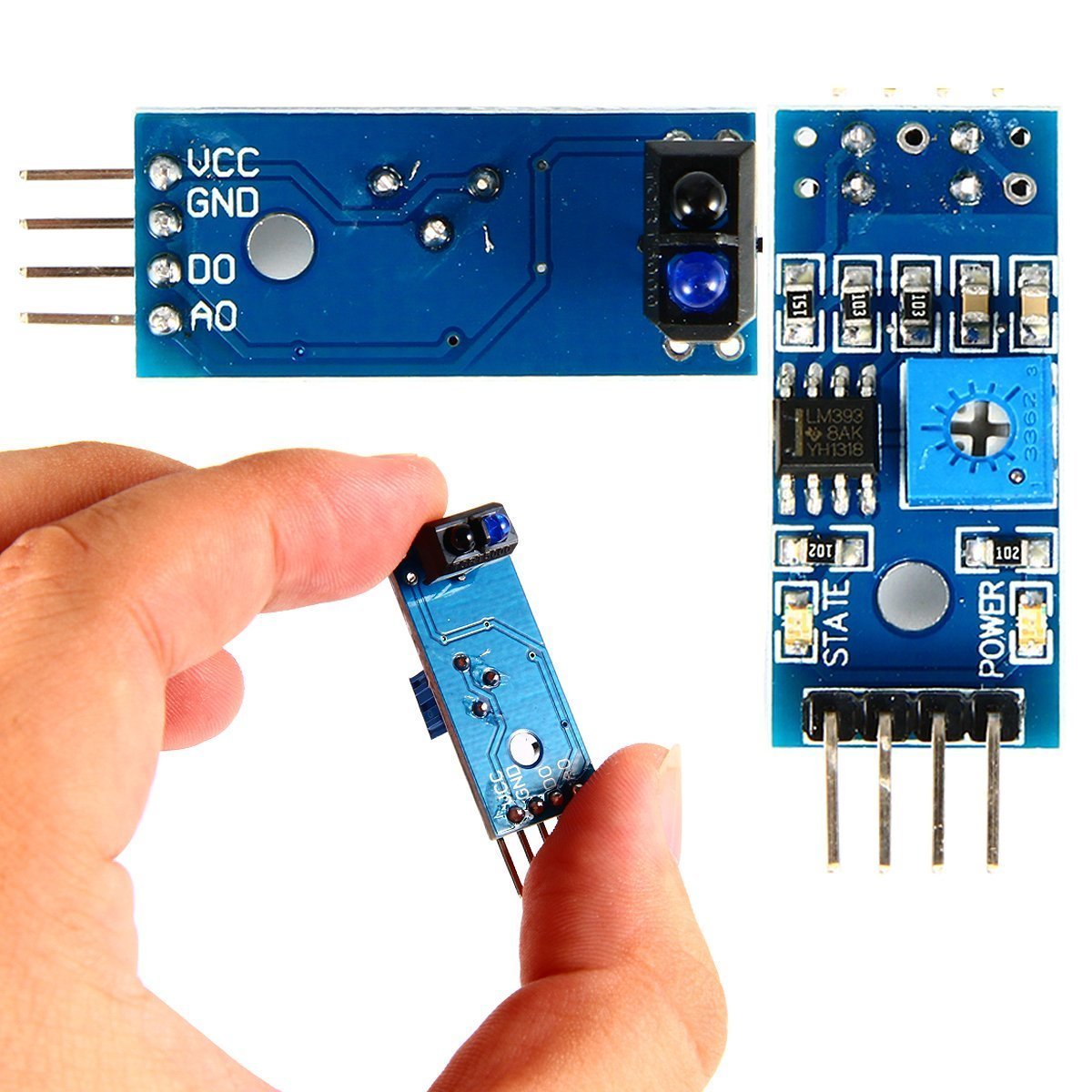

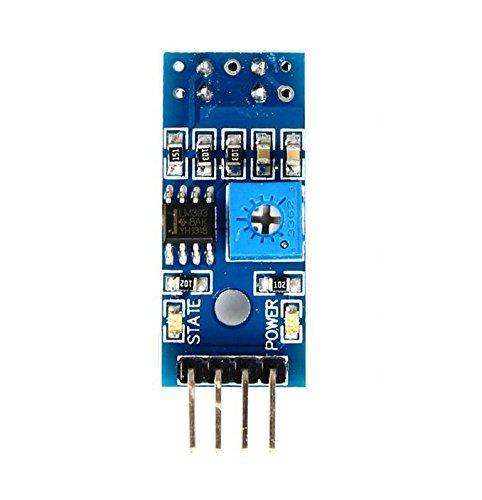

DollaTek TCRT5000 Infrared Reflectance Sensor Obstacle Avoidance Module Tracing Sensor Tracing Module

• Using infrared reflection sensors TCRT5000, The working voltage of 3.3V to 5V
• module can be used to intelligent tracing car obstacle avoidance, material testing, color detection
• modules in shining or keep out the distance is greater than the set threshold the DO output high level
• small plate digital output D0 can be attached directly to the microcontroller
• small plate digital output DO can directly drive our relay module, small plate analog output can AO and AD modules are linked together

Feature: 1 module can be used to intelligent tracing car obstacle avoidance, material testing, color detection 2 modules in shining or keep out the distance is greater than the set threshold the DO output high level, when the module block distance is less than the setting threshold, module D0 output low level; 3 small plate digital output D0 can be attached directly to the microcontroller, through single chip microcomputer to detect the high and low level, thus to detect whether the modules are triggered; 4 small plate digital output DO can directly drive our relay module, which can be composed of a photoelectric switch; 5 small plate analog output can AO and AD modules are linked together, through the AD conversion, can module are obtained and the obstructions of distance. Package Include: Package Content: 1x DollaTek TCRT5000 Infrared Reflectance Sensor
