DollaTek Q206 PCF8563 PCF8563T 8563 Module Clock Module RTC Module DIY Clock Kit - 5 Pcs

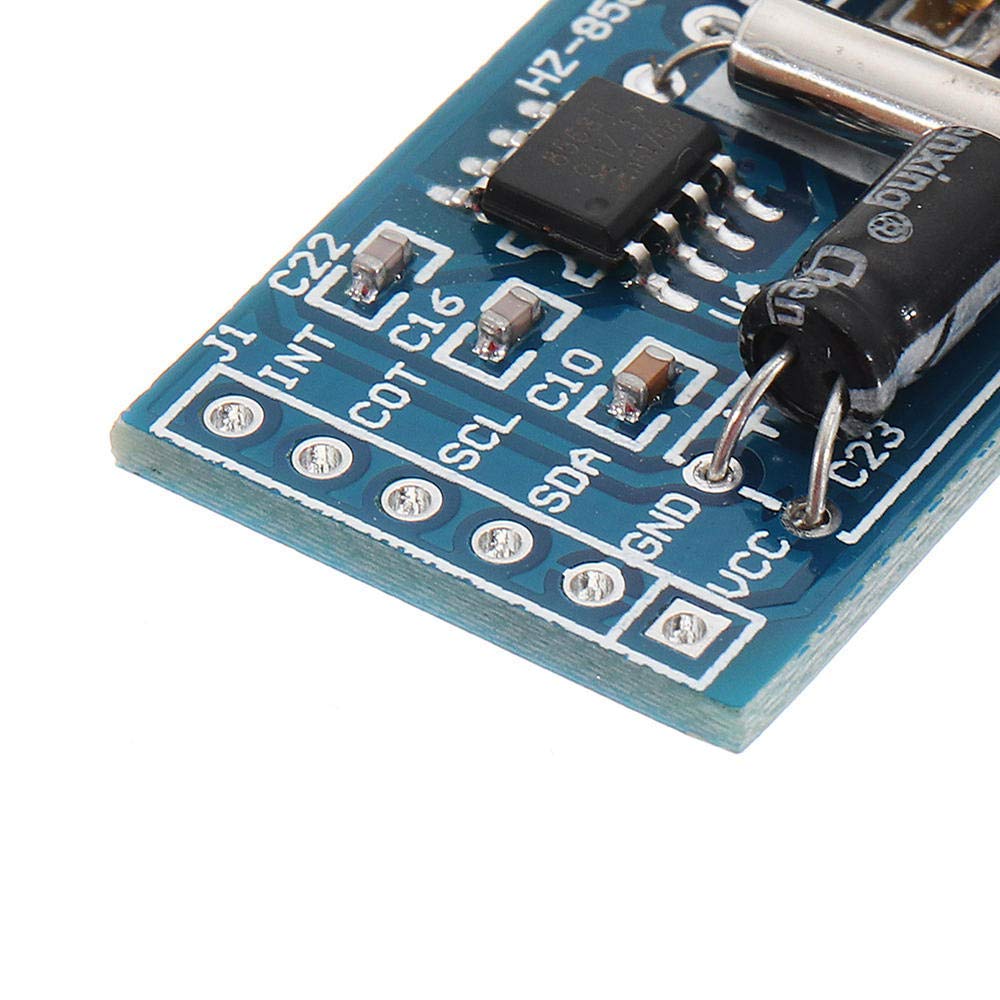

• All that might be used is that in addition to the two required ports of SDA and SCL, the ints and COT that might be used are also cited.

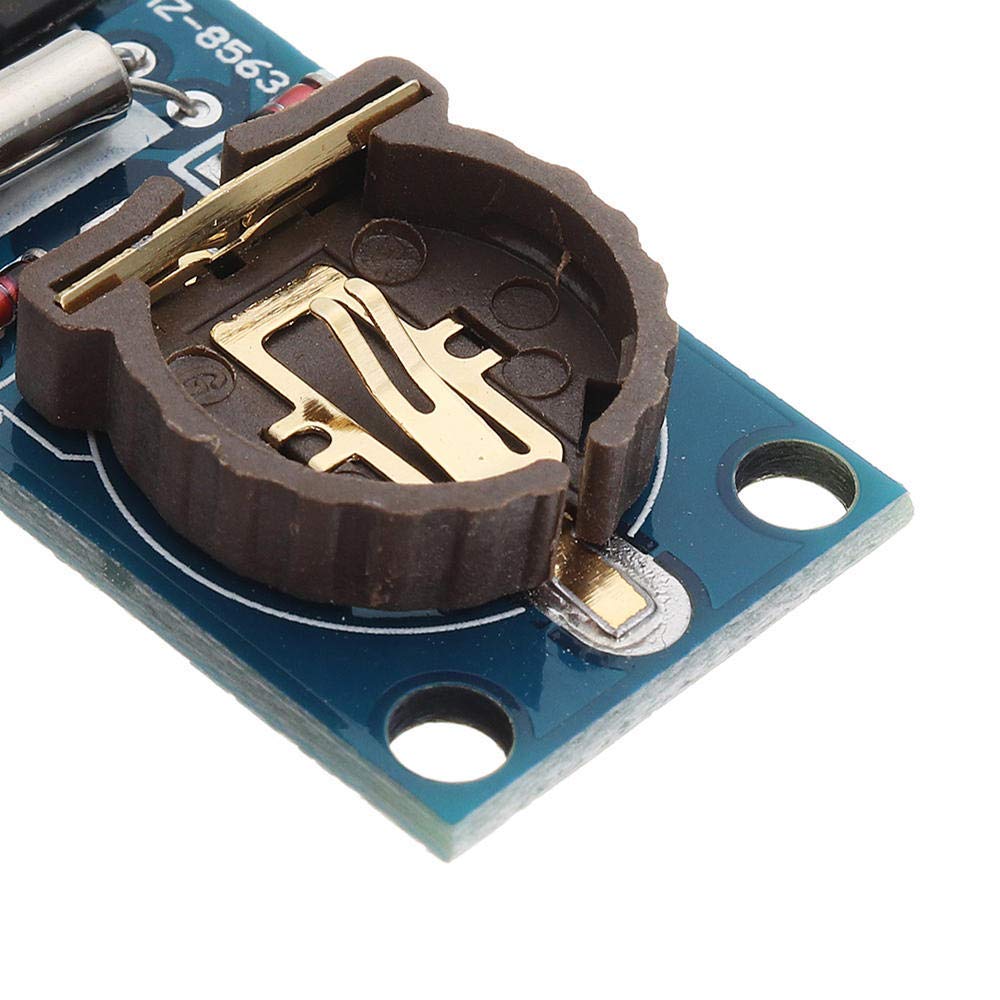

• Spare battery: when the system is out of power, the backup battery will power PCF8563 chip, PCF8563 low power consumption, and ensure that the battery can be used for normal power supply for ten years.
• Crystal vibration: the new product crystal vibration, guaranteed the chip PCF8563 stable, accurate time.
• The advantage of the chip itself: in the actual project of the shop owner, a variety of clock chips have been applied, and it is
• Found that this chip is the most stable, the most accurate and the lowest power consumption. Clock chips such as DS1302 are too weak to recommend PCF8563 clock chips.

Description: The PCF8563 is an industrial grade multi-function clock/calendar chip with very low power consumption that includes an I2C bus interface. The PCF8563's various alarm functions, timer functions, clock output functions, and interrupt output functions can perform a variety of complex timing services and even provide a watchdog function for the microcontroller. It is a cost-effective clock chip that has been widely used in electric meters, water meters, gas meters, telephones, fax machines, portable instruments, and battery-powered instrumentation. Specifications: Performance Indicators:It can be powered by a spare battery. Wide voltage range 1.0~ 5.5v.Ultra low power consumption: a typical value of 0.25uA. Through the I2C bus serial input/output.The output frequency of the programmable clock is 32.768khz, 1024Hz, 32Hz, 1Hz. There are four alarm functions and timer functions.It contains reset circuit, oscillator capacitance and power loss detection circuit.To open the leakage interrupt output. Package Included: 5 x Q206 PCF8563 PCF8563T 8563 Module Clock Module RTC Module DIY Clock Kit
