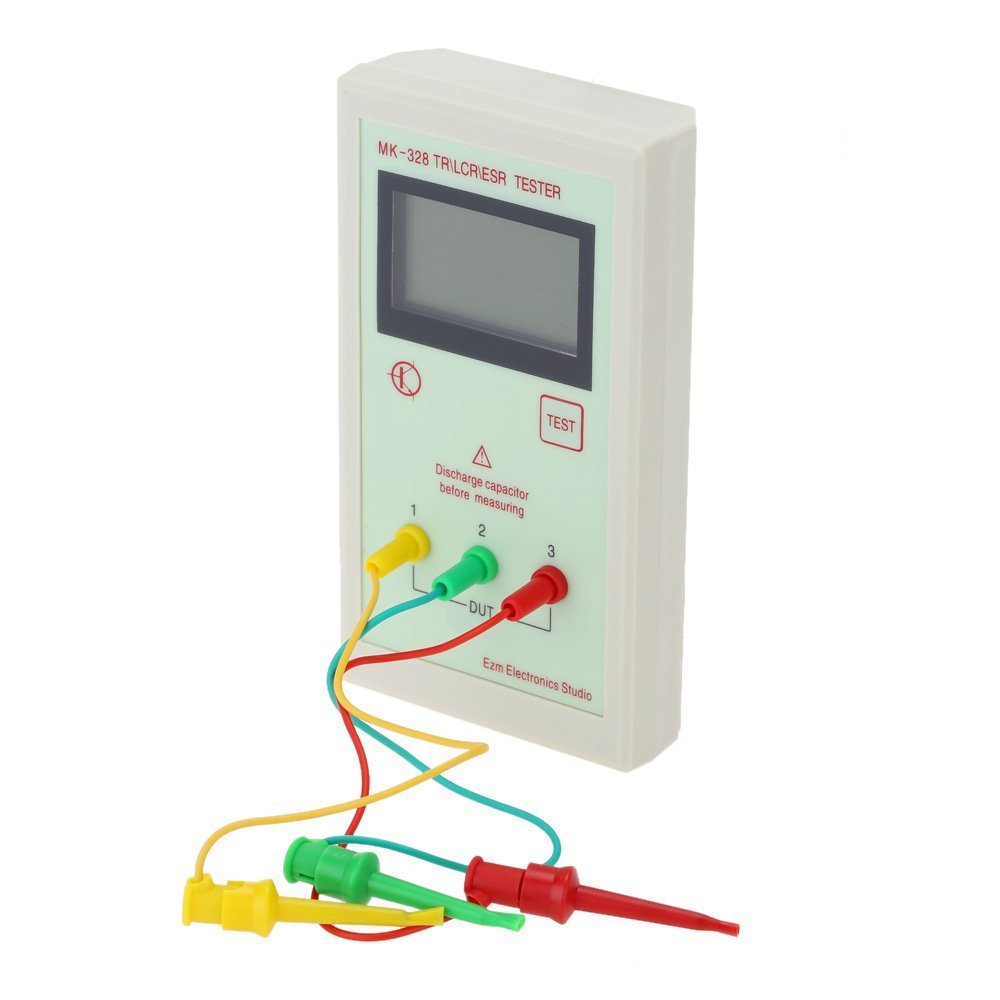

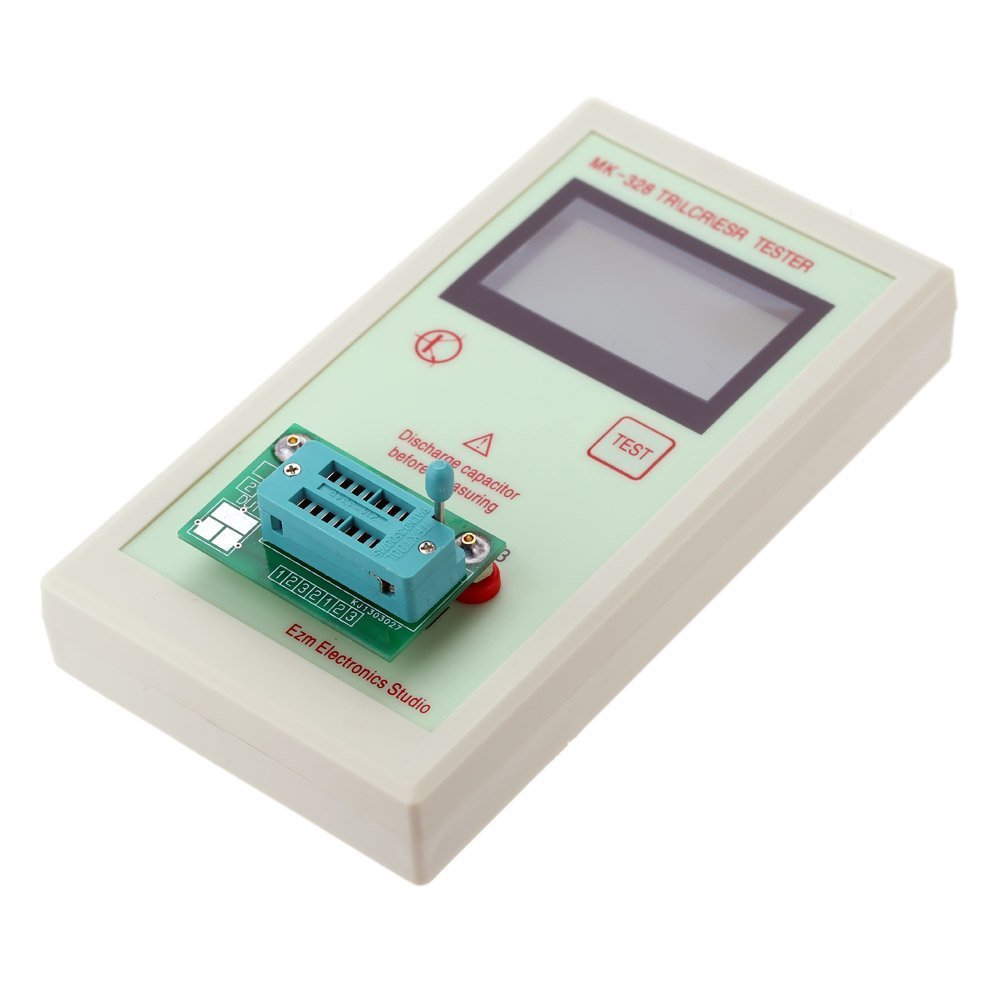

DollaTek MK368 LCD Backlight Portable Transistor Tester Diode Inductance Capacitance Resistance ESR Meter MOS/PNP/NPN L/C/R Testing

• Works with AT328 microcontroller. A button operation with automatic power-off function.

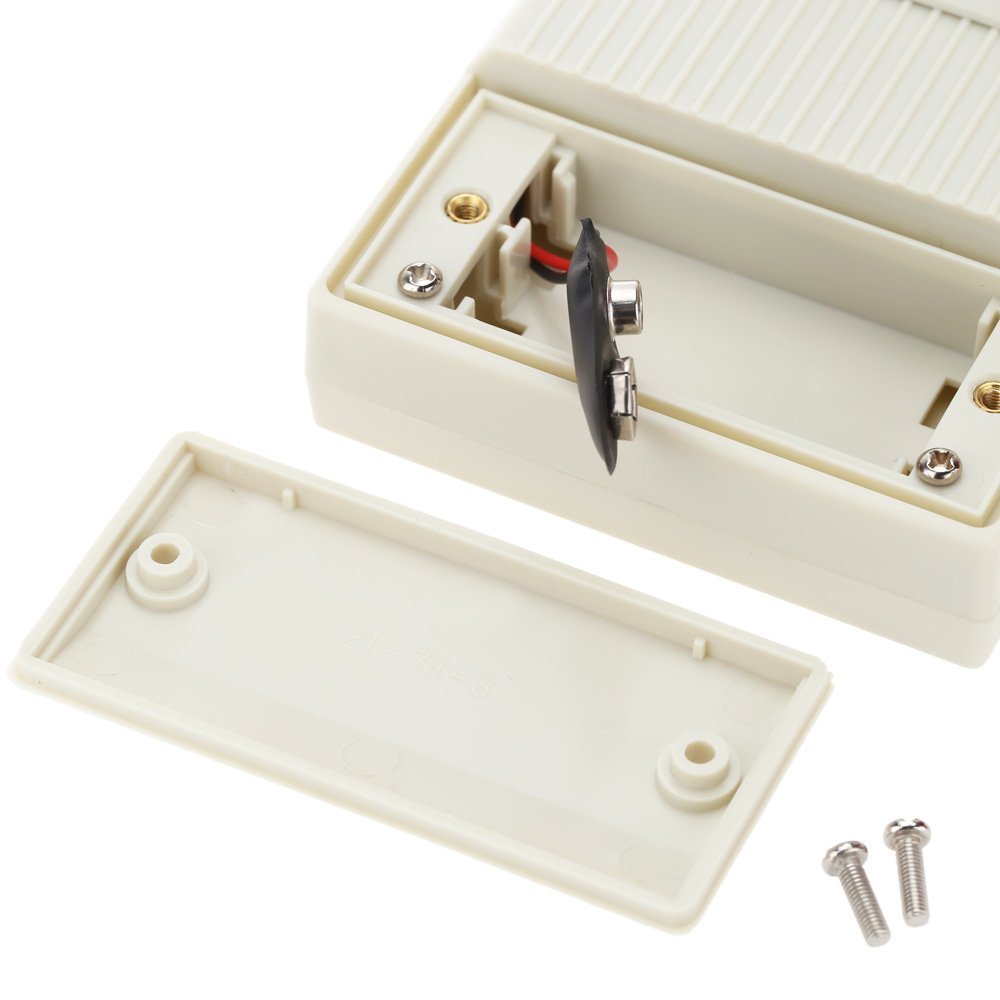

• Can be powered via 9 V battery (not included). With Shell And console, portable and convenient for use.

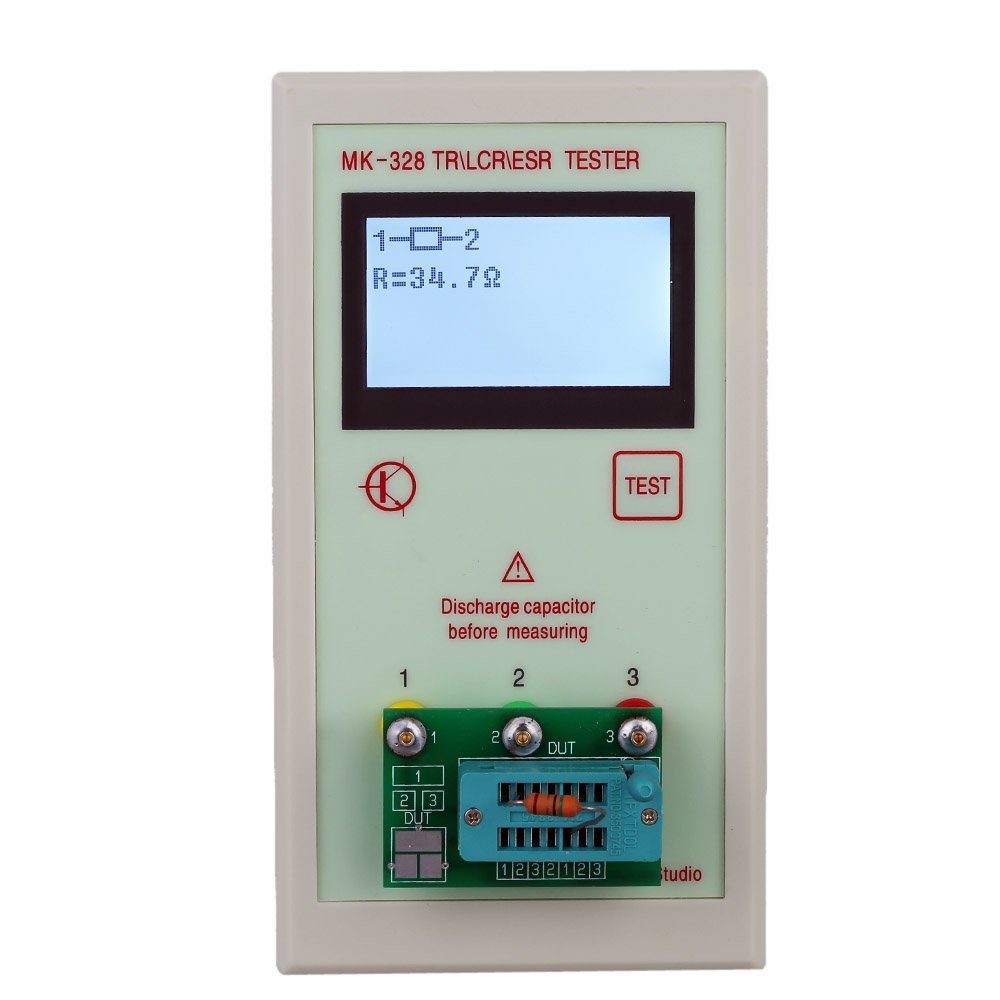

• Digital LCD Backlight Screen for easy measurements can be displayed data and graphics.
• Automatic detection of pin assignment of the Erfassten part.
• Automatic detection of NPN and PNP Bipolar Transistors, N Channel and P - Channel MOSFETs, Jfets, diodes, double diodes Thyristoren Triacs.

Multi function New for automatic detection of NPN and PNP transistors, N - channel and P - channel - MOSFETs, JFETs, diodes Double diodes, Thyristoren and triacs. Features: Measurement of the current amplification factor and base - emitter threshold threshold voltage of bipolar transistors. Proof of protection diode from bipolar transistors and Mosfets. Measuring the gate threshold voltage and gate capacitance value of MOSFETs. Resistance measurement resolution is 0.1 ohms, 50 M Ohms can be measured Up to two diodes are displayed with the symbol or the symbol in the correct order. Note: Before the measuring capacity, must be the capacitor discharge otherwise very probably damage the meter. Technical details: Display: 128 * 64 LCD backlight. Input Voltage: 9 V Current: About 20MA Power supply: 1 * 9 V battery (not included) Resistance measurement: max. 50 m & # X3 A9; Resistance Resolution: 0.1 & # X3 A9; Rating measurement: 25pF ~ 100mF Capacity Resolution: 1 pF Inductance Measurement: 0.01mH 20H Screen Size: 5 x 2.7 cm/1.97 x 1.06in Product size: 15 * 8 * 3.5 cm/5.9 * 3.15 * 1.4in Product Weight: 188g/6,65 ounces Package size (Height x Width x Depth): approx. 17 x 10 x 3.5 cm/6.7 * 3,94 * 1.4in Package weight: 215g/7,58 ounces Package list: 1 x DollaTek Transistor Tester 1 x Test cable
