DollaTek Mini 2.0 Hi-fi Electronic Stereo Audio Assembled Amplifier Portable AMP 10W+10W 2 Channel Class-D DC 12V Digital Booster Amplifier Board Module for CD MP3 MP4 PC Speaker
About this item
- 2.0HIFI dual channel with each channel output 10W; high efficiency of 90%
- It uses PAM8610 chip that is 10W (per channel) D-level stereo audio amplifier
- With over-current/over-temperature/short-circuit protection, thus safe to use
- Low THD+N(0.1%) without filter; small static current; low power consumption; small heating generator
- Low EMI; with power off/ noise canceling function; little noise generator
Product description

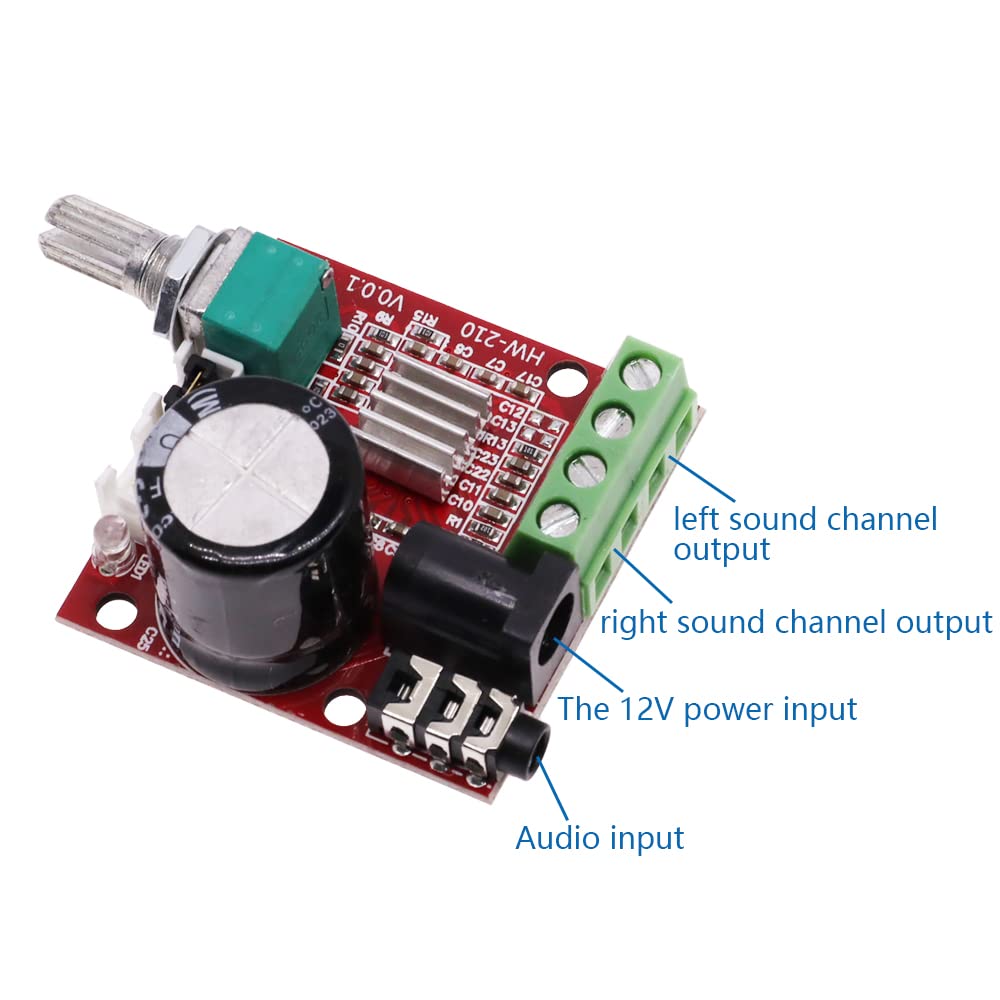

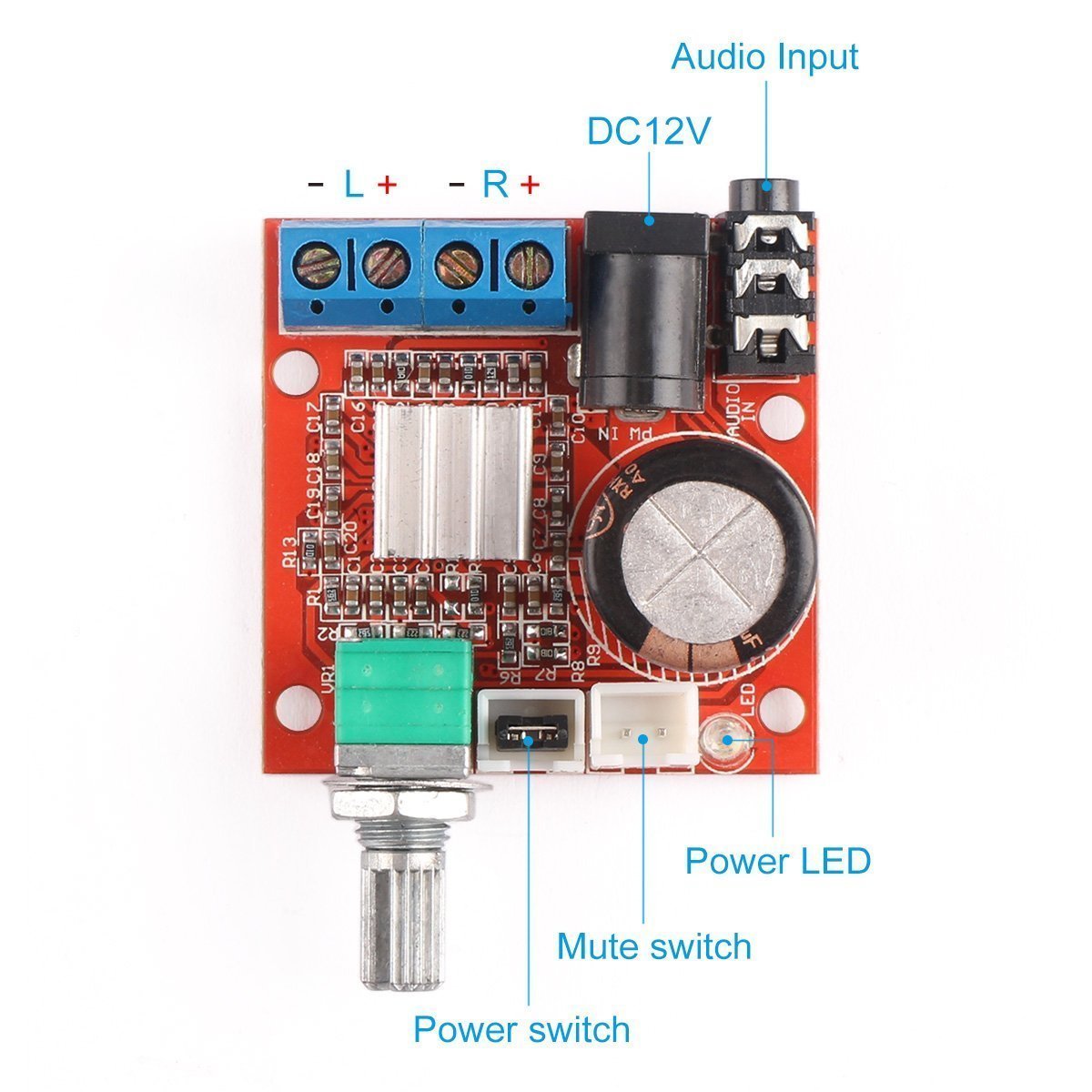

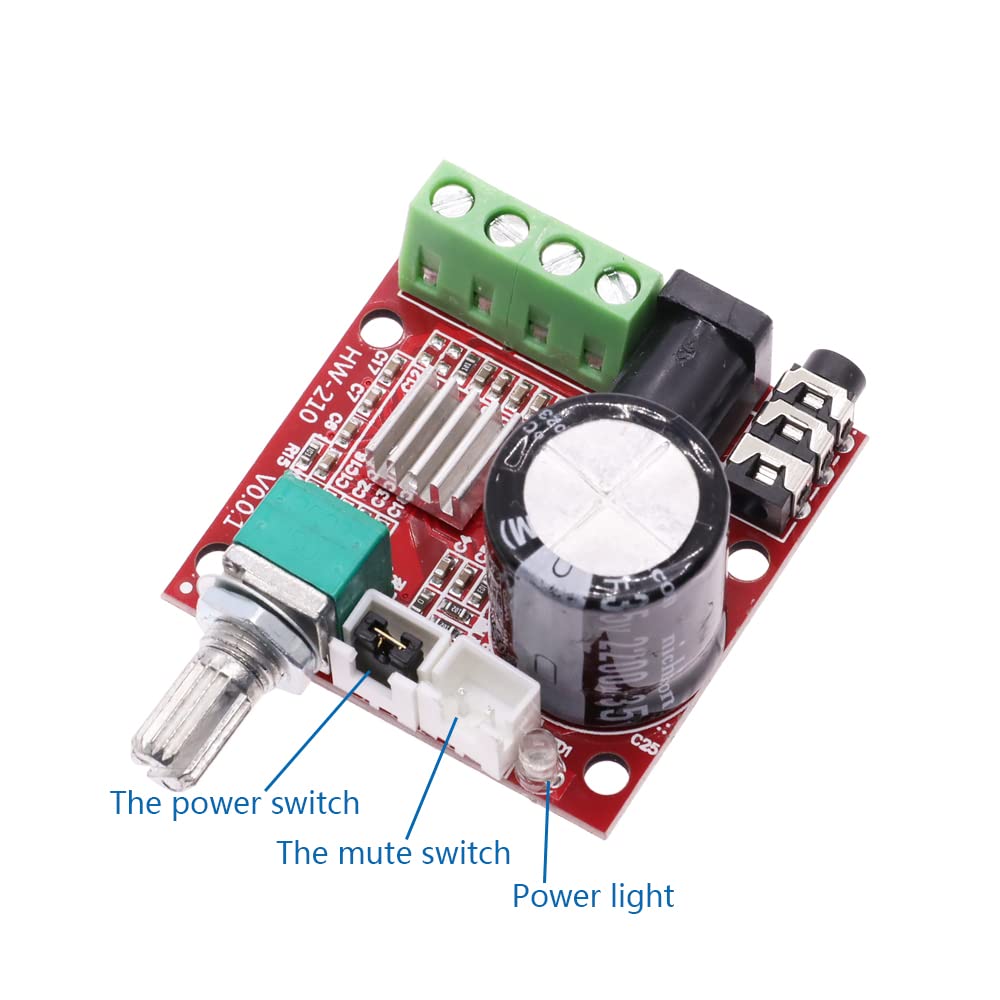

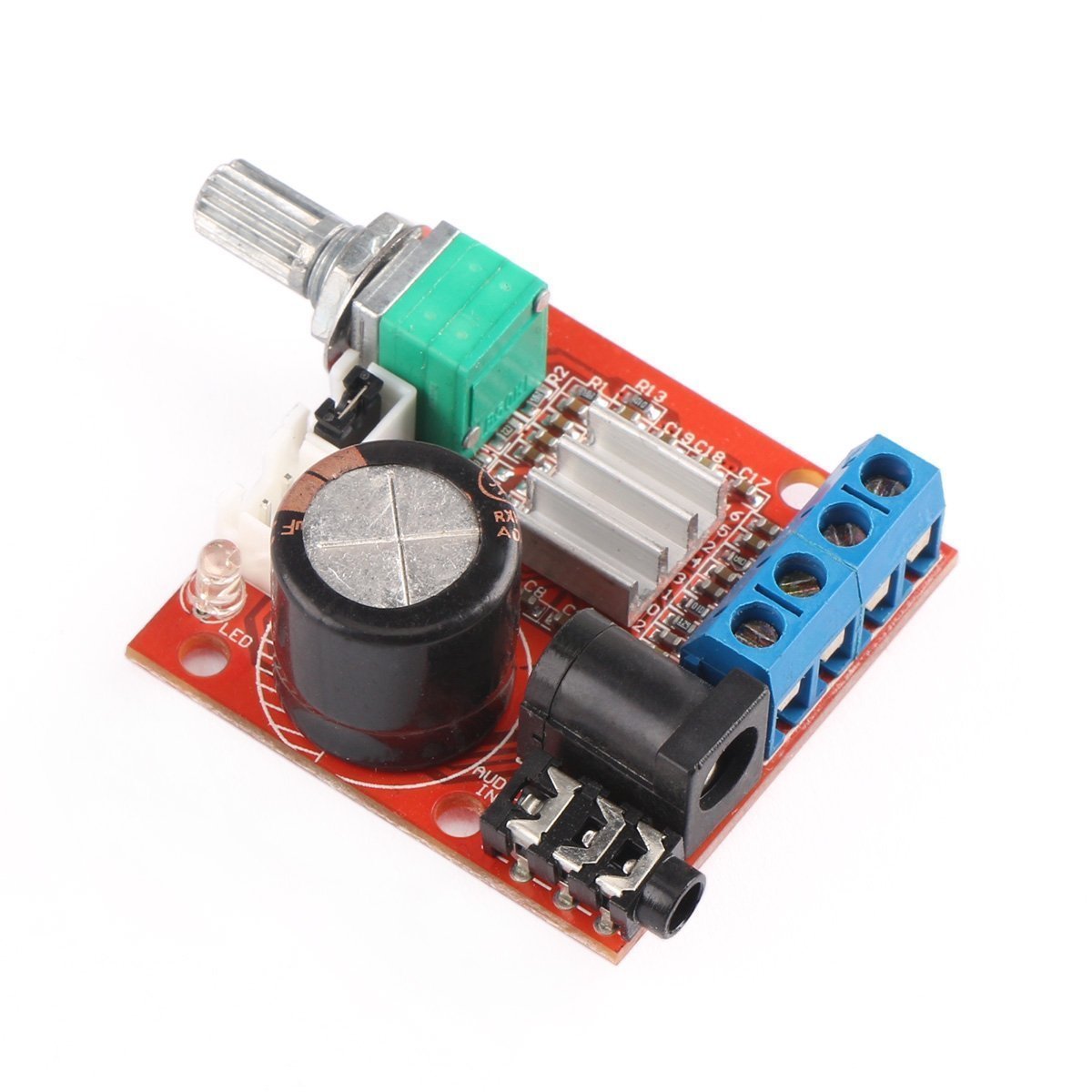

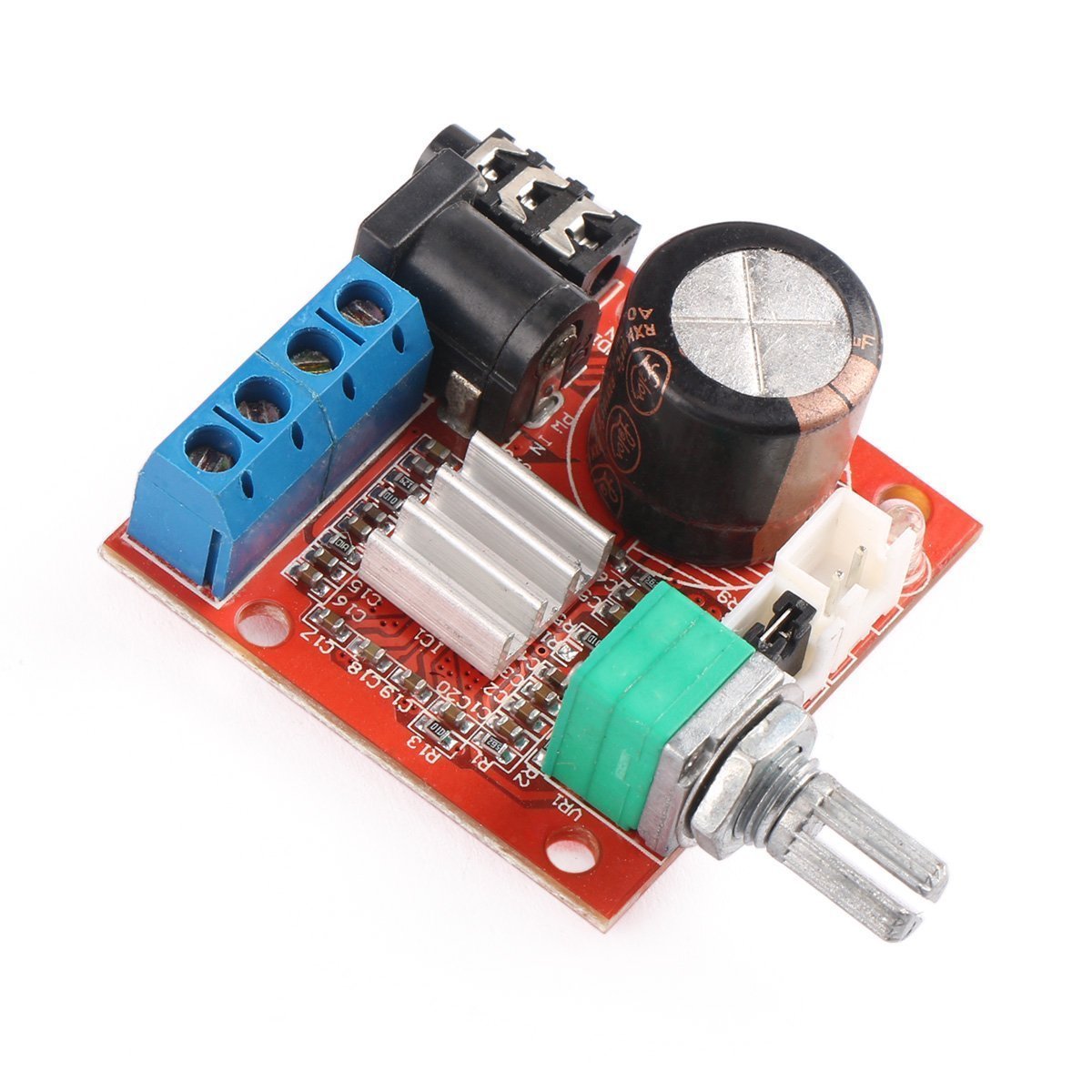

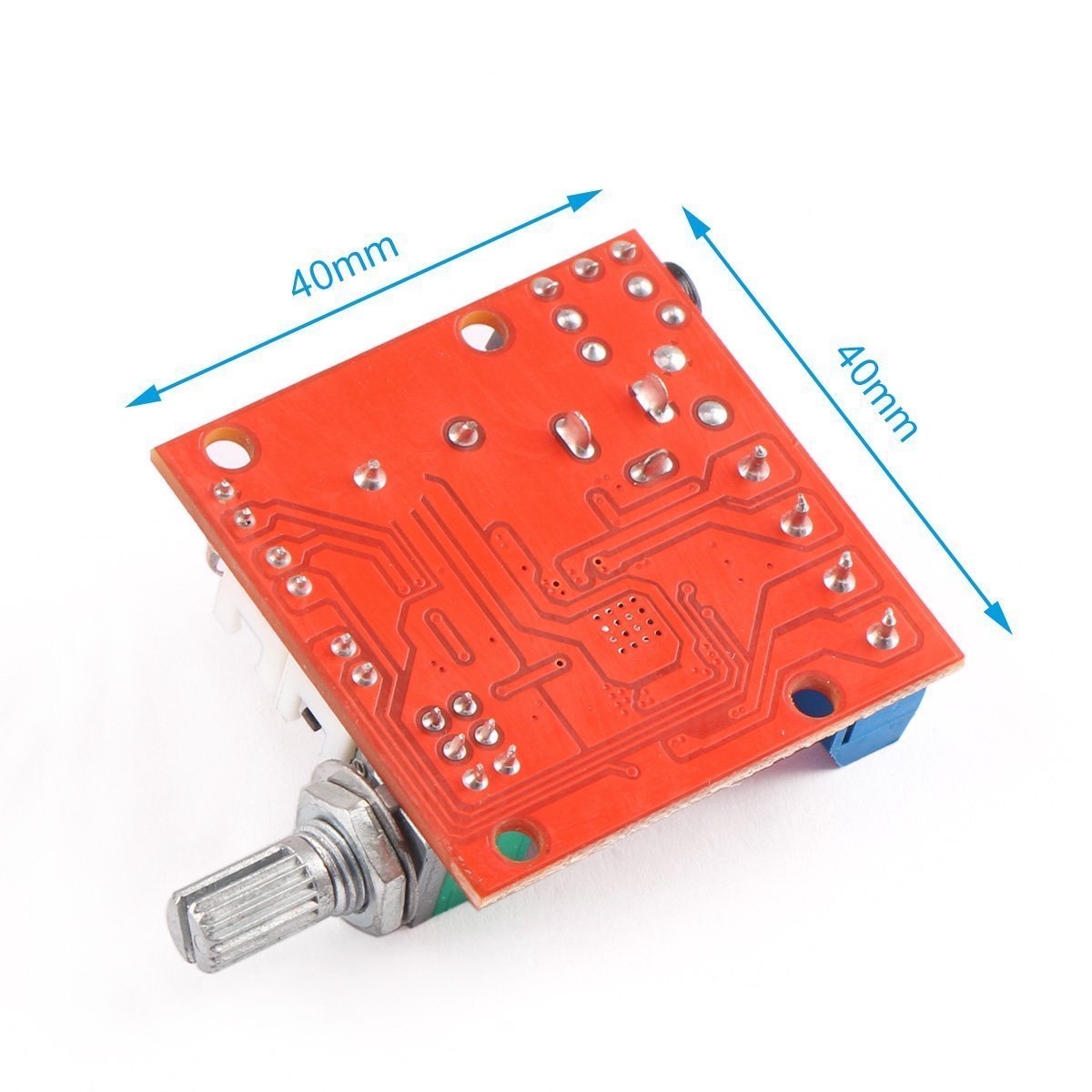

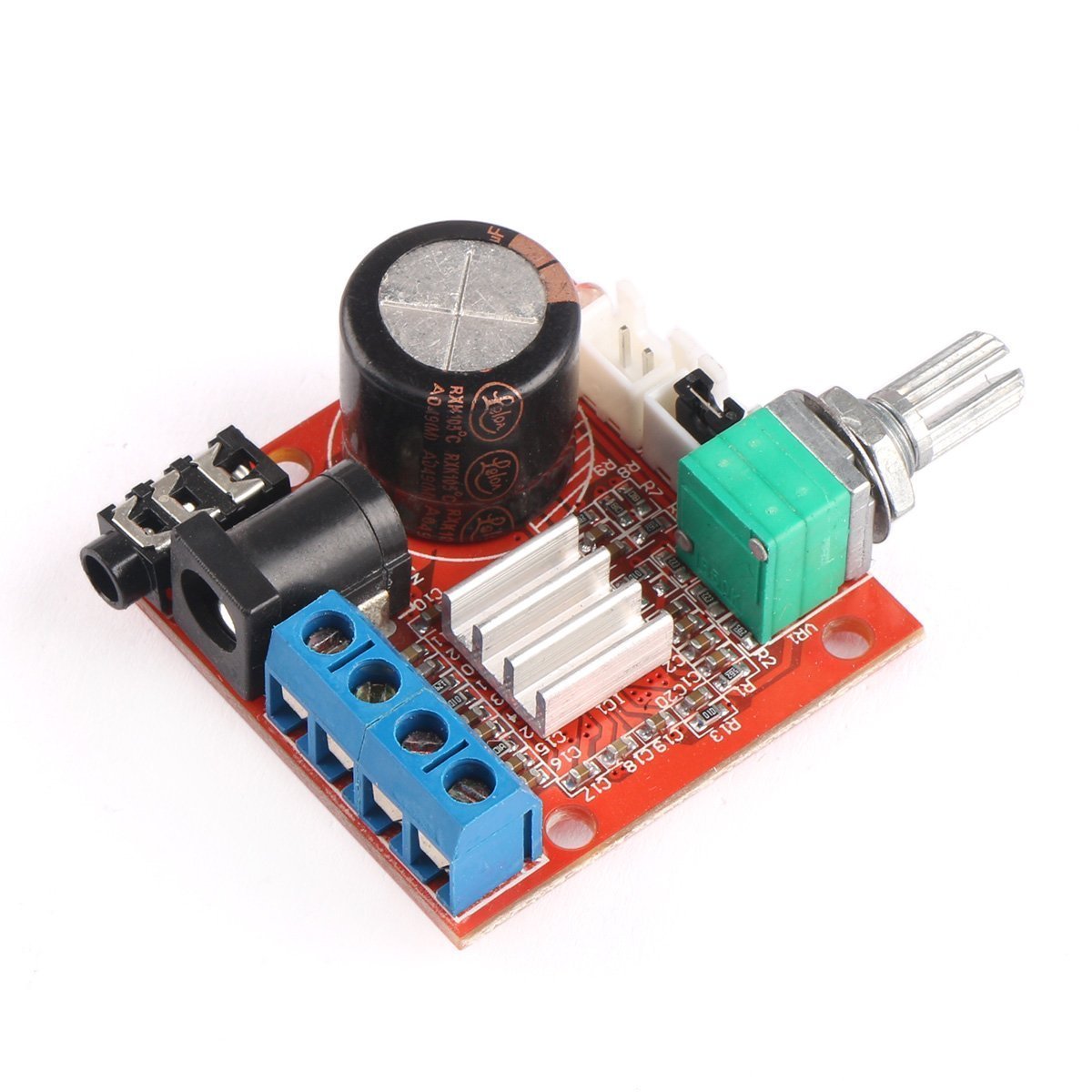

DollaTek trademark Reg.NO:013726393 This board uses PAM8610 chip, PAM8610 chip is 10W (per channel) D-level stereo audio amplifier. This board has over current / temperature / short circuit protection. Feature: Work: D Class Quiescent Current: 20mA Efficiency: 90% Rated output power: 10W +10 W (8ฮฉ) Frequency response: 20Hz to 50KHz Operating voltage: DC7.5-15V Recommended supply voltage: 12V, the center PIN of 12VDC is +. PCB board size: (40 * 40) mm NOTE: It is NOT acceptable to connect the - outputs of the L & R speakers together. Package includes: 1x DollaTek Mini Amplifier Board
