DollaTek MH-M18 Wireless Bluetooth（BLT 4.2 ） MP3 Audio Receiver board

• This product is a low-power Bluetooth design solution, supports the latest Bluetooth 4.2 transmission, 2-channel stereo lossless playback, and the module can be connected to Bluetooth to quickly realize Bluetooth wireless transmission, which is very convenient.
• In an open environment, the Bluetooth connection distance can reach 20 meters.
• Widely used in a variety of Bluetooth audio reception, a variety of audio DIY modification.
• Function Bluetooth V4.2 version, support Bluetooth automatic connection technology, support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo dual channel output.
• module blue indicator light: When the Bluetooth is not connected, the indicator light flashes quickly; When the Bluetooth connection is on, the indicator light is always on;

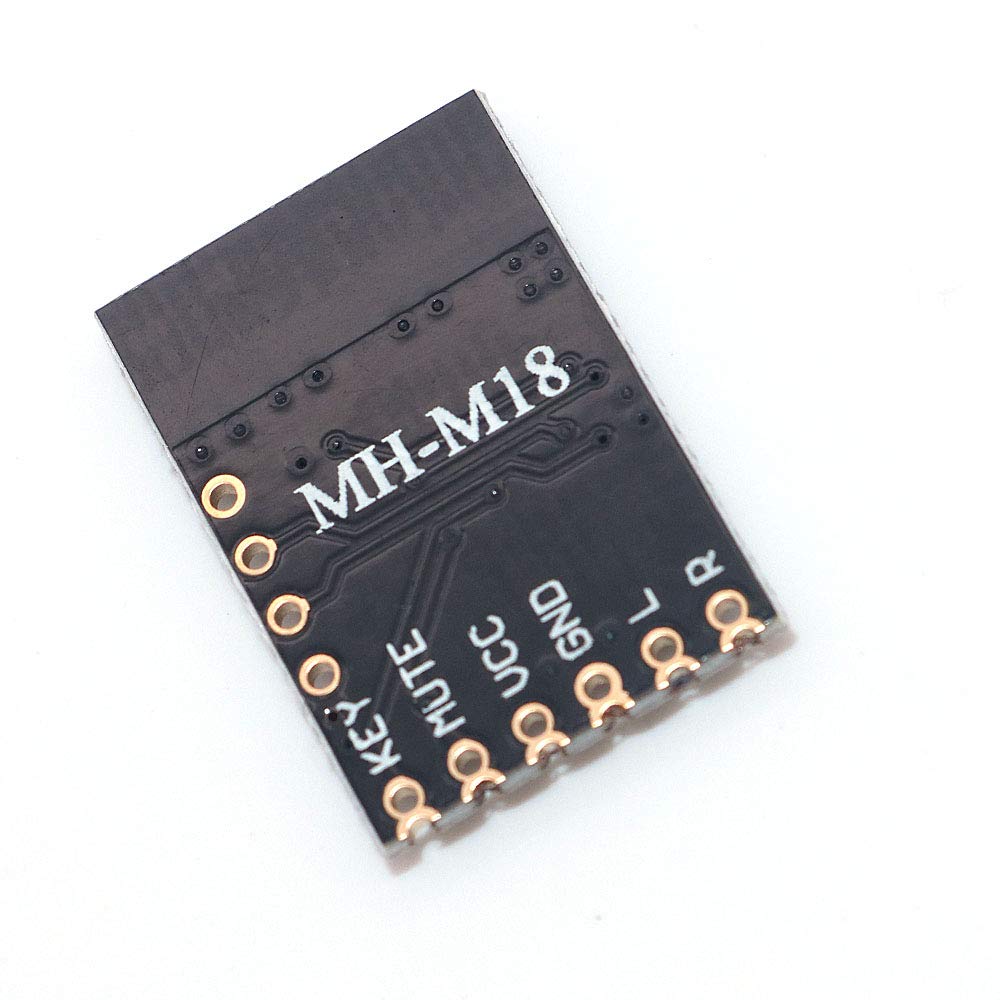

Function Bluetooth V4.2 version, support Bluetooth automatic connection technology, support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo dual channel output. After the module is powered on, the mobile phone searches for the Bluetooth name MH-M18, and can play music after connecting Bluetooth. module blue indicator light: When the Bluetooth is not connected, the indicator light flashes quickly; When the Bluetooth connection is on, the indicator light is always on; PCB size: 23162.5mm (length, width and height) Pin pitch: 2.54mm (can be directly attached or soldered) Package Included: 1 x Bluetooth Receiver Board
