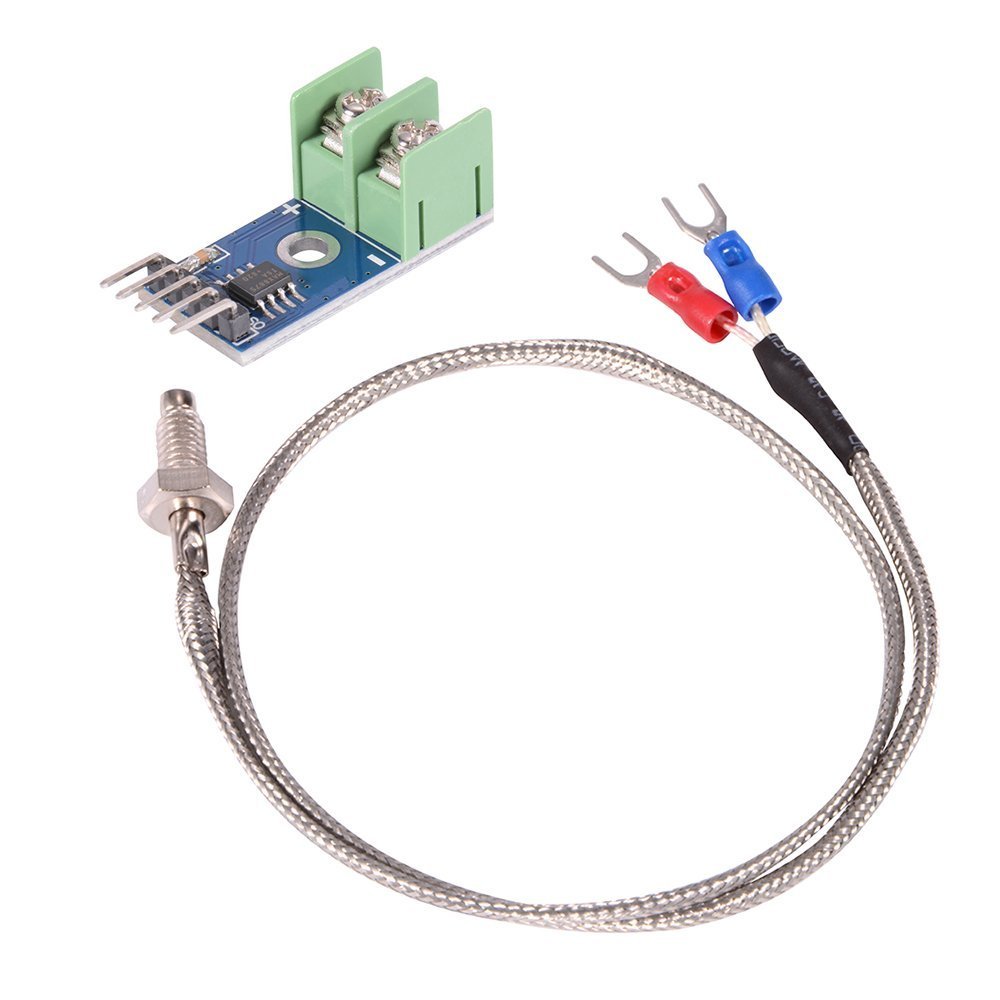

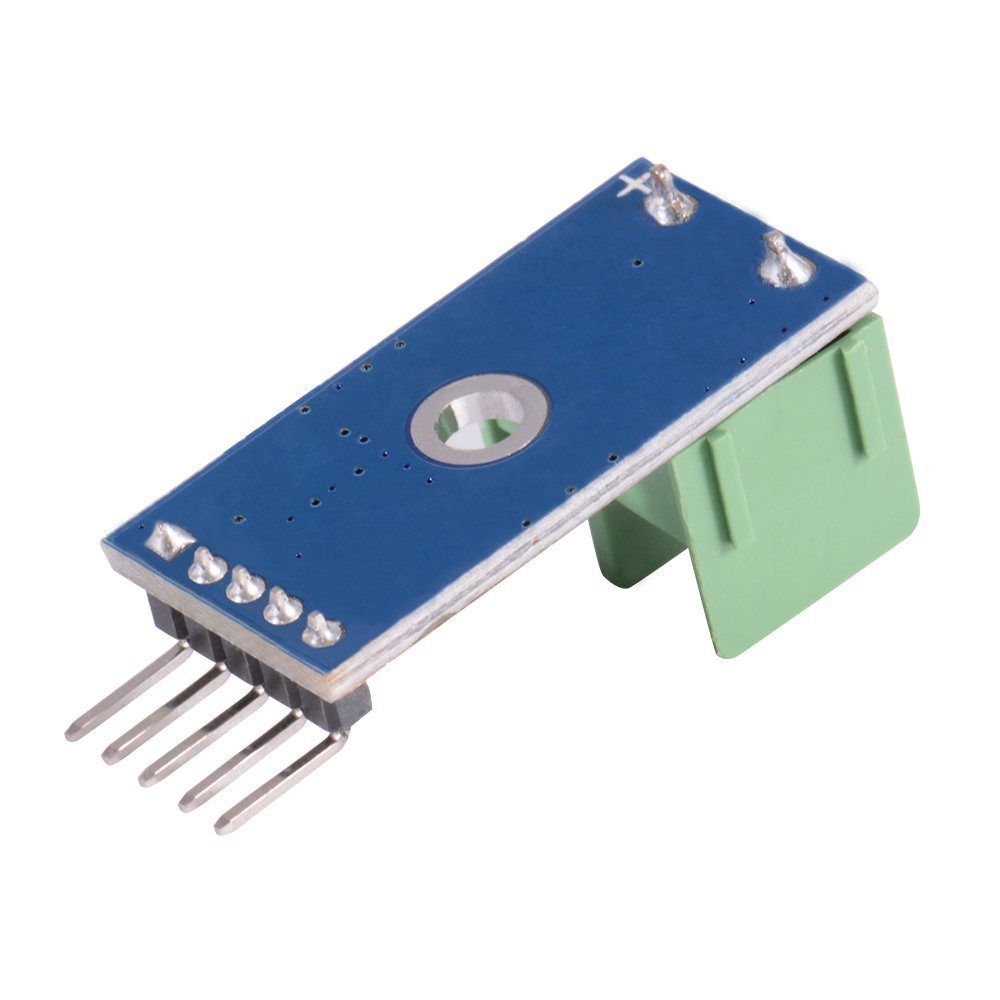

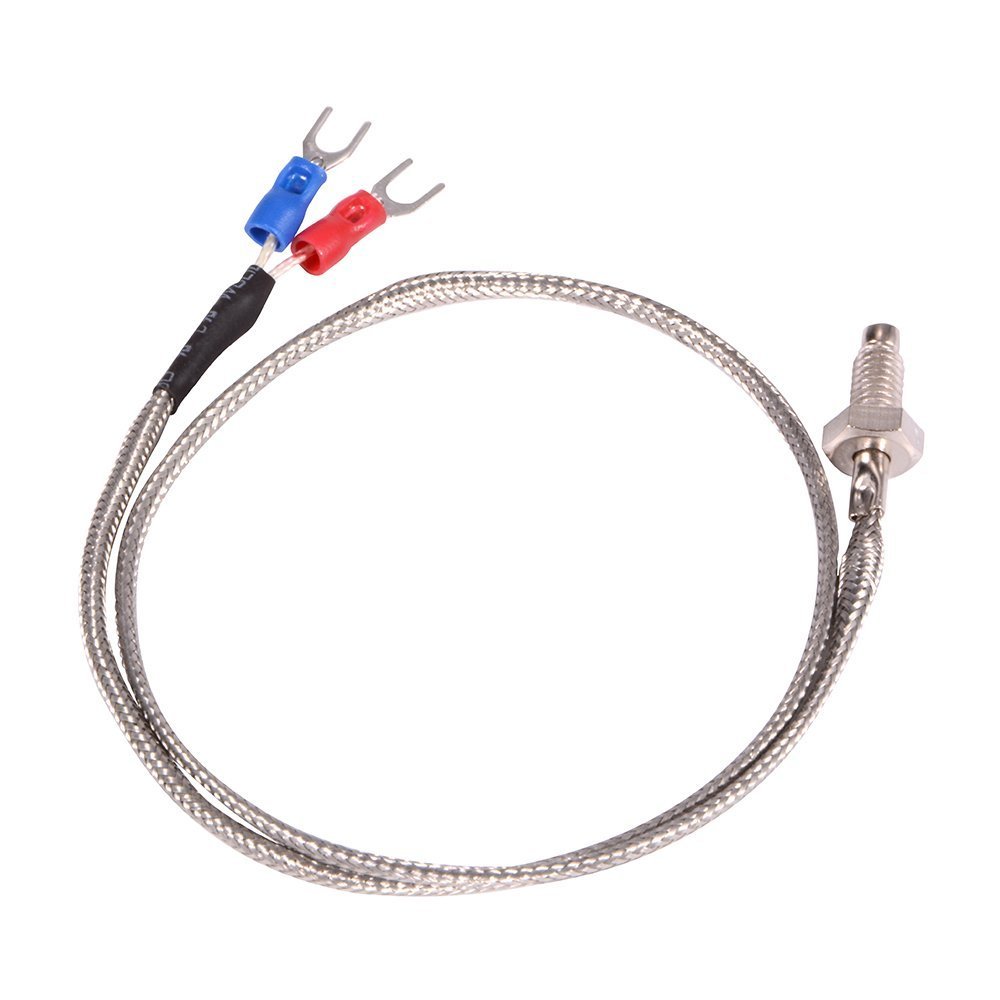

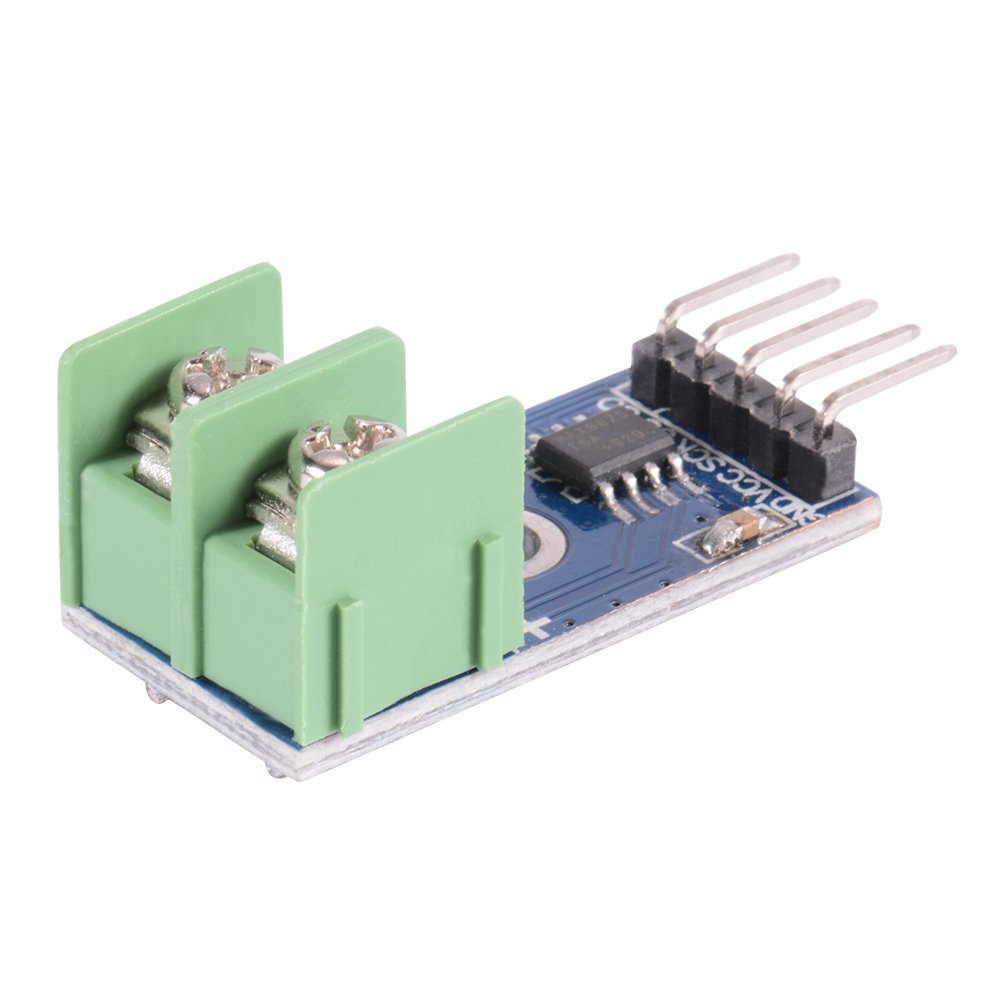

DollaTek MAX6675 Module Mini Board with SPI Interface + K Type Thermocouple Temperature Sensor 0~600℃ for K Type Thermocouple
About this item
- With a fixed mounting hole for easy fixed installation.
- On-chip cold junction compensation. High-impedance differential inputs. Thermocouple break detection. 2000V ESD signal.
- Working voltage: DC 3.0-5V
- Temperature measuring range: 0℃ ~ +600℃
- Module interface: GND VCC SCK CS SO
Product description
DollaTek trademark Reg.NO:013726393 Features: With a fixed mounting hole for easy fixed installation. On-chip cold junction compensation. High-impedance differential inputs. Thermocouple break detection. 2000V ESD signal. Specifications: Working voltage: DC 3.0-5V Operating Current: 50mA Temperature measuring range: 0℃~ +600℃ Temperature resolution: 0.25 ¡ãC Output mode: SPI digital signal Working temperature: -20¡ãC ~ +85 ¡ãC Mounting hole: 3mm Dimension: Approx. 25mm x 15mm / 0.98" x 0.59" Module interface: GND VCC SCK CS SO Thermocouple Type: K Type Thermocouple Lead Length: 50cm / 39.4" Package includes: 1x DollaTek MAX6675 Module 1x DollaTek K Type Thermocouple
Product details
