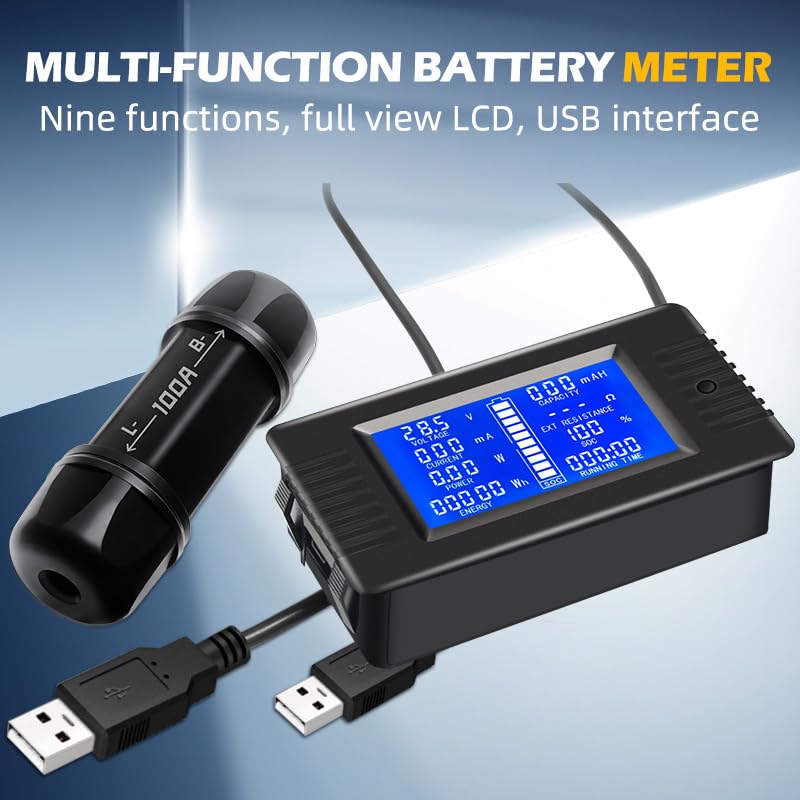

DollaTek LCD Display DC Battery Monitor Meter 0-200V Voltmeter Ammeter for Cars RV Solar System

• 9 Measurement Functions - One interface displays 9 kinds of measurement parameters at the same time, including voltage(0-200V), current(0-100A), power(0-20000W), impedance( 0-1000Ω), internal resistance(0-999mΩ), capacity(0-1000AH), SOC, energy consumption(0-9999kWh) and running time(0-999h)

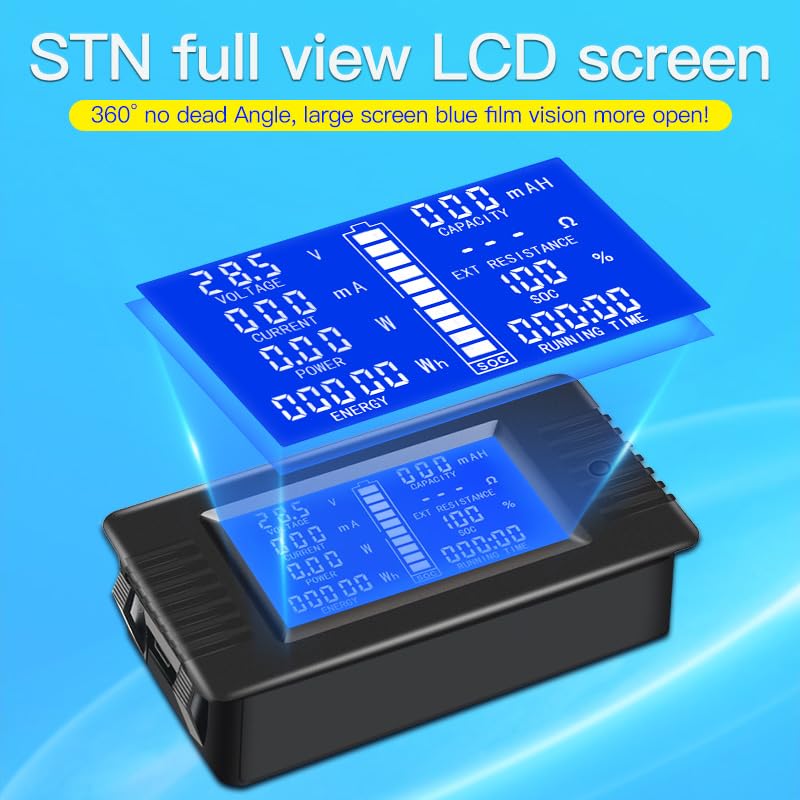

• Better Visual Experience - LCD HD display, 360° viewing without dead angle, with backlight function, it is clearly visible whatever day or night
• No Screw Installation - With the installation design of the push-on terminal, it is easy and convenient to install and remove the wires without the screws

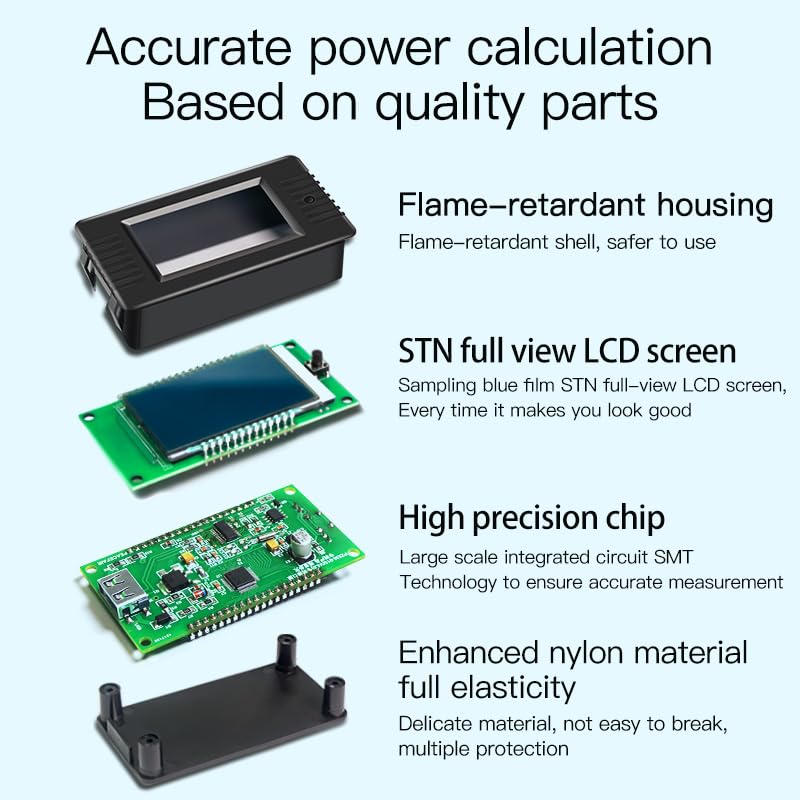

• Accurate Measurement - High precision chip control, efficient and stable operation, safe and reliable welding process, measurement accuracy reaches 1%
• Wide Application - Wildly used in the automobile, solar system, industrial assembly line, etc

Description: The DollaTek DC battery monitor meter is mainly used to measure the voltage, current, resistance, internal resistance, capacity, SOC, energy consumption and running time of various types of batteries, and display the measurement data through the LCD screen. The LCD HD display screen, combined with the backlight function, makes it easy to read the displayed data, giving you an excellent visual experience. High precision chip control, efficient and stable internal operation, accurate measurement, measurement accuracy up to 1%. Push-on terminal, press to install or remove the wire, fast and save effort. Wildly used in the Automobile, solar system, industrial assembly line, etc. Notes: 1. Wiring order cannot be wrong. 2. This meter is suitable for indoor use ONLY. 3. Applied load should not exceed the rated power or current. 4.Need a pointing tool to press the function button to prevent accidental touch. 5.The current is set according to the specification of the shunt. Package includes: 1 x DC battery monitor meter 1 x 100A shunt
