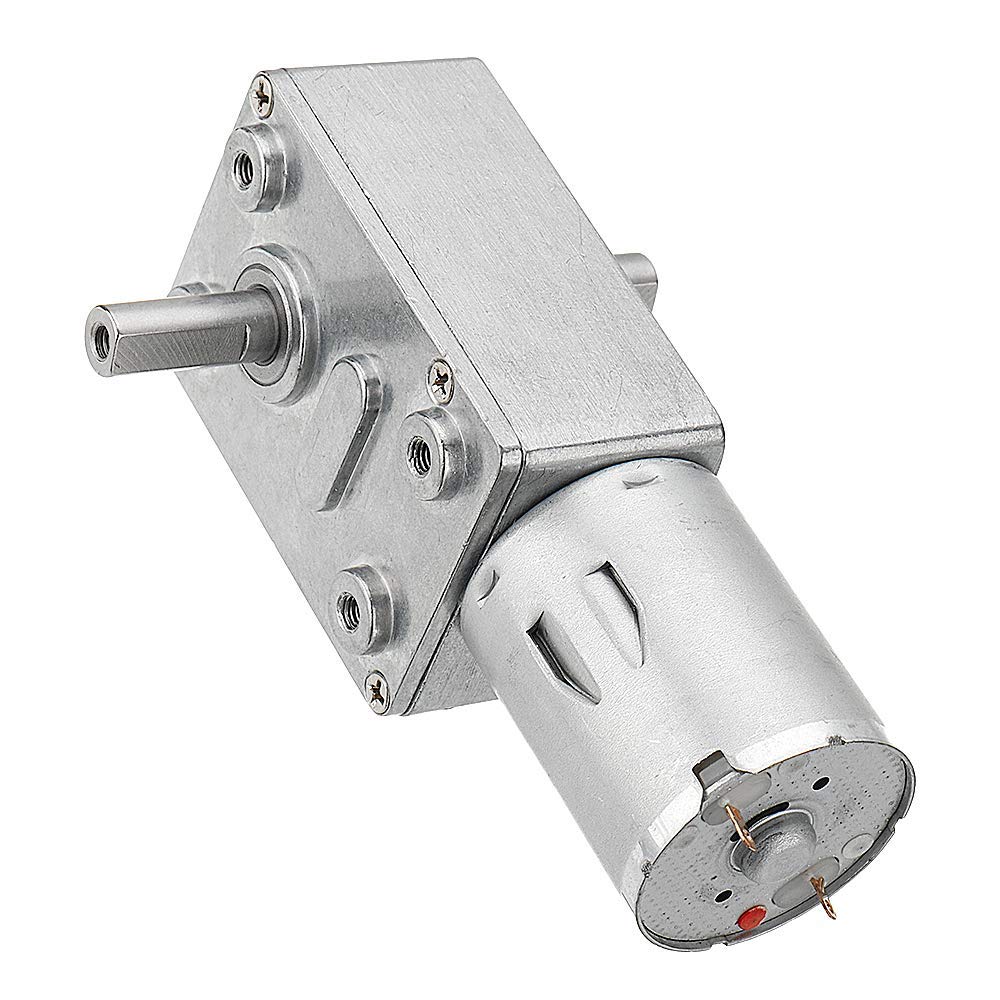

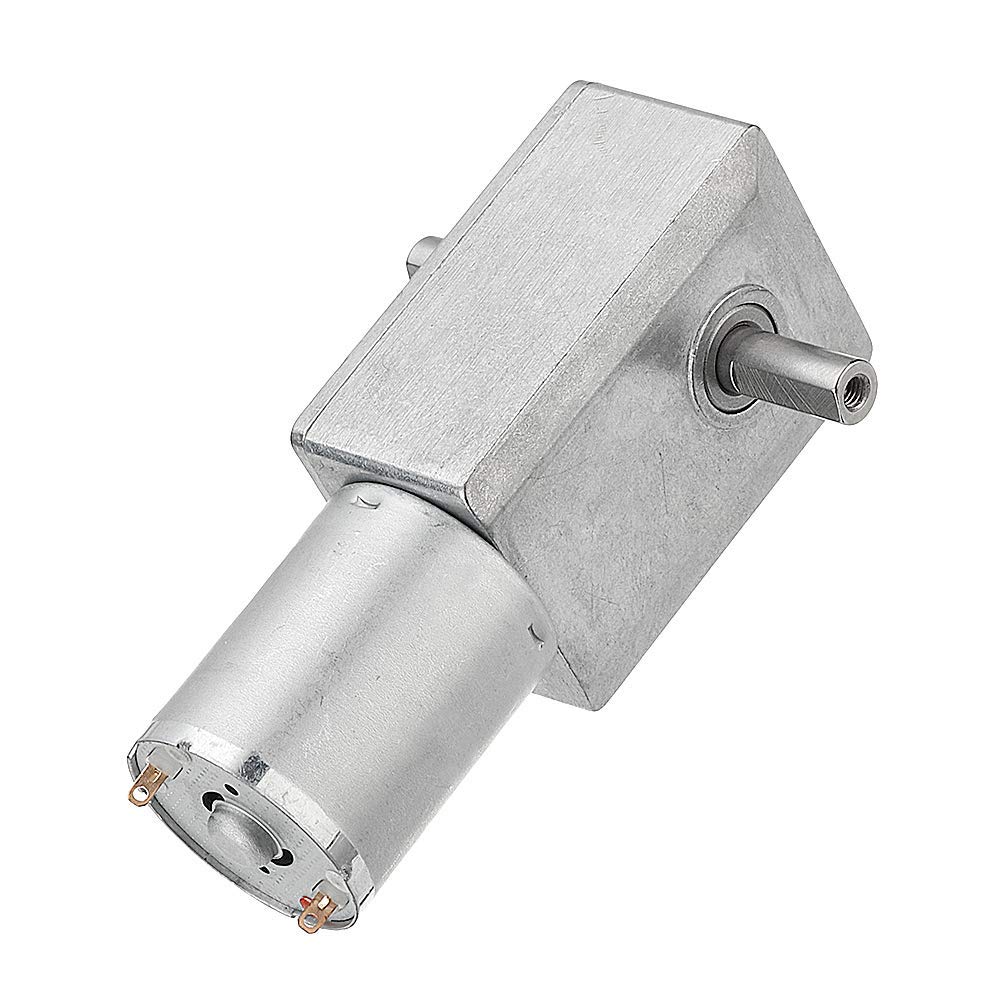

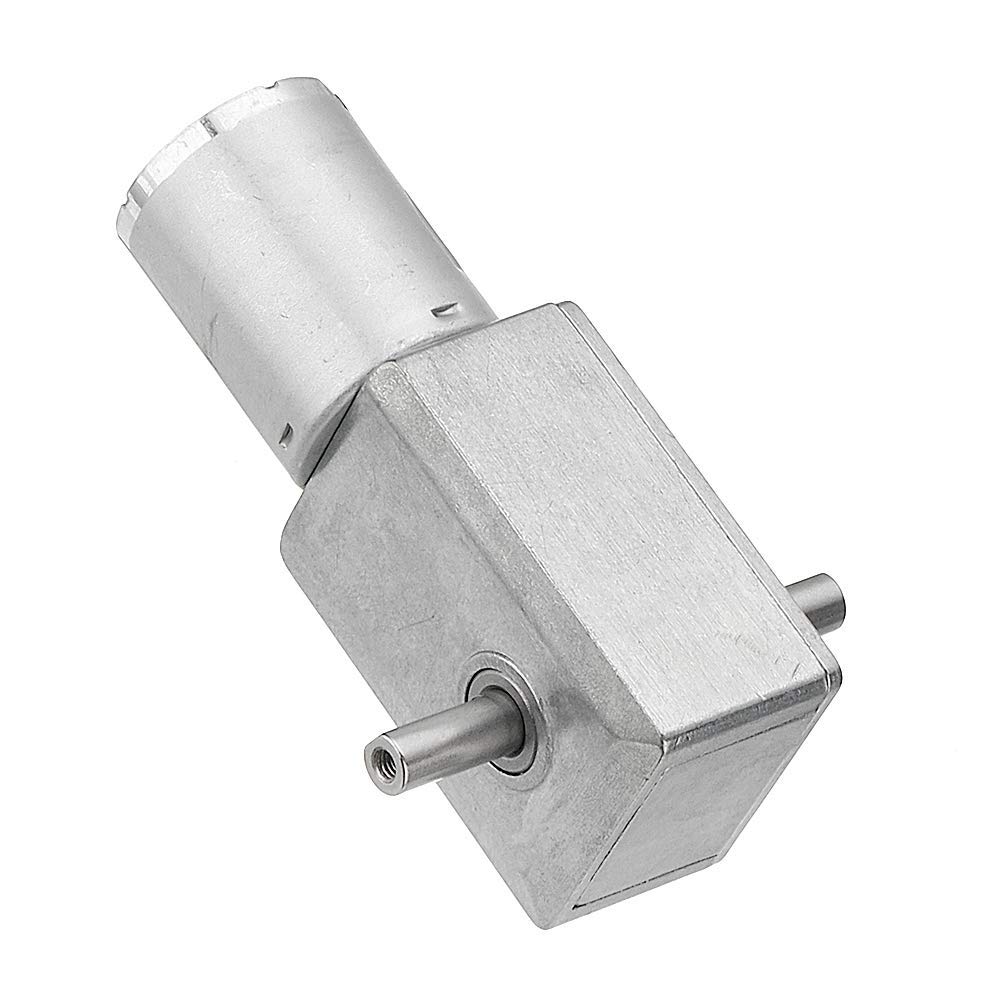

DollaTek JGY-370 DC 12V 150RPM Double Shaft Worm Gear Motor Self-locking Reduction Gear Motor

• Worm gear motor with self-locking, in the absence of electricity in the motor, the output shaft is not to move, that is self-locking.
• Gear box output shaft direction of the motor shaft is arranged vertically, the entire body of the motor output shaft relative to the g`eneral direction of gear motor short, widely adapted to a number of installation dimensions of this aspect of the requirements of the occasion.
• Suitable For：Window, a door opener, miniature winch

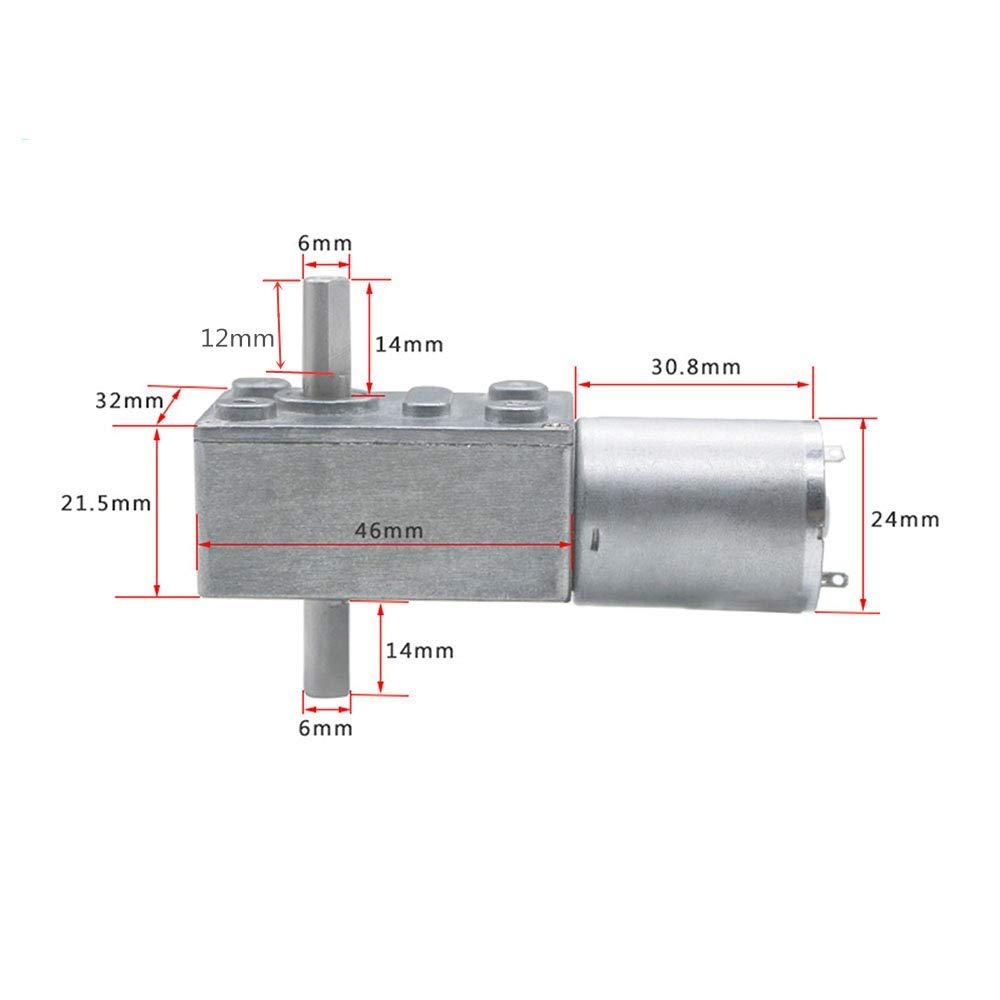

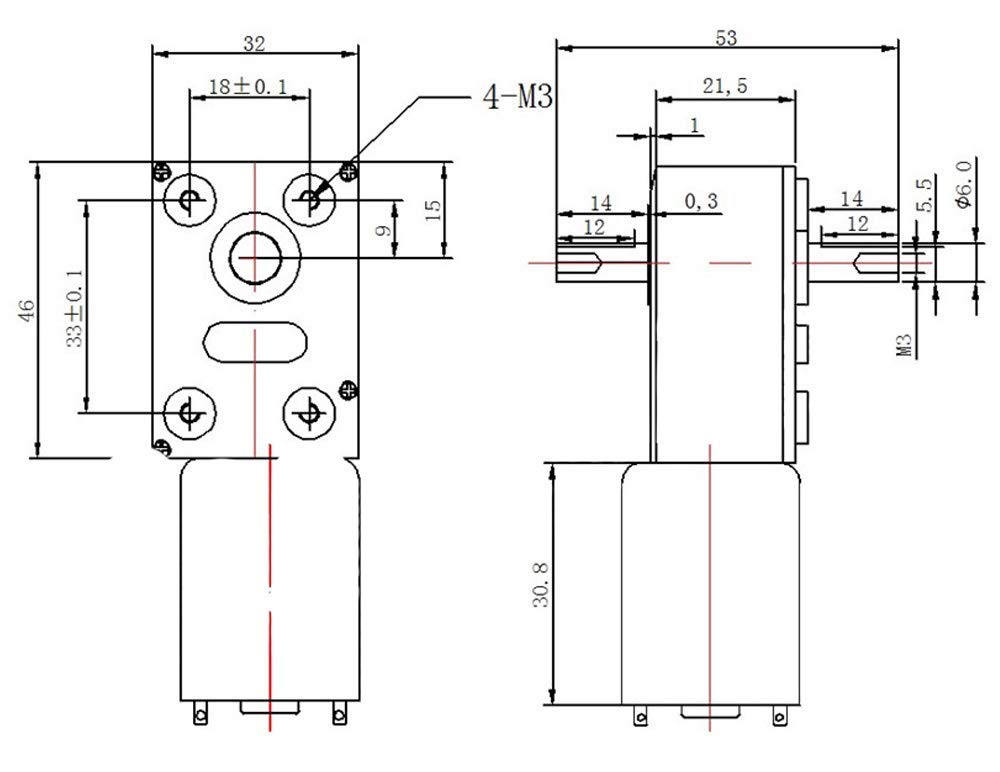

Specifications: Material: Metal Rotate Speed (No-load Speed) : 150rpm Input Voltage(V)：12 Retarder Reduction Ratio：1:65 No Load?Current (mA)：≤60 No Load Speed(RPM)：150 Rated Torque(Kg.cm)?：0.2 Rated Speed(RPM)：120 Rated Current(A)：≤0.6 Max Torque(Kg.cm)：0.9 Stalling Current(A)：1.7 Size: Outer Dia.: 31.5mm Axial Length: 33mm Screw Shaft: 6mm Suitable For: Window, a door opener, miniature winch Package include: 1 x 150RPM Motor
