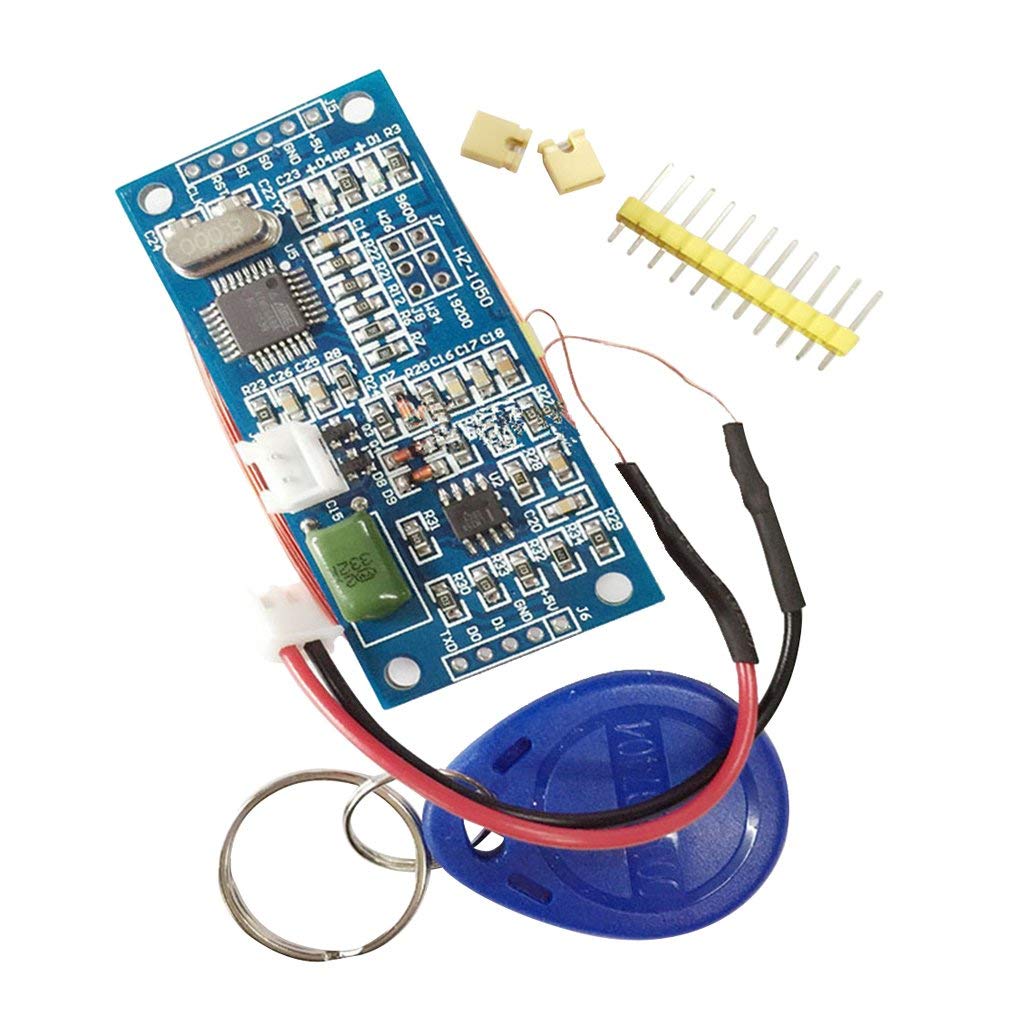

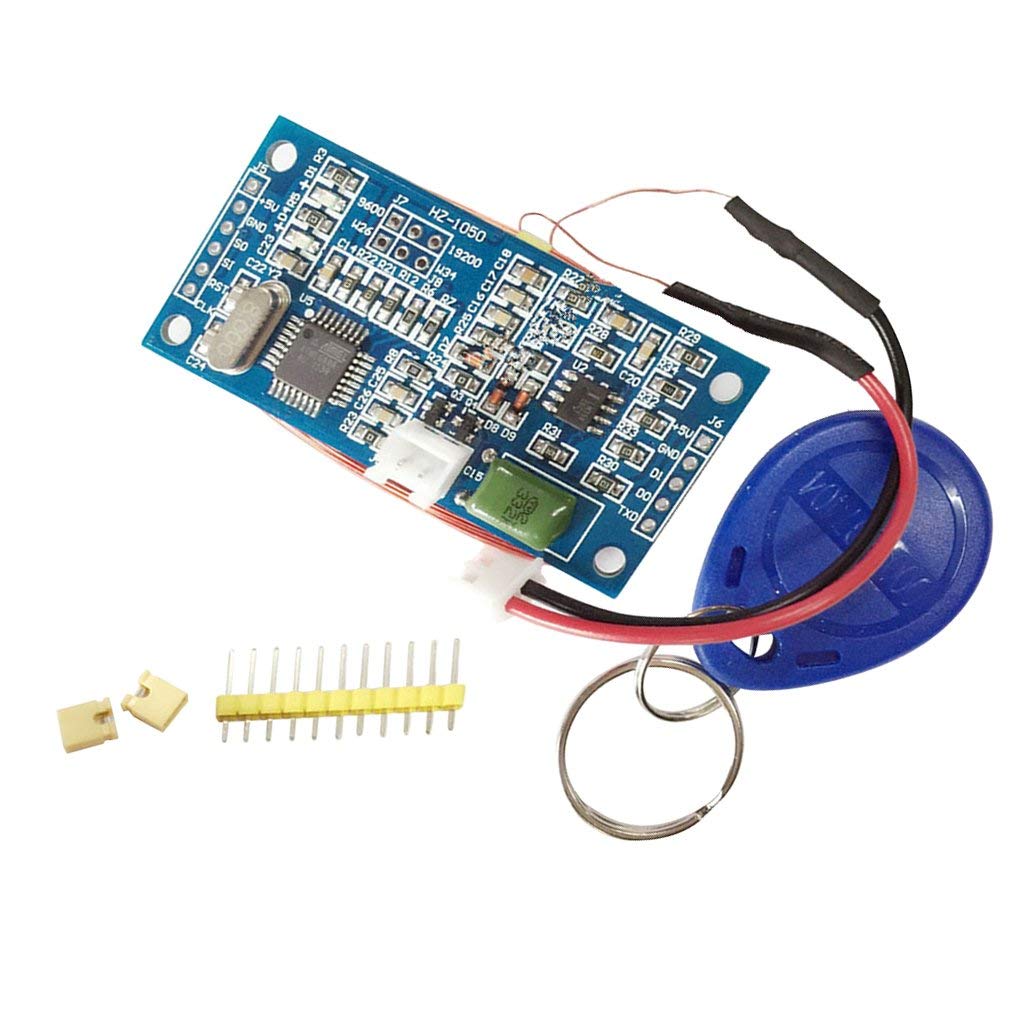

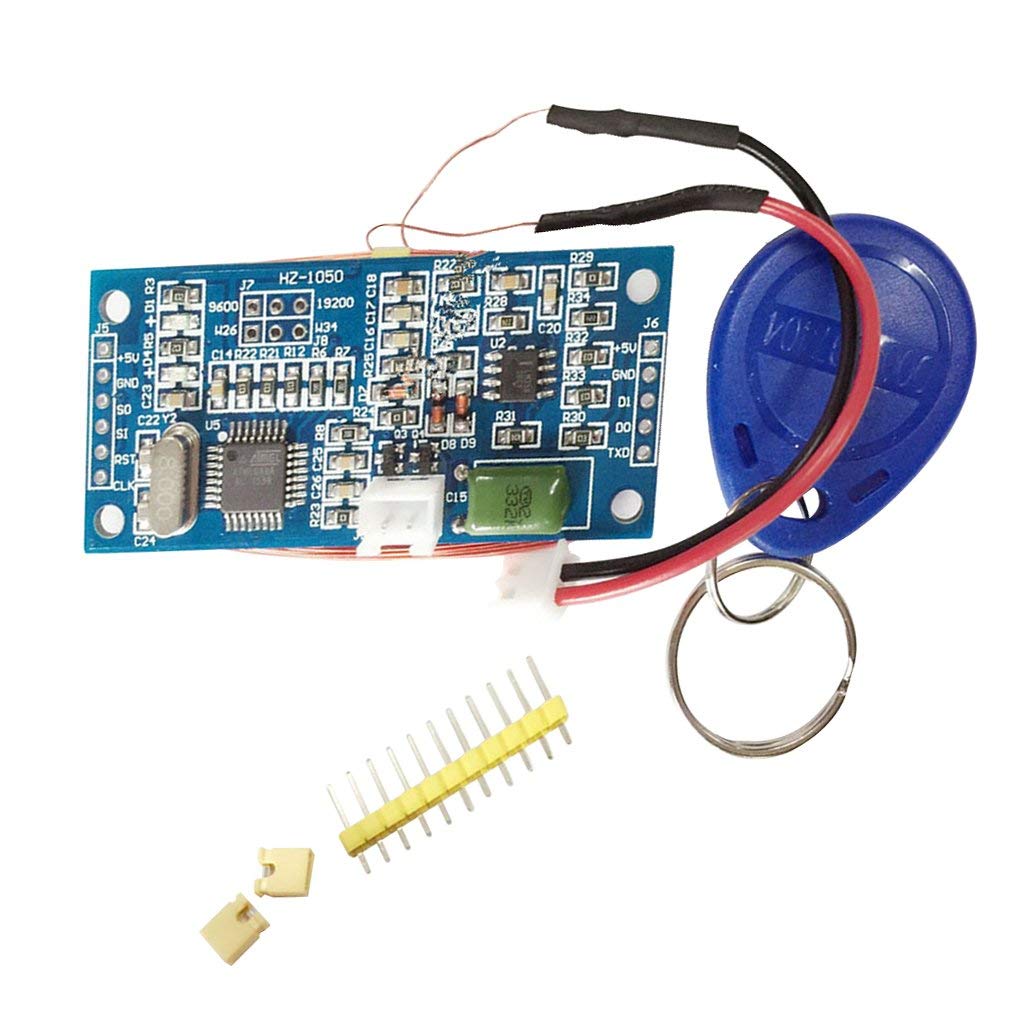

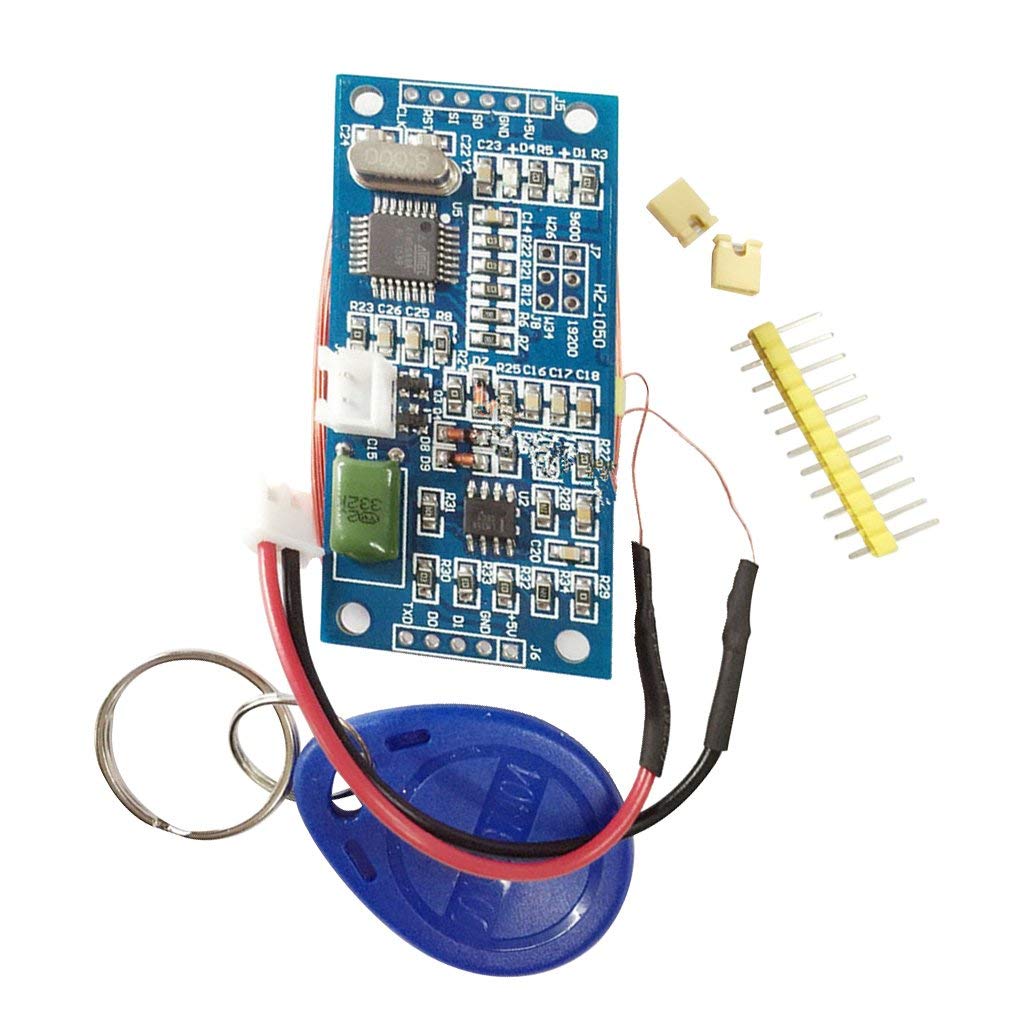

DollaTek HZ-1050 RFID 125KHz EM4100 Wireless Card Reader Module ATMEGA8 ID Reader RFID-Module DC 5V DIY KIT

• Wiegand 26/34 is optional, a jumper cap can be done.
• The baud rate is optional. At the same time of outputting Wiegand data, the ID card number can be output through the UART, and the baud rate is 9600/199200 (can also be customized according to customer needs).
• Four mounting holes for mounting on your product (can be customized to customer size).
• The coil can be plugged and unplugged. In actual use, it is not necessary to remove the coil when replacing the device.
• Appearance is more beautiful, which can highlight your product grade. Compact and beautiful, it can be embedded in your system to meet your needs with your system.

Description: Easy to use: Wiegand 26/34 is optional, a jumper cap can be done. The baud rate is optional. At the same time of outputting Wiegand data, the ID card number can be output through the UART, and the baud rate is 9600/199200 (can also be customized according to customer needs). Four mounting holes for mounting on your product (can be customized to customer size). The coil can be plugged and unplugged. In actual use, it is not necessary to remove the coil when replacing the device. Light indication: Swipe button: After the card is read, the card indicator will flash; Power indicator: Steady on, indicating normal operation of the system. A large area of copper is applied to ensure that the system is not subject to outside interference and the operation is more stable. Square coils are more suitable for use in building intercom, access control and other products. SMT machines are processed in batches, and the coils are made of custom-made grinding tools. The quality is more stable and the appearance is more beautiful, which can highlight your product grade. Compact and beautiful, it can be embedded in your system to meet your needs with your system. Specification: Support card type: EM4100 4001, etc. Support card frequency: 125K Card reading distance: 3-10cm Card reading time: <0.2 seconds Output interface: Wiegand, serial UART output, TTL level Power requirements: 3.3-5.5v Environmental requirements: -55 ° C - 125 ° C Ambient humidity: 20%-90% RH Package list: 1 x HZ-1050 RFID 125KHz EM4100 Wireless Card Reader Module
