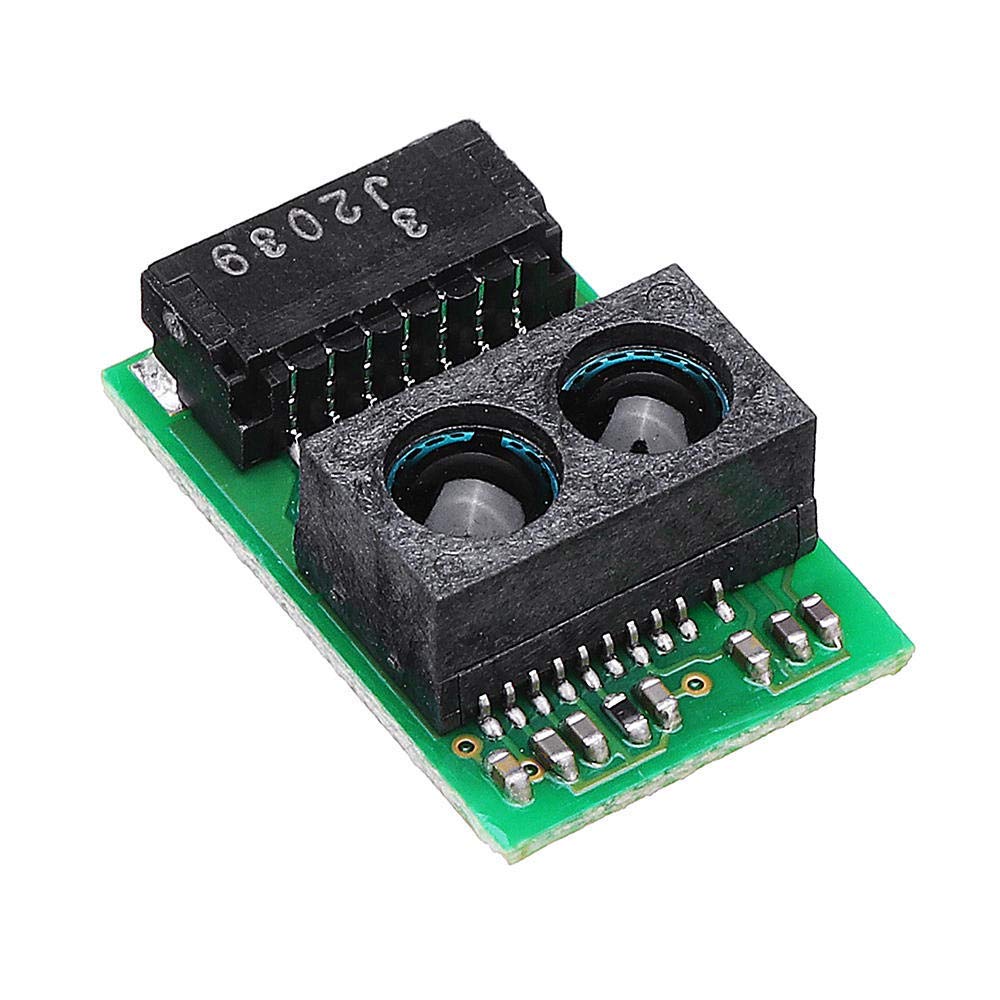

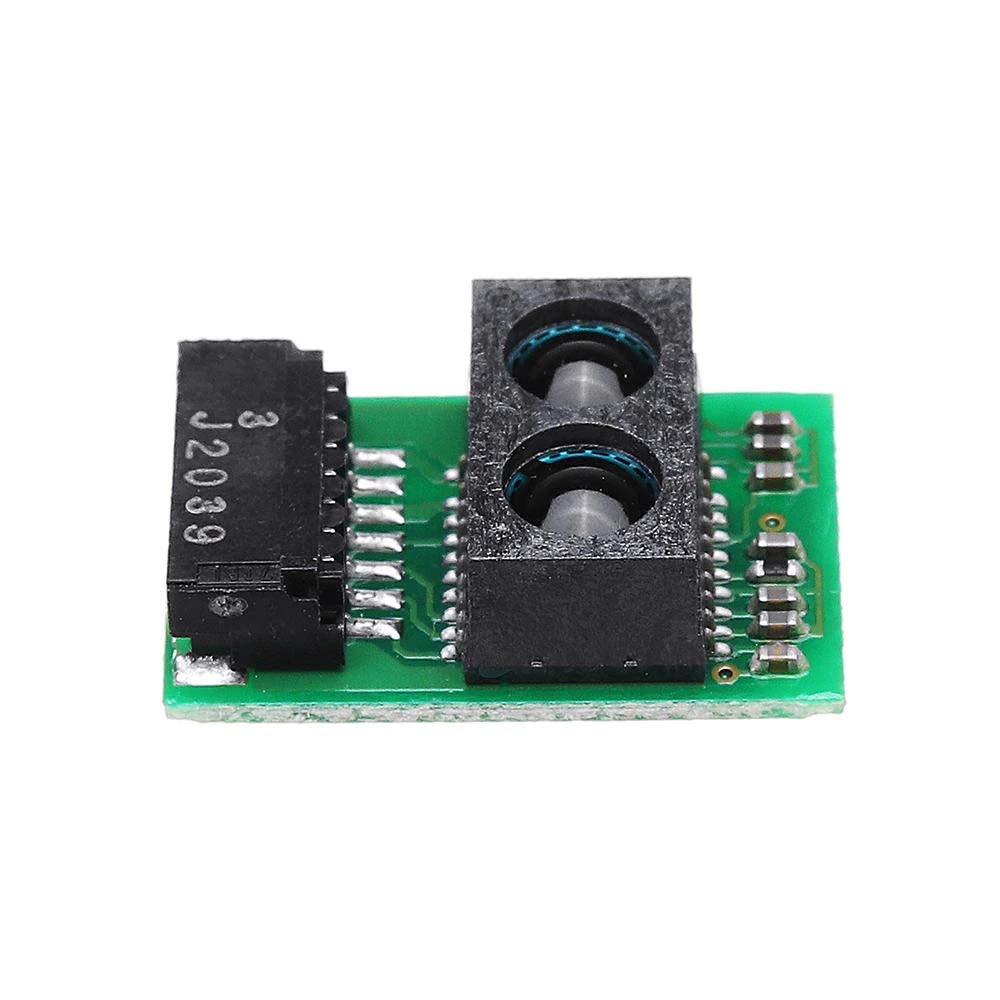

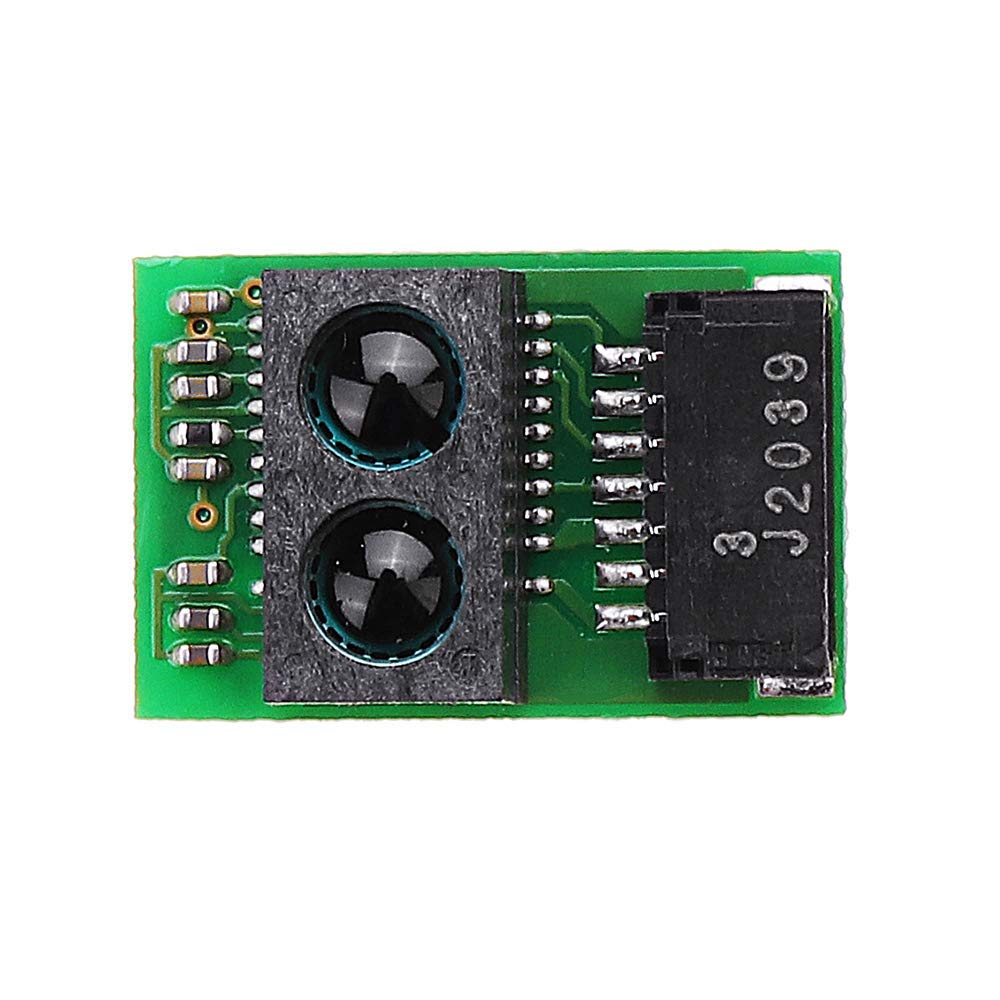

DollaTek GP2Y0E03 4-50CM Distance Sensor Module Infrared Ranging Sensor Module High Precision I2C Output

• The detection range of this distance sensor is 4cm to 50cm. And its measurement accuracy is very high.
• Due to the triangulation method, the device output corresponds to the detected distance and digital (I-C) data. Therefore, the sensor can also be used as a proximity sensor.
• Digital (I/C) / analog output type. Infrared LED and CMOS image sensor.Built-in Signal Processing Circuit.
• The change of the object reflectivity, the ambient temperature and the running time are not easily affected by the distance detection.
• This distance sensor is widely used in cleaning robot, humanoid robot, non-contact switch (sanitary equipment, illuminance control, etc.), energy-saving sensors (ATM, copiers, LCD monitors, etc.), amusement equipment (robot, game console, etc.).

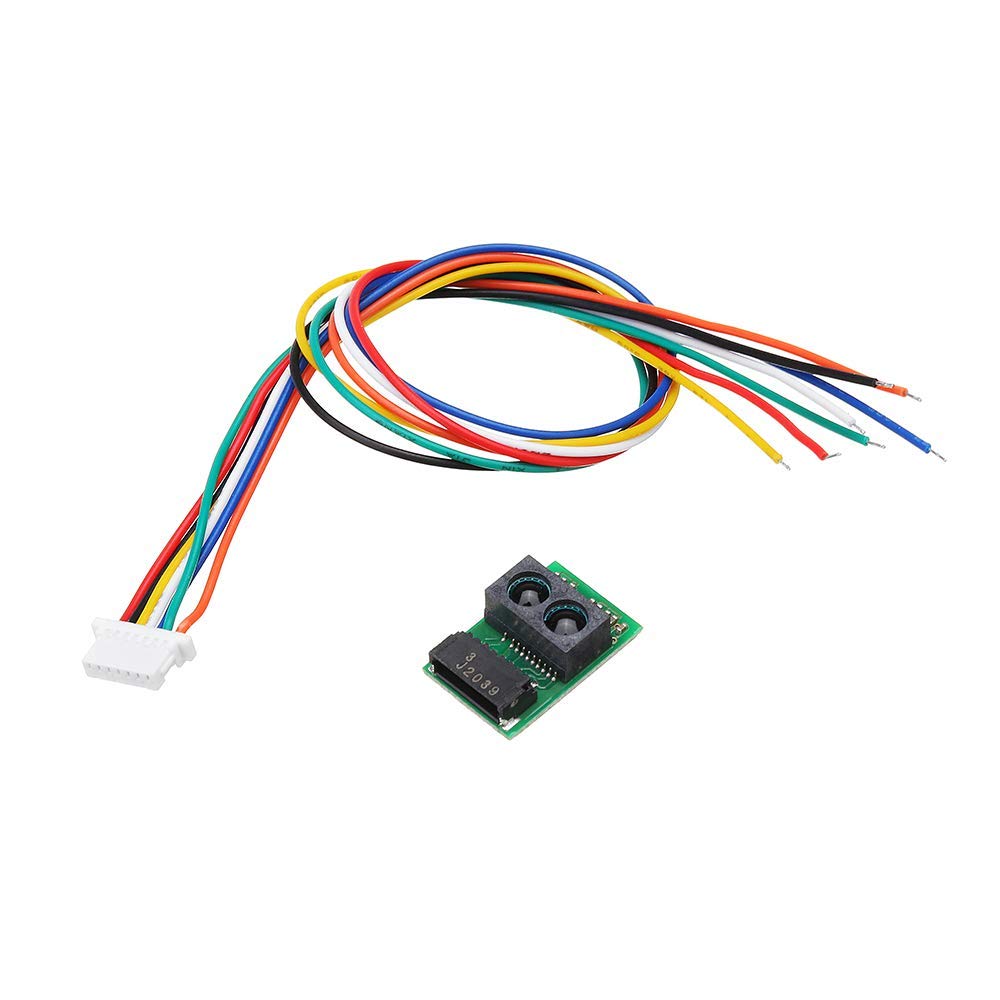

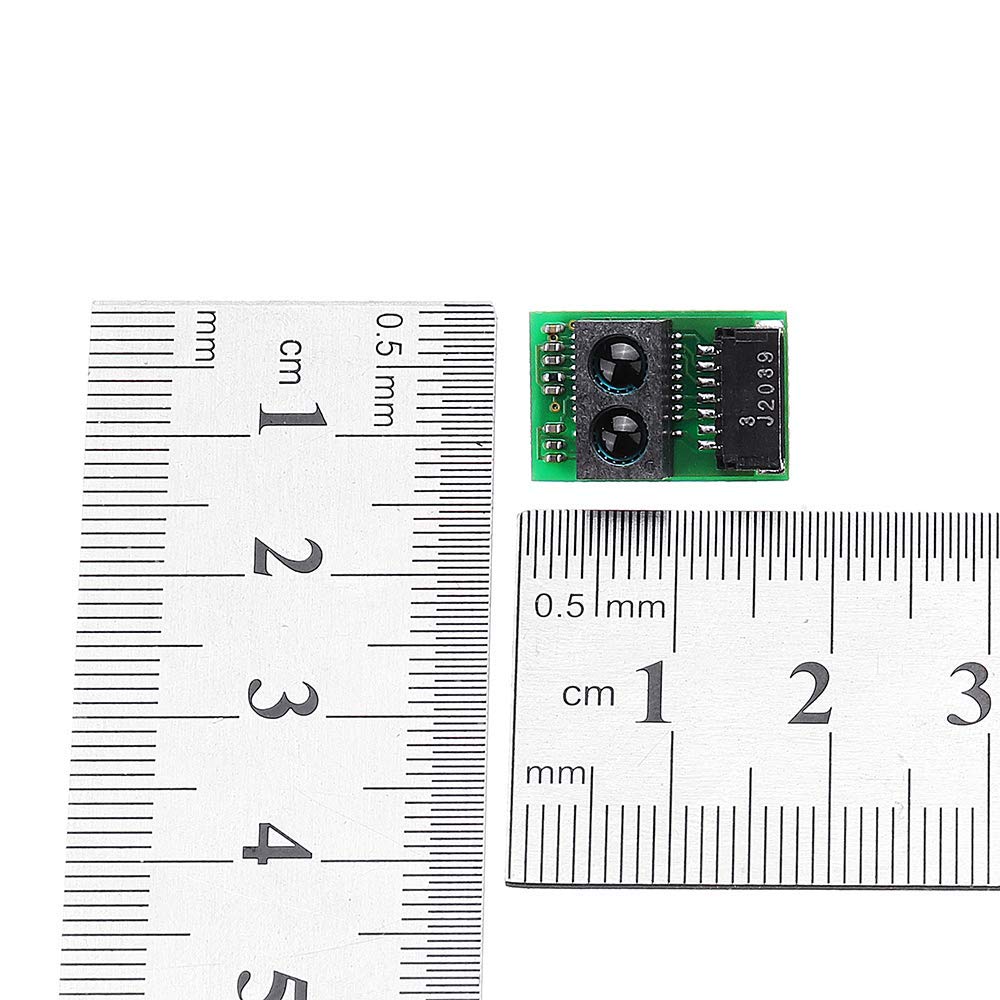

Specification: Measuring distance: 4 to 50 cm Output: Digital (I/C) / Analog Output Sensor: Infrared LED and CMOS image sensor Built-in signal processing circuit Voltage operation: 2.7V-5V Size: 16.7 x 11 x 5.2mm Features: High precision measurement Digital (I/C) / analog output type CMOS integrated combination Image sensor and infrared LED. The change of the reflectivity of the object, the ambient temperature and the running time are not easily affected by the distance detection. Due to the triangulation method, the device output corresponds to the detected distance and digital (I-C) data. Therefore, the sensor can also be used as a proximity sensor. Applications: 1. Cleaning robot 2. Humanoid robot 3. Non-contact switch (sanitary equipment, illuminance control, etc.) 4. Energy-saving sensors (ATM, copiers, LCD monitors, etc.) 5. Amusement equipment (robot, game console, etc.) Package Included: 1 x Ranging Sensor Module
