DollaTek Flysky A8S Receiver 8CH 2.4Ghz Mini S-Bus PPM Receiver i-Bus for Flysky i4 i6 i6S i6X TM10 TM8 Transmitter

• Receiver Compatible with FS-i4,FS-i6,FS-i6S,FS-i6X,FS-i10,FS-GT2E,FS-GT2G,FS-GT2F.FS series RC transmitter.
• Fs-A8S is a two-way receiver designed specifically for multi-axis aircraft, it uses the AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, has a powerful anti-jamming capability, a rich interface, good compatibility.
• The A8S Supports 8-channel PWM signal output, a standard PPM signal outputs, 18 channels of I-BUS signal and a voltage detection interface.

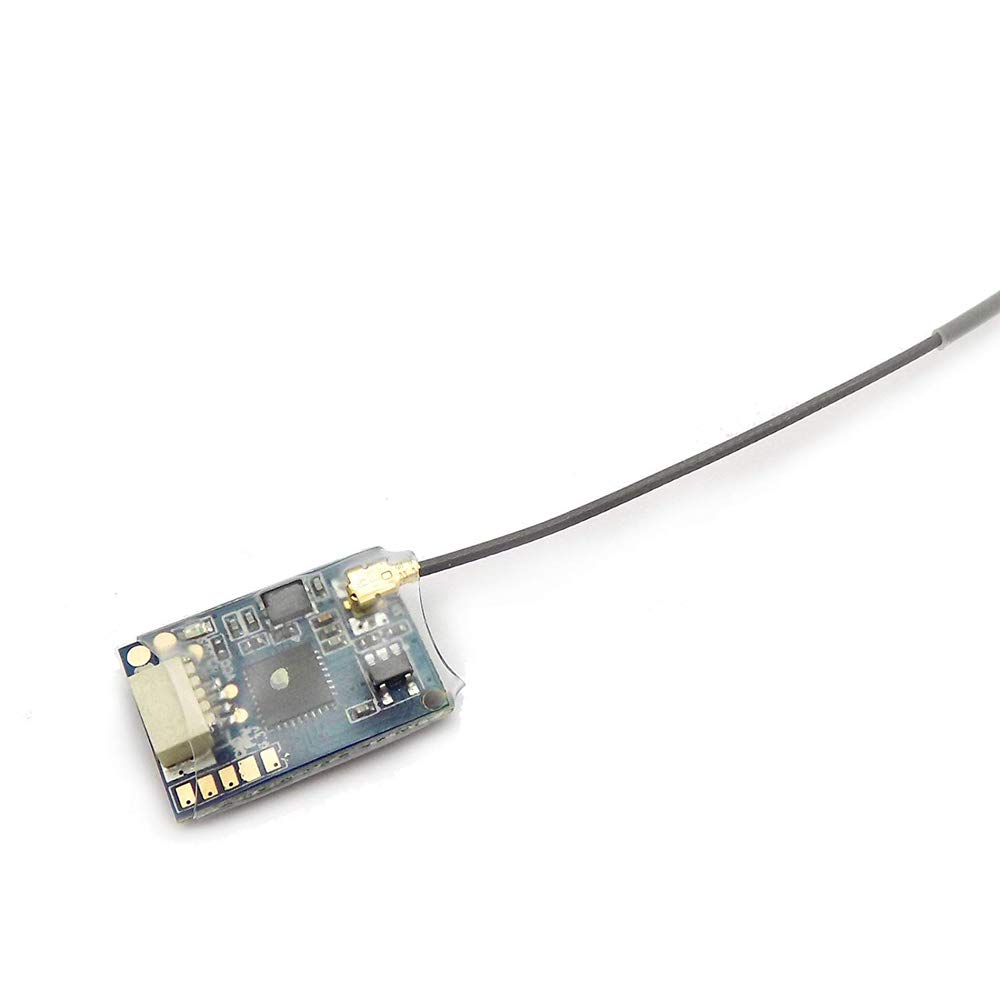

• Small size, light weight; it is only 0.79in * 0.55in * 0.21in, weighs only 1.2g, ultra-small size and ultra-light weight to make its wider range of applications.
• Use the second generation of enhanced automatic frequency hopping digital system, with eight PPM channel, 18 i-BUS channel. With 135 bands, 500KHz band width, 2.408-2.475GHz frequency range.

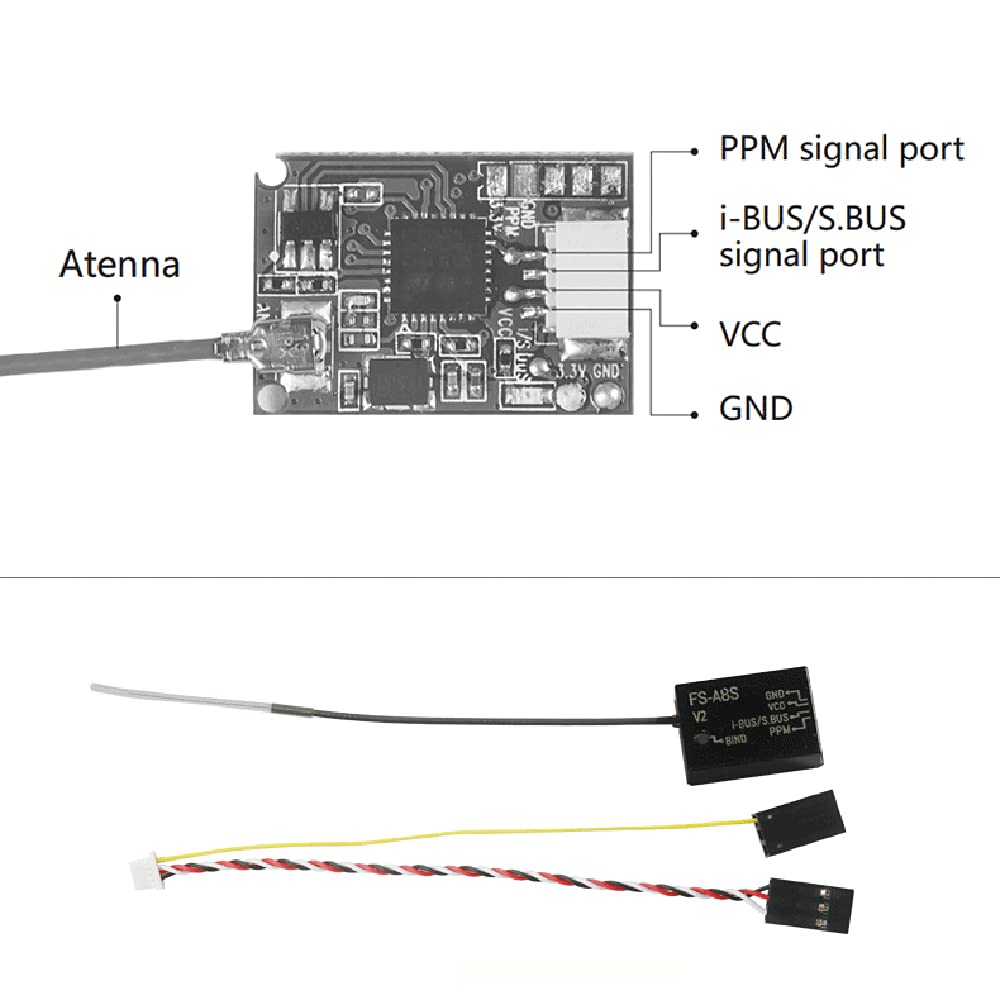

Product description Specification: These ports are for connecting the receiver to various models and flight controllers PPM signal port: Outputs standard PPM signal. I-BUS/S.BUS signal port: Outputs i-BUS/S.BUS signal, up to 18 channels. Binding 1.Power on the receiver while holding the bind button. If the receiver’s LED is flashing this means it has entered bind mode. If binding is successful the receiver’s LED will begin to flash slower. 2.On the transmitter, manually exit the binding menu. Once you have exited the bind menu the receiver’s LED will stop flashing and remain solid. 3.Check to make sure the model and receiver work as expected. If anything does not work as correctly, restart this procedure from the beginning. Change i-BUS/S.BUS mode When turned on and bound, the transmitter and receiver can change output mode to i-BUS and S.BUS modes by pressing and holding the bind button for 2 seconds. LED turns off for 1 second then flashes twice: i-BUS output mode active. LED flashes twice then turns off for 1 second: S.BUS output mode active. Description: Channels: PPM 8CH, i-BUS 18CH Model type: Multi-rotor Frequency range: 2.408-2.475GHz Band width: 500KHz Band number: 135 RX Sensitivity: -92 dBm 2.4GHz system: AFHDS 2A Modulation type: GFSK DSC port: PPM/i-BUS/S.BUS Transfer method: FHSS Data output: 1.5mm*3 Pin PPM/i-BUS/S.BUS Antenna length: 26mm (Not including brass contacts) Input power supply: 4.0-8.4V Display method: LED No ground interference ( Transmitting and receiving 1 m from the ground): >300m Working current: 40mA Each channel data: depend on the transmitter Channel delay: <15mS Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F Package Included: 1X Flysky FS-A8S V2 2.4G 8CH Mini Receiver Directions Turn on the receiver while holding down the bind button. If the LED of the receiver flashes, it means that the bind mode. If the binding is successful, the LED of the receiver will flash slowly. On the transmitter, manually exit the binding menu. When you exit the bind menu, the LED of the receiver stops flashing and remains solid. Please check the model and receiver work as expected. If nothing works so correctly, please restart this workflow from the start. When switched on and tied, the transmitter and receiver can change the output mode to i-BUS and S.BUS modes by pressing and holding the bind button for 2 seconds. LED turns off for 1 second and then flashes: i-bus active output mode. The LED flashes and then turns off for 1 second: S.BUS output mode active.
