DollaTek ESP32 Wireless Stick Lora+WIFI+BLE Development board with 0.49 inch OLED display screen SX1276 Module For Arduino 433MHz - 470MHz

• Compact appearance, powerful computing functions, WIFI function, support for Arduino, rich interface and other product features.
• users can program the product through standard library and simple development language, and quickly complete program verification and product development.
• At the same time, it has an OLED display and a lithium battery interface, which can be used for simple management of charging and discharging of lithium batteries, and can be directly used as a development of handheld devices.
• This product does not directly use the more popular WIFI, LoRa and other modules, but directly based on chip-level development, on the one hand to minimize the size.

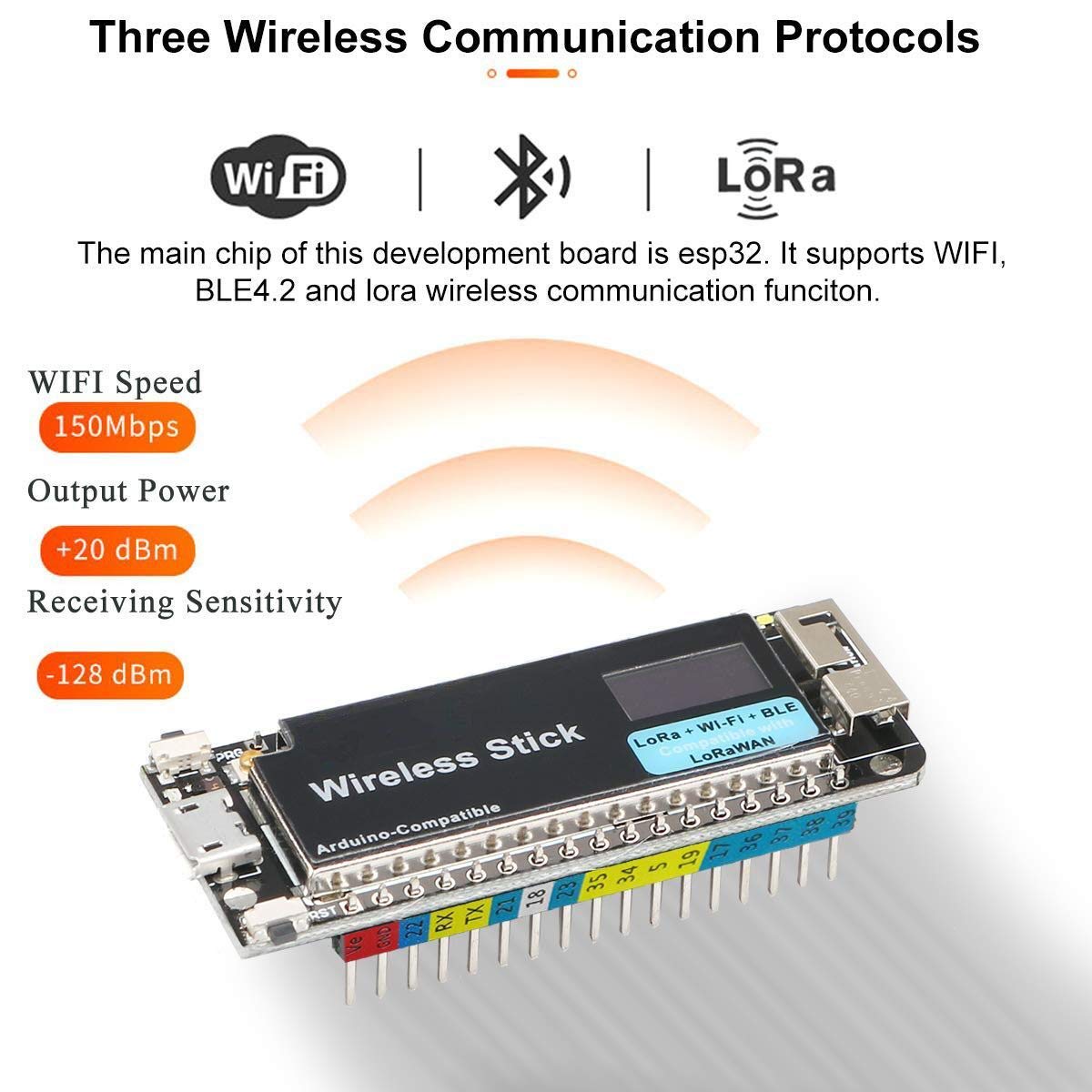

• The product's main control chip is a 32-bit processor - ESP32 chip. In addition to the WIFI function, it also supports BLE 4.2 and powerful LoRa wireless communication functions, which can be used as a gateway for IoT products or as a driver terminal product (such as sensors, stepper motors, etc.).

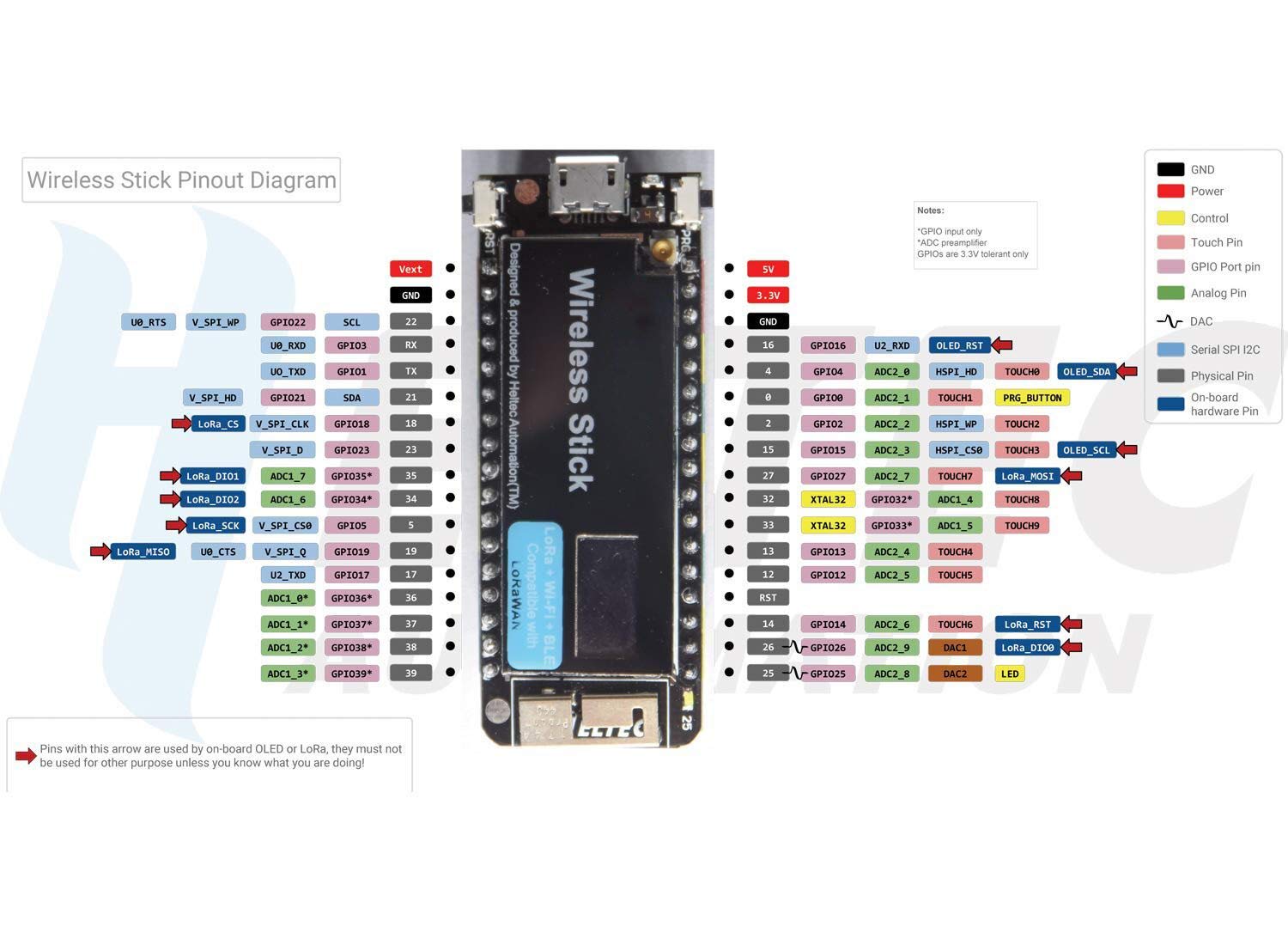

Specification: Adopt Lexin's ESP32 chip 32-bit dual-core, 240MHz frequency Integrated WiFi and Bluetooth LoRA wireless communication 0.49 inch OLED screen The main processor is completely free to run the user application. An additional ULP coprocessor that monitors GPIOs, ADC channels, and controls most of the internal peripherals. 802.11 n (2.4GHz), speed up to 150Mbps Bluetooth v4.2 full standard, including traditional Bluetooth (BR/EDR) and Bluetooth Low Energy (BLE) Input power: USB, lithium battery Output power supply: +5V (only when USB is powered), +3.3V Integrated lithium battery charging circuit Using an external power supply controlled by IO port, it is convenient for the development board to enter low power consumption LoRa: Using Semtech's SX1276 chip Supports 433MHz - 470MHz band optional Interface: UART, SPI, I2C, I2S, Mirco SD card 12 - bits ADC, 8 - bits DAC 29 general GPIO ports Storage: FLASH: 64M-BitsMB Power consumption: Sleep current: 800uA Package Included: 1 x DollaTek ESP32 Wireless Stick SX1276 Development Board ( Not soldered pins+pin stickers)"
