DollaTek DPS5015 USB and bluetooth Communication 50V 15A Constant Voltage Current Step-Down Power Supply Module Buck Voltage Converter Voltmeter

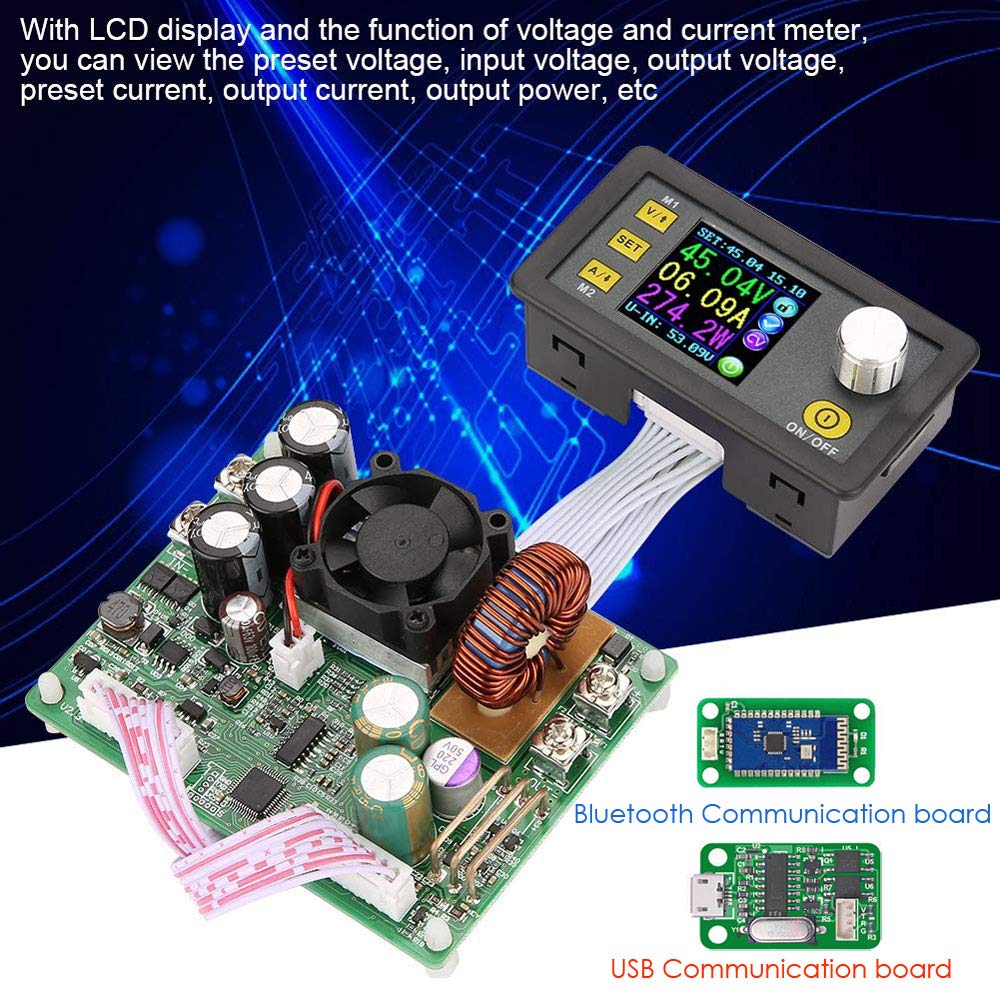

• Support USB bluetooth communication function
• Its adjustable output voltage range is 0-50.00V, step by 0.01V. Its adjustable output current range is 0-15.000A, step by 0.001A

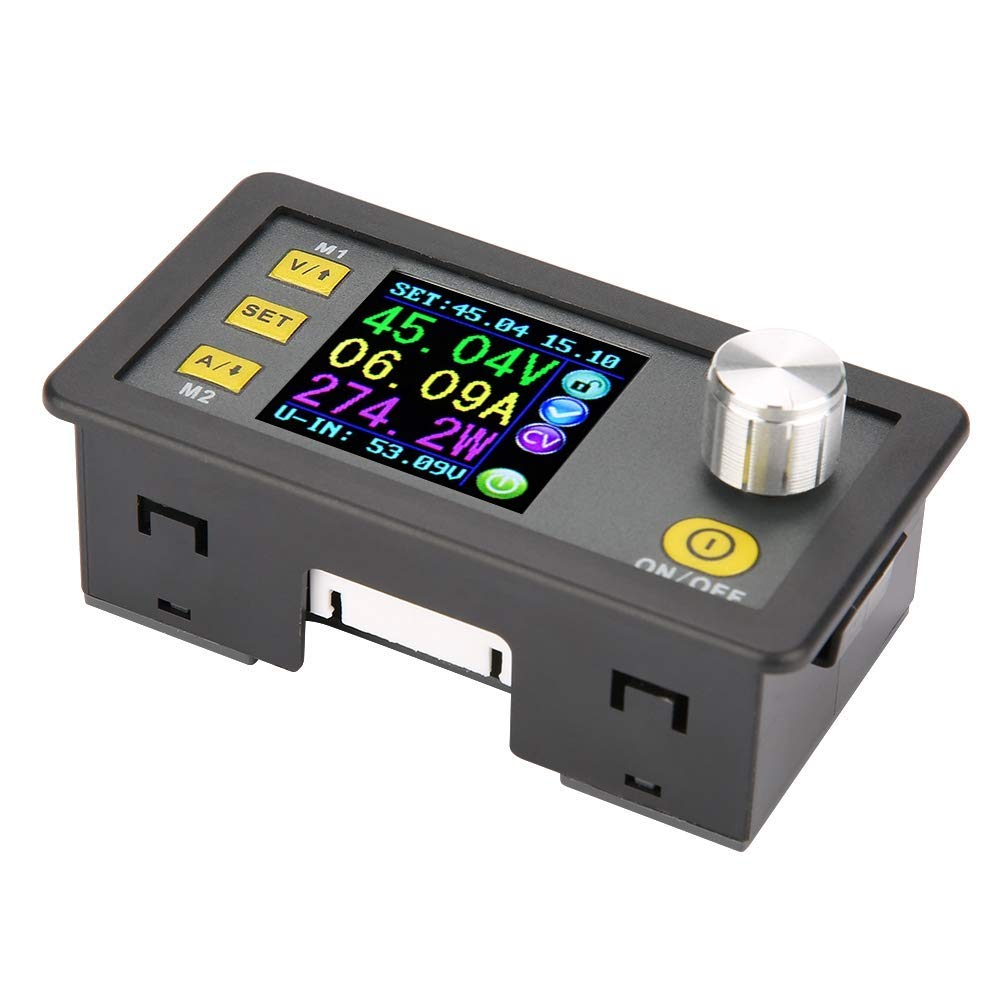

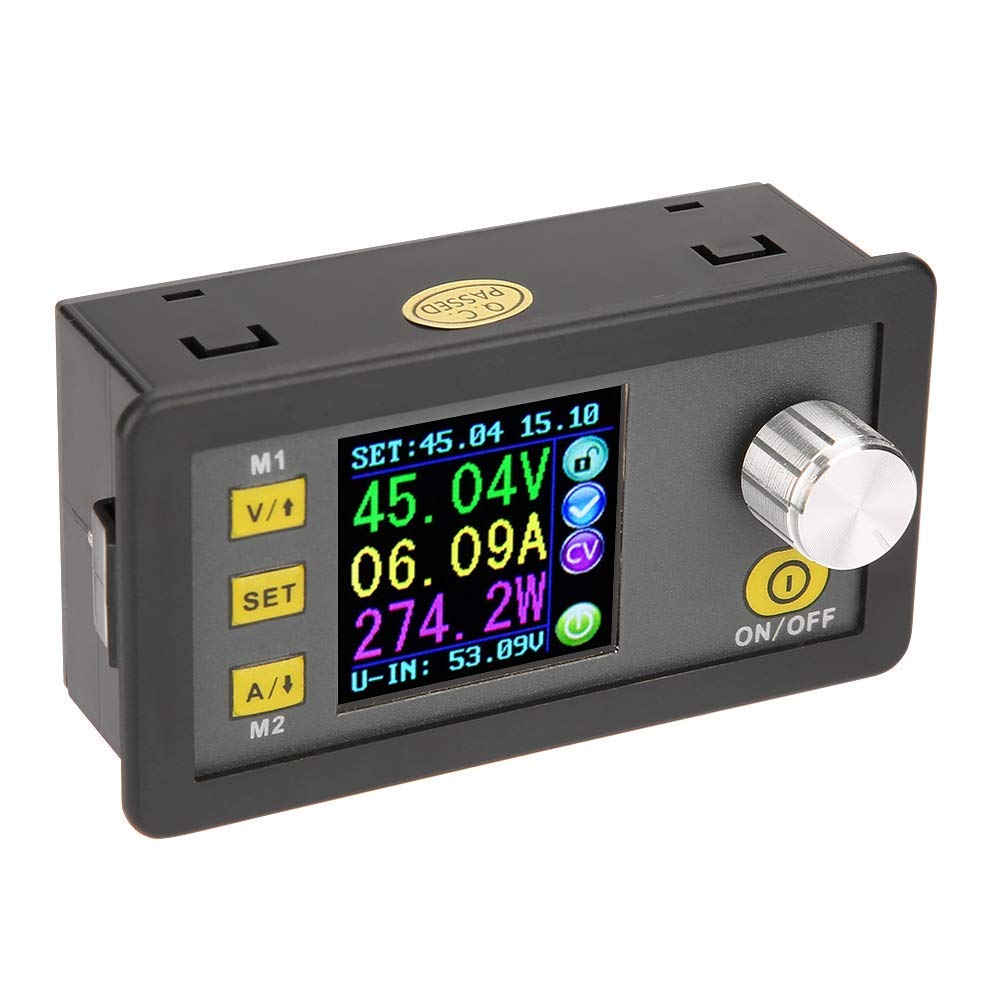

• Four digit display, high precision, high resolution,1.44-inch high-definition color LCD display, digital display is clearer.With the function of voltage and current meter, you can view the preset voltage, input voltage, output voltage, preset current, output current, output power, etc.
• Supports Lock function prevents misoperation and makes measurement easier. The LCD Power Supply Voltage Converter module Supports Overvoltage protection, overcurrent protection, over power protection, reverse connection protection.Supports Instantly turn output on or off function.The module can storage 10 groups of preset value and it can quickly extract 2 groups of preset value, easier viewing and easier recording.
• 【Note】1. It must be ensured that the input supply voltage is 1.1 times or more of the output voltage. At high currents, please pay attention to enhance heat dissipation.2.When connecting the display module to the power module, the connection line of the corresponding character should be correctly connected. If the connection is reversed, it will not work properly.

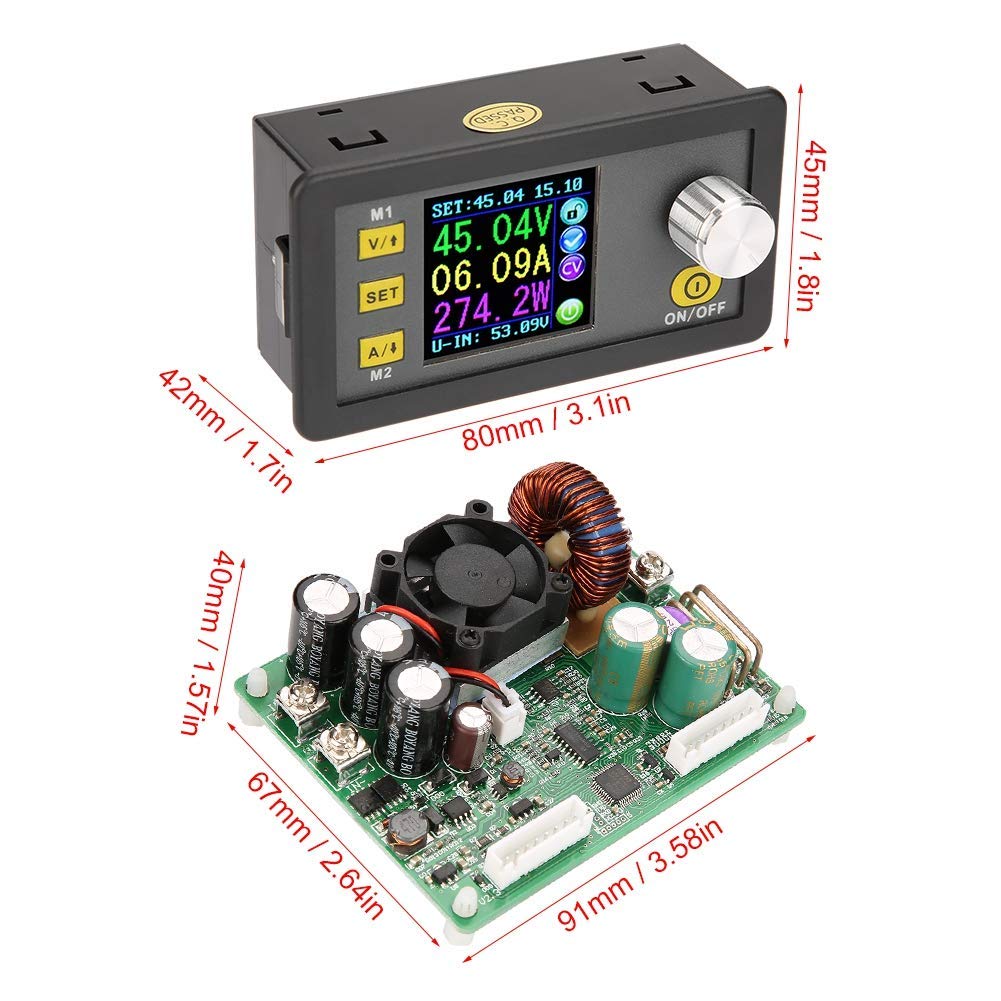

Description: Its adjustable output voltage range is between 0 and 50.00V, 0.01V stepping range. Its adjustable output current range is 0-15.00A, stepping 0.01A. This module has a stored standby function and can store a preset value of 10 groups. And it also has the function of quickly extracting the stored value of two groups. Compared with traditional analog power supply, it is more convenient to quickly extract the required voltage or current. The LCD on the module has digital voltmeter and ammeter function. You can display preset voltage, input voltage, output voltage, preset current, output current, output power, etc. In the output state reminder area, you can see whether the output opens or not, the voltage is constant and the current is constant, whether the output is normal or not, whether the key is locked or not, and the current data groups are used. On the setting data interface, you can adjust the overvoltage value, overcurrent value, overpower value, dataset and brightness of the LCD screen. Features: Display: 1.44" Colorful LCD Input voltage: DC 6-60V. Output voltage: 0-50.00 V. Output Current: 0-15.00A Output power: 0-750W Voltage resolution: 0.01V. Current resolution: 0.01A IN+: Positive input IN-: Negative input OUT +: positive output OUT-: negative output Connection wire length: 200 mm Display module size: 80 x 42 x 45 mm/3.1 x 1.7 x 1.8 inches. Power module size: 91 x 67 x 40 mm/3.58 x 2.64 x 1.57 inches. Weight: approx. 257 g/9.1 oz. Package includes: 1 x Step-Down Module (DPS5015) 1 x Bluetooth Card 1 x USB card
