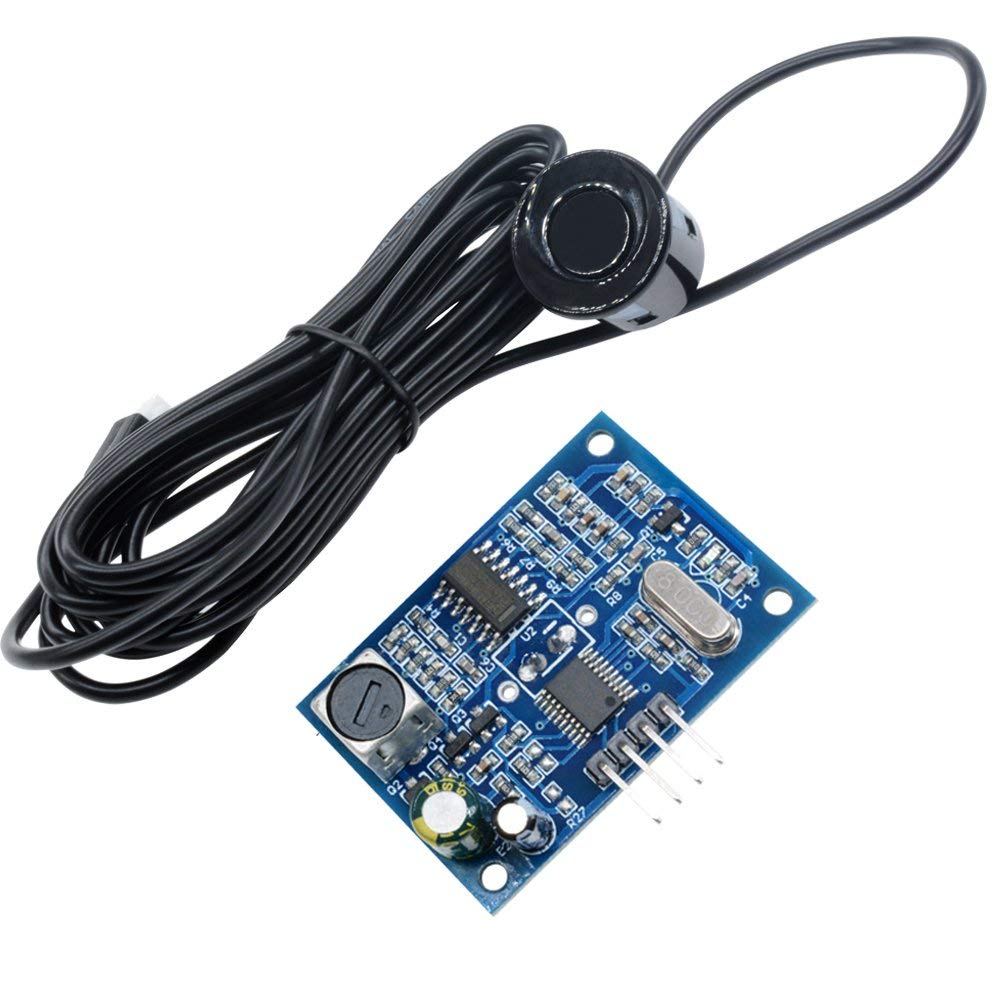

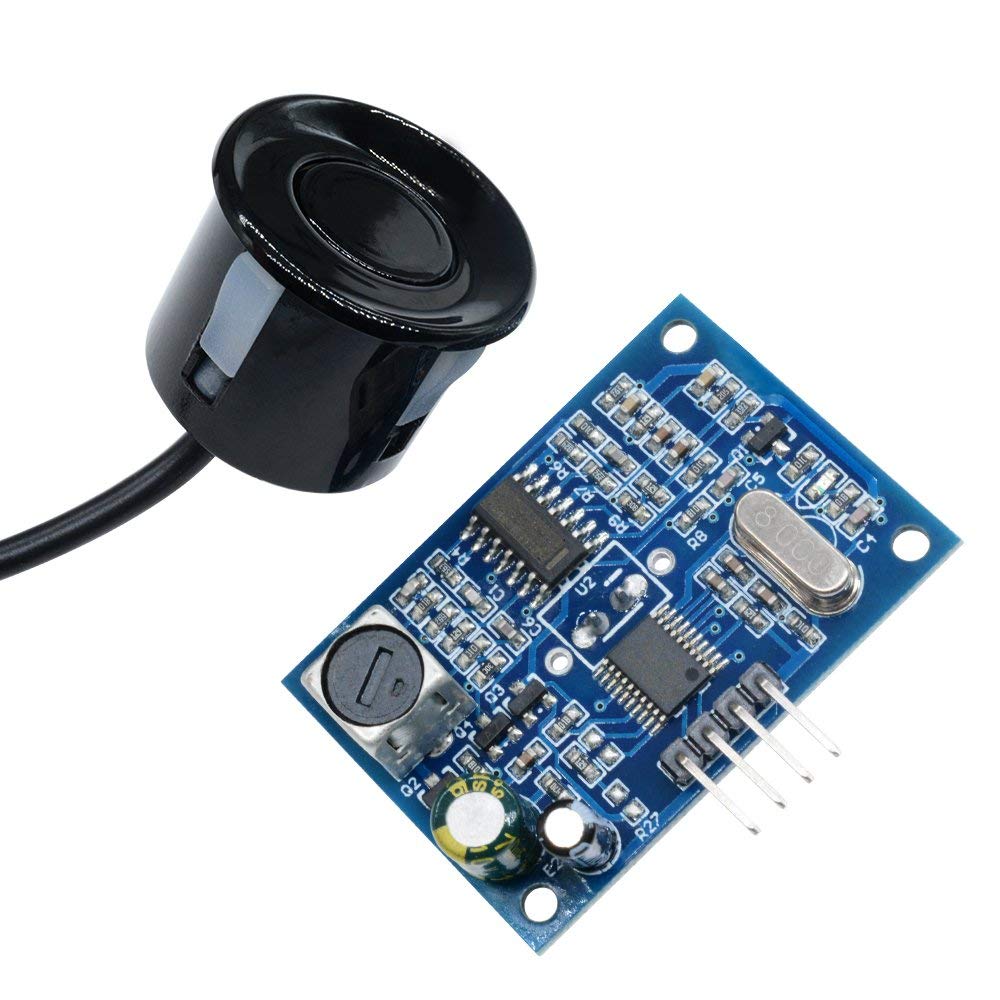

DollaTek DC 5V Waterproof Ultrasonic Distance Sensor Measuring Ranging Transducer Module with 2.5M Cable for Arduino

• JSN-SR0T4-2.0 ultrasonic ranging module can provide 20cm-600cm non-contact distance sensing function, ranging accuracy up to 2mm.

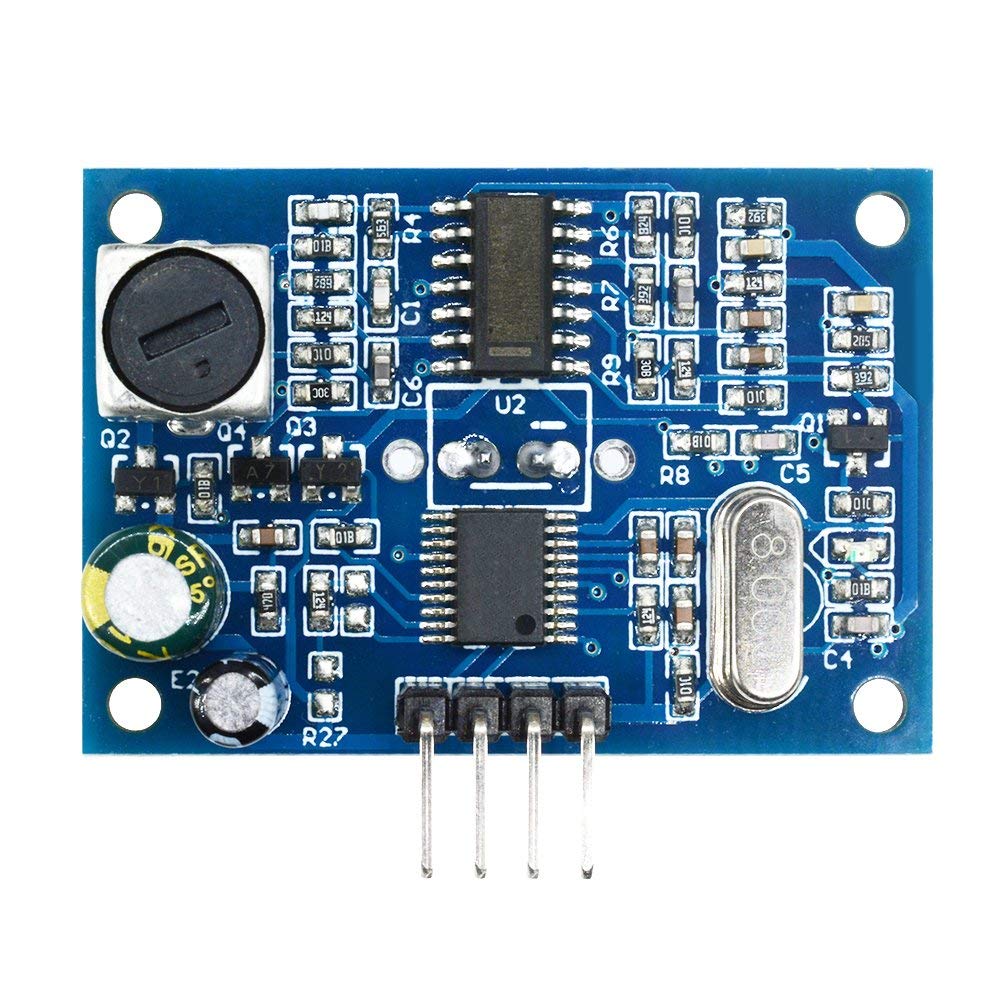

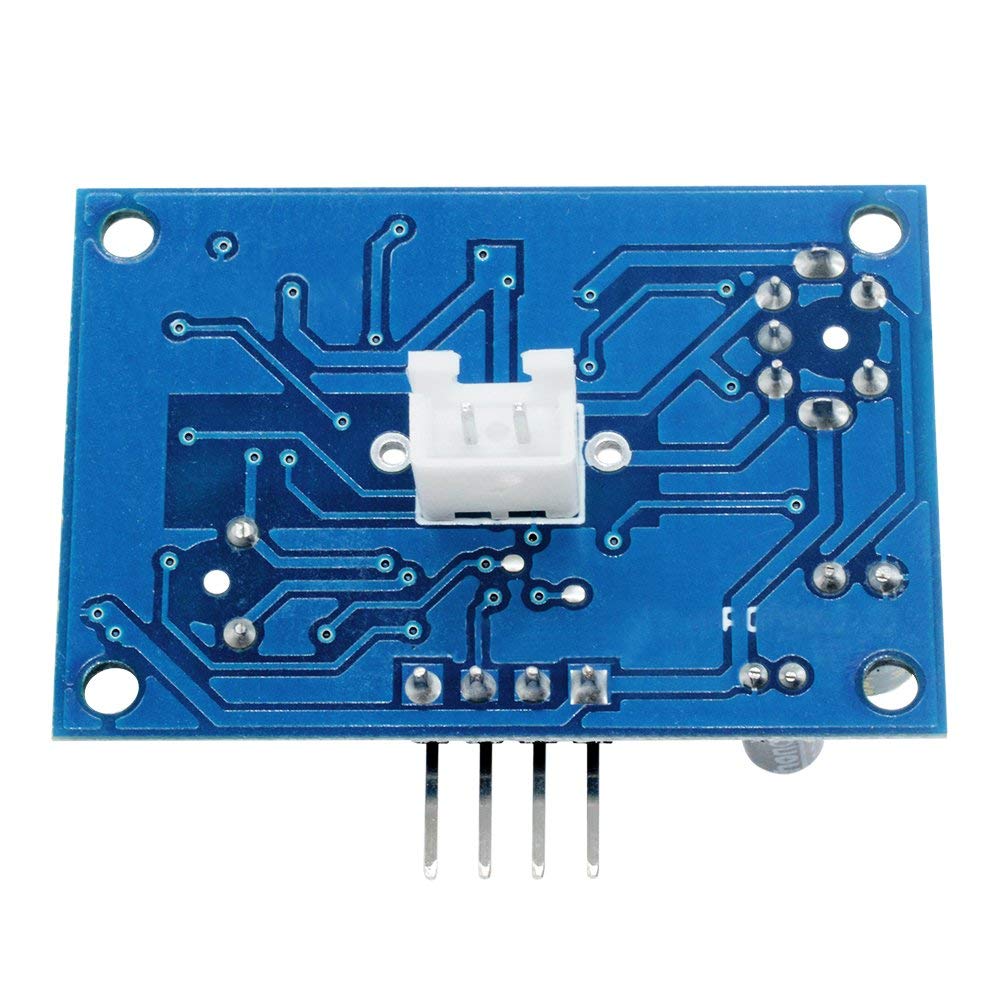

• The module consists of an integrated ultrasonic sensor and control circuit. The usage of mode one is modest with the HC-SR04 module of the company.
• This product adopts industrial grade integrated ultrasonic probe design, waterproof type, stable performance, and all MCU work in the market.
• The module has stable performance and accurate measurement distance.
• High precision module, blind zone (20cm), stable ranging is a powerful basis for this product to successfully enter the market.

Description: This module uses the simple method, a control port with a 10US above high level, can wait for high level output at the receiving port. An output can drive the timer. When this port is low can read the timer value, this time for the location of the time, can be calculated distance. So constantly cycle test, that can achieve the measurement of the value of your mobile. Specification: Operating voltage: DC 5V Quiescent current: 5mA. Farthest distance: 4.5m. The device is waterproof, but it couldn't work underwater. Please note it. High accuracy, strong anti-jamming, small size, easy to use, low voltage, low power consumption. Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions. Package Includes: 1 x DC 5V Waterproof Ultrasonic Distance Sensor Measuring Ranging Transducer Module with 2.5M Cable for Arduino
