DollaTek Compatible Atmel AT AVR ISP MK2 MKII ATMEL AVR Programmer USB AVRISP XPII In-System Programmer Supports AVR Studio 4/5/6/7

• Supports AVR Studio 4/5/6/7
• Support WIN10, but when you use WIN10, please download AVR Studio >7
• Supports all AVR devices with ISP or PDI interface, and certain 51 Devices
• Programs both Flash and EEPROM;Supports Fuses and Lock Bit Programming
• Based on AT AVRISP mkII firmware;Upgradable to support future devices

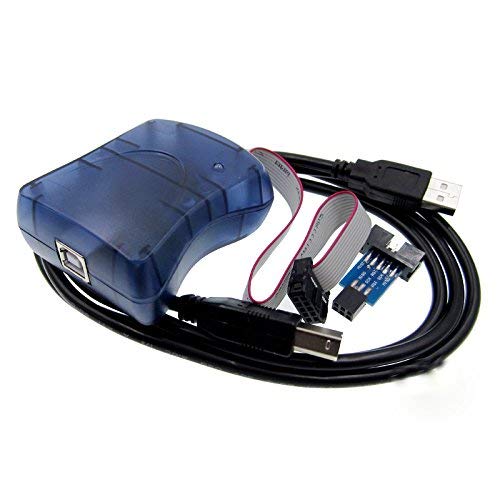

DollaTek Compatible Atmel AT AVR ISP MK2 MKII ATMEL AVR Programmer USB AVRISP XPII In-System Programmer Supports AVR Studio 4/5/6/7 Support WIN10, but when you use WIN10, please download AVR Studio >7 1. Supports all AVR devices with ISP or PDI interface, and certain 51 Devices 2. Programs both Flash and EEPROM 3. Supports Fuses and Lock Bit Programming 4. Based on AT AVRISP mkII firmware 5. Upgradable to support future devices 6. Adjustable ISP programming speed up to 8M frequency 7. USB 2.0 compliant (full speed, 12Mbps) 8. 3 optional cables to target board 9. Powered from USB bus, does not require external power supply Supported software 1. AVR Studio 6 or WINAVR(GCC) is used as front-end software 2. Supports the program files generated by IAR, ICCAVR, CVAVR Supported Device 1. USB AVRISP MKII supports all AVR devices with ISP and PDI Interface. Support for new devices will be added with new versions of AVR Studio. 2. Supports AT86RF401/AT89S51/AT89S52 Package Contains: 1x DollaTek Programmer 1x USB Cable 1x Adapter 6-pin to 10-pin
