DollaTek Battery Capacity Monitor 10-100V Programmable Battery Level Voltage Temperature Meter Gauge 12V 24V 36V 48V LCD Display Percentage Indicator Tester Electric Quantity Detector

• Application: DollaTek Battery Capacity Meter is suitable for 10-100V (12V 24V 36V 48V 60V 72V 96V) Lithium Battery, Lead Acid Battery, Lithium Iron Phosphate Battery, NiMH Battery, etc. You can quickly change the default parameters.

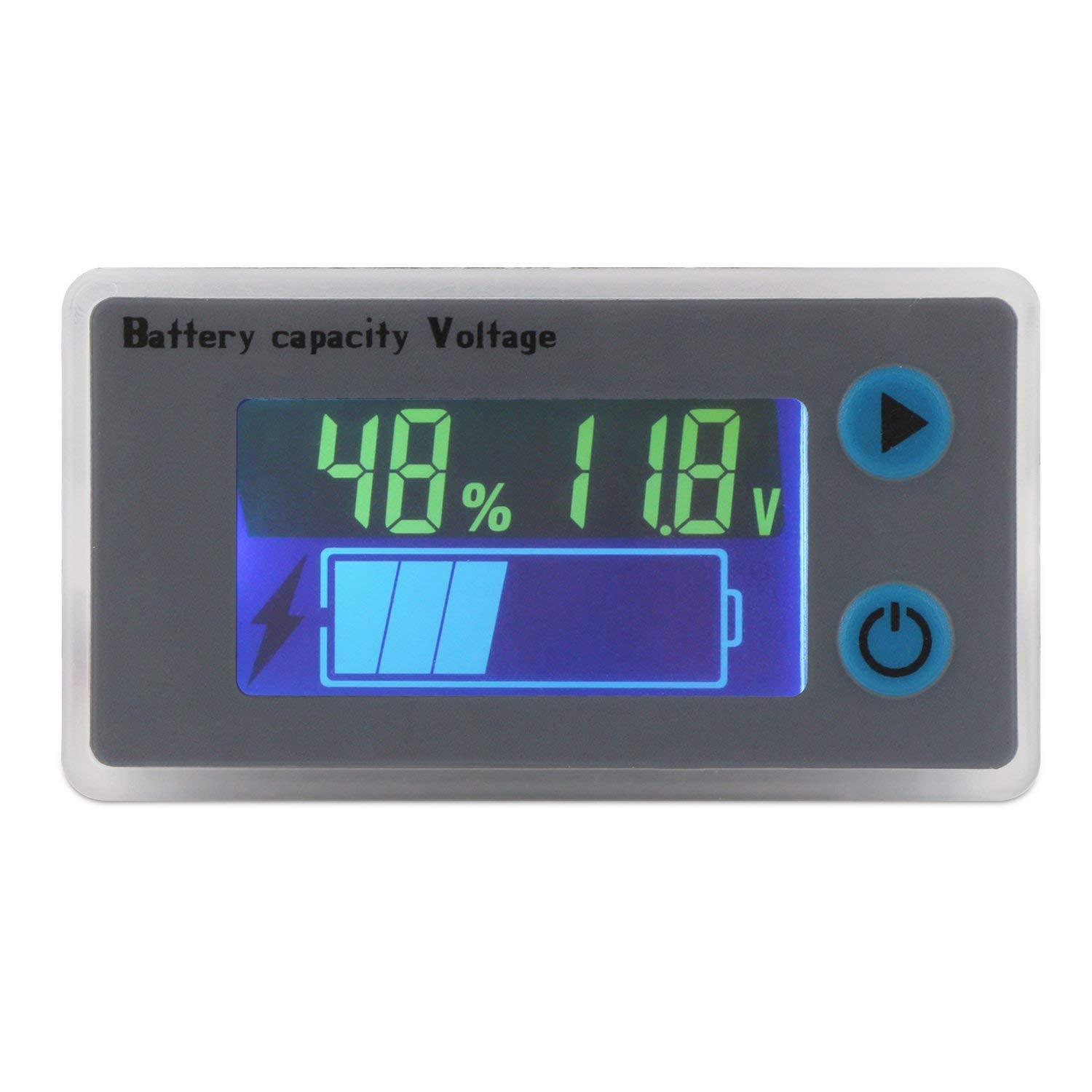

• Color LCD display: the battery monitor adopts LCD color screen, can display the battery capacity, voltage, temperature (key switched) long-term, can be used in a variety of lighting conditions.

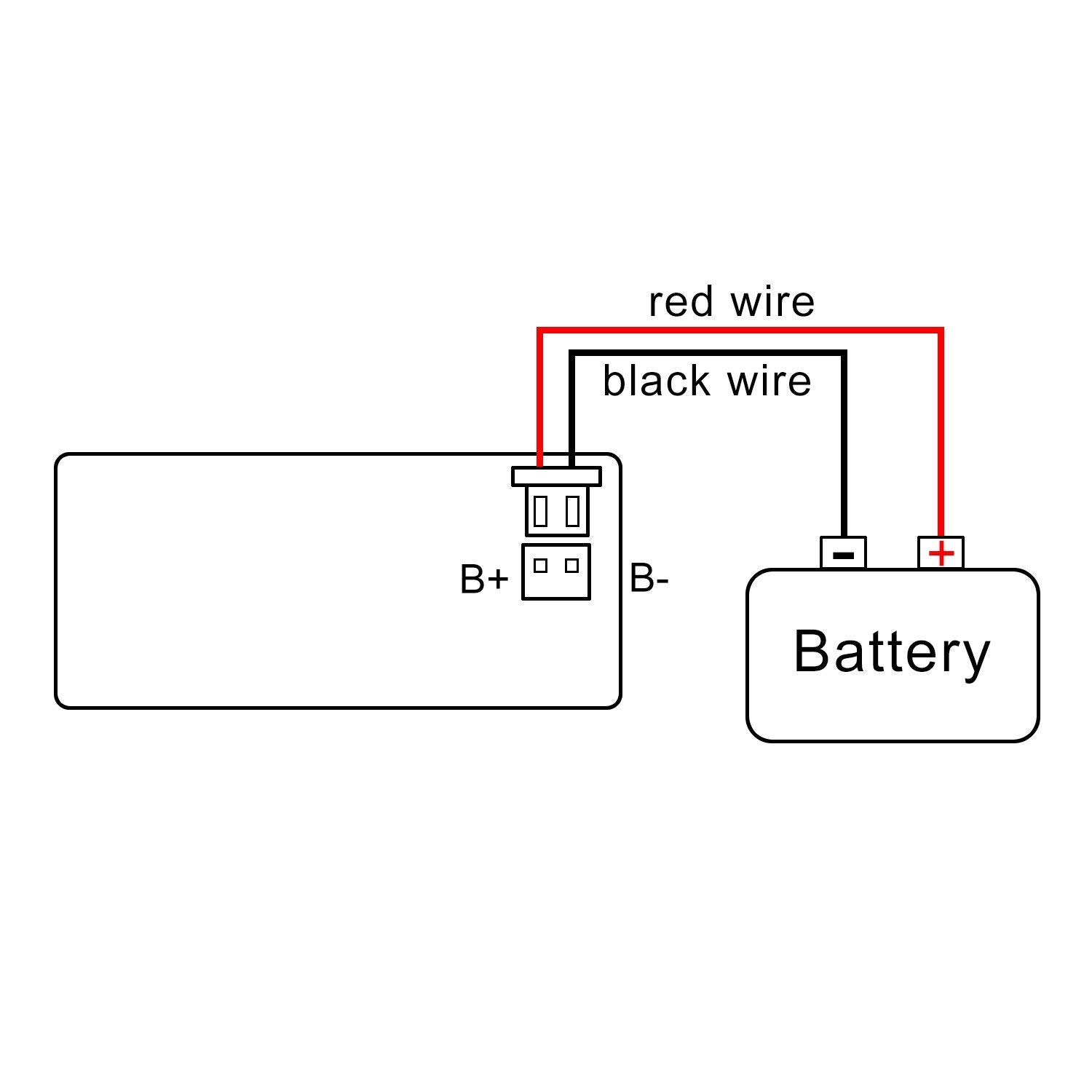

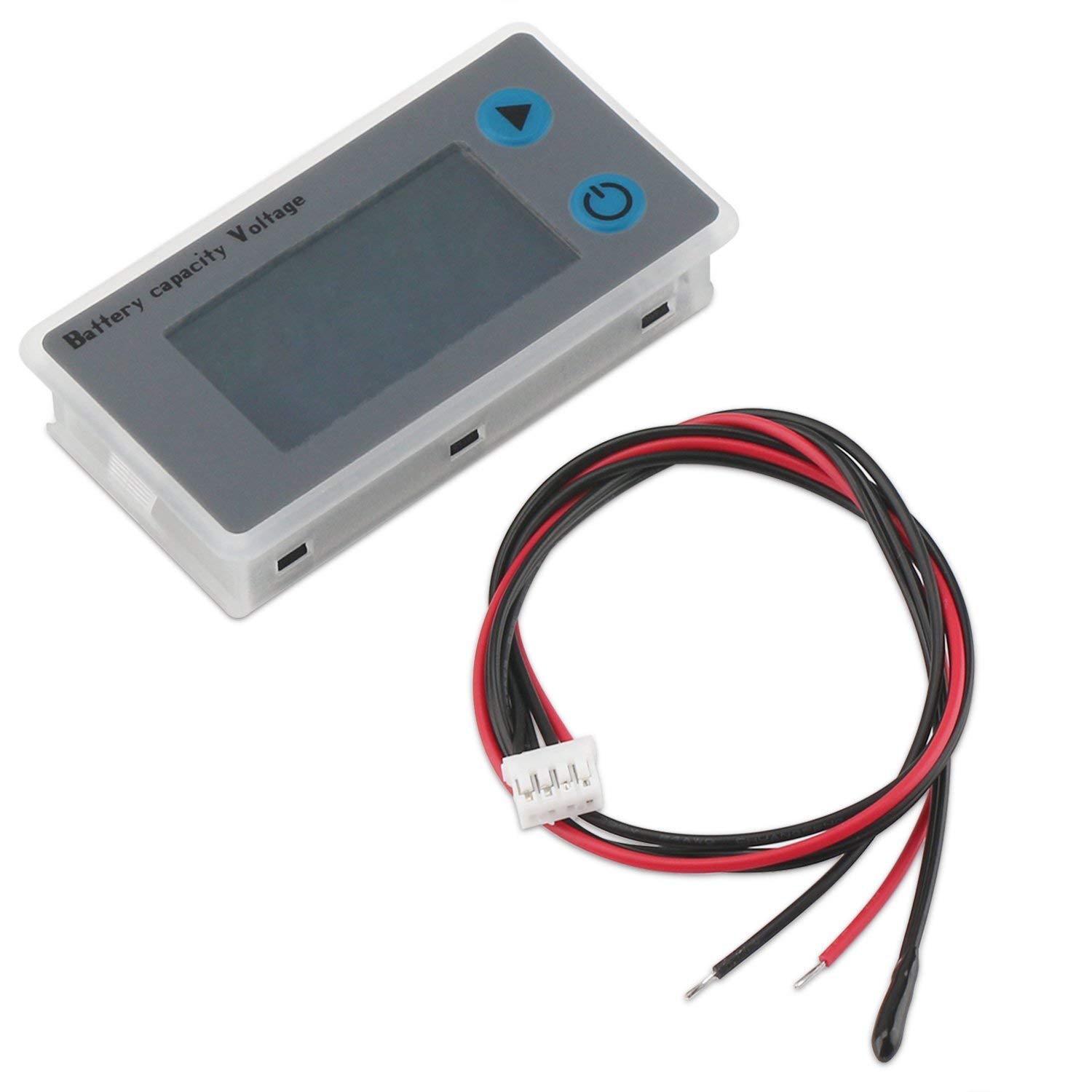

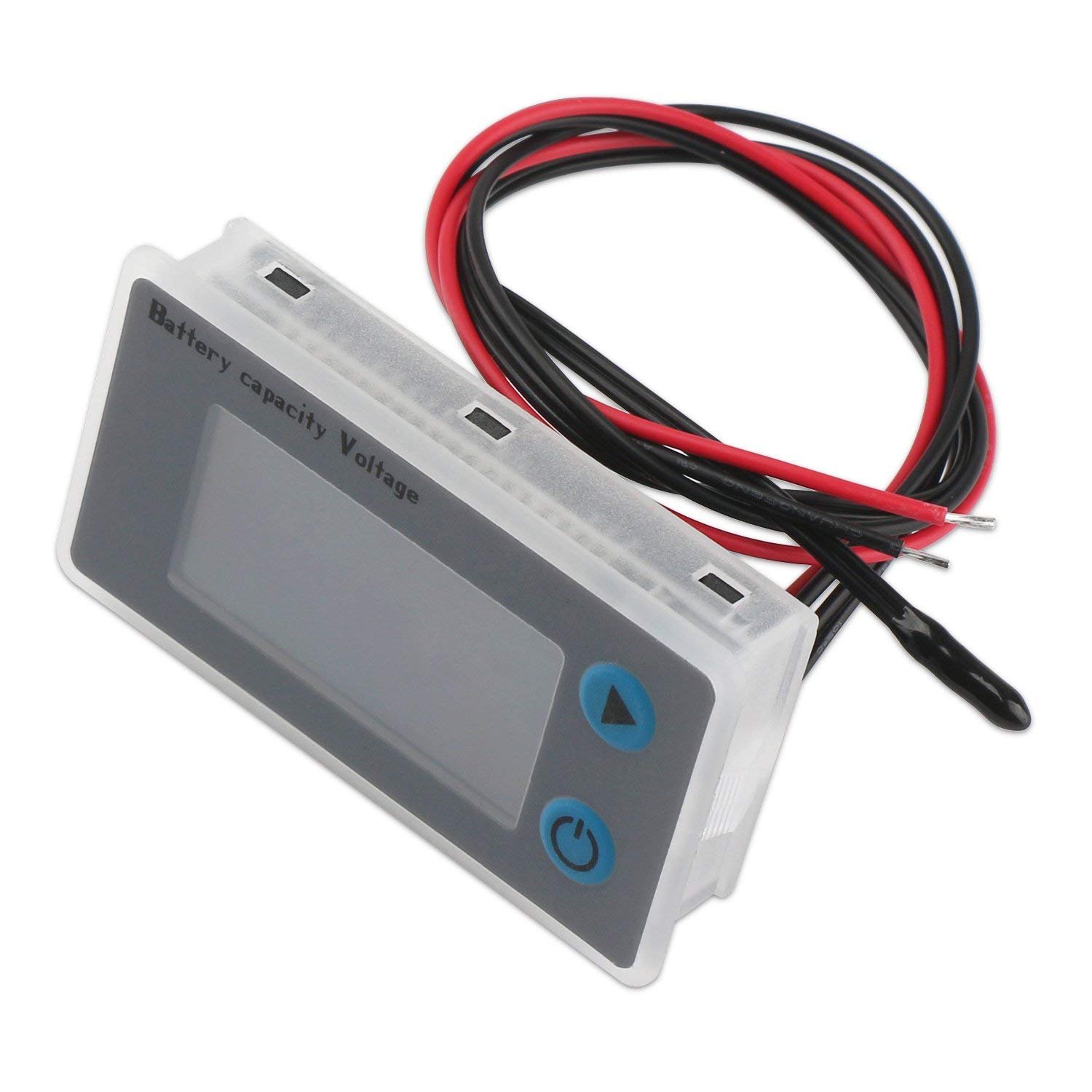

• Easy installation and operation: the battery percentage display is only with 2 wires, red for the positive side of the battery, black for the negative side of the battery; 2 button for your operation, a button for voltage and temperature display, one for ON / OFF.
• Protection: the capacitance voltage tester panel is with protective cover, dustproof waterproof surface; Input voltage reverse link protection.
• Alarm: the red indicator flashes and buzzer alarm, if it is low battery voltage, the low voltage can be set.

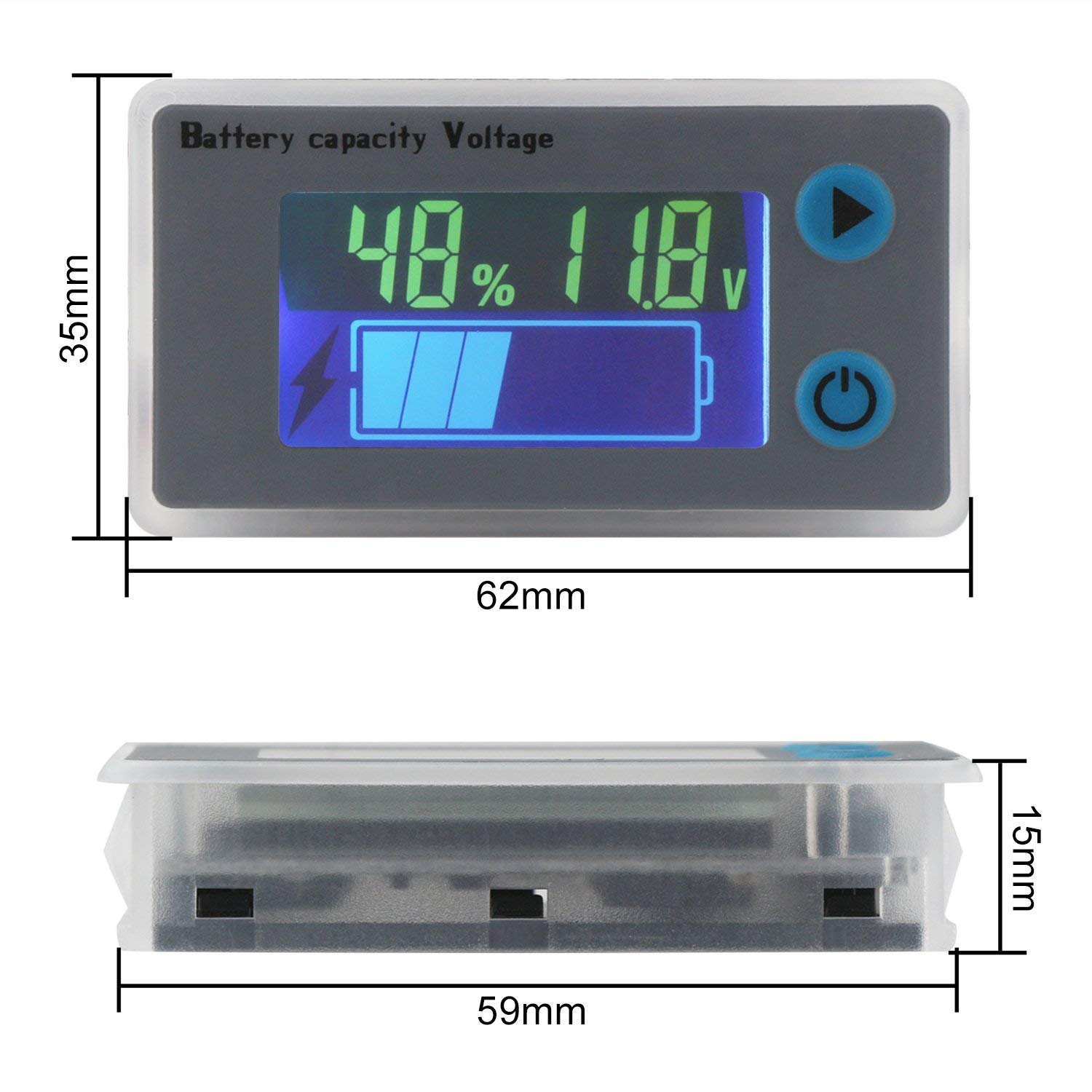

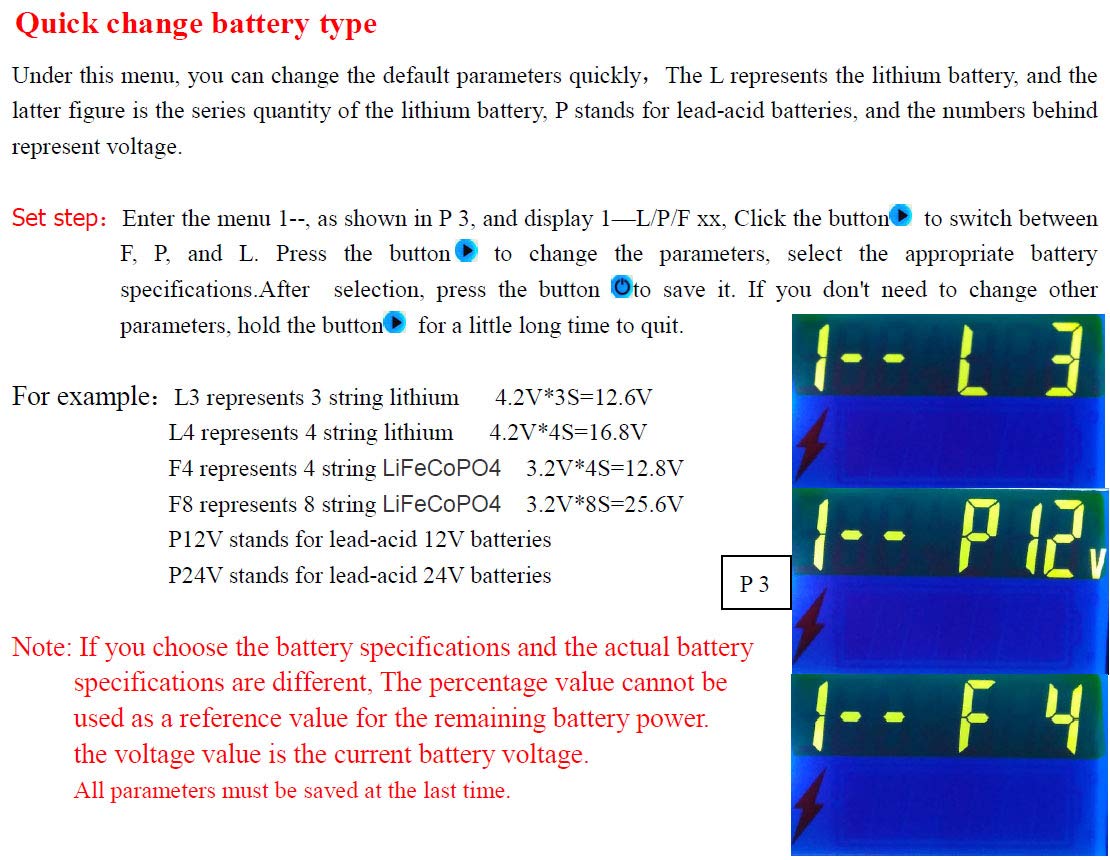

Note: The default setting is suitable for use in 12 V lead-acid batteries. If you need to set other types of batteries or enter the setting mode and delay the timer settings, please contact us. We will then send you electronic English instructions. Properties: 1. The battery capacity meter is suitable for 10-100V (12V 24V 36V 48V 60V 72V 96V) Lithium Battery, Lead Acid Battery, Lithium Iron Phosphate Battery, Ni-MH Battery, etc. 2.The battery monitor adopts LCD color screen, long-term display can battery capacity, voltage, temperature (by the key switched), can be used in a variety of lighting conditions. 3.The battery percentage display is only with 2 wires, red for the positive side of the battery, black for the negative side of the battery; 2 button for your operation, a button for voltage and temperature display, one for ON / OFF. 4. The capacity voltage tester panel is with protective cover, dustproof waterproof surface; Input voltage reverse link protection. 5.The red indicator flashes and buzzer alarm, if it is low battery voltage, the low voltage can be adjusted. Parameter: Product size: 61.5 mm * 33.5 mm * 13.5 mm Installation size: 58.5 mm * 28.5 mm Display size: 36 mm * 19.5 mm Operating voltage: 10V-100V Waste of power: 5-6mA (LED ON) Voltage accuracy: ± 0.1 (typical), ± 0.5 (maximum) Sleeping power: 6-12uA (20V) Operating temperature: -10 ~ 55 ℃ Package included: 1 x battery capacity indicator Voltage monitoring
