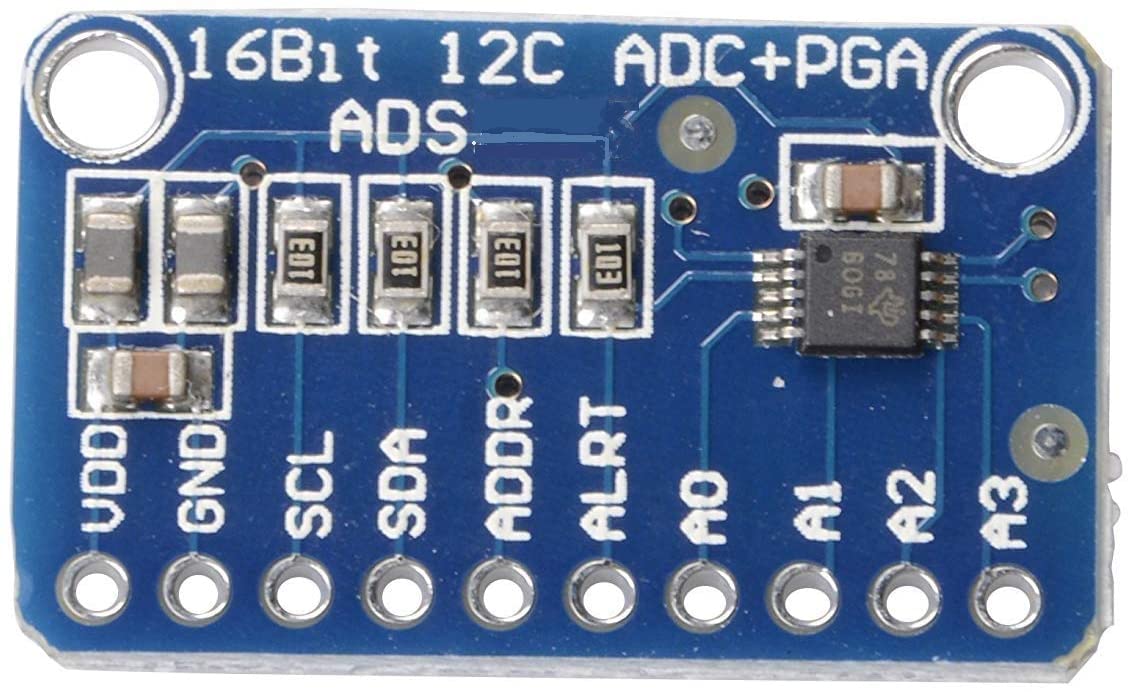

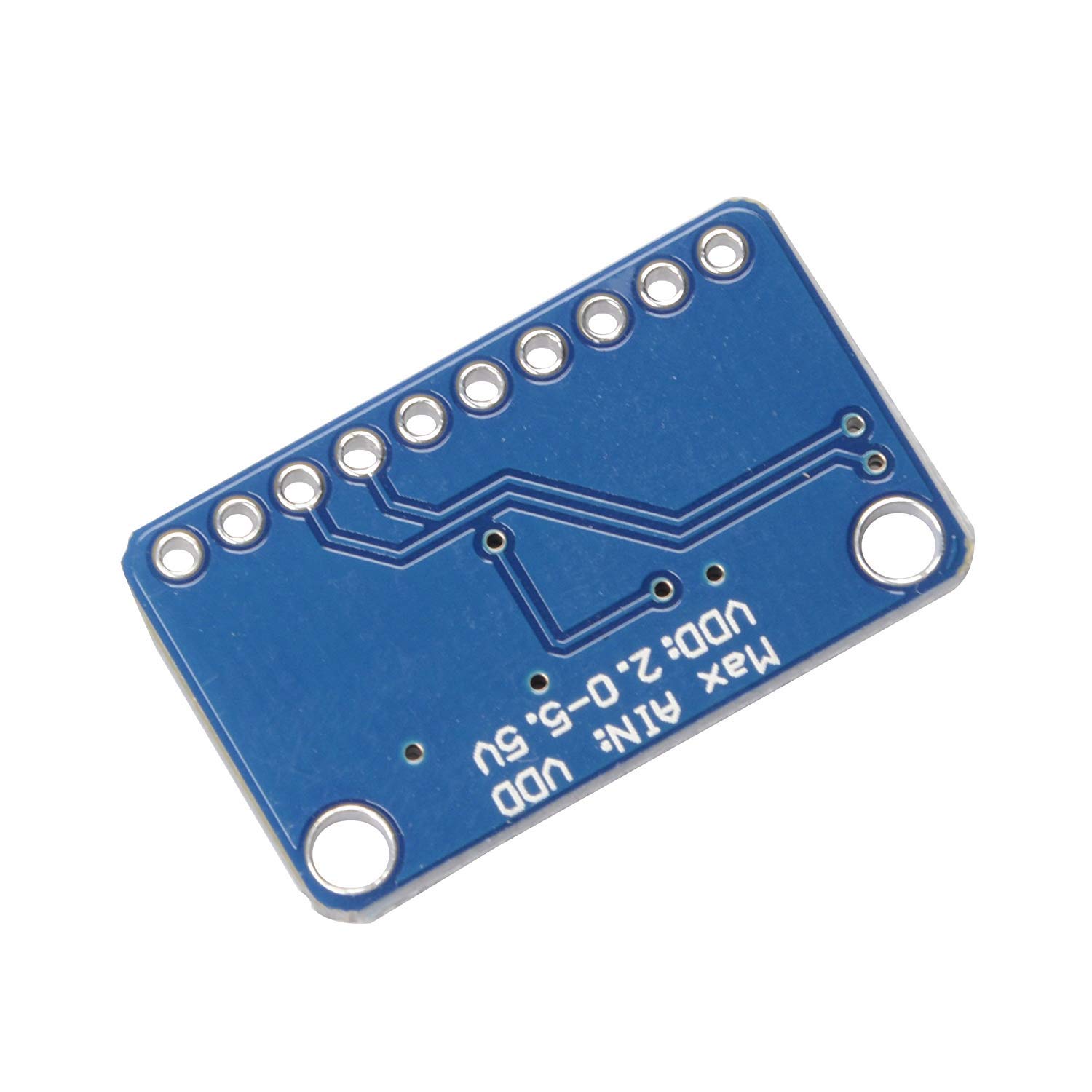

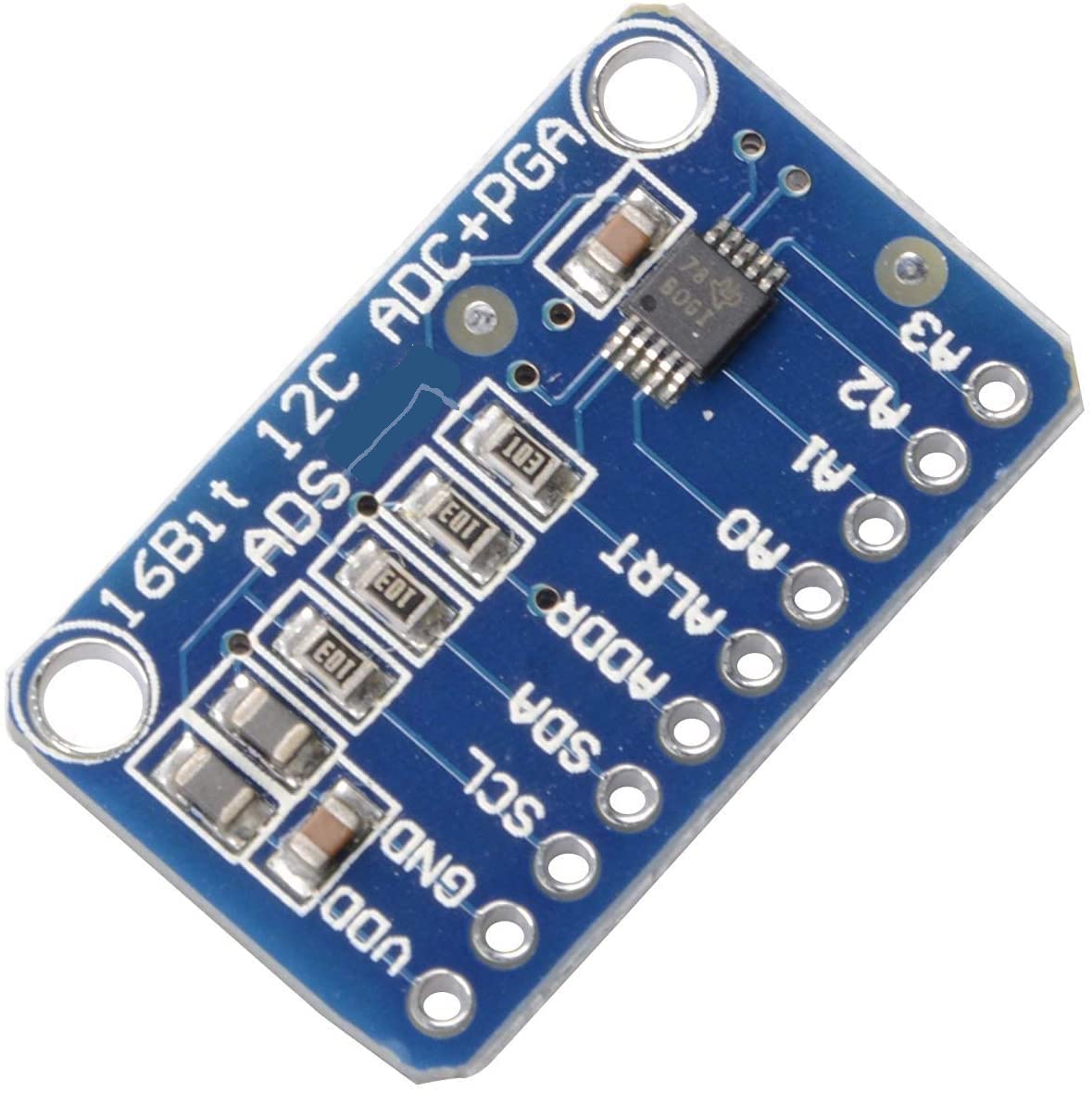

DollaTek 16 Byte 4 Channel I2C IIC ADC Module Precised Analog Digital Converter Develop Board

• Wide Supply Range: 2.0V to 5.5V .
• Low Current Consumption: Continuous Mode: Only 150µA ;Single-Shot Mode: Auto Shut-Down.
• BATTERY MONITORING to +125 degree
• internal low-drift AS1113/4/5 operate from a single power supply
• The ADS1113/4/5 are specified from -40 degree

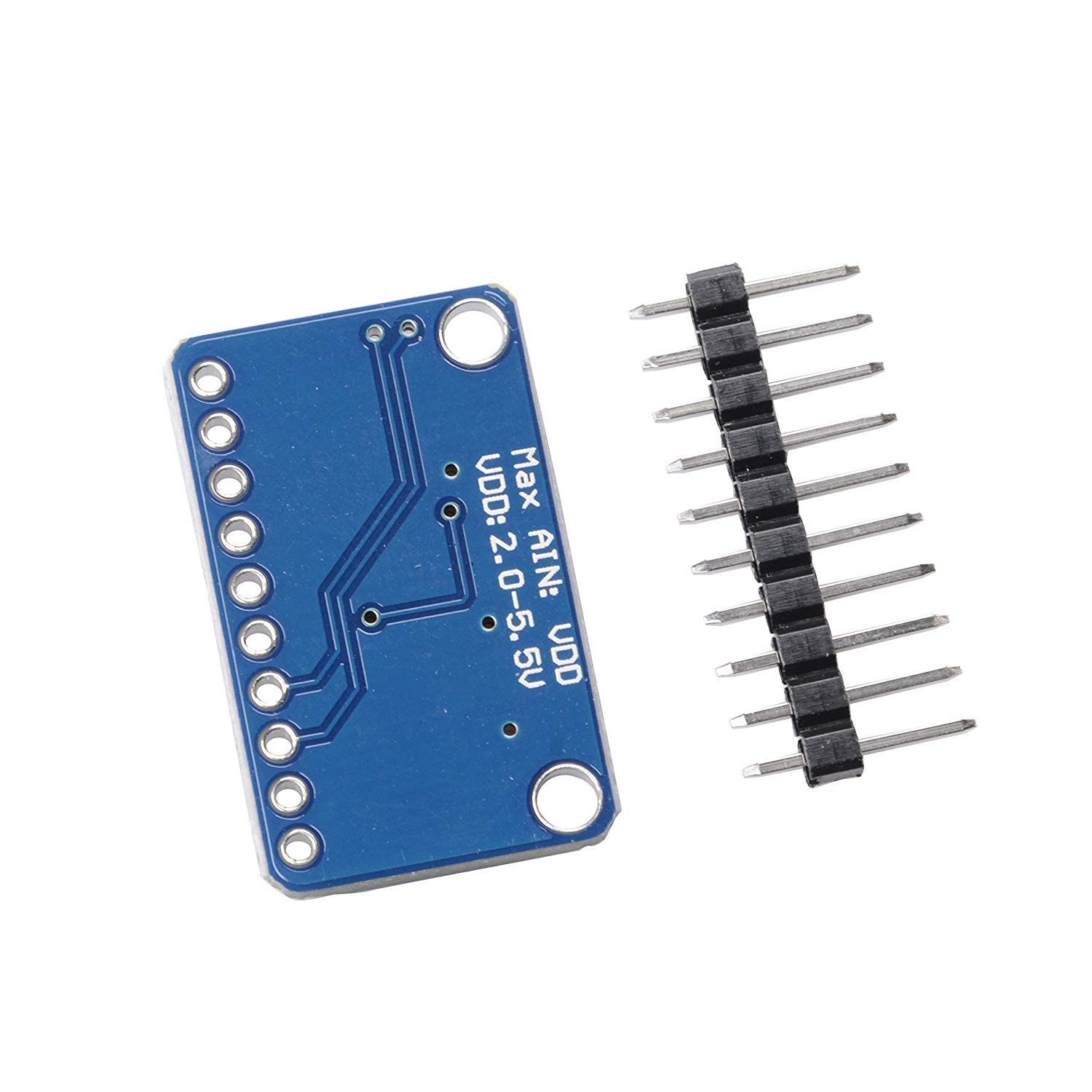

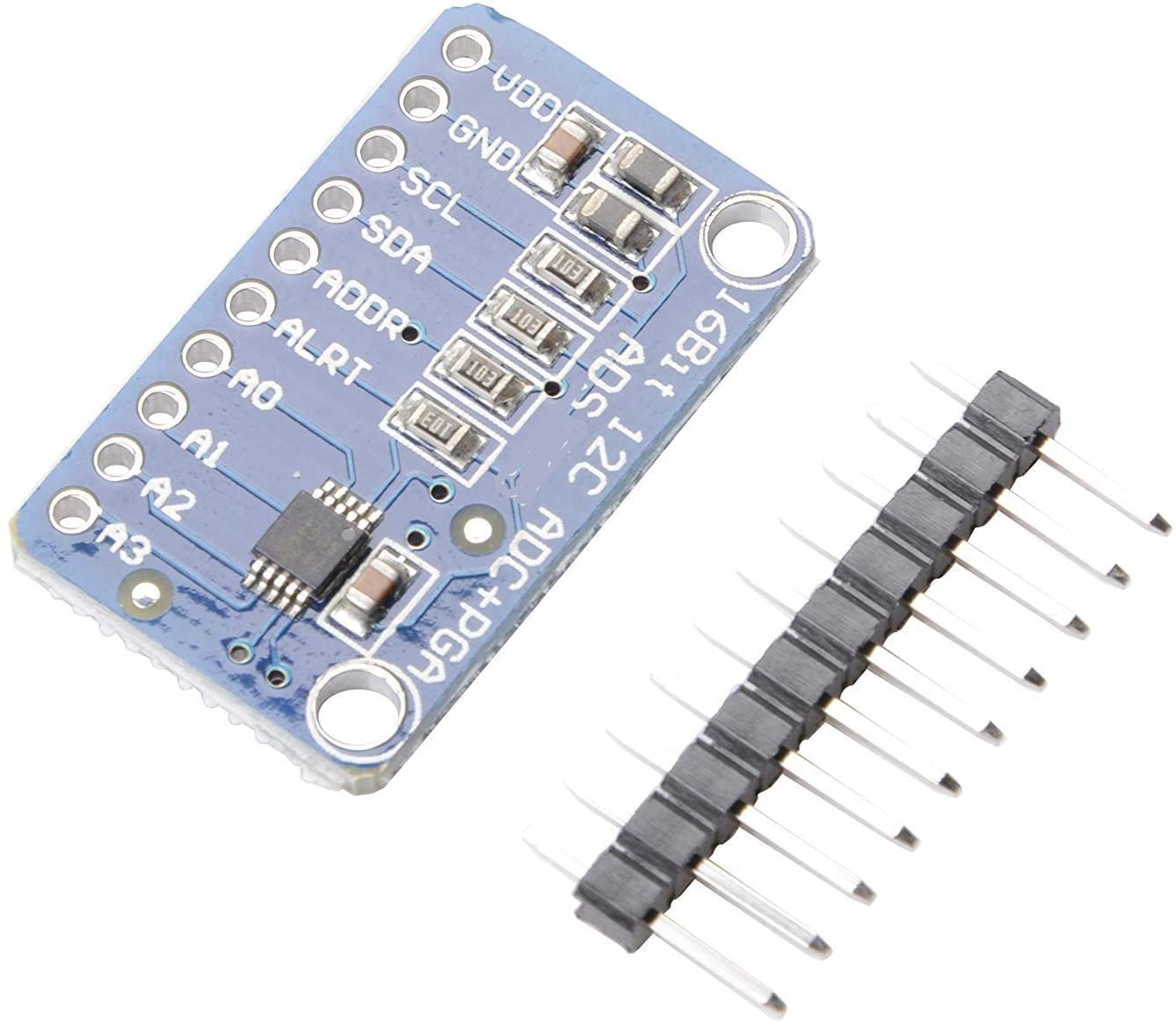

Description: ADC Bit rate: 16 Bit Interface Type: I2C Channels: 4 Channel AN0 AN1 AN2 AN3 or 2 differential inputs Input voltage: 2.0-5.5v Channel input voltage :0-VDD Continuous Mode: Only 150μA Single-Shot Mode: Auto Shut-Down PROGRAMMABLE DATA RATE:8sps-860sps Input range programmed control, 7 types input ranges: -0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V, -2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V I2C 7-bit addresses between 0x48-0x4B Package Included: 1 x ADC Module 1 x Pin
