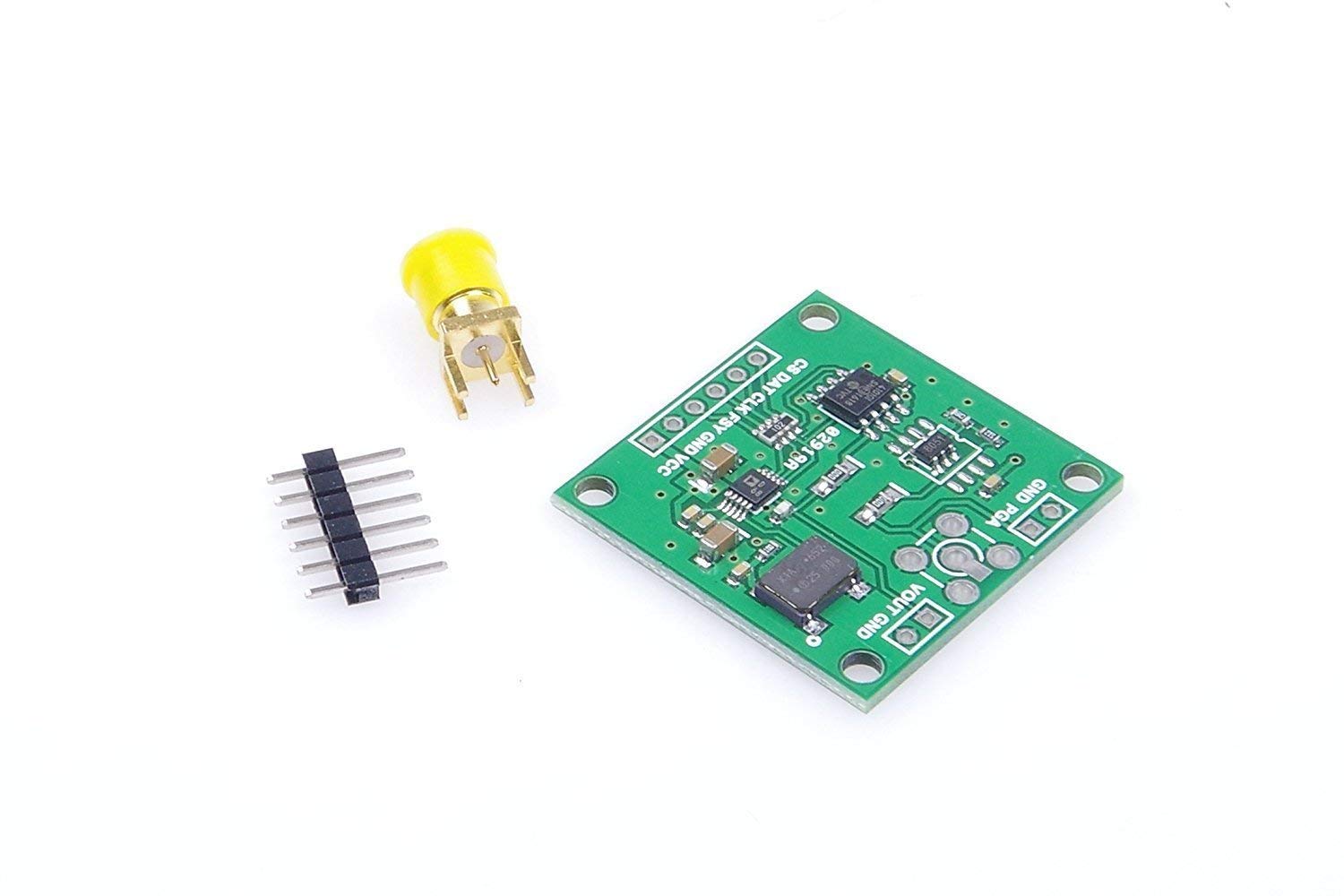

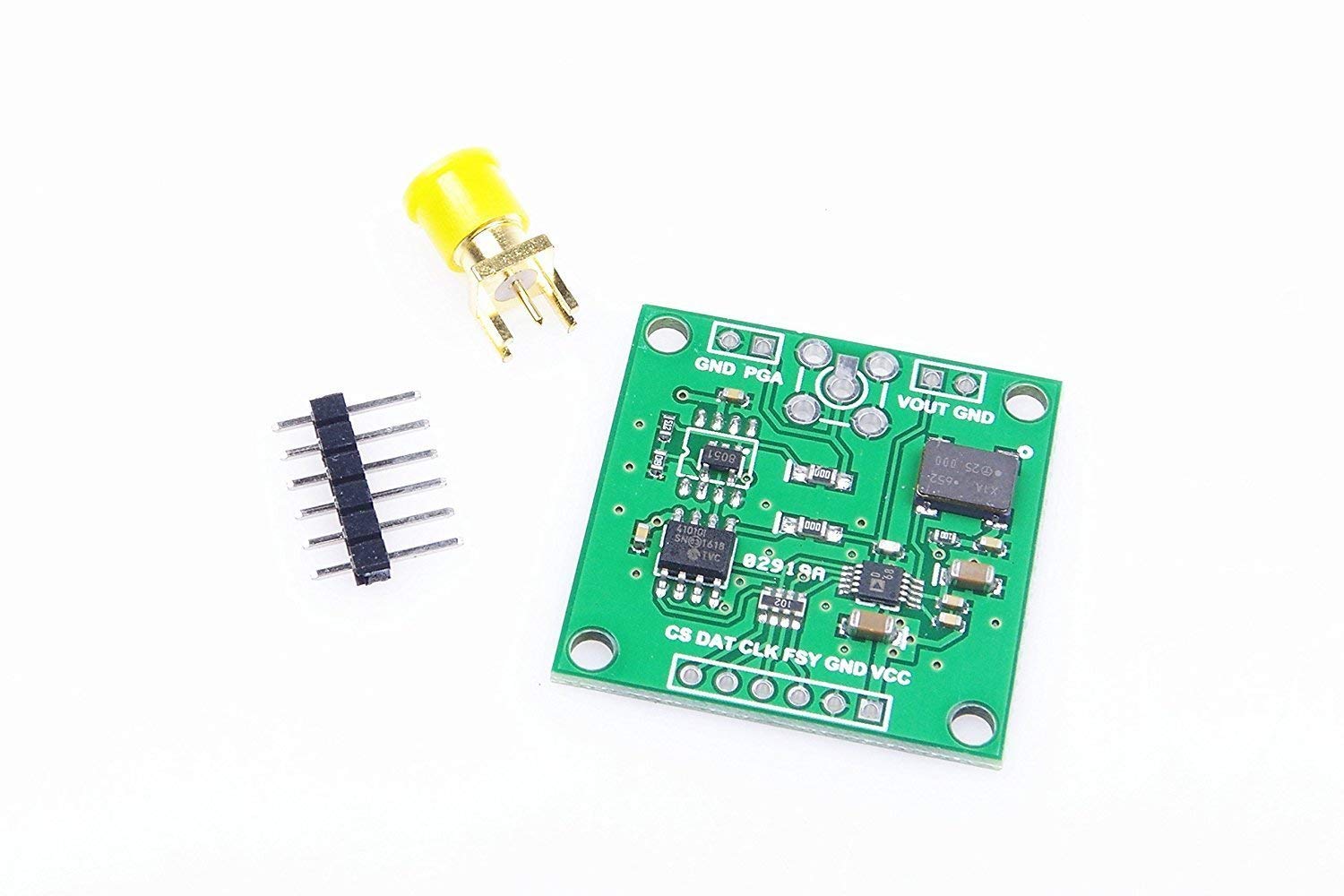

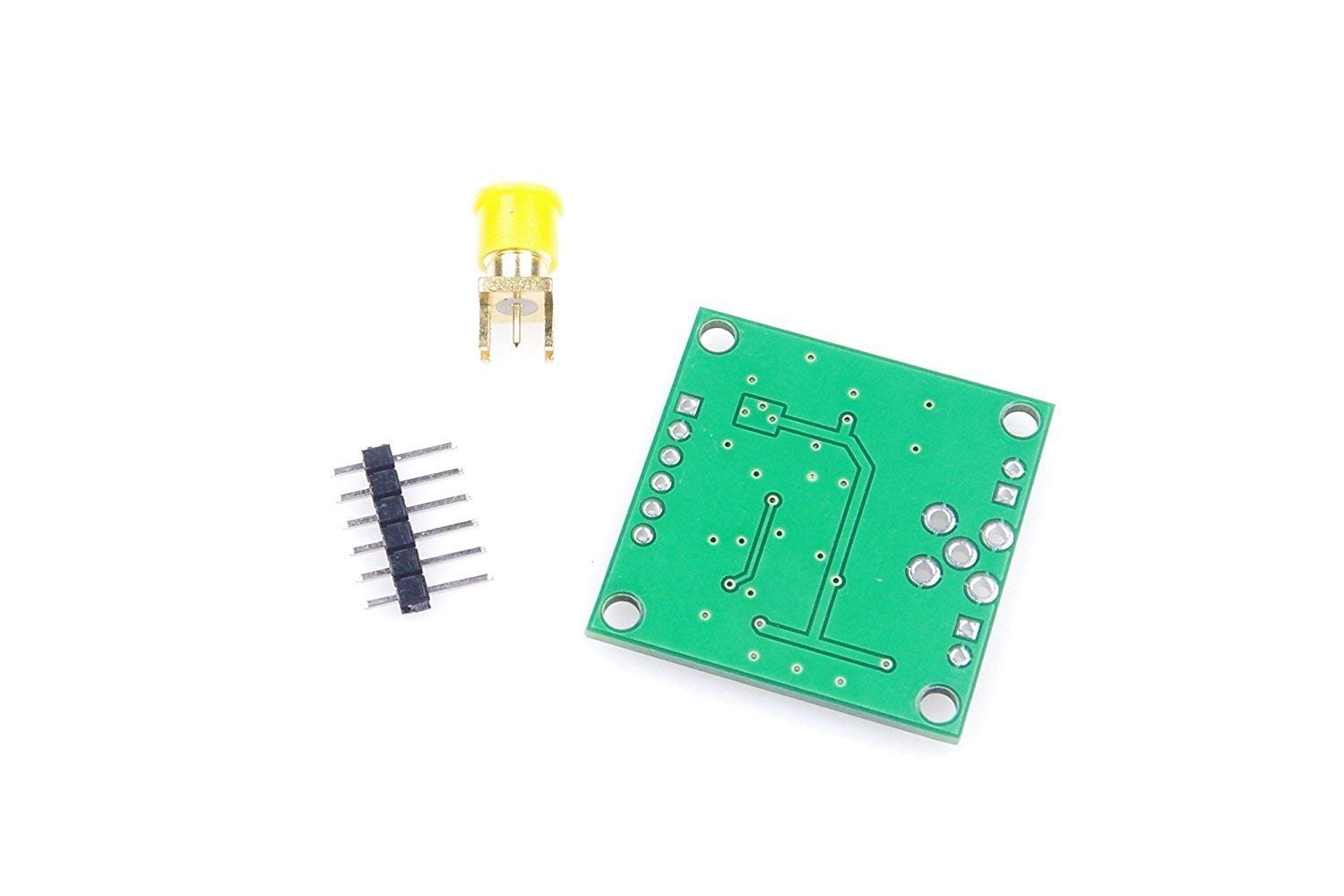

DollaTek AD9833 Triangular Sine Wave Signal Source IC Integrated Circuit Square Wave Generator Module Programmable

• The AD9833 is a programmable waveform generator capable of generating sine, triangular, and square wave signals with a frequency of 0-12.5MHZ. Waveform generators are widely used in a variety of measurement, excitation and time domain response areas
• Output frequency and phase can be programmed by software, easy to adjust, clocked at 25MHz, the accuracy of 0.1Hz, clocked at 1MHz, the accuracy can reach 0.004Hz. Data can be written via 3 serial interfaces
• Working voltage: 2.3V-5.5V. Operating temperature range: -40 ~ +105 ℃.
• Onboard 25MHZ (precision 50ppm) active crystal, step accuracy of 0.1HZ. Onboard 300M high-speed amplifier and at the same time low-pass filter function.
• Two output signal channels, an original signal output VOUT, an amplification of 5 times the signal output PGA, 50Ohm output impedance.

DollaTek trademark Reg.NO:013726393 Description: Module Features: 1.the working voltage: 2.3V-5.5V. 2.the working temperature range: -40 ~ +105 ℃ . 3.onboard 25MHZ (accuracy of 50ppm) active crystal, step accuracy of 0.1HZ. 4.onboard 300M high-speed amplifier and a low-pass filter function. 5. two output signal channels, an original signal output VOUT, an amplification of 5 times the signal output PGA, 50Ohm output impedance. 6.very small size: 32mm X 32mm. Application: Frequency excitation / waveform generation. Liquid, air flow measurement. Sensing application - approach, motion, defect detection. Linear loss, linear attenuation. Test equipment Pack include: 1x DollaTek AD9833 Triangular Sine Wave Signal Source IC Integrated Circuit Square Wave Generator Module Programmable
