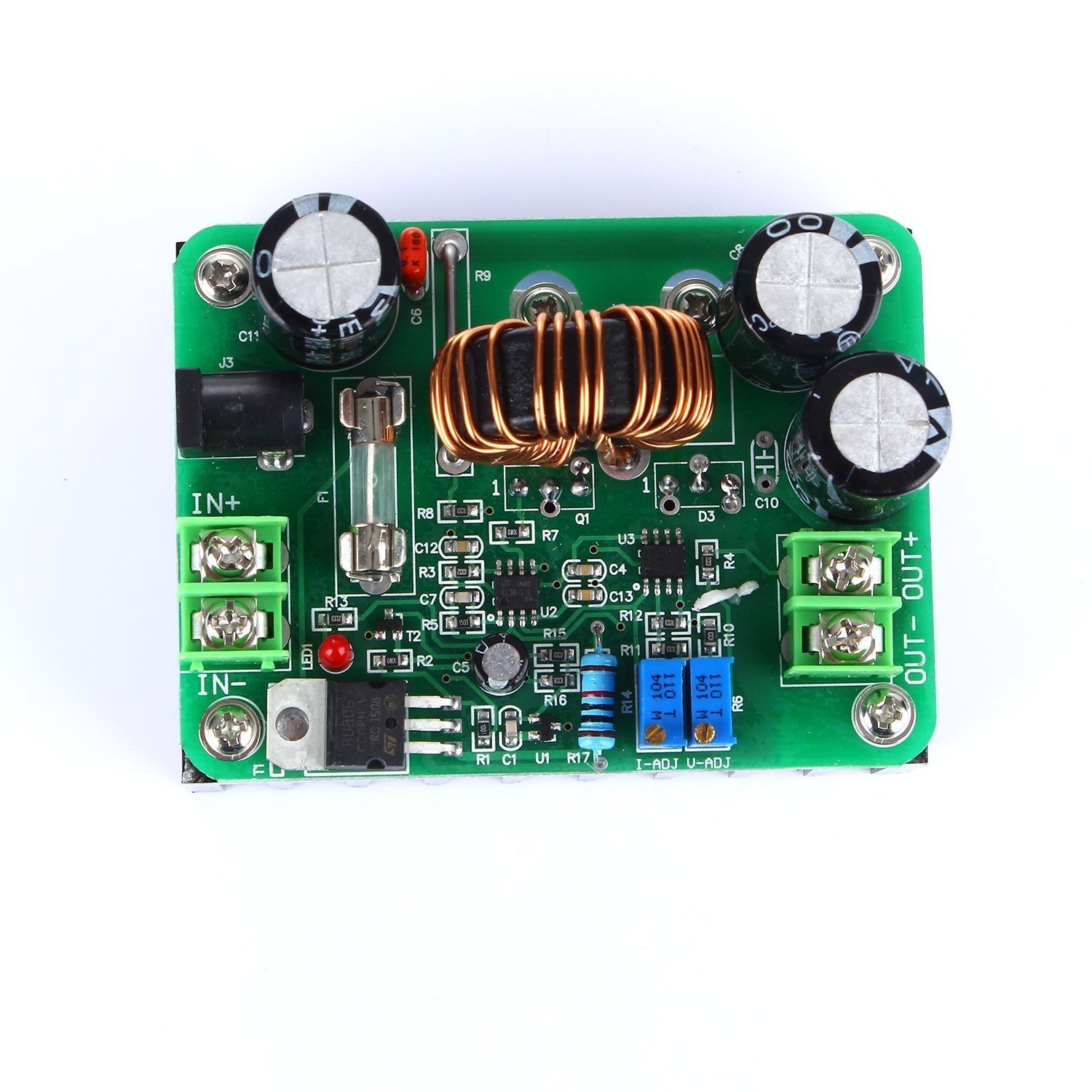

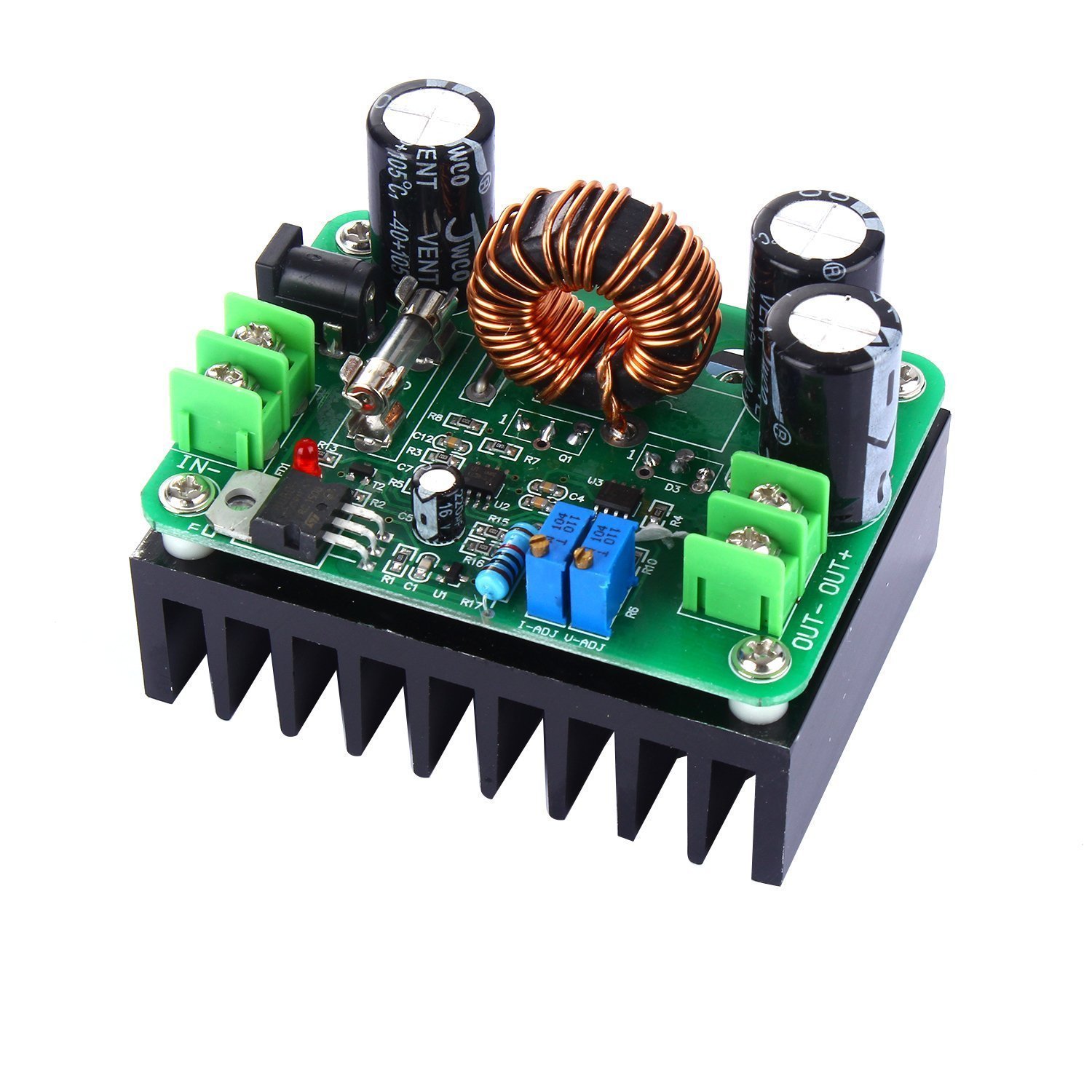

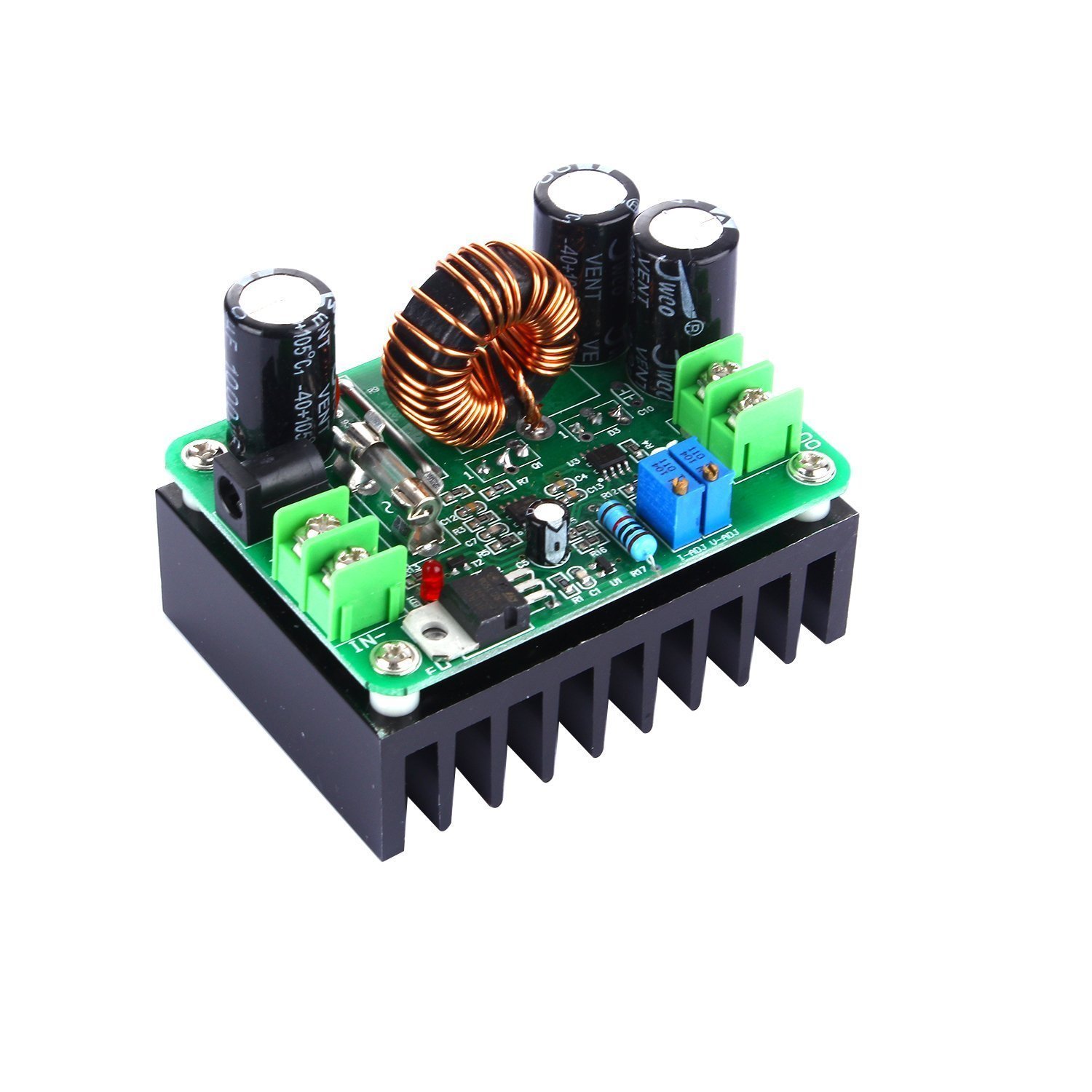

DollaTek 600W DC 10-60V To 12-80V Step-up Module Boost Power Suppy DC Converter

• Input voltage: 12V-60V
• Input Current: Maximum input current 15A
• Output voltage: 12V-80V continuously adjustable
• Output Current: Maximum output current 10A (adjustable)
• Output power: effective power P = input voltage V * 10A

DollaTek Trademark Reg.NO:013726393. Specification: Input voltage: 12V-60V. Input current: max. 15A Output voltage: 12V-80V continuously adjustable Output current: max. 10A Adjustable Output power: net power P = input voltage V x 10A Efficiency: max. 95% (input voltage and current and output voltage and current affect efficiency) Short circuit protection: fuse Scope of application: 1. DIY an adjustable power supply of the vehicle, you only need access to the 12V power supply, the output voltage can be freely adjustable (14V-80V), but the output voltage can not be lower than the input voltage. 2. Universal car laptop power supply. 12V power supply connected to the output of the voltage regulator in a laptop need to work. 3. Boost charger, you can use 12V power supply higher than 12V battery, for example, 24V battery, and the charging current can be adjusted. 4. Power supply of electronic equipment, as long as the voltage regulator to the desired voltage and current does not exceed the rated current can all work properly. Delivery: 1 x DollaTek converter module
