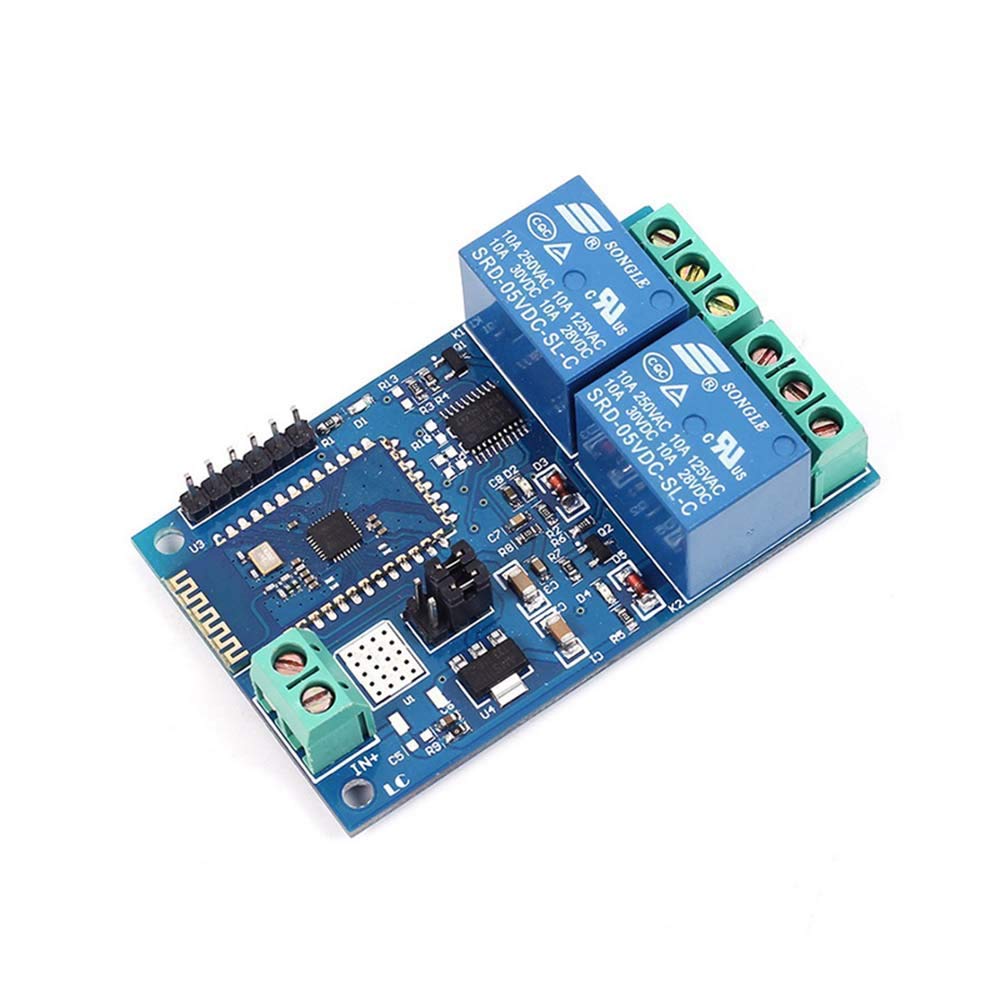

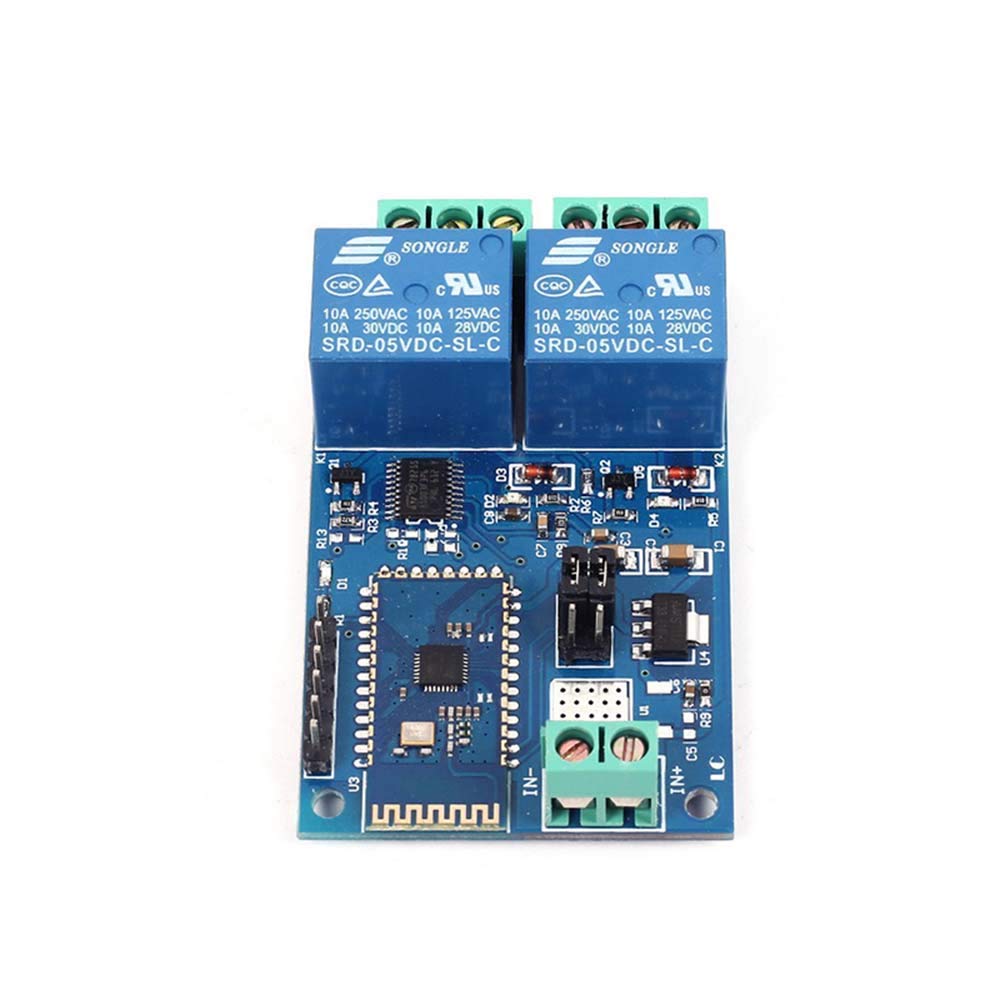

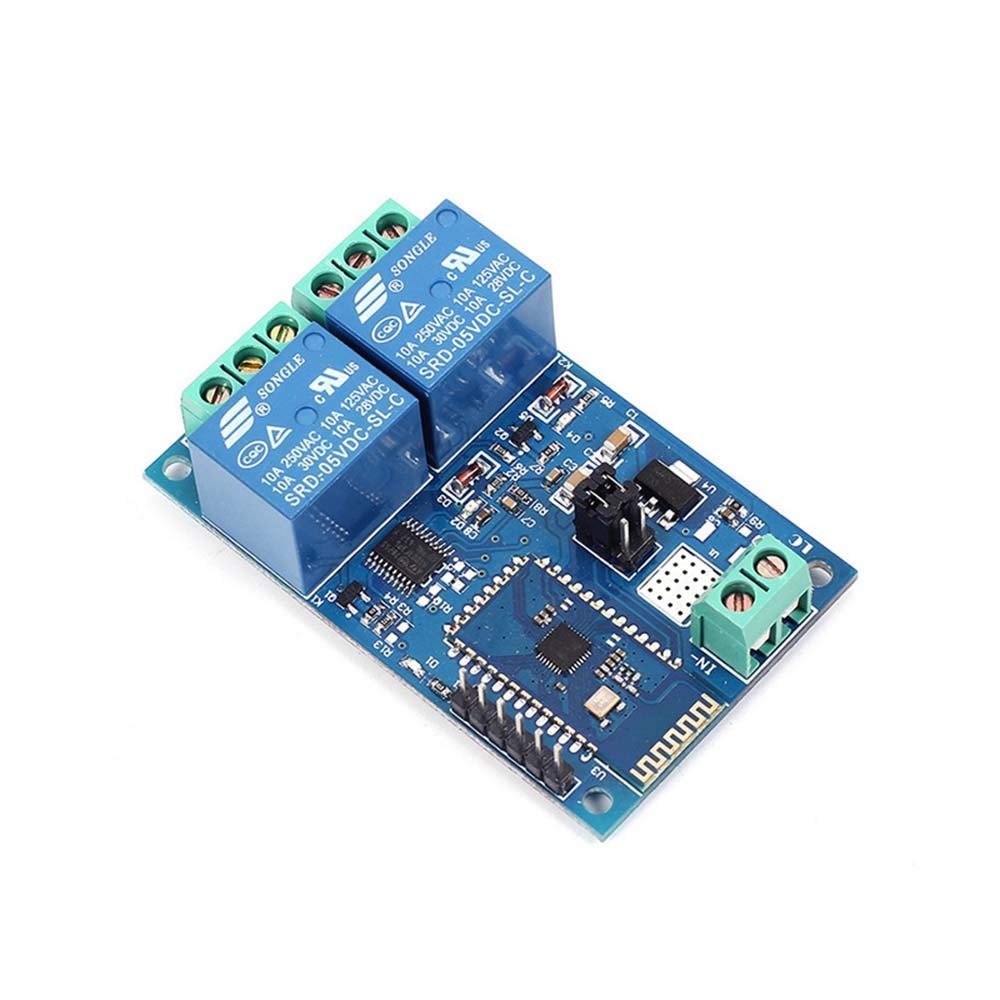

DollaTek 5V 2 Channel Bluetooth Relay IOT Smart Home app Remote Control

• On-board loaded 8bit high performance MCU and spp-c bluetooth 2.1 slave module
• Provide bluetooth relay control app Distance control : 10M (without obstacle )
• Working voltage : DC5V
• On board 2 way 5V,10A/250V AC 10A/30V DC relay, can be used continuously for 100 thousand times, with diode discharge protection within short time.
• With bluetooth status indicator and relay indicator .Reserved UART debugging interface and MCU program download port.Board size :40*64.5mm

Functions: 1.On-board loaded 8bit high performance MCU and spp-c bluetooth 2.1 slave module 2.Provide bluetooth relay control app 3.Distance control : 10M (without obstacle ) 4.Working voltage : DC5V 5.On board 2 way 5V,10A/250V AC 10A/30V DC relay, can be used continuously for 100 thousand times, with diode discharge protection within short time. 6.With bluetooth status indicator and relay indicator . 7.Reserved UART debugging interface and MCU program download port. 8.Board size :40*64.5mm Interface Introduction : IN+、IN-：5V voltage input TX、RX：UART serial port PIN 5V、GND、SWIM、NRST：program download port LED D2/D4（red ）:working indicator , turn on when relay is on . LED D1(blue）:Bluetooth status indicator, exact function as follows: (1)Slow flash means waiting for a connection to the phone. (2)When it is always bright, it connects phone already Package Included: 1x 5V 2 Channel Bluetooth relay IOT Smart home app remote control Installation note: Install android mobile terminal ""LCBS test procedure"" APP, bluetooth serial transmission tool, open the APP, click ""search"" bluetooth, mobile phones connected to the bluetooth module, input password and click confirm, after the connection is successful, blue light turns slow flash into always on, and then click on the square to control relay switch"
