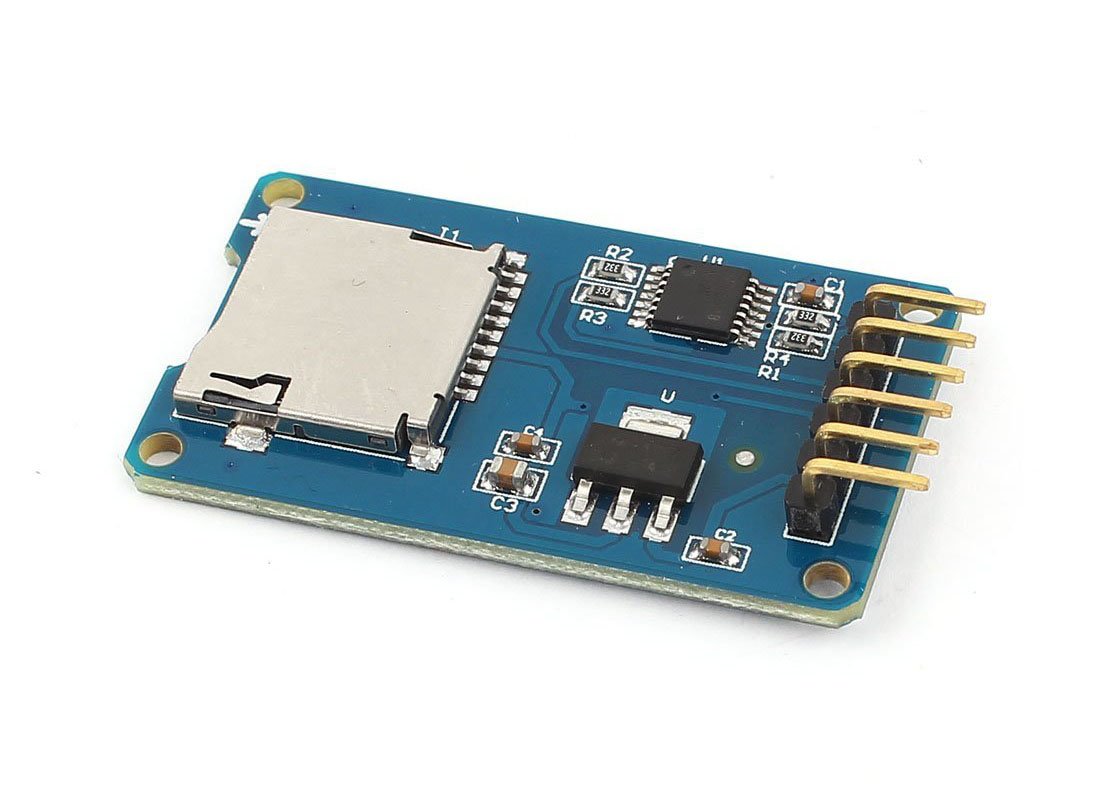

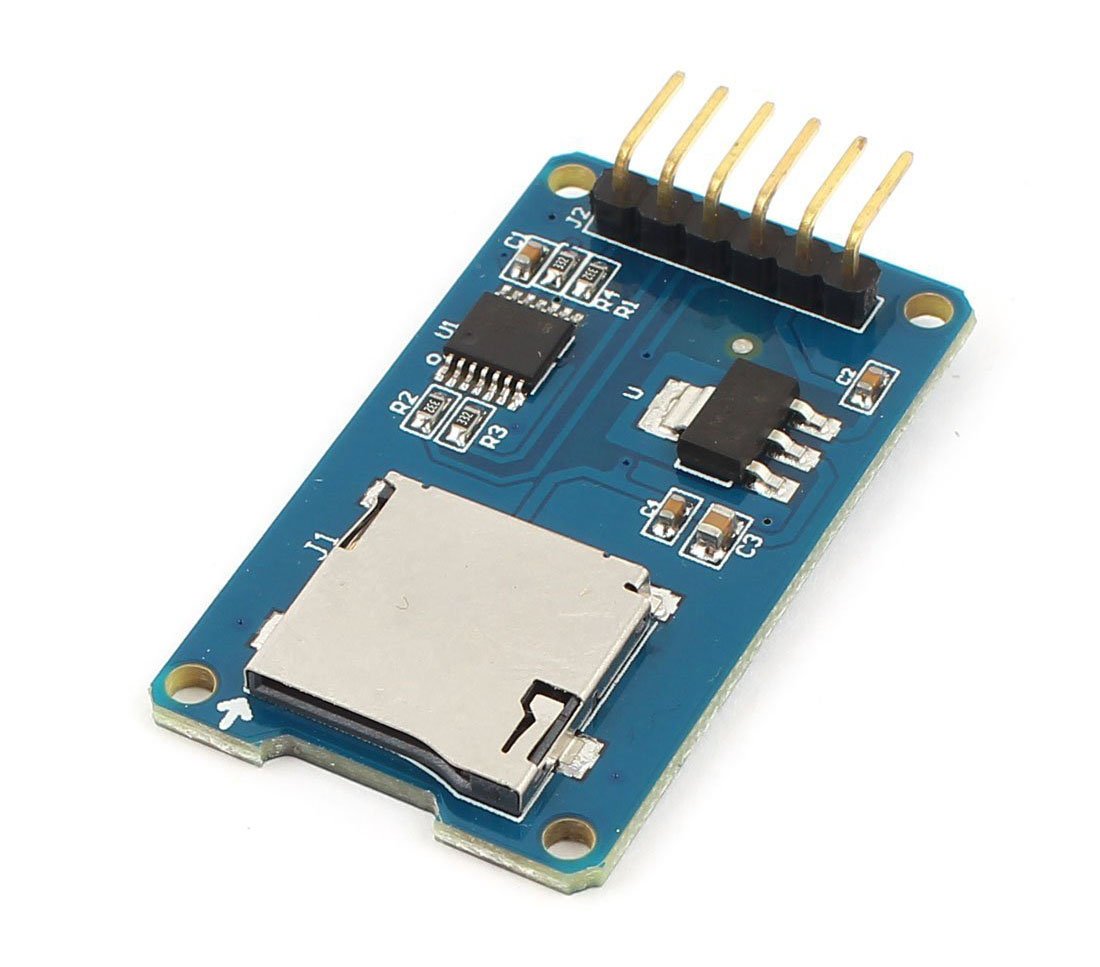

DollaTek 5PCS Micro SD TF card reader module SPI interface with chip level conversion

• Support Micro SD card, Micro SDHC card (high speed card)
• board level conversion circuit, namely the interface level for 5V or 3.3V
• power supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit board
• The communication interface is a standard SPI interface
• M2 screw positioning holes for easy installation

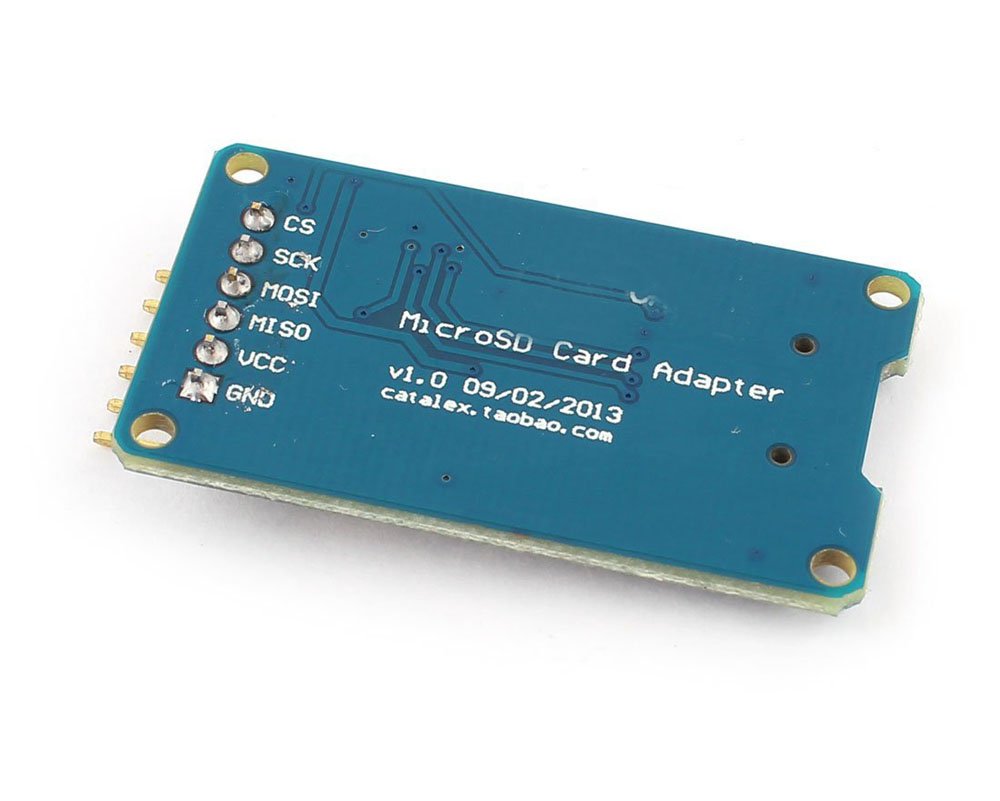

DollaTek trademark Reg.NO:013726393 Specifications: The module (MicroSD Card Adapter) is a Micro SD card reader module, through the file system and the SPI interface driver, SCM system to complete the file to read and write MicroSD card. Arduino users can directly use the Arduino IDE comes with an SD card to complete the library card initialization and read Module features are as follows: 1 Support Micro SD card, Micro SDHC card (high speed card) 2.-board level conversion circuit, namely the interface level for 5V or 3.3V 3 power supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit board 4.The communication interface is a standard SPI interface 5.4 M2 screw positioning holes for easy installation Interface Description: Control Interface: A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the power supply, MISO, MOSI, SCK for SPI bus, CS is the chip select signal pin; 3.3V regulator circuit: LDO regulator output 3.3V for level conversion chip, Micro SD card supply; Level conversion circuit: Micro SD card to signal the direction of converts 3.3V, MicroSD card interface to control the direction of the MISO signal is also converted to 3.3V, general AVR microcontroller systems can read the signal; Micro SD card connector: self bomb deck, easy card insertion. Positioning holes: 4 M2 screws positioning holes with a diameter of 2.2mm, so the module is easy to install positioning, to achieve inter-module combination Size: app.4.4*2.4cm Package Includes: 5 x Micro SD TF card reader module SPI interface with chip level conversion
