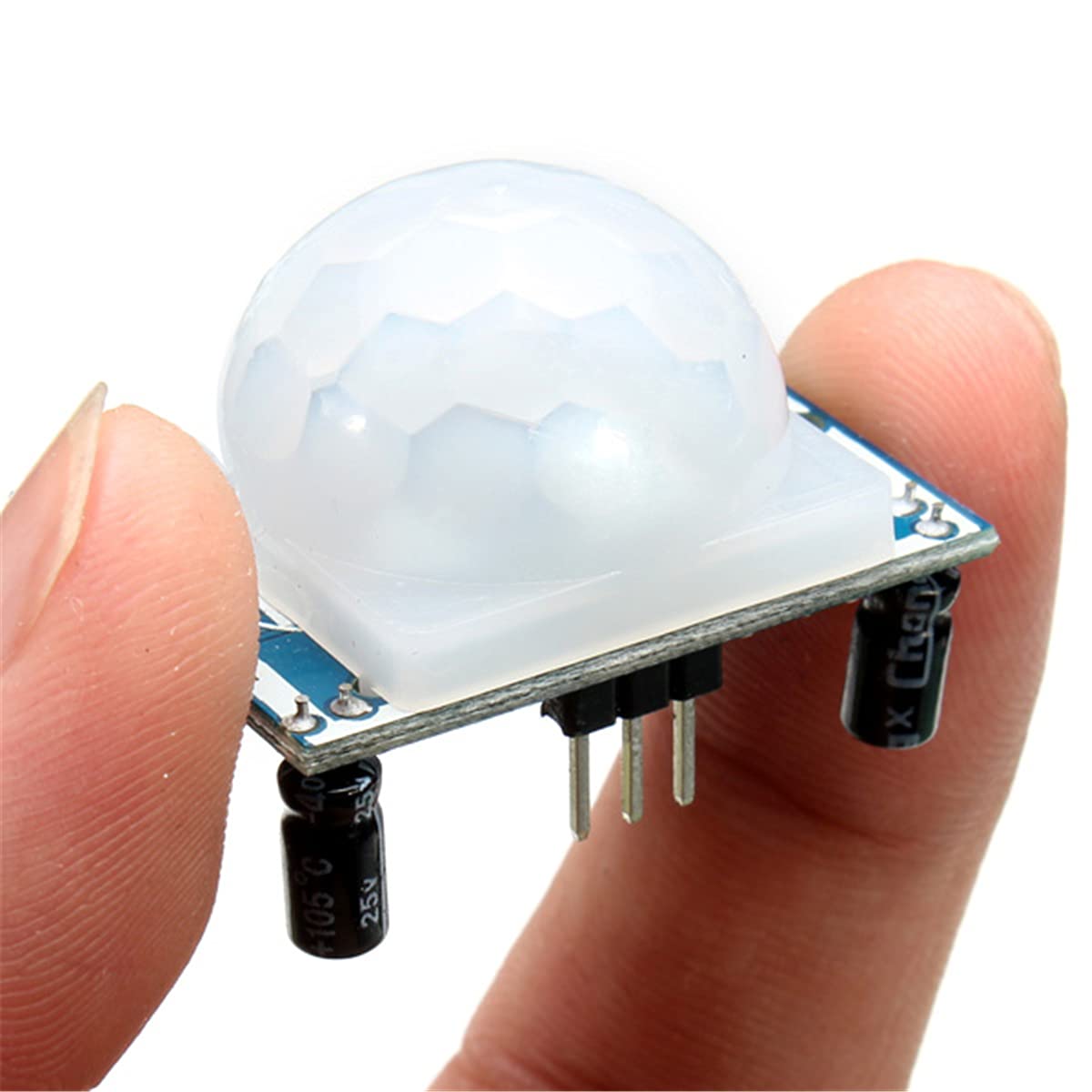

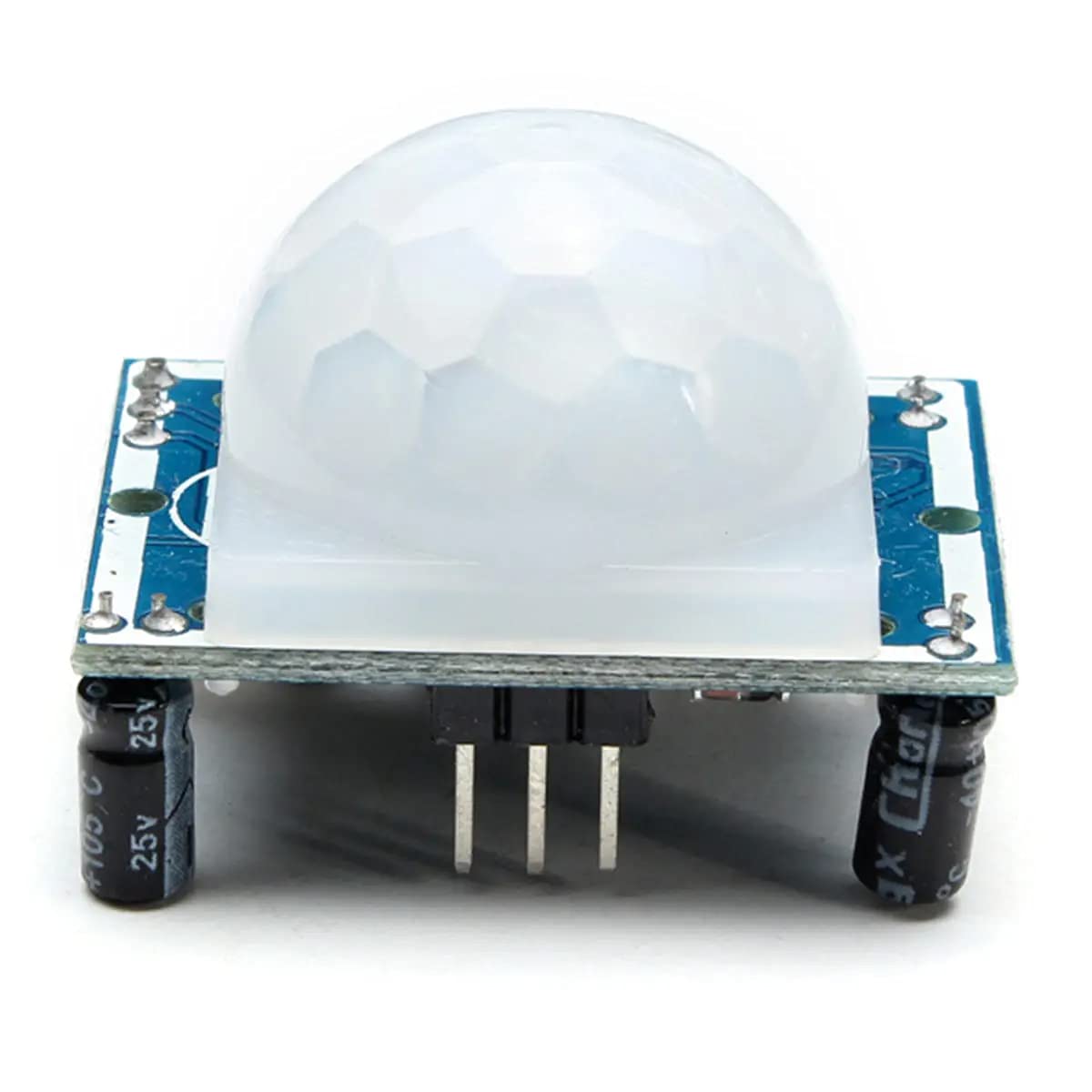

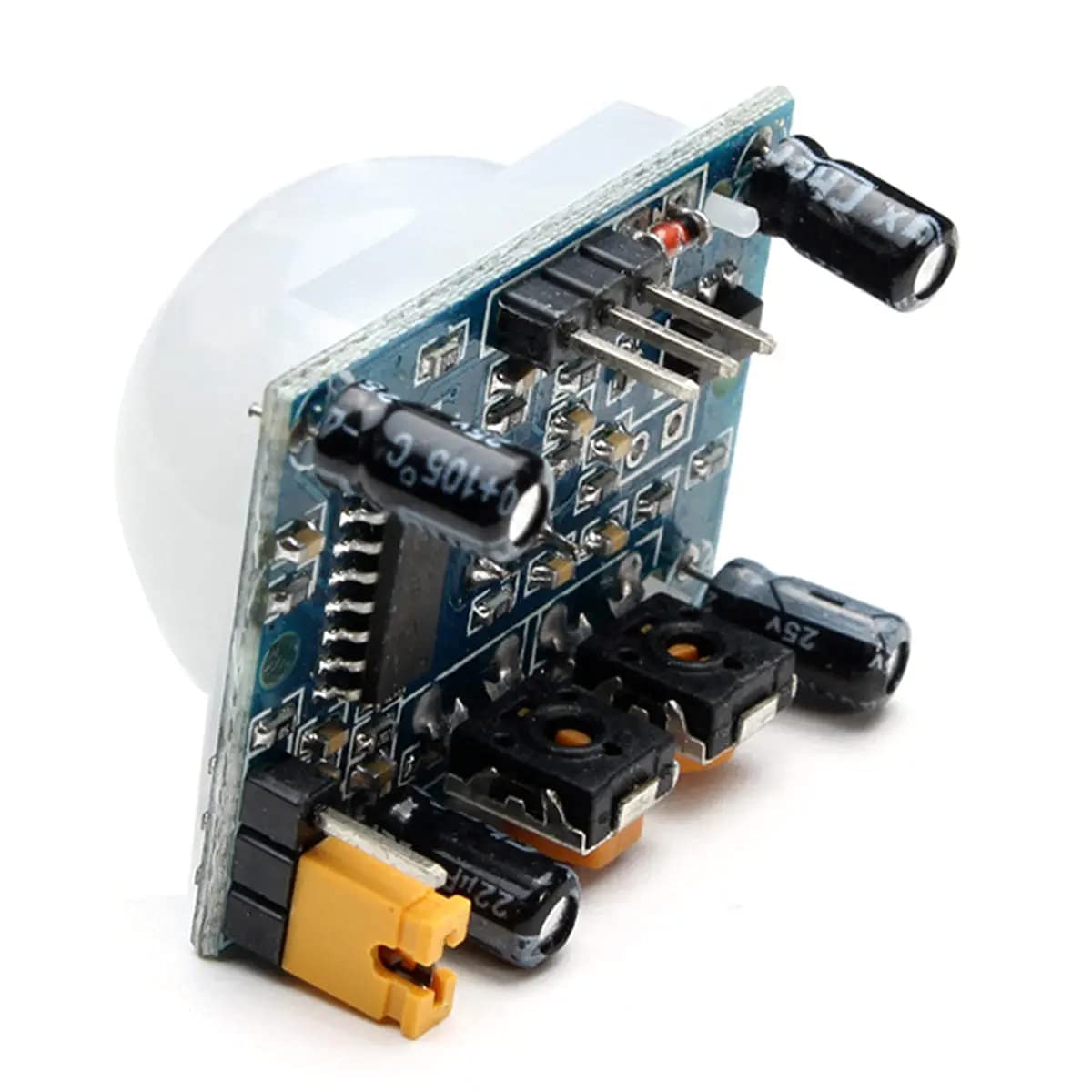

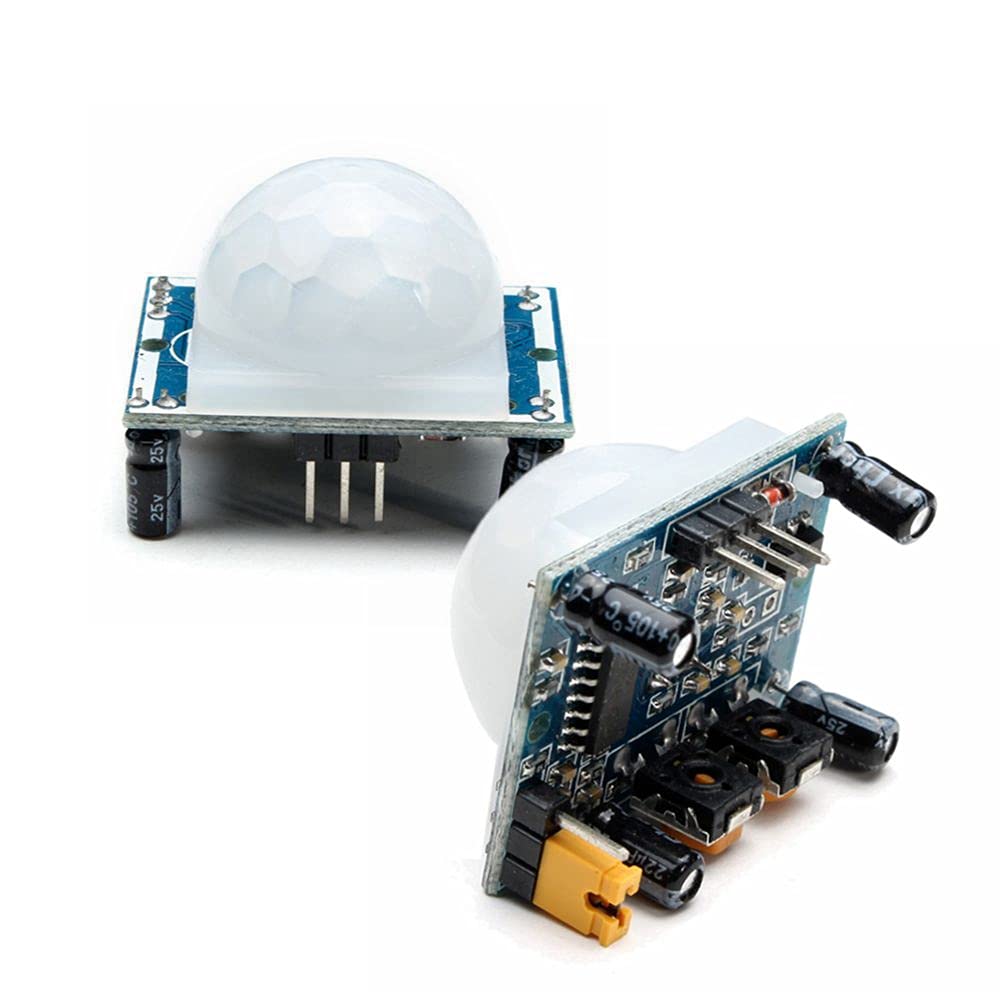

DollaTek 5pcs Human Sensor Module Pyroelectric Infrared PIR Motion Detector Modules

• 100% brand new with good quality. Product Type: Body Sensor Module.
• Operating voltage range: DC 4.5-20V; Board Dimensions: 32mm*24mm
• The automatic sensor: to enter the sensor output range is high, people leave the sensor range of the automatic delay off high, output low.
• Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)
• Ideal for Arduino, Raspberry Pi, PIC and more.

Specifications: Operating voltage range: DC 4.5-20V Angle Sensor: <100 ° cone angle Lens size Level output:High3.3V/Low0V sensor:Diameter:23mm(Default) BoardDimensions:32mm*24mm Operation Temp: -15-+70 degrees Delay time: 5-200S(adjustable) the range is (0.xx second to tens of second) Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds At default sensitivity it would trigger easily from 8-10' away Precautions: The DC operating voltage must meet the values we require. Both too high and too low will affect the performance of the module. Try to keep the body away from the sensing area as far as possible. The human body sensing module is recommended to be installed in a sealed box, otherwise it may always have an output signa. The human body sensing module can only work indoors and avoid direct glare. The sensing area avoids facing the heating appliances and objects as well as the sundries or clothes which are easy to be blown by the wind. Application: It can automatically and quickly open various types of incandescent, fluorescent lamps, buzzer, automatic doors, electric fans,automatic washing machine and dryer machines and other devices,is a hightech products. Especially suitable for enterprises, hotels, shopping malls, warehouses and family aisles,corridors and other sensitive Sense of region, or for the security zone automatic lighting, lighting and alarm systems. Package Included: 5x PIR Infared Sensor Module
