DollaTek -50-110°C W1209 DC 12V Digital Mini Thermostat Temperature Controller Control Switch Sensor Module

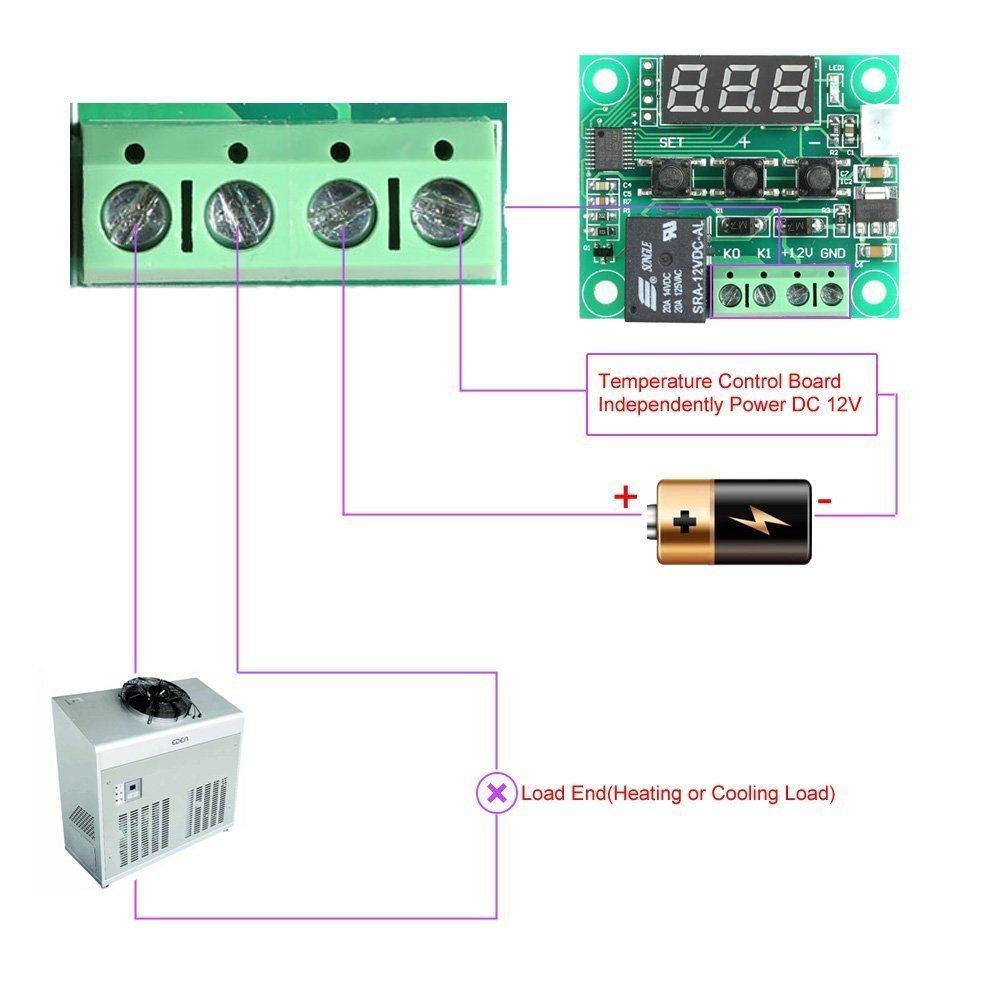

• Connect the power supply and the load, then you can supply to the controller.
• Now the controller automatically performs the relay by setting off.
• This temperature controller output is 10A relay, meeting various high-power loads.
• Indicator: OFF indicates the relay is switched off; ALWAYS indicates the relay is closed.

DollaTek -50-110°C W1209 DC 12V Digital Mini Thermostat Temperature Controller Control Switch Sensor Module Description: This Temperature Control Controller can used in the (liquid, mold, space) and other control heating, also can be used (box, the device, water, pet rooms, air conditioning) and other control refrigeration. Specifications Temperature range :-50-110 °C Resolution: When temperature is 0.1°C, the resolution is -9.9~99.9, other temperature segment is 1°C Control accuracy: 0.1 °C Hysteresis accuracy: 0.1°C Refresh rate: 0.5S High temperature protection: 0-110°C Supply voltage: DC 12V Static current:≤35MA, attract current≤65MA Output voltage: DC 12V Output power: 10A relay Measurement input: NTC (10K 0.5%) Waterproof Sensor Environmental requirements: -10 ~ 60, Humidity 20% -85% How to use: Connect the power supply and the load, you can supply to the controller, Is displayed as a measured temperature, Press the SET button, the display flashes the temperature, Press - to set the desired temperature, After setting press SET to confirm return, The controller automatically performs the relay by setting off! Lights, LED status descriptions: Indicator: Off The relay is switched off, Always indicate the relay is closed. LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection. Package included: 1x digital temperature control switch
