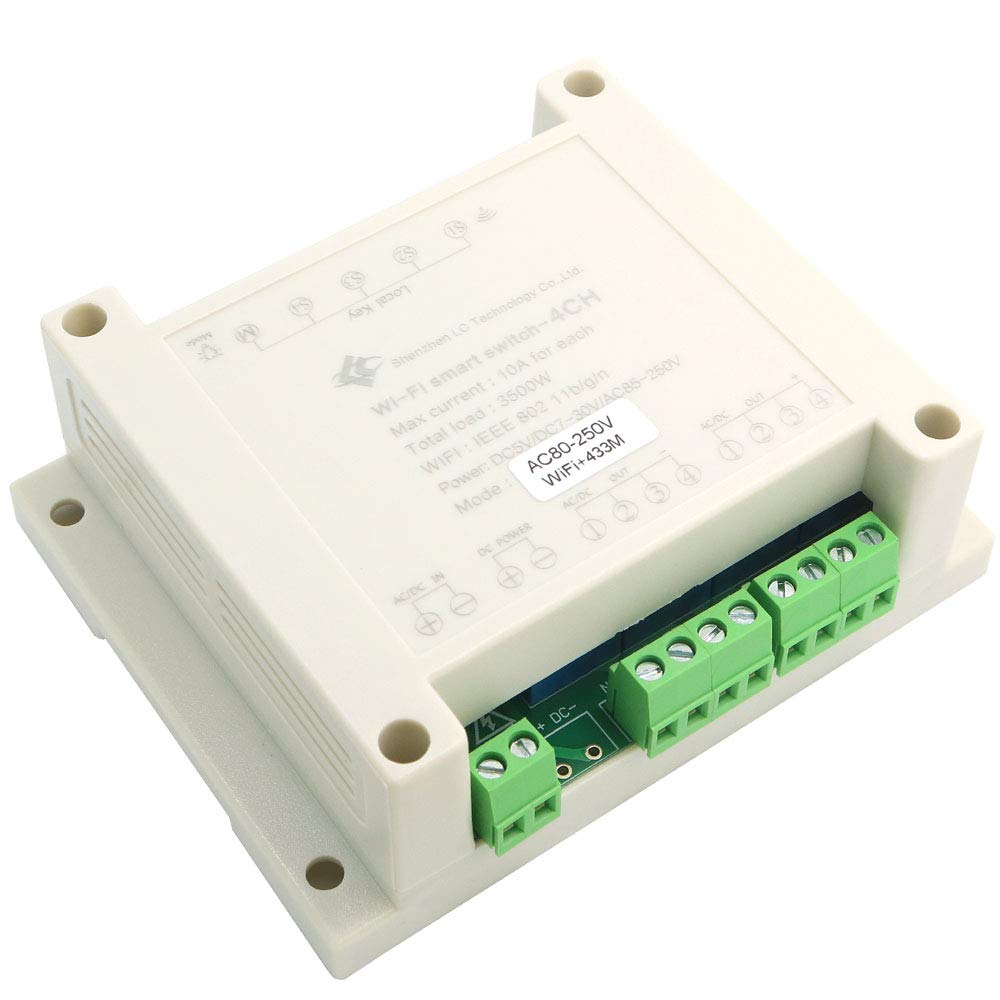

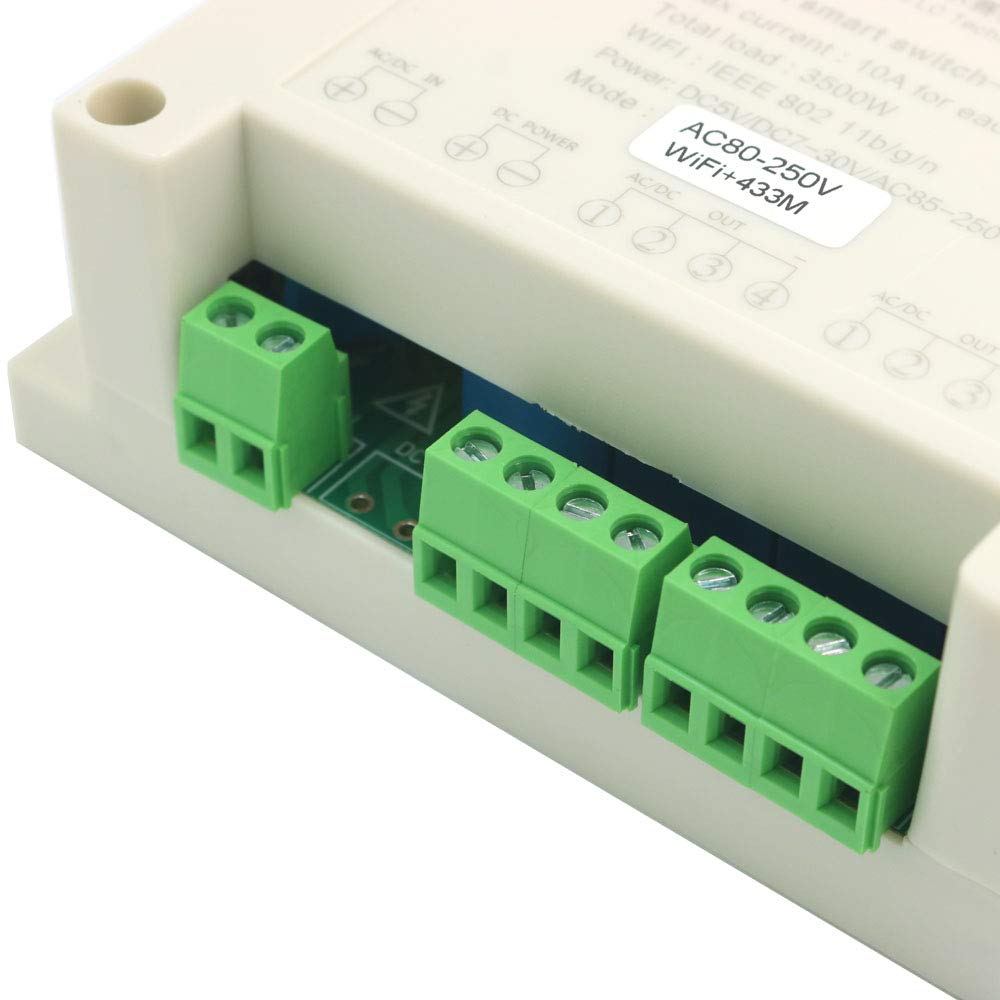

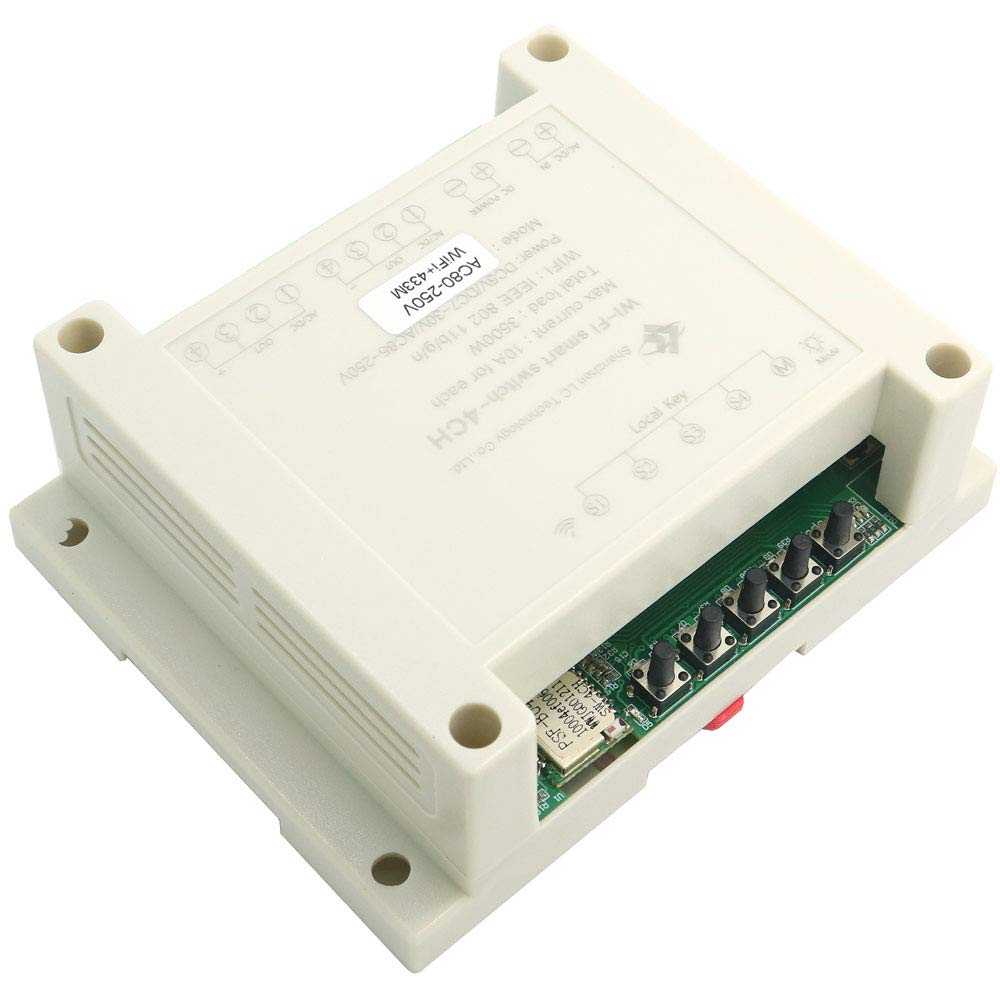

DollaTek 4-Way WiFi Remote Wireless Smart Switch DIY Home Timing/Delay Self-Latching/Inching/Interlocking Relay - Have Shell 220V+433M Remote Control

• 4 way WiFi Remote Wireless Smart Switch DIY Home Timing/Delay Self-Latching/Inching/Interlocking relay
• Self-latching mode: All channels are mutually independent,press the button to open the channel and it will close when button be pressed again
• Inching mode: All channels are mutually independent,press the button to open the channel and it will close automatically after 1S delay
• Interlocking mode: All channels are correlative,only one channel is allowede to open at the same time
• Mode Switch: Default is self-latching,press the key Mode to switch the device's mode.For the mode indicator,M1(red) is self-latching,M2(blue) is inching,M3(green) is interlocking

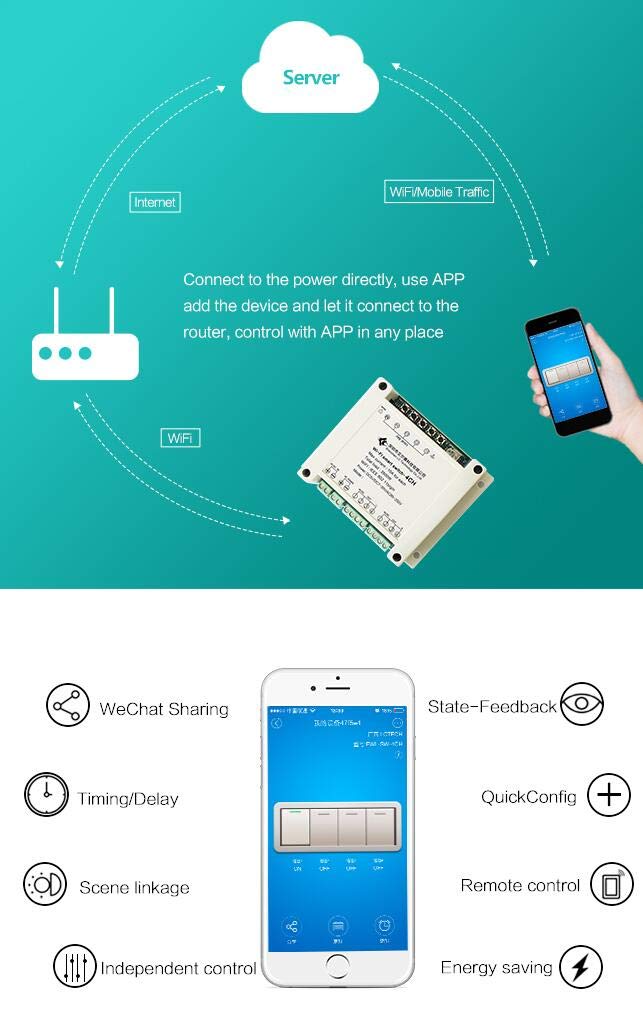

Features: Wechat sharing/Timing/delay/Scene linkage/Independent control/State-feedback/QuickConfig/Remote control/Energy saving Parameters: Controlled voltage:DC0-30V/AC0-250V Power supply:AC80-250V WIFI STANDARD:2.4GHz b/g/n Max total power:3500W Max current:10A Size:93*87mm Material:PCB Weight:158g Control Modes 1,Connect to the power 2,Download the eWeLink APP,enter the password 3,Successfully added Self-latching mode: All channels are mutually independent,press the button to open the channel and it will close when button be pressed again Inching mode: All channels are mutually independent,press the button to open the channel and it will close automatically after 1S delay Interlocking mode: All channels are correlative,only one channel is allowede to open at the same time Mode Switch: Default is self-latching,press the key Mode to switch the device's mode.For the mode indicator,M1(red) is self-latching,M2(blue) is inching,M3(green) is interlocking Package Included: 1x 4 way WiFi Remote Wireless Smart Switch DIY Home Timing/Delay Self-Latching/Inching/Interlocking relay1 1x 433M Remote Control"
