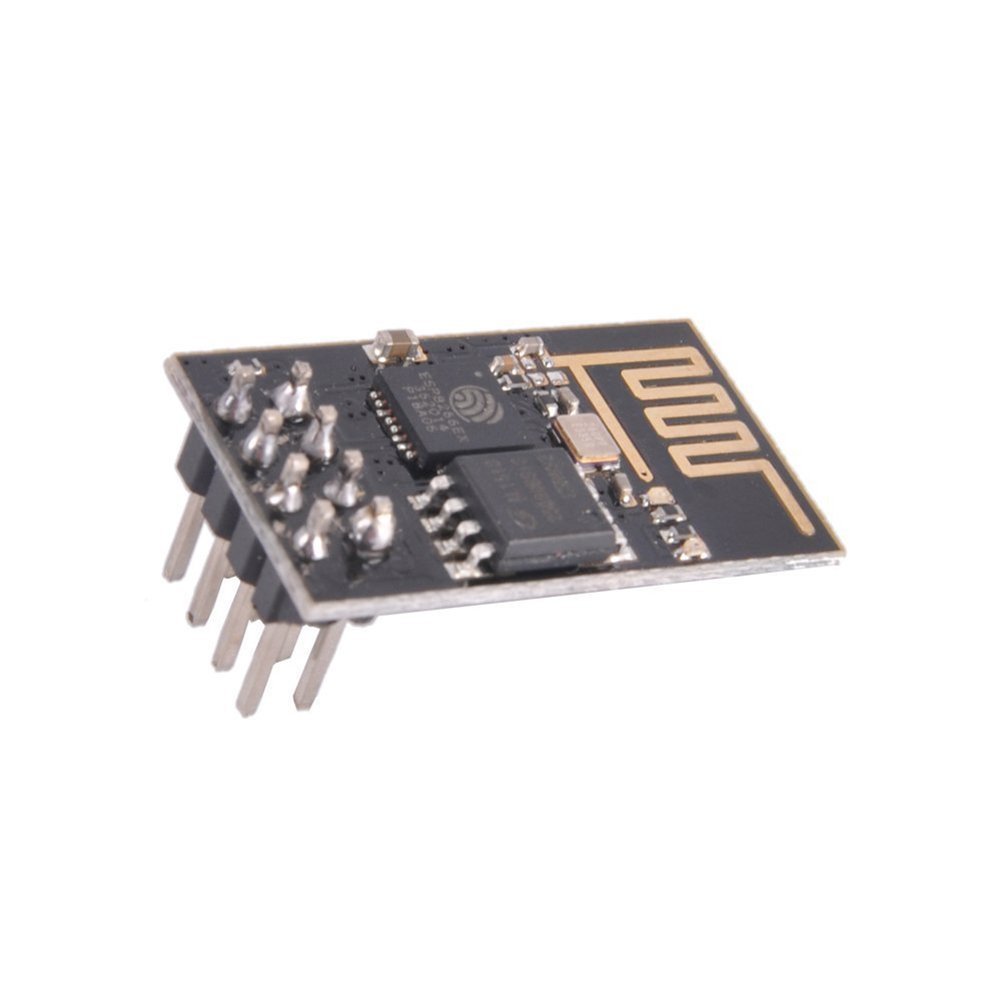

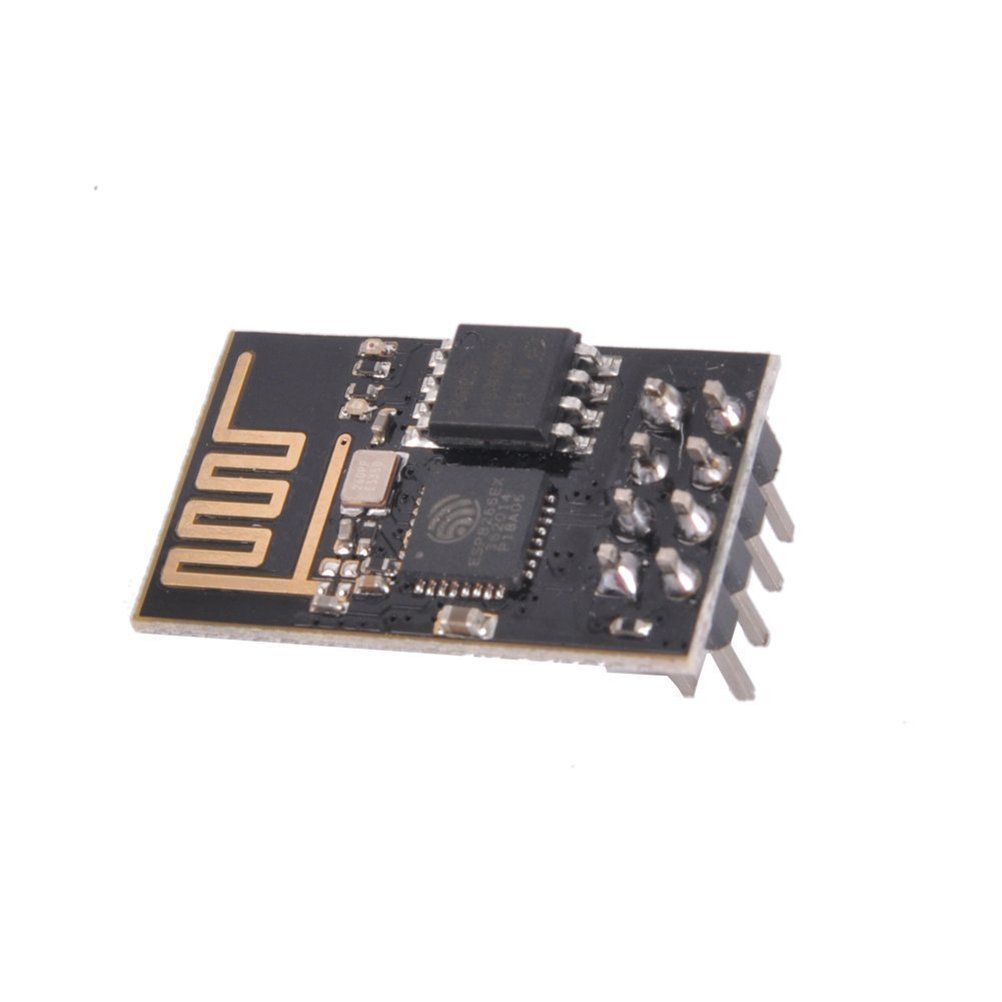

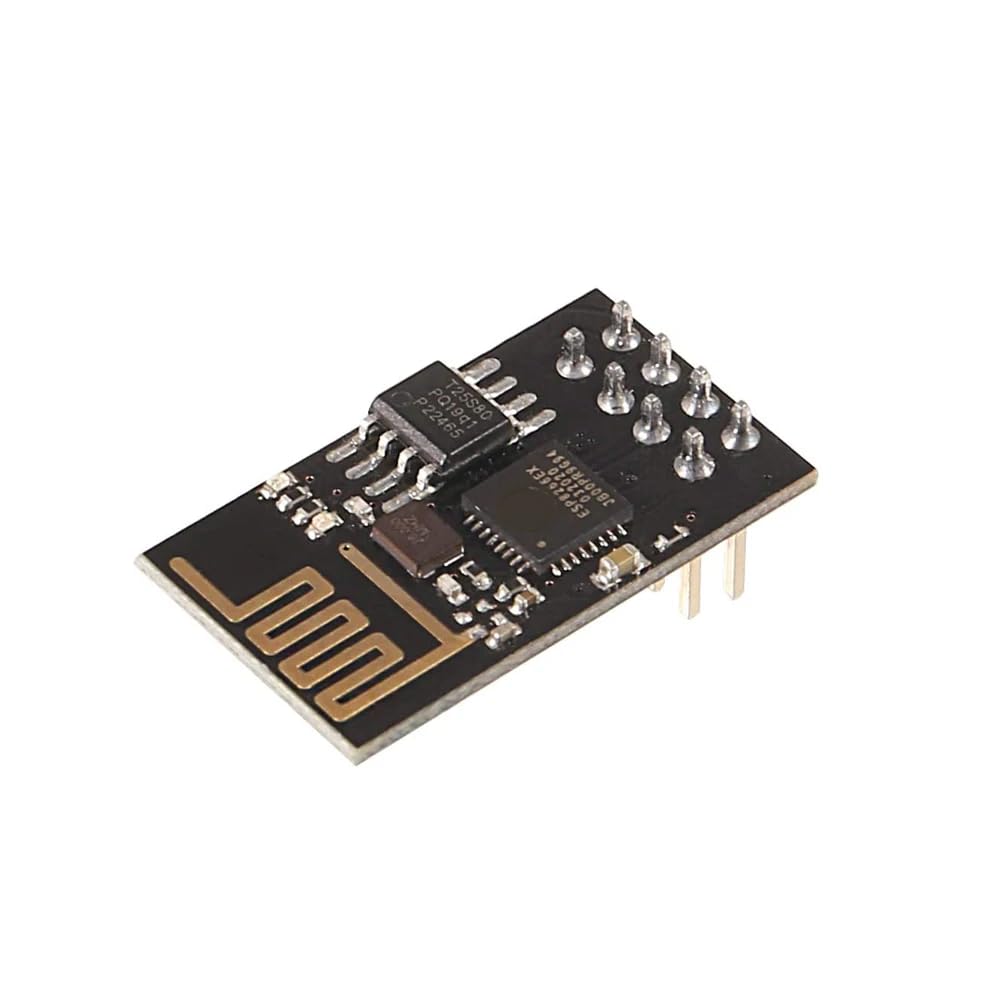

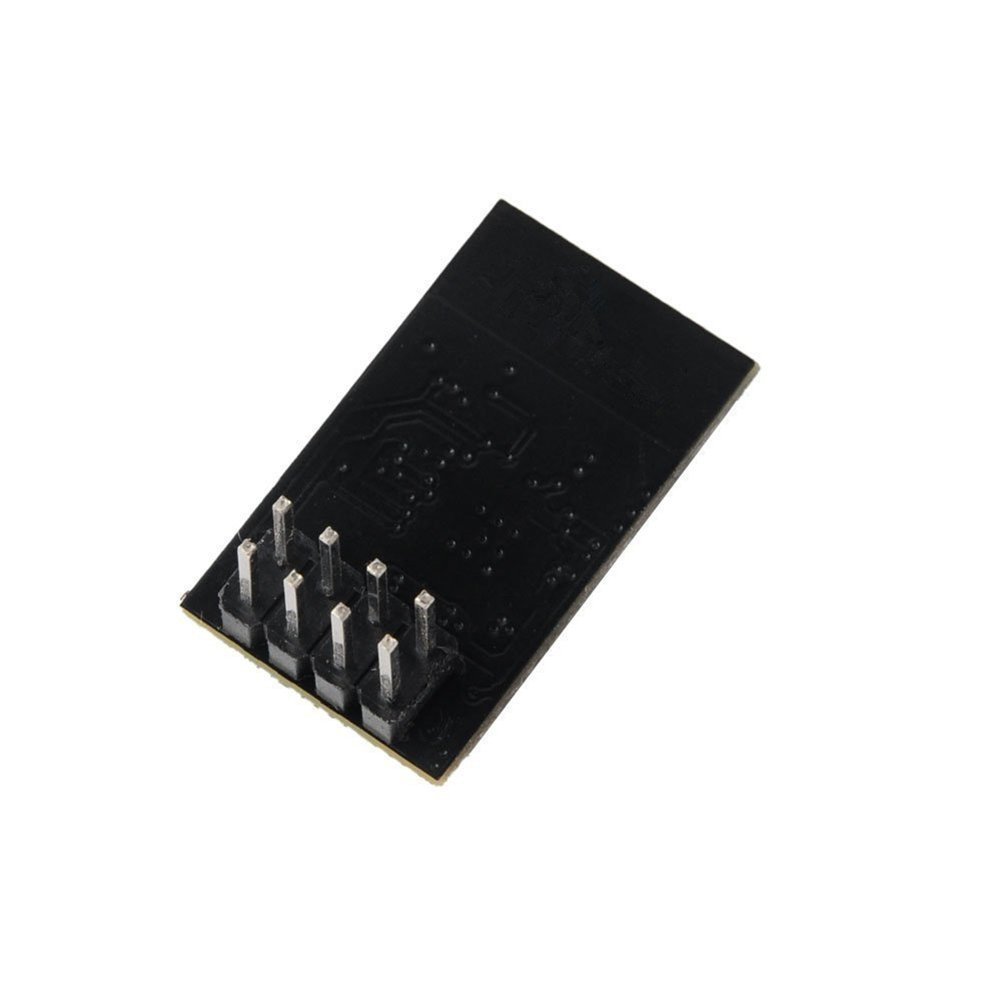

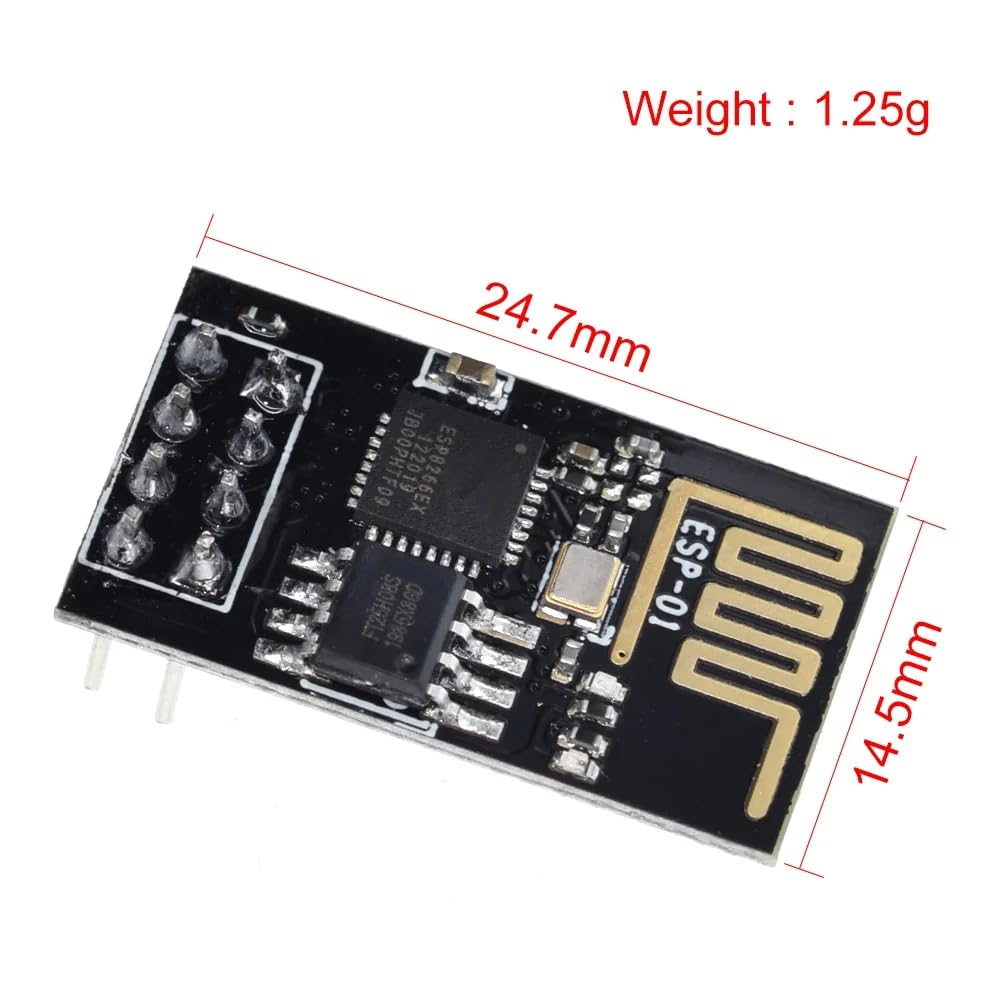

DollaTek 3Pcs ESP8266 Serial Wifi Wireless Transceiver Module ESP-01

• Add WiFi capabilities to your Arduino or other microcontroller project
• WiFi serial transceiver module, based on ESP8266 SoC
• Interface using simple AT commands over serial/uart
• Integrated TCP/IP protocol stack. 802.11 b/g/n
• On-chip integration allows for minimal external circuitry

Production Description: This is WiFi serial transceiver module, based on ESP8266 SoC with an integrated TCP/IP protocol stack It can either host the application or offload all Wi-Fi networking functions from another application processor. ESP8266 has powerful on-board processing and storage capabilities allowing it to integrate with sensors and other devices through GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area. Specifications: 802.11 b/g/n Wi-Fi Direct (P2P), soft-AP Integrated TCP/IP protocol stack Integrated TR switch, balun, LNA, power amplifier and matching network Integrated PLLs, regulators, DCXO and power management units +19.5dBm output power in 802.11b mode Power down leakage current of <10uA Integrated low power 32-bit CPU could be used as application processor SDIO 1.1/2.0, SPI, UART STBC, 1×1 MIMO, 2×1 MIMO A-MPDU & A-MSDU aggregation & 0.4ms guard interval Wake up and transmit packets in <2ms Standby power consumption of <1.0mW (DTIM3) Note: This is a 3.3V part SDIO 2.0, SPI, UART 32-pin QFN package Integrated RF switch, balun, 24dBm PA, DCXO, and PMU Integrated RISC processor, on-chip memory and external memory interfaces Integrated MAC/baseband processors Quality of Service management I2S interface for high fidelity audio applications On-chip low-dropout linear regulators for all internal supplies Package included: 3x ESP8266 Serial Wireless Transceiver Module ESP-01
