DollaTek 2pcs TEC1-12703 40x40MM Thermoelectric Cooler Peltier Refrigeration Plate

• Chip model: TEC1-12703

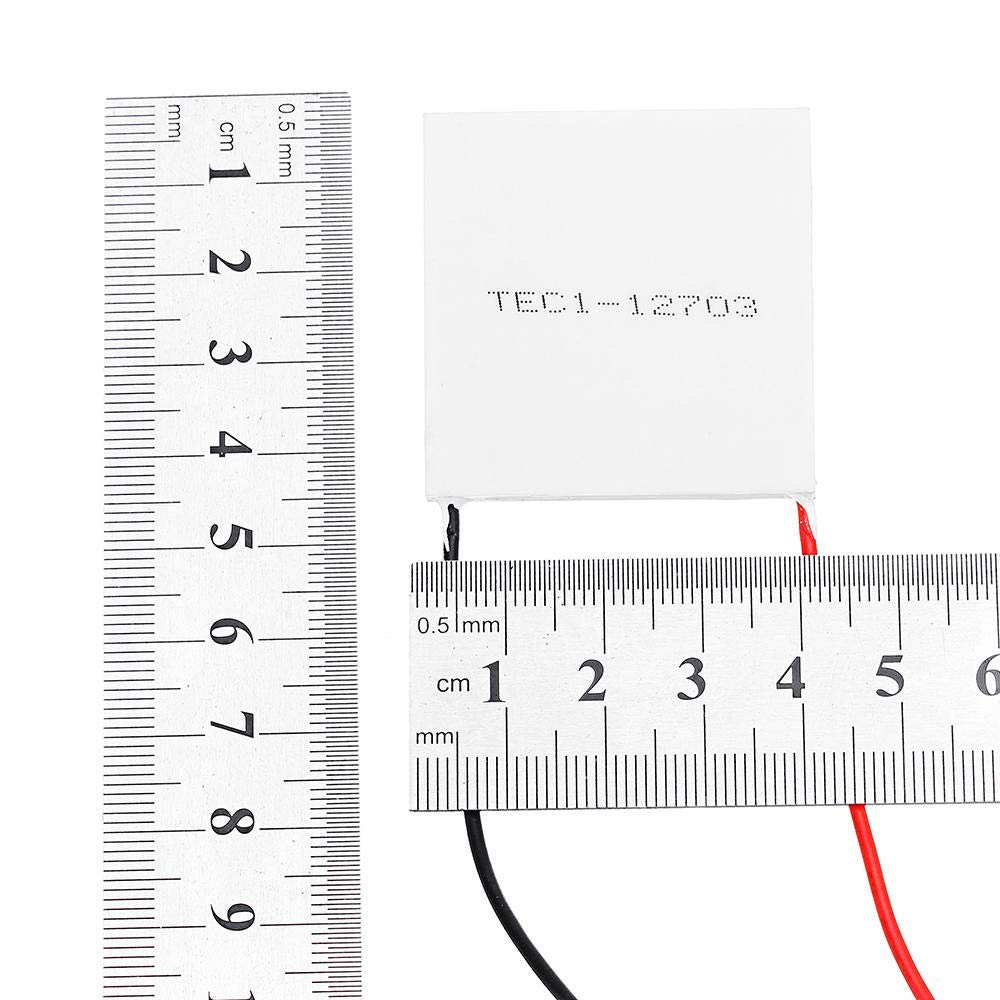

• Dimensions: 40x40x4.3mm Component logarithm 127
• Wire size: lead length 310mm ± 5mm RV standard wire single head 5mm tinned
• Internal resistance: 4.0~4.3Ω (ambient temperature 23±1°C, 1KHz Ac test)
• Maximum temperature difference: Tmax (Qc=0) above 60°C

Description: Chip model: TEC1-12703 Dimensions: 40*40*4.3mm Component logarithm 127 Wire size: lead length 310mm ± 5mm RV standard wire single head 5mm tinned Internal resistance: 4.0~4.3Ω (ambient temperature 23±1°C, 1KHz Ac test) Maximum temperature difference: Tmax (Qc=0) above 60°C Working current: Imax=3A (when starting at 15.5V) Rated voltage: DC 12V (Vmax: 15.5V) Cooling power: Qcmax 27W Assembly pressure: 85N/cm2 Working environment: temperature range -55 °C ~ 83 °C (excessive ambient temperature drop directly affects cooling efficiency) Packaging process: around with standard 704 silicone rubber seal Storage conditions: -40 °C ~ 60 °C Note: There is a literal surface for the cooling surface, and no literal surface is the cooling surface. A heat sink or water-cooled must be installed on the heat sink surface, otherwise, it will burn out. (Please coating thermal silica gel regardless of water cooling or air cooling) Package included: 2 x TEC1-12703 40x40MM 12V3A Thermoelectric Cooler Peltier Refrigeration Plate
