DollaTek 2Pcs 1.3" SPI 128x64 SSH1106 OLED LCD Display LCD Module for Arduino AVR PIC STM32 - White font
★★★★★
$11.87
Quantity
1
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item

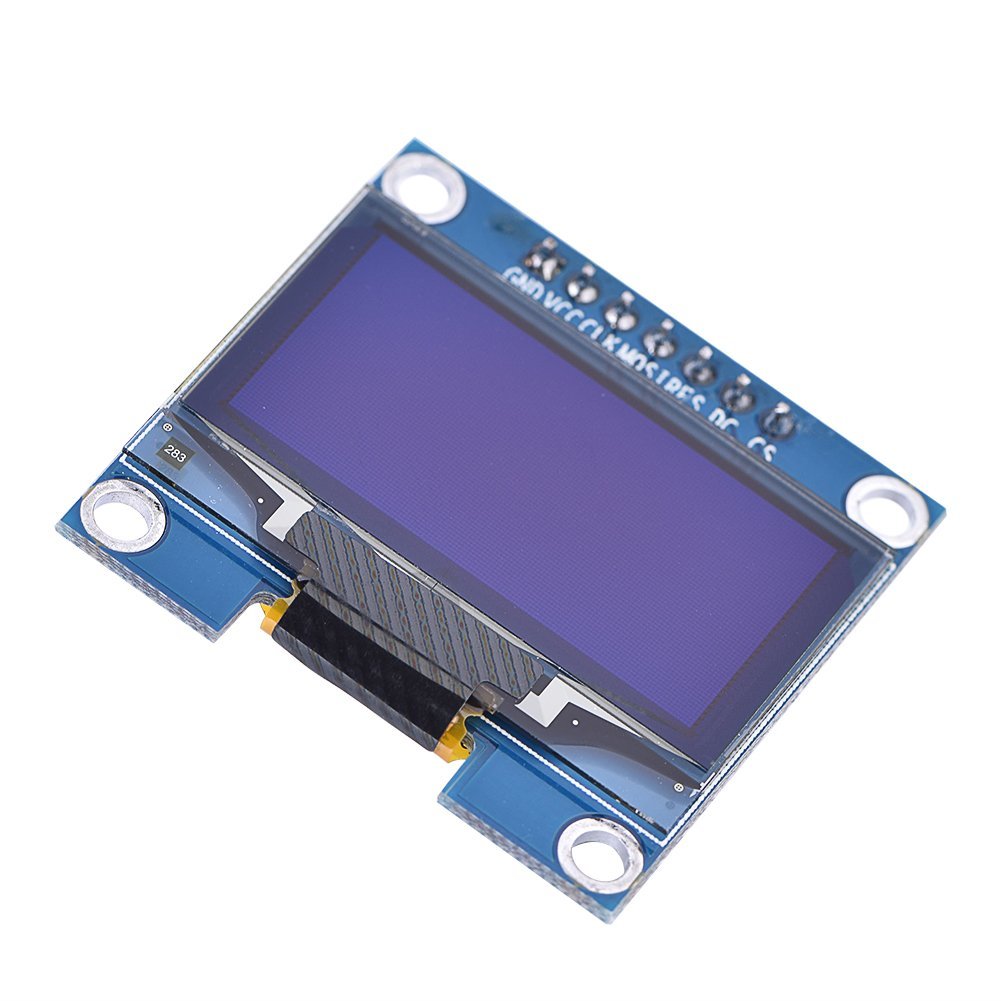

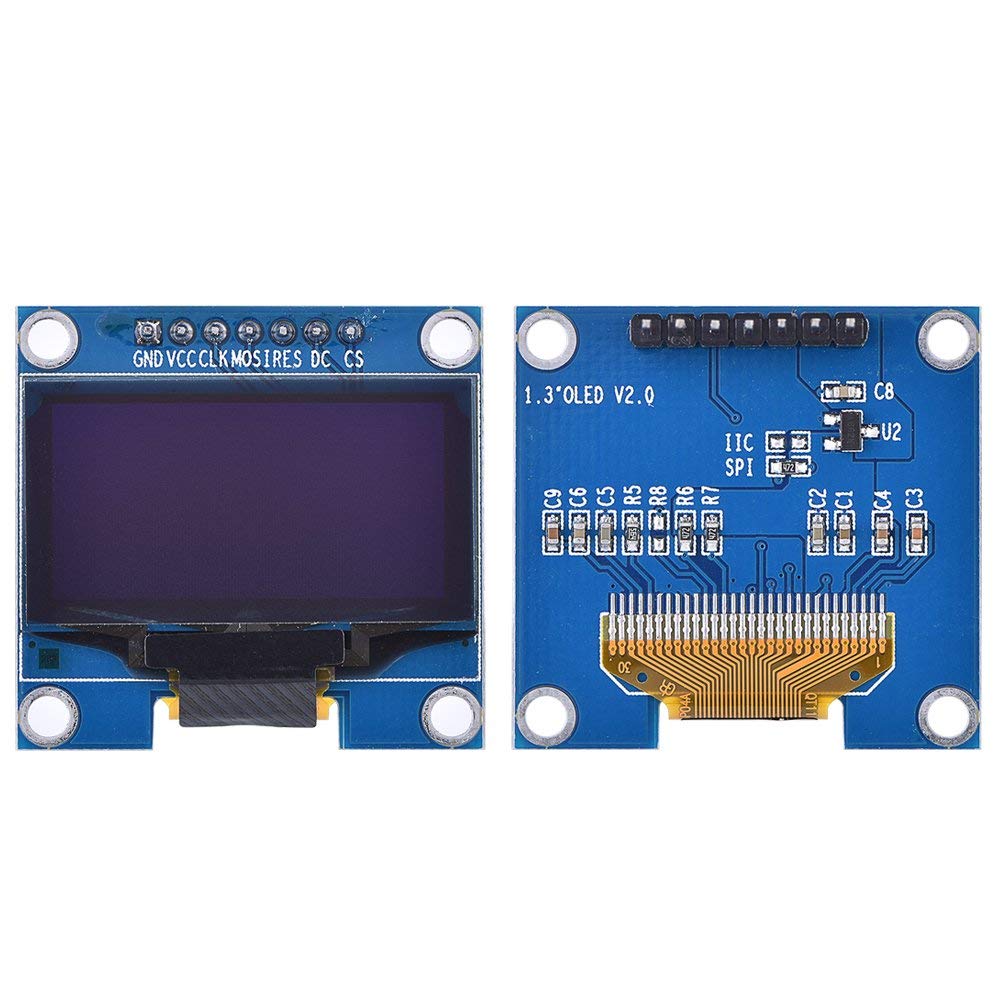

- 1.3" mini OLED display screen with 128X64 resoluction and SSH1106 chipset
- Ultra-low power consumption: full screen lit 0.08w

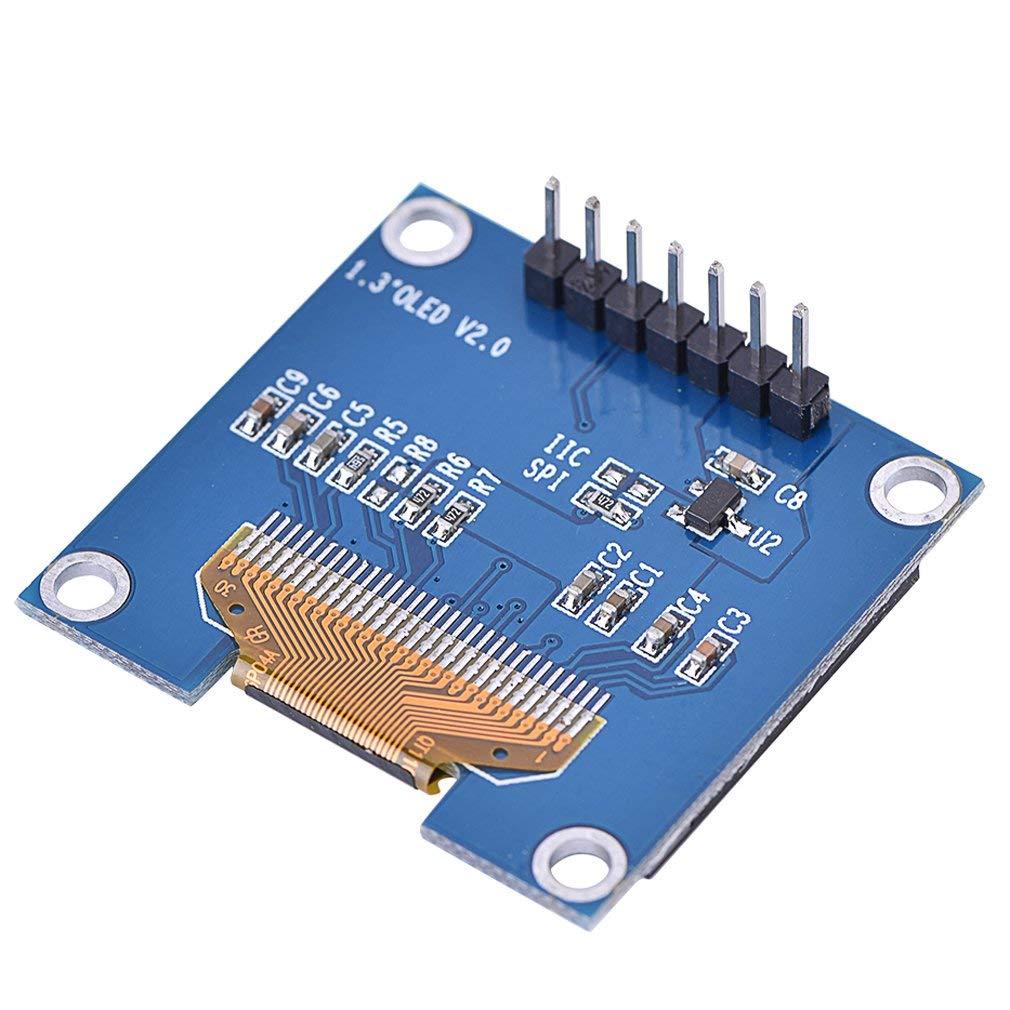

- Four fixed bolt holes for easy installation

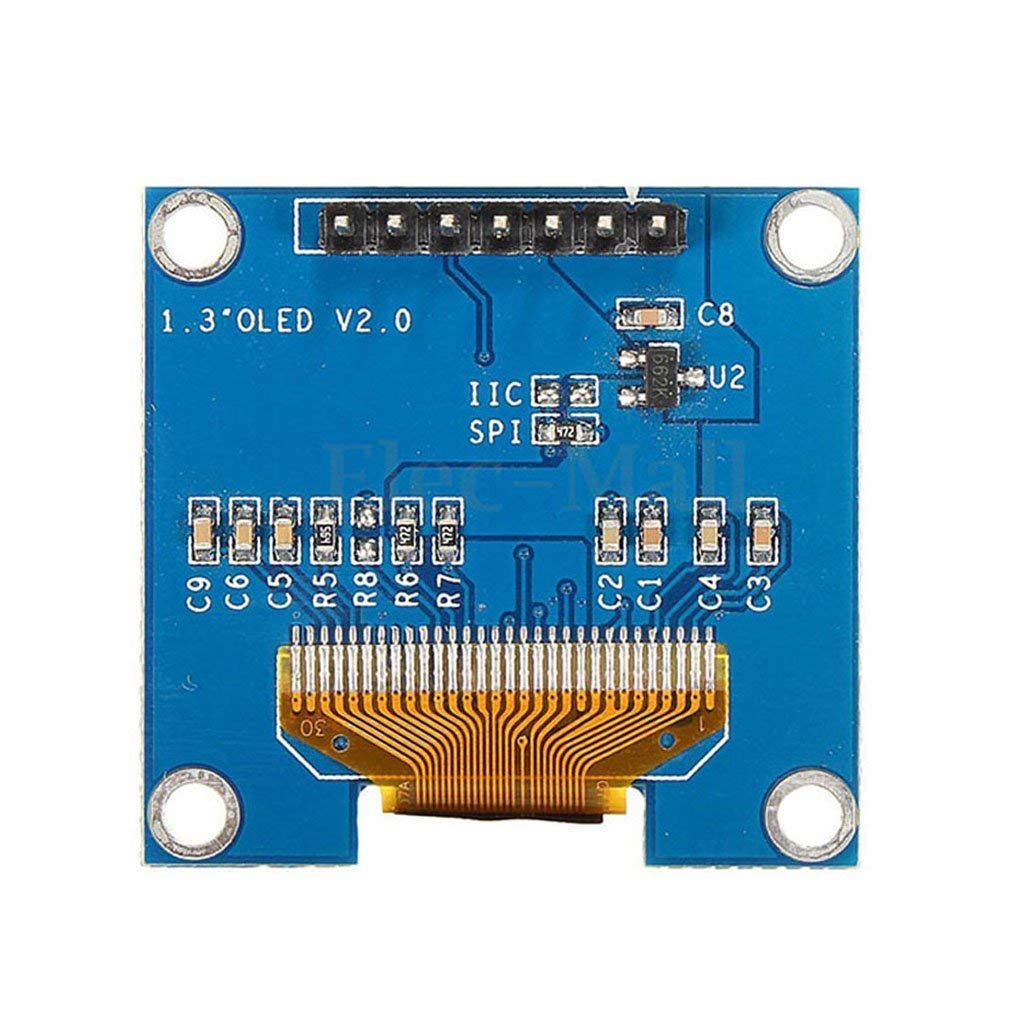

- Interface Type:SPI(Can be changed to IIC)
- Supports many control chip : fully compatible with Arduino 51 series,msp430 series , stm32/2 CSR IC , ETC
Product description

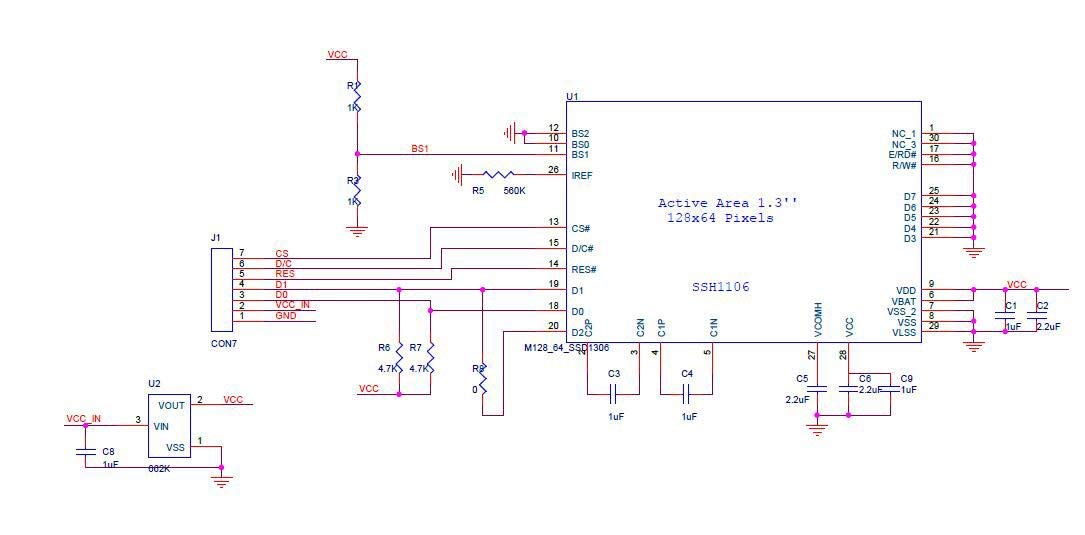

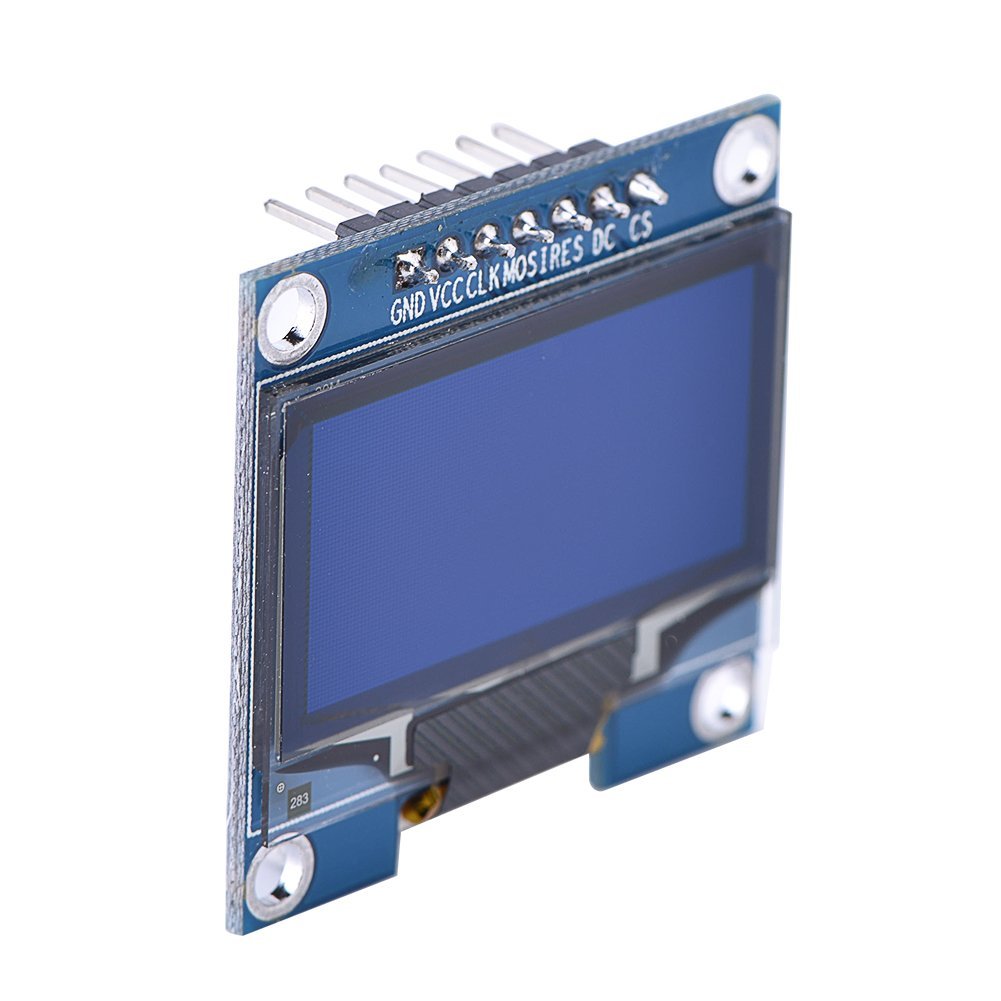

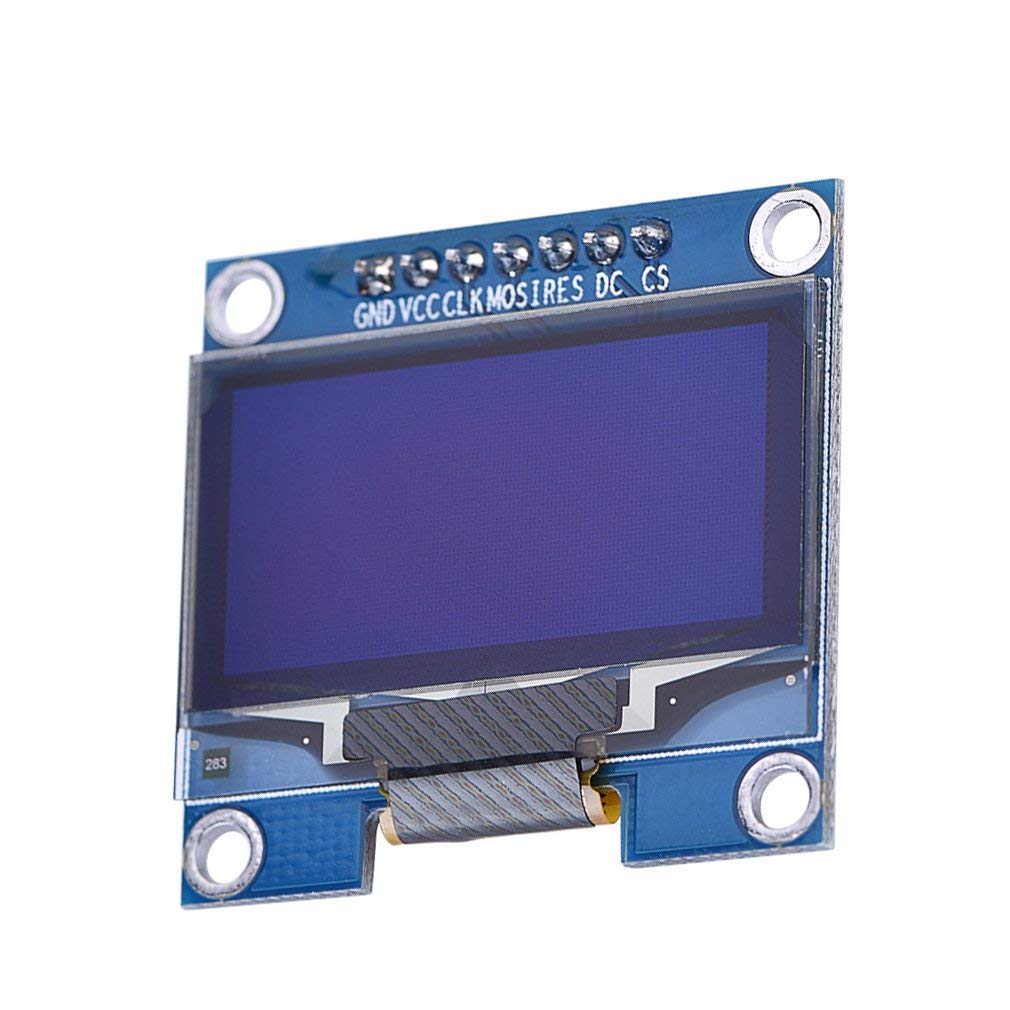

Specifications: 1. Driver IC: SSH1106 2. Resolution: 128 x 64 3. Viewing angle: >160 4. OLED screens inside the driver chips: SSH1106. 5. Supports many control chip : fully compatible with Arduino 51 series,msp430 series , stm32/2 CSR IC , ETC 6. Ultra-low power consumption: full screen lit 0.08w 7. Voltage: DC 3V-5V 8. Work temp : -30c-70c 9. Interface: SPI 10. Font Color: White SPI Pin definition: GND: Power ground VCC: Power CLK: Clock line MOSI: Data cable RES: Reset line DC: Data/commands CS: Chip select (when not use can be grounded directly) Package included: 2 x 1.3" OLED LCD Display Module SPI Serial
Product details
Customer reviews
What customers say about Bigamart
10 Trustpilot reviews total, with 2 shown at a time.
Trustpilot
★★★★★
Excellent
4.5 average rating
S
Sigalit
🇮🇱 · January 2026
★★★★★
I wrote to Bigamart's customer support and they accompanied the process of reshipping the item until it finally arrived. I felt a genuine effort to solve the problem till it was finally solved.
V
Verified buyer
🇦🇺 · November 2025
★★★★★
The package was here in Australia from England in a few days — so quick! Something was missing and they refunded it straight away. Pretty happy with these guys.
Showing 1–2 of 10 reviews
You might also like
Similar items
DollaTek
⏳LCD Character Modules

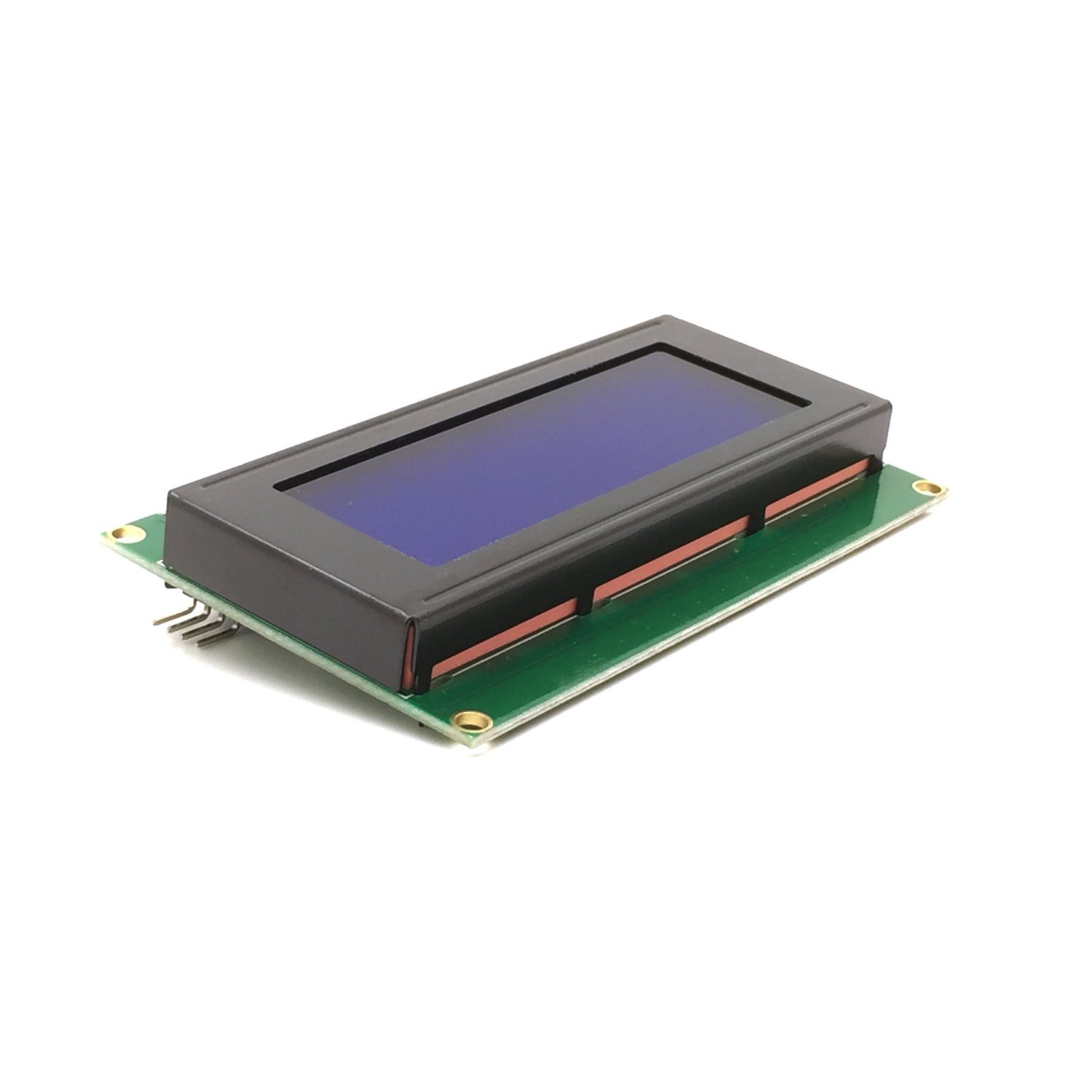

DollaTek IIC/I2C/TWI Serial 2004 20x4 LCD Module Shield Blue Blacklight
