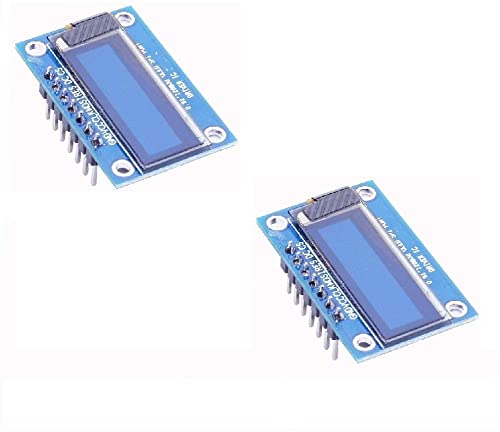

DollaTek 2Pcs 0.91" SPI OLED LCD Display screen module 128x32 1306 3.3V/5V AVR PIC STM32 for Arduino - White font

• 0.91" mini OLED display screen with 128X32 resoluction and 1306 chipset
• Standard SPI serial communication interface pinout compatible with most MCU development board such as arduino, Raspberry Pi,C51 series etc.
• Over 160 degree ultra-wide viewing angle and white color display, low power consumption

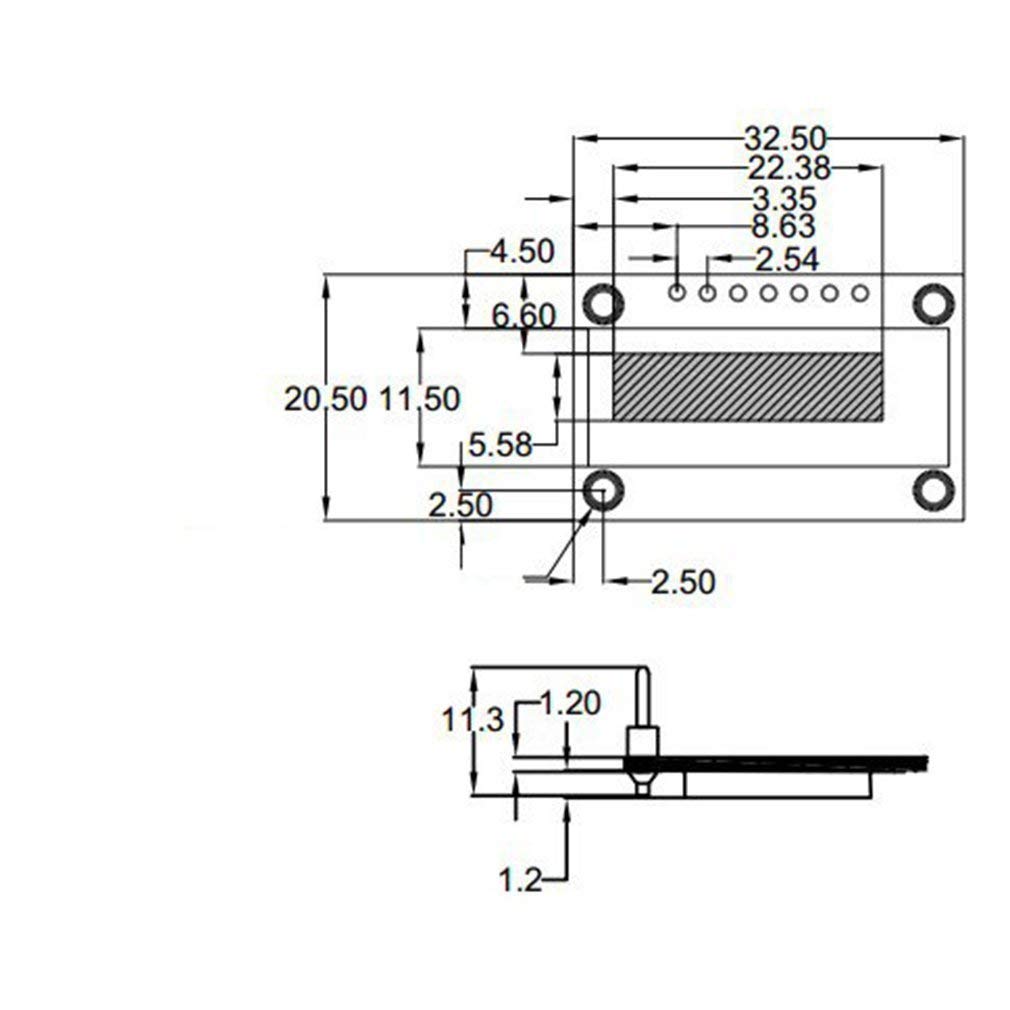

• Working Voltage: DC 3.3-5.0V, Module Size: 32.5 X 20.5 X 2.4mm/1.28 X 0.81 X 0.09inch(LxWxH)
• Four fixed bolt holes for easy installation.

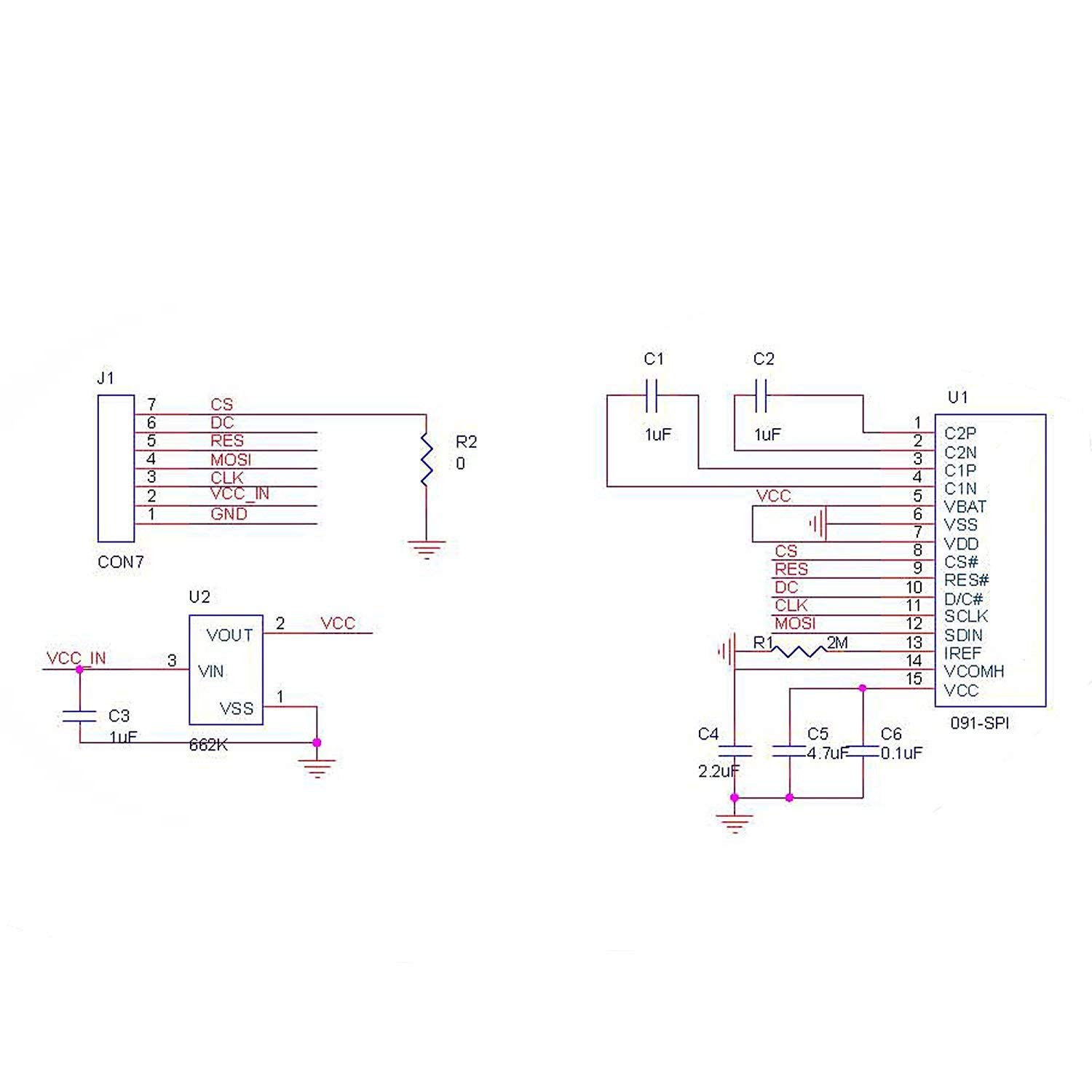

Features: Driver IC: 1306 Size: 0.91 inch OLED Resolution: 128 x 32 Font Color: White Voltage: DC 3.3-5V PIN Interface: IIC or SPI optional OLED display, no need backlight, self-illumination, the display performance is better than the traditional LCD display, also lower consumption. SPI Pin definition: GND: Power ground VCC: Power CLK: Clock line MOSI: Data cable RES: Reset line DC: Data/commands CS: Chip select (when not use can be grounded directly) Packaged included: 2 x 0.91" OLED LCD Display Module SPI Serial
