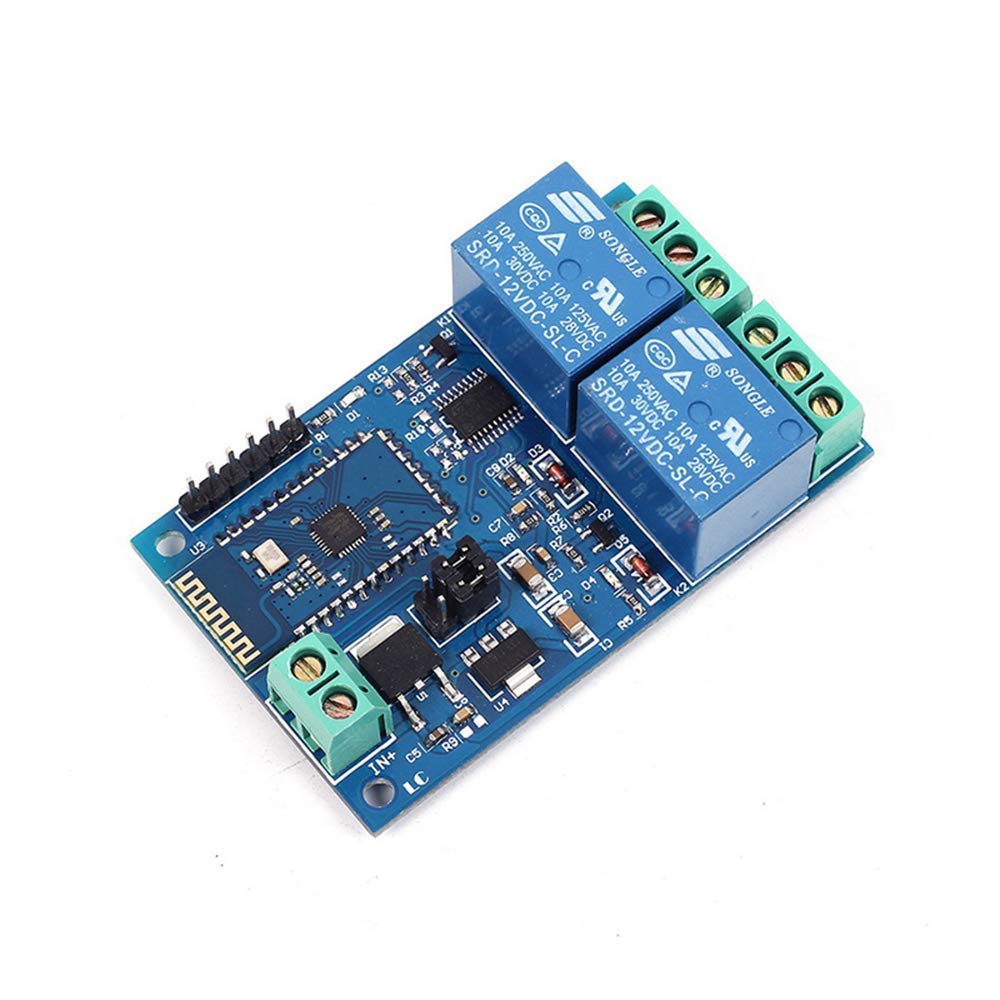

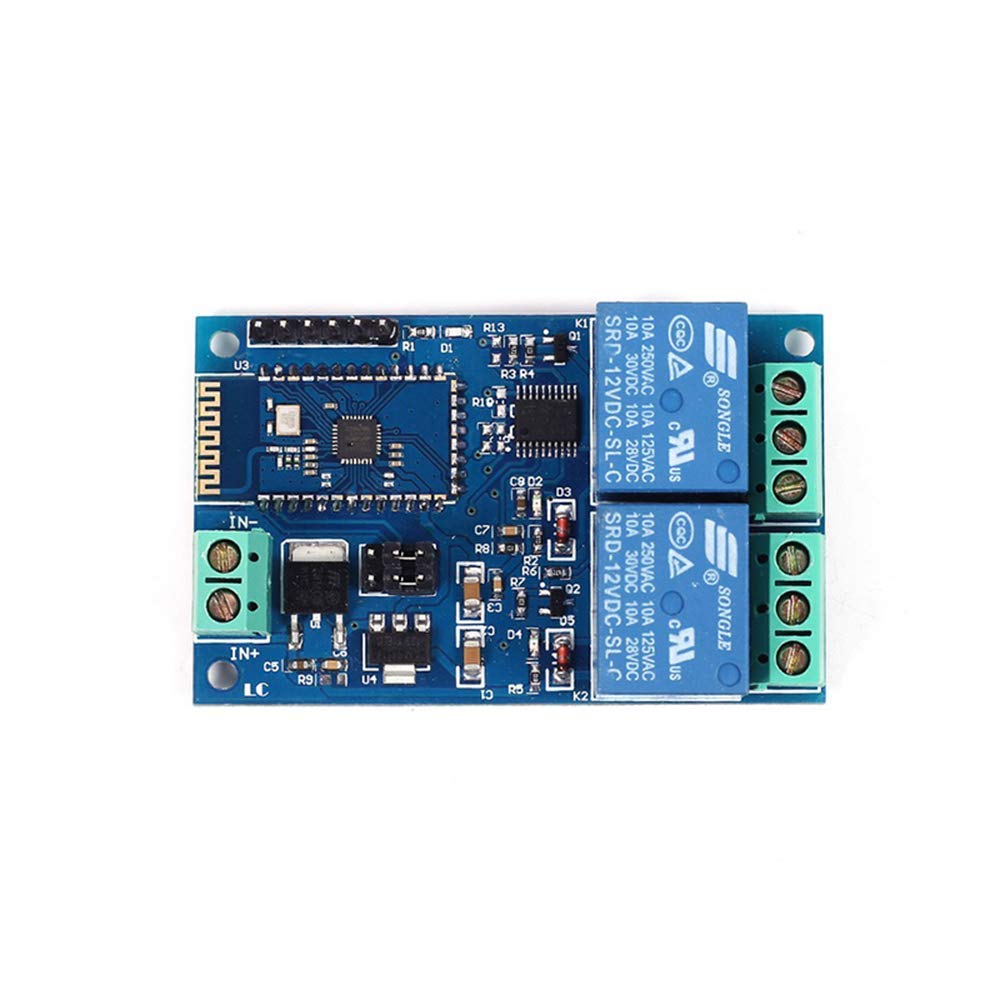

DollaTek 12V Dual Way Bluetooth Relay Module Has Two 12V 10A Relay and One SPP-C Bluetooth Serial Port Subordinated Module Control Relay by APP

• On-board loaded 8bit high performance MCU and spp-c bluetooth 2.1 slave module
• Distance control : 10M (without obstacle ) Working voltage : DC12V
• With bluetooth status indicator and relay indicator
• On board 2 way 12V,10A/250V AC 10A/30V DC relay, can be used continuously for 100 thousand times, with diode discharge protection within short time.
• Reserved UART debugging interface and MCU program download port.Board size :40*64.5mm

Functions & Features: 1. On-board loaded 8bit high performance MCU and spp-c bluetooth 2.1 slave module 2. Provide bluetooth relay control app 3. Distance control : 10M (without obstacle ) 4. Working voltage : DC12V 5. On board 2 way 12V,10A/250V AC 10A/30V DC relay, can be used continuously for 100 thousand times, with diode discharge protection within short time. 6. With bluetooth status indicator and relay indicator . 7. Reserved UART debugging interface and MCU program download port. 8.Board size :40*64.5mm Interface introduction : IN+、IN-：12V voltage input TX、RX：UART serial port PIN 5V、GND、SWIM、NRST：program download port LED D2/D4（red ）： working indicator , turn on when relay is on . LED D1(blue）：Bluetooth status indicator, exact function as follows:： (1)Slow flash means waiting for a connection to the phone. (2)When it is always bright, it connects phone already Package Included: 1x 12V dual way bluetooth relay module Installation note: Two reserved jumper cap: normal use,insert to the right side (that is ,RX connects with RX1, TX connects with TX1).Independently use,turn USB to TTL serial module ,debug SPP - C module,plug into the left side (To avoid interference) Install android mobile terminal ""LCBS test procedure"" APP, bluetooth serial transmission tool, open the APP, click ""search"" bluetooth, mobile phones connected to the bluetooth module, input password and click confirm, after the connection is successful, blue light turns slow flash into always on, and then click on the square to control relay switch"
