DollaTek 1.8inch Colorful Display Pocketable Multifunctional TFT Backlight Transistor LCR-TC1 Tester for Diode Triode Capacitor Resistor Transistor LW21

• It can be widely used to detect the NPN and PNP transistor , capacitor , resistor , Diode , Triode , channel N Mosfet , and channel P , IGBT , JFET , triac and battery .
• It can also detect the Zener Diode and a function of auto - calibration .
• After the detection , align the infrared remote control with the infra - red light , and then press the button on the remote control , if the detector successfully decodes it , it will display the data code and the infra - red wave shape .
• The operation of a button , automatic detection and stop , and you can press the multi - function button to also close the detector .

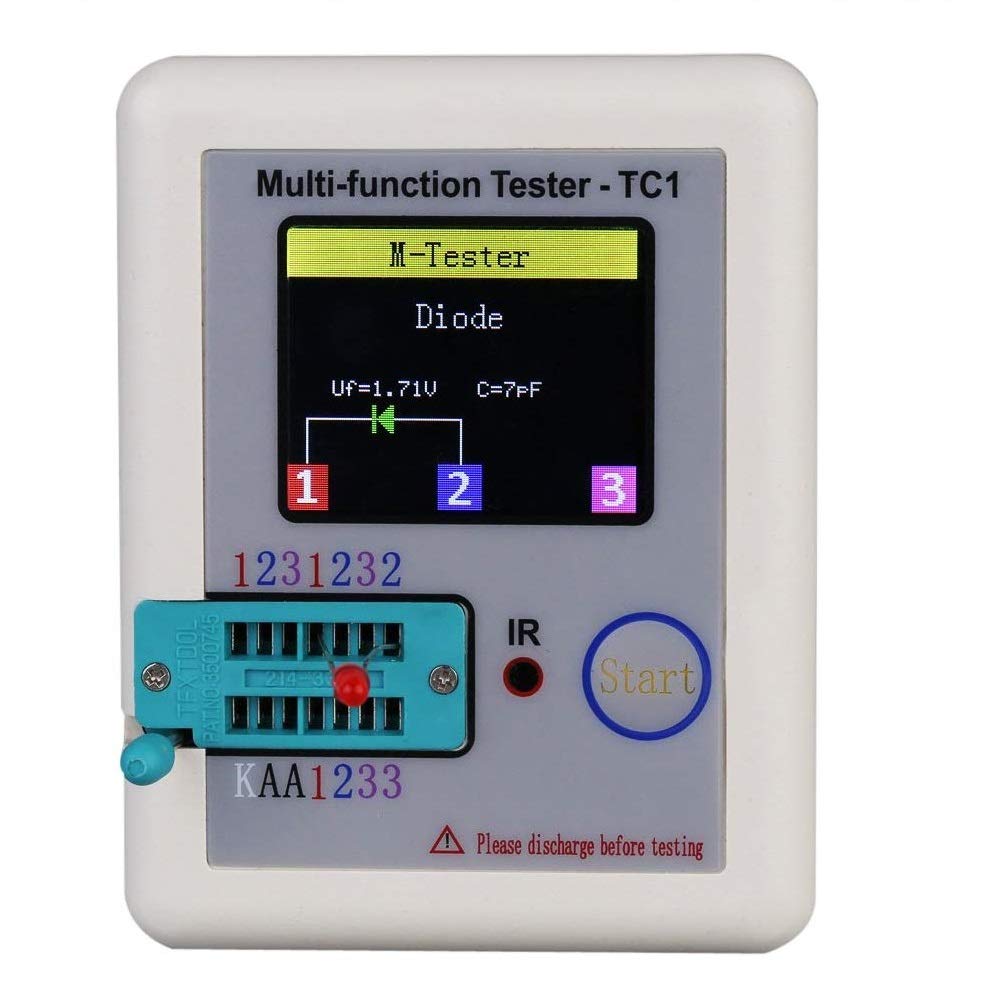

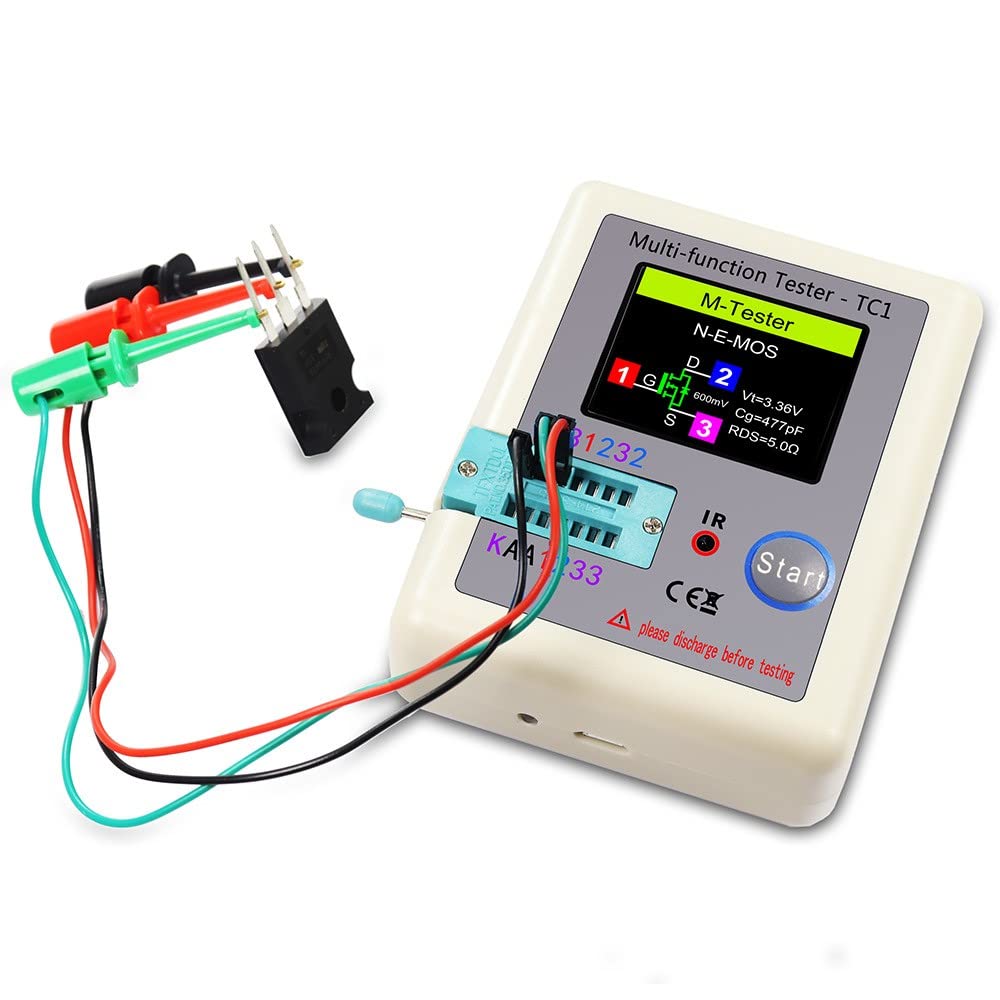

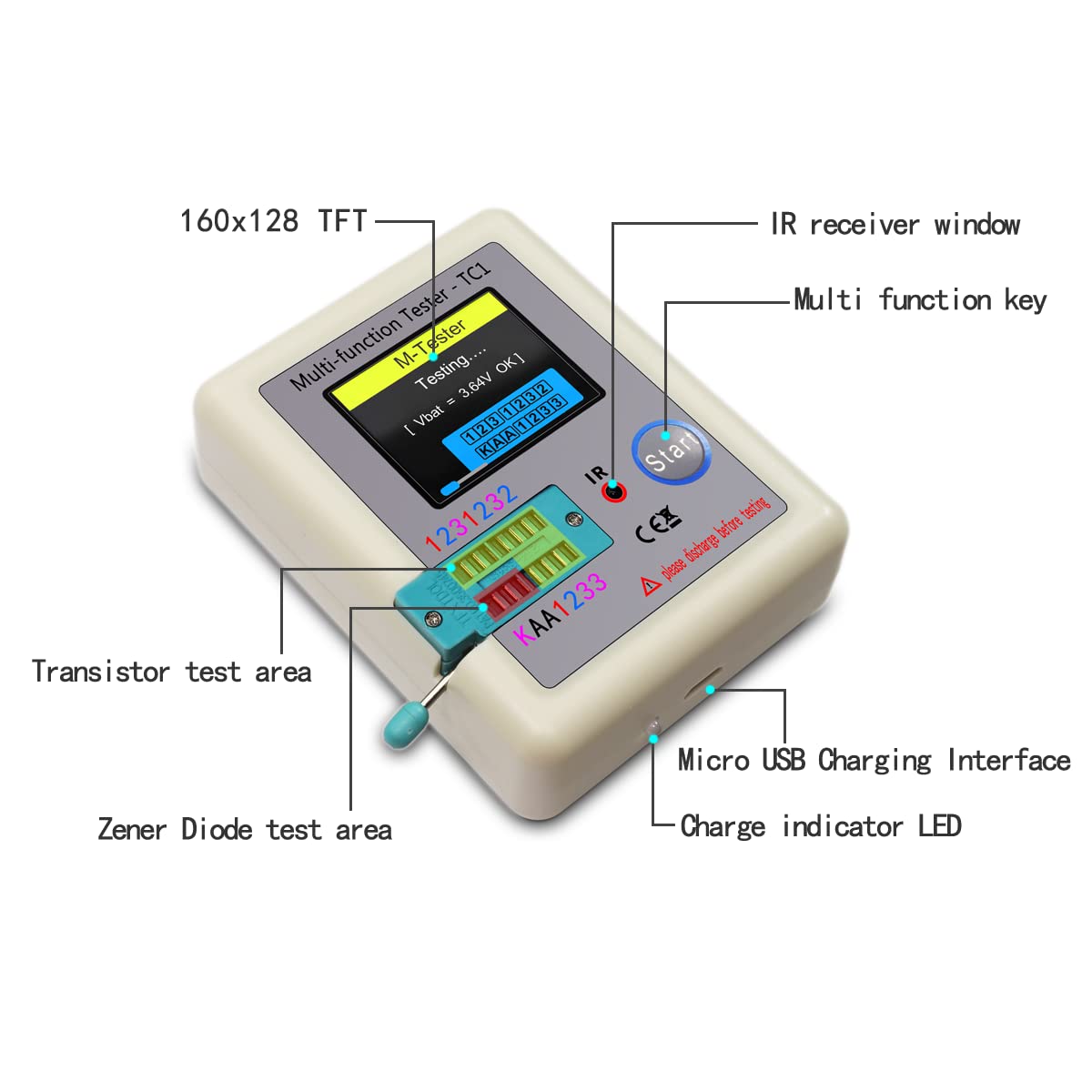

• Place the pins of the component in the appropriate area , then dial the small handle and the detector will check it automatically , the results are displayed clearly on the TFT screen . Not like the usual black and white display characters , this detector will display results in colour .

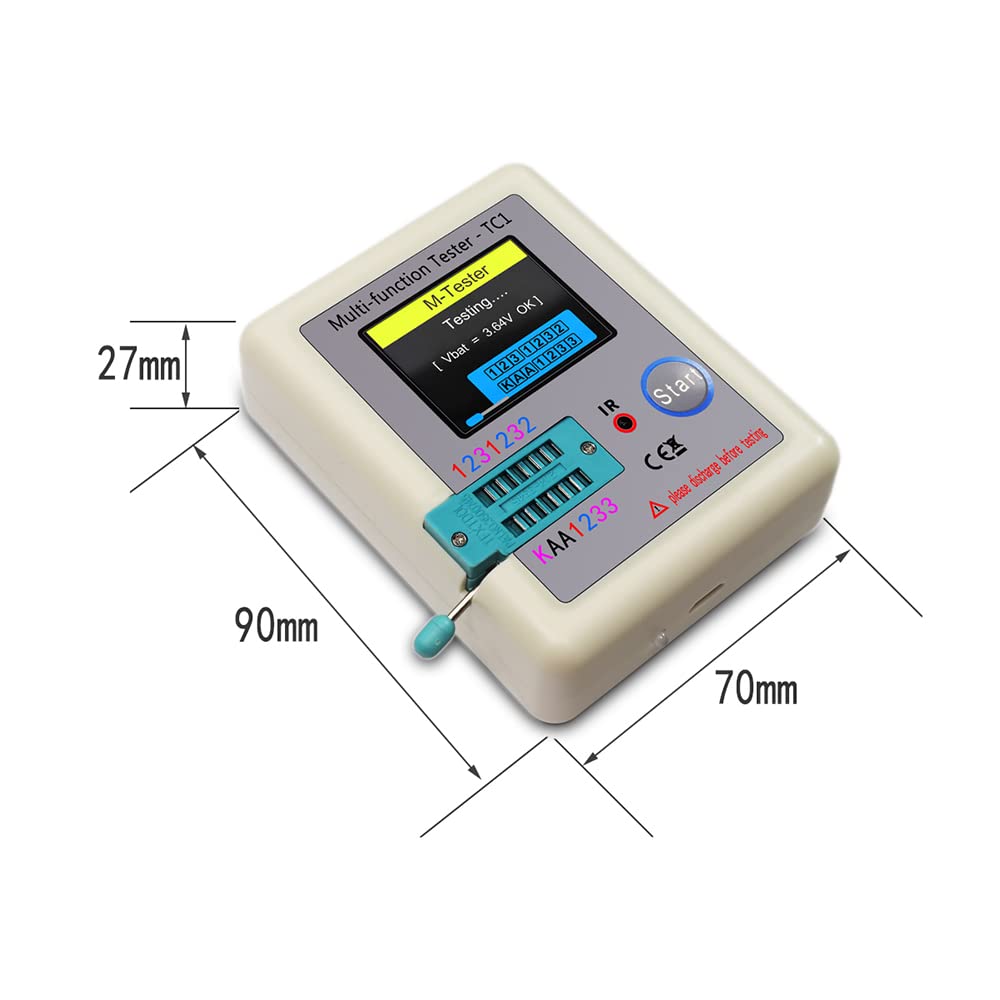

Features: Self test with automatic calibration Color: White Size: 69*91*28m/ 2.71x3.58x1.10 inch Display: 1.8 inch TFT Screen, Color Screen Diode Range: less than 4.5V Zener Diode:Transistor Detect Area: 0.01-4.5V Zener Diode Detect Area: 0.01-30V Triac Range: IGT less than 6mA Capacitance: 25pF-100mF Resistor: 0.01-50MΩ Inductance: 0.01mH-20H Power Voltage: 3.7V Power: Built-in Rechargeable Lithium Battery Package Included: 1 x Multi-functional TFT Transistor Tester 1 x Electronic Component Set 1 x Cable 3 x Test Hook
