Pzsmocn DMX/RDM Shield for Arduino,The Shield is Populated with NEUTRIK XLR 3pin Connectors,Device into DMX512 Network,MAX485 Chipset,Can be Used as DMX-Master, Slave and as RDM-Transponder.

• DMX Shield RDM shield DMX Master DMX slave RDM transponder MAX485 Chipset Arduino shield Motherboard DMX512 Network LED/Music Remote Device Management Extended DMX Master

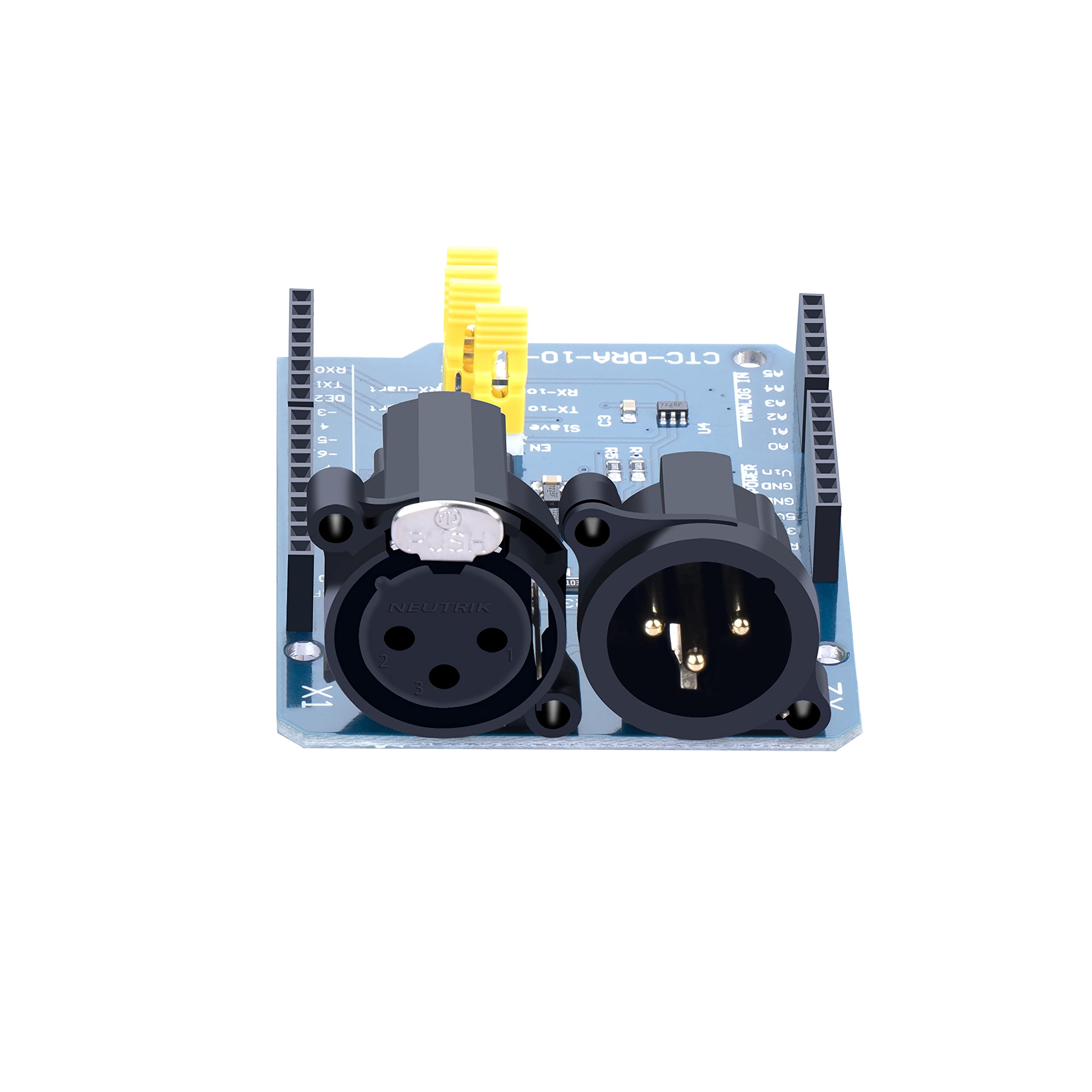

• The shield is populated with high quality NEUTRIK XLR 3pin Connectors (1x male and 1x female).
• Do not need to buy expensive equipment for loading protocol change.Ensure a reliable connection with other music devices.
• It is an easy way to use the Arduino as a DMX-Master device, just by adding the DMX-shield on the top of the Arduino.
• The MAX485 based shield can be used as a DMX master, slave and an RDM transponder. A unique RDM device ID will also be left out of range. This makes your device unique worldwide.

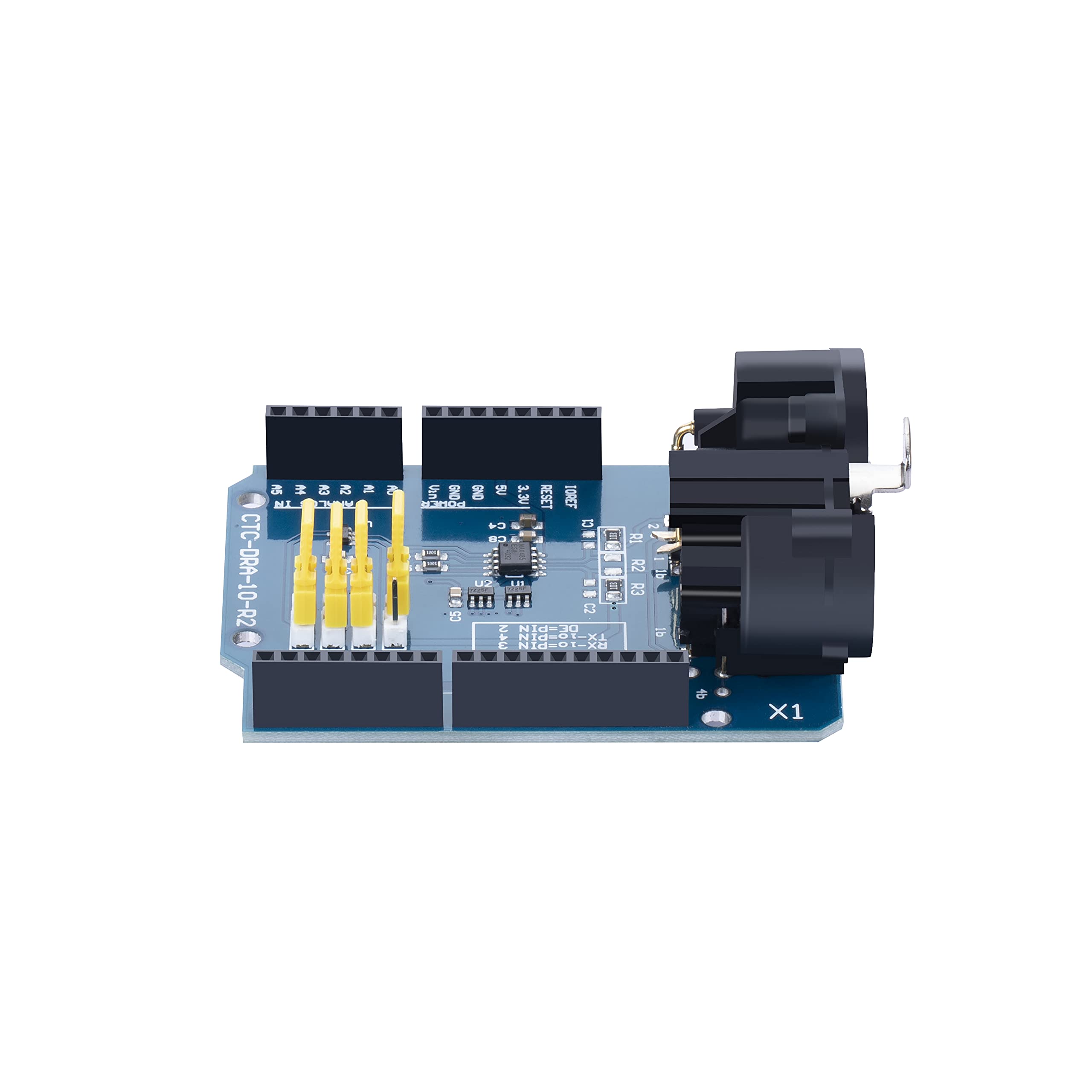

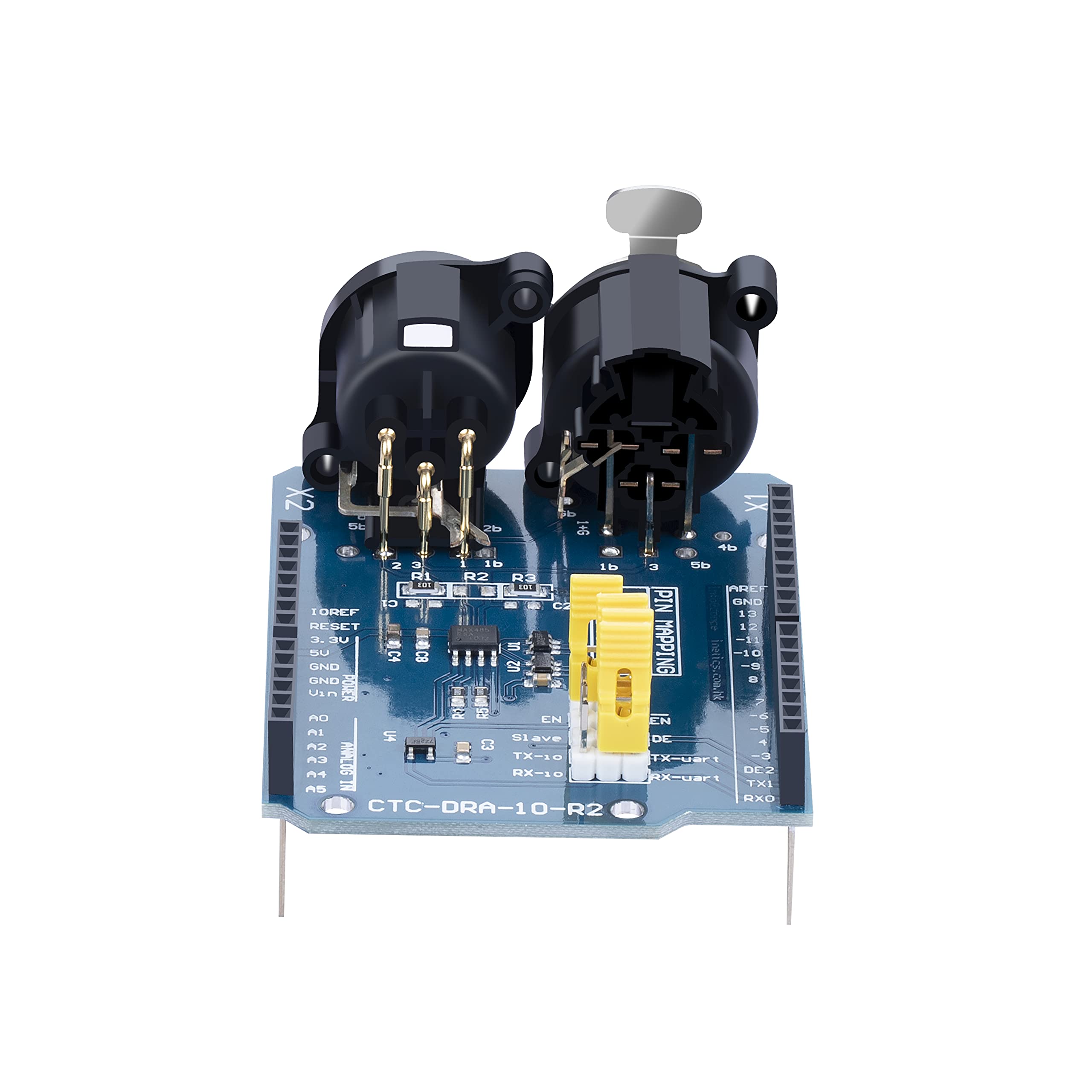

The Arduino DMX shield is an add-on (or ""shield"") for the Arduino. It is an easy way to use the Arduino as a DMX-Master device, just by adding the DMX-shield on the top of the Arduino. This arduino DMX / RDM Shield is a low cost high quality solution that allows you to connect your Arduino driven artwork into DMX512 networks. The shield is populated with high quality NEUTRIK XLR 3pin Connectors (1x male and 1x female). The MAX485 based shield can be used as DMX Master, Slave and as RDM transponder.A unique RDM device id will be handed out from out range to you as well, this will make your device worldwide unique. The following settings are configurable via the onboard jumpers: Send data via TX or Digital pin 4 Receive data via RX or Digital pin 3 Hardware slave mode or Software Controlled Slave/Master via Digital pin 2 (Required for RDM) Enable / Disable shield In case you have the shield configured to use the RX and TX pins you have to disable the shield before you can upload your new sketch onto the Arduino board. This jumper allows you to disable the shield without disconnecting it from the Arduino board which saves time. PACKAGE CONTENT DMX Shield *1
