kingmaled DMX LED Controller DMX512 Decoder RGB DMX 512 Dimmer Driver 16A DC9V-24V for LED Strip Module Strip Light 4A/CH (4 Channel Mini)

• 4 output channels, can connect with single or RGBW lamps
• 0-100% dimming output, each channel 256 gray levels

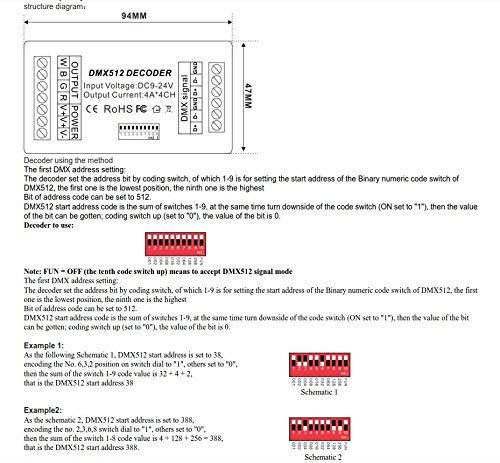

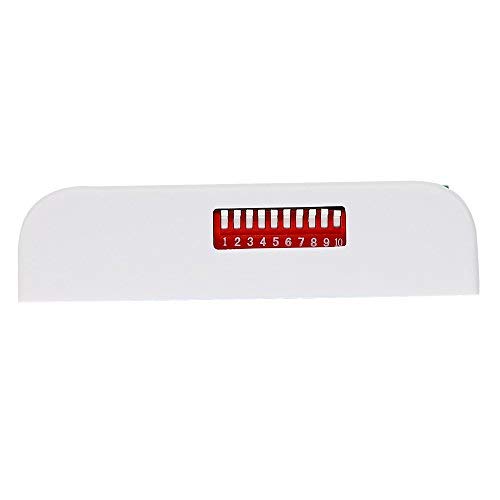

• International standard DMX512 input protocol, address code set by DIP switches
• Wide voltage DC input DC9V ~DC24V
• Each occupied by 4 DMX address

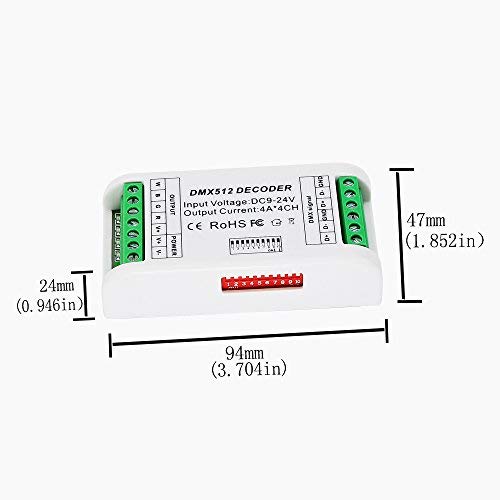

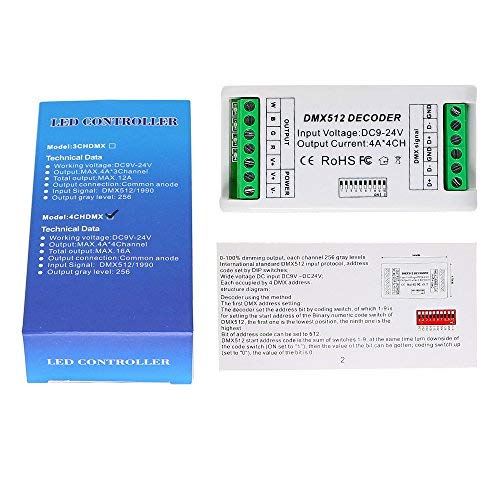

Welcome to use the 4CH constant decoder, which take advantage of advanced microelectronic control technology. This technology changes the international fashion DMX512/1990 standard digital control signals into analog control signals. There are 1 ~ 4 output channels; each channel can achieve 256 control levels. This constant decoder is used when DMX512 control equipment control general LED lighting. Products Performance: Input Power: DC9V～DC24V Maximum load current: 4A/CH×4 Maximum power load: 192W (12V) 384W (24V) Output gray level: 256 Input Signal: DMX512/1990 Output signal: 4 channels Constant PWM Output DMX: 4 channels DMX512 socket standard RB Size: 94MM*47MM*24MM Net Weight:64g Package Included: 1x 4CH DMX 512 Decoder 1x Instruction Book
