DMX LED Controller DMX512 Decoder RGB DMX 512 Dimmer Driver 12A DC12V-24V for LED Strip Module Strip Light 4A/CH (3 Channel Mini)

• 3 output channels, can connect with single or RGB lamps
• 0-100% dimming output, each channel 256 gray levels
• International standard DMX512 input protocol
• Wide voltage DC input DC12V ~DC24V
• Each occupied by 3 DMX address

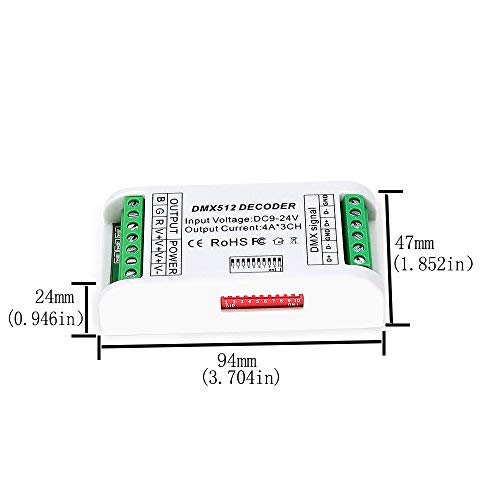

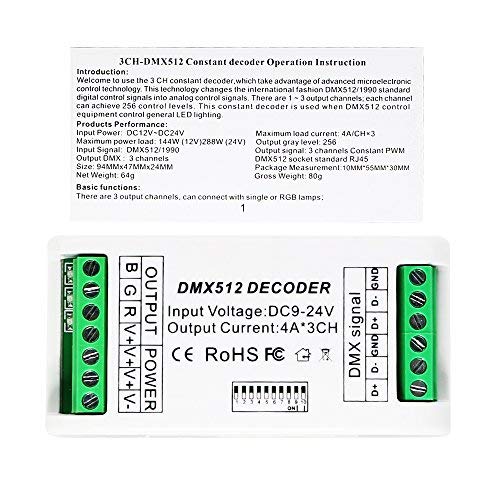

Welcome to use the 3CH constant decoder, which take advantage of advanced microelectronic control technology. This technology changes the international fashion DMX512/1990 standard digital control signals into analog control signals. There are 1 ~ 3 output channels; each channel can achieve 256 control levels. This constant decoder is used when DMX512 control equipment control general LED lighting. Products Performance: Input Power: DC12V～DC24V Maximum load current: 4A/CH×3 Maximum power load: 144W (12V)288W(24V) Output gray level: 256 Input Signal: DMX512/1990 Output signal: 3 channels Constant PWM Output DMX: 3 channels DMX512 socket standard RJ45 Size: 94MM*47MM*24MM Net Weight:64g Package Included: 1x 3CH DMX 512 Decoder 1x Instruction Book
