DMX 512 Digital Display Decoder, Dimming Driver DMX512 Controller for LED RGBW Tape Strip Light RJ45 Connection DC12-24V 20A (4 Channel with Display)

• ★ Output current: ≤4A/CH (Note: total current over 20A will reduce the life time of the product.)
• ★Input voltage：DC12V~24V (Output power：12V:<192W, 24V:<384W)
• ★ Working temperature：-20-60℃
• ★DMX512 standard：DMX512/1990
• ★ Accessories：DMX signal plugs 1 pair

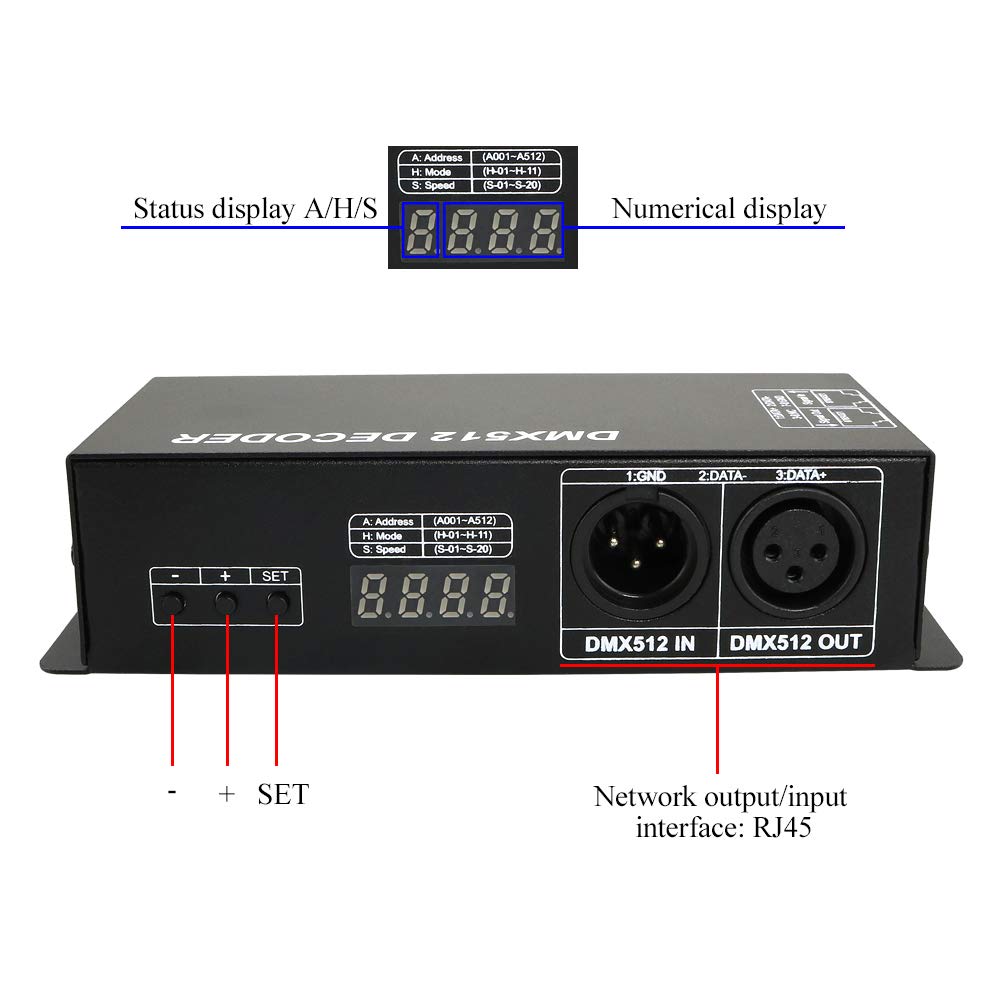

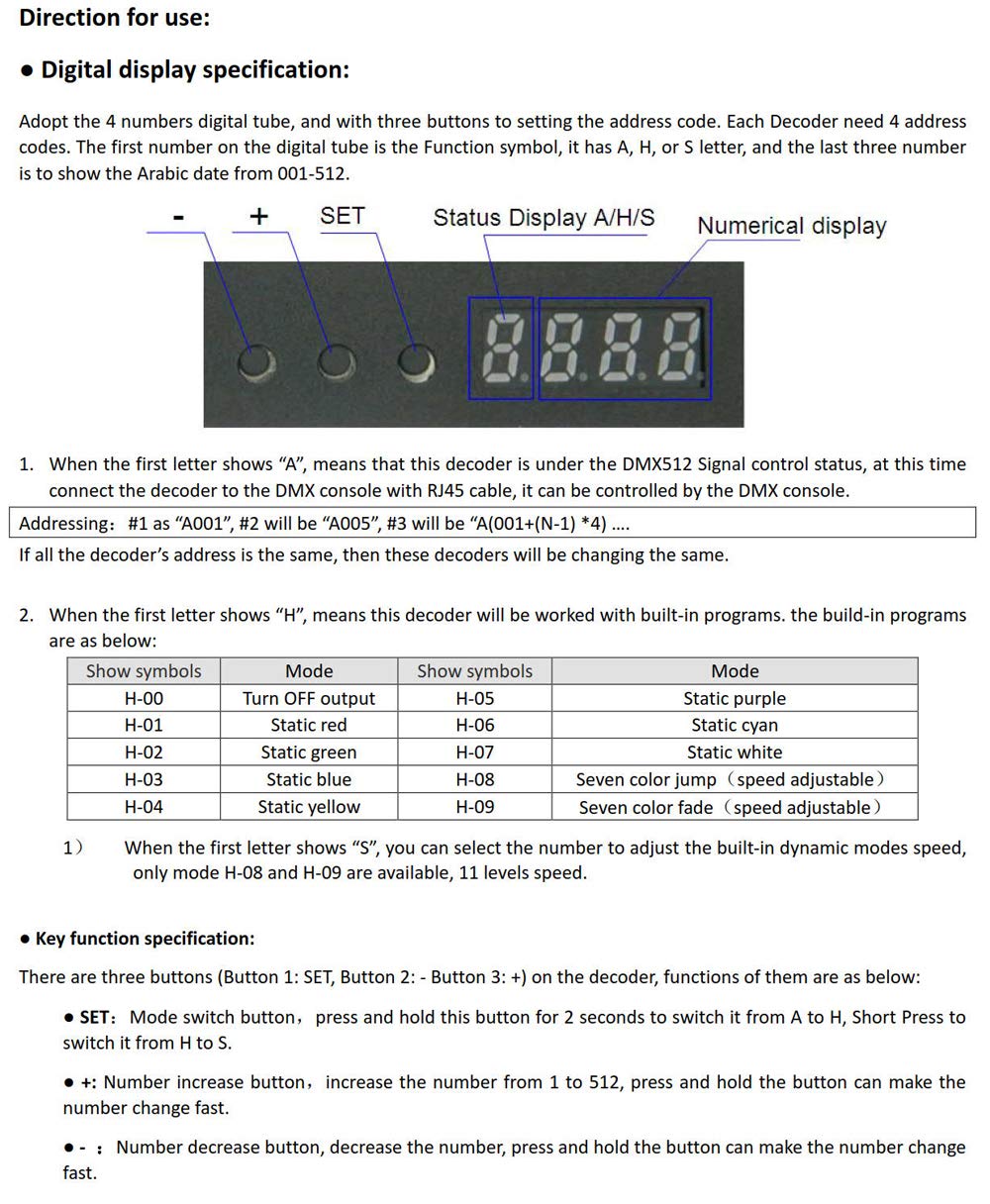

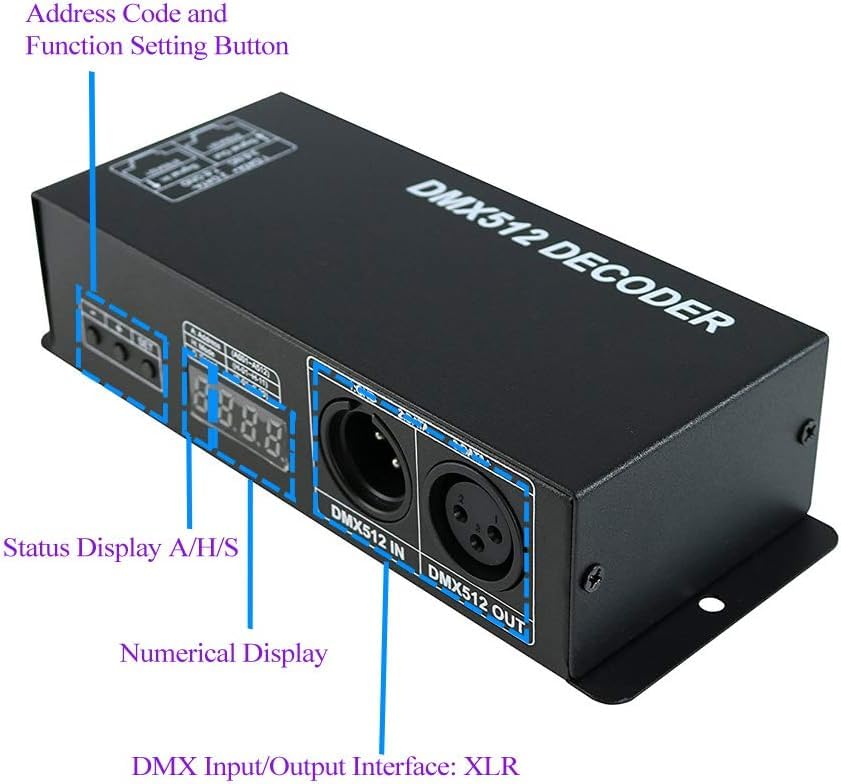

This DMX decoder adopts advanced computer control chip, it can receive the international DMX - 512 standard digital control signals and converted into PWM controller signal to drive the LED. It can be controlled by the DMX Console, and can be connected with numbers of DMX Decoder to increase the output power to realize all kinds of changing mode. Besides, this DMX decoder can be used as the synchronous controller to control the LED alone, it can realize the synchronous effects. This decoder adopts the digital tube to show the address code, and with 3 buttons to setting, make it easier to use. Cautions: 1、This product only use on supply voltage DC12-24V, do not input on other voltage. 2、The lead wire shall be according to the wiring diagram of the color and label, connect correctly. 3、This product cannot be overloaded. Technical Parameters: Working temperature：-20-60℃ Input voltage：DC12V~24V Output current: 4A/ch Output power: 12V:<192W, 24V:<384W Controller size：L166xW65×H40mm Packing box size：L177×W84×H50mm Net weight：305g Gross weight：385g Output: 4 circuits DMX512 standard：DMX512/1990 Accessories：DMX signal plugs 1 pair Package include: 1 x DMX 512 display decoder 1 x User manual 1 pair of DMX signal plugs [About us] Kingmaled Electronics is a premium supplier that providing many kind high quality of LED DMX controllers. We have sufficient inventory, preferential price, welcome to wholesale!
