Digitalkey Fan Hub PWM Control Speed Connects 10 Fans Power Supply SATA HUB x10 PWM Fan (HUB x10 PWM Fan)

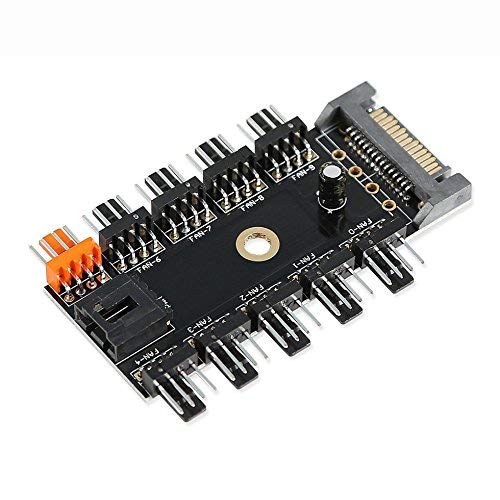

• Board for connect 10 PWM Fans to the PC. For fans with PWM speed adjustment. Also suitable for 3 PIN fans (they will run at maximum speed)
• MODE 1 - PWM-regulated fans via motherboard software
• MODE 2 - Fans with automatic PWM regulation with CPU temperature

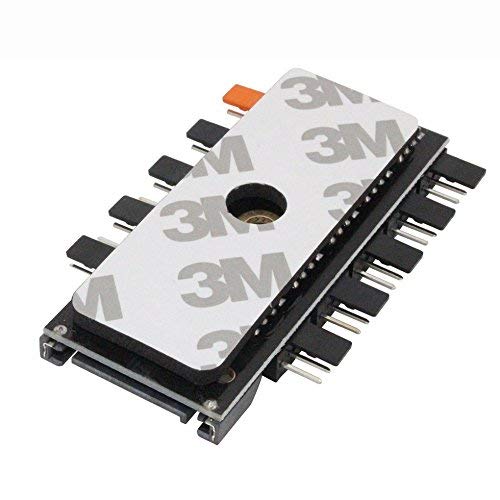

• There is a 3M adhesive for easy fixing on a PC or other

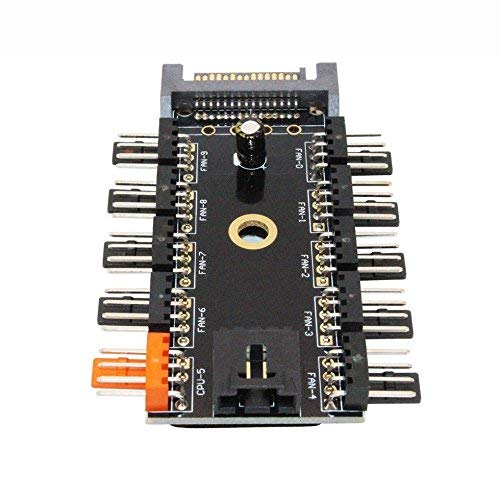

Product description Board for connect 10 PWM Fans to the PC. Fan connection with 4 pins - for fans with PWM speed adjustment. Also suitable for 3 PIN fans (they will run at maximum speed) The FAN HUB and all the fans are powered by a Sata connector Possible two ways of use based on personal preferences: 1- PWM adjustable fans via the motherboard software: Connect the supplied cable to a 4PIN PWM connector on the motherboard, then connect the fans to the FAN HUB Through the proprietary software of the motherboard, you can adjust the speed of ALL the fans connected to the FAN HUB simultaneously. 2- Fans with automatic PWM regulation with CPU temperature: With the cable supplied, connect the FAN HUB to the CPU connector on the motherboard, then the CPU fan to the FAN HUB in the CPU-5 connector (red) The motherboard will automatically adjust the speed of ALL the fans connected to the FAN HUB simultaneously, as if they were those of the processor. There is a 3M adhesive for easy fixing on a PC or other. Content: - FAN HUB PWM - 4 PIN cable - Fixing adhesive Legal Disclaimer ATTENTION Make the connections to the PC off and make sure of the wiring. Check the absorption of the components and that there are no overheating. - We do not assume the responsibility of repaying failures resulting from breakages or malfunctions of components other than those sold by us -
